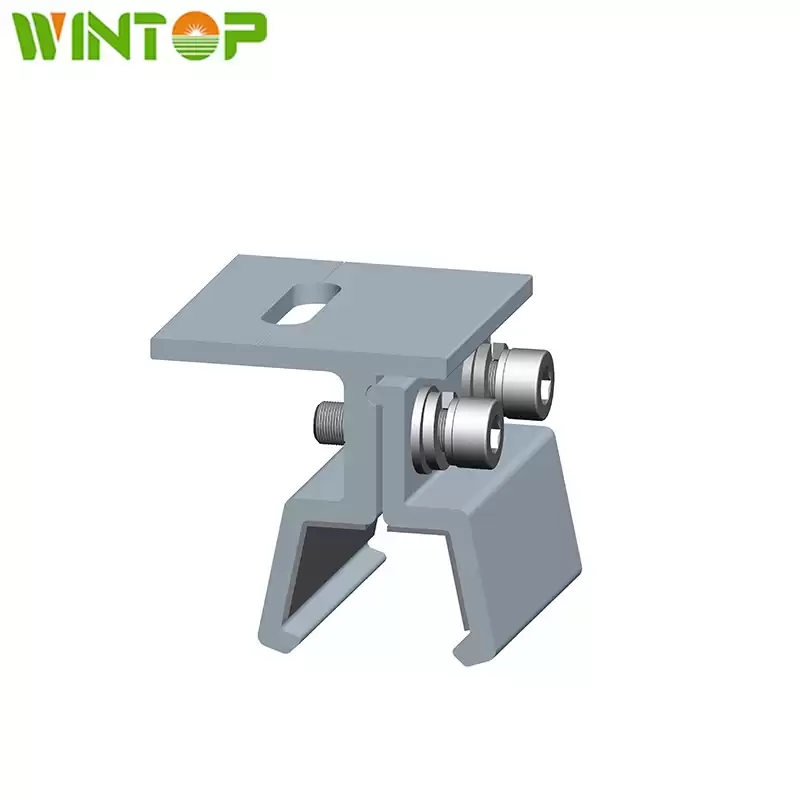

Solar Racking Component Tin Roof Clamp
This roof clip is suitable for tin roofs, can be used with L feet, or can be directly installed with middle and end clamps.

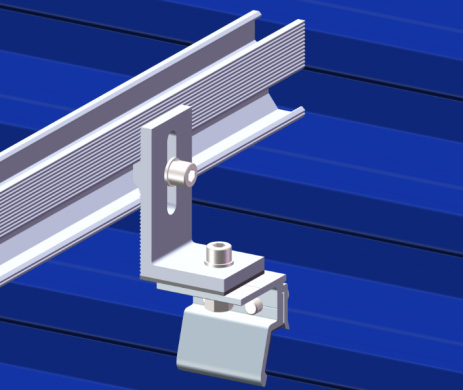

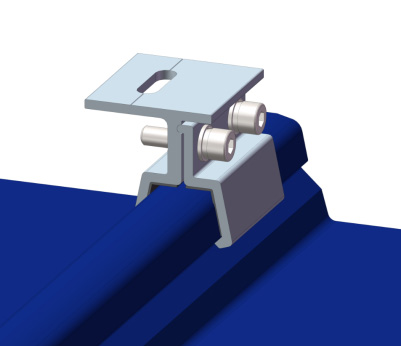

Its installation and assembly diagram is as follows:
The material and quantity of its components are as follows
|
Name
|
Roof clamp accessories 1
|
Roof clamp accessories 2
|
flat washer
|
Rubber mat
|
Hexagon socket head bolt
|
spring washer
|
|
Size
|
60mm
|
60mm
|
M8
|
L60xW30xT1
|
M8x25
|
M8
|
|
Quantity
|
1
|
1
|
2
|
2
|
2
|
2
|
Material
|
Aluminium
|
Aluminium
|
SUS304/316
|
EPDM
|
SUS304/316
|
SUS304/316
|
