| Product name |
09# Horizontal Flat Tile Hook |
| Model Number |
EG-TR-SH06 |
| Installation Site |
Tile Roof |
| Surface Treatment |
Sandblasted |
| Warranty |
12 years |
| Snow Load |
1.4KN/M² |
| Wind Speed |
60M/S |
| OEM Service |
Avaliable |
Product Description
The horizontal flat tile hook is suitable for flat tile roofs and can be used with H-shaped rails or 40 rails. Its single adjustment can be better suitable for different flat tile roofs and adjust the installation error. Different bolts and widths are selected according to the type of bottom beam Choose different hooks.

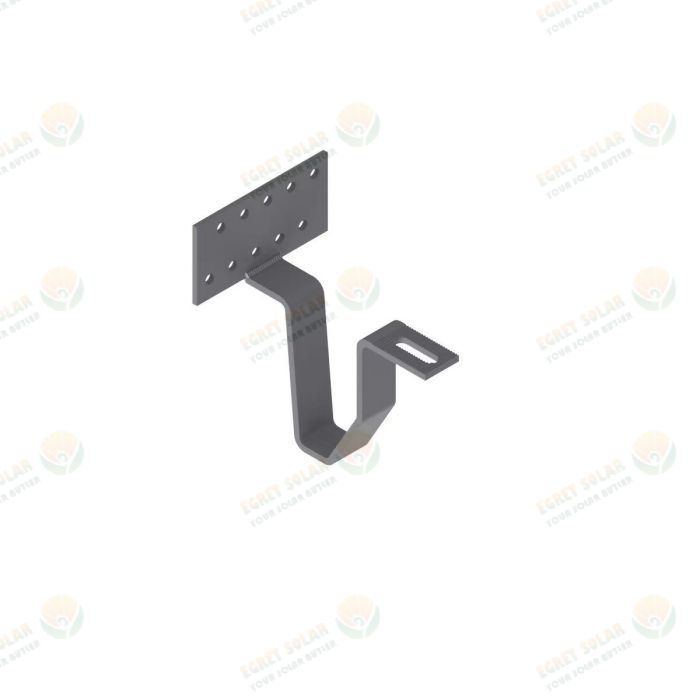

Product Show

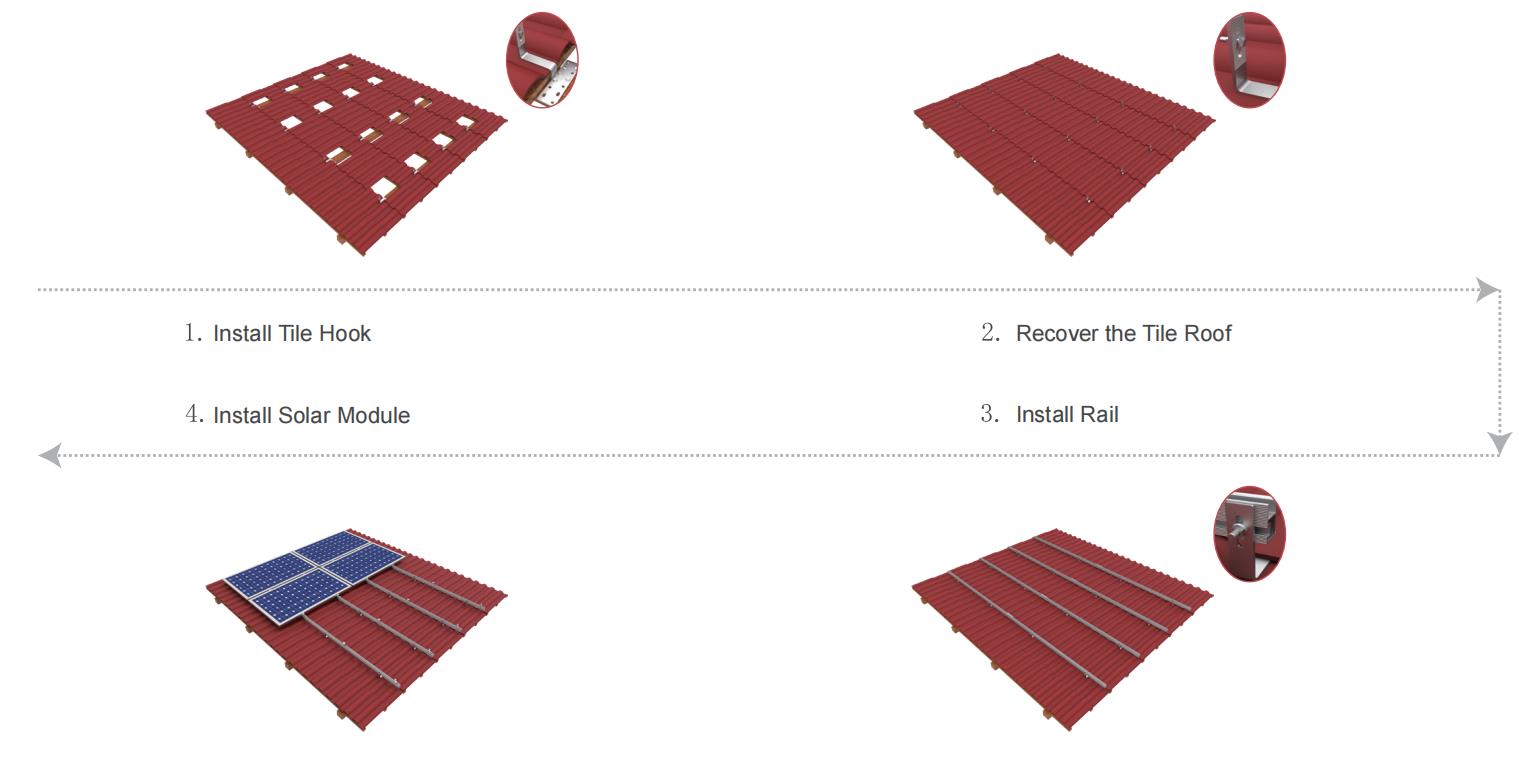

Installation Steps

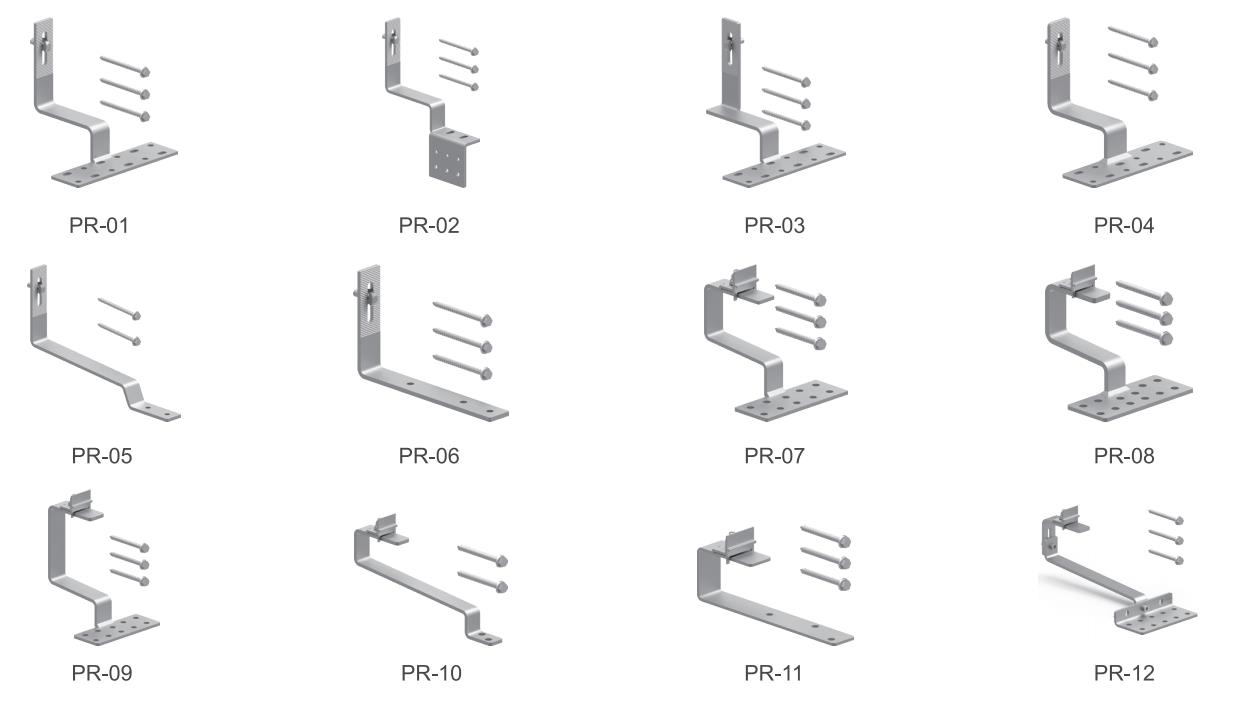

Others Model Hook
FAQ
1.The information of the solar panel:L:______mm,W:______mm,T:_____mm;Power:______w,Frame or Frameless?Panel array:row______column______
2.Wind Load:______m/s 3.Snow Load:______cm 4.Installation Angle:______degree,Portrait or Landscape? 5.Where is Solar panel installed? Salinity control or not?
1)Ground
Structure Type:Common Ground,Carport or Solar Farm?
Foundation:Concrete,Ground Screw,C Pile or U Pile?
Minimum Ground Clearance:______mm
Earth report or not
2)Roof
Roof Type:Tin Roof,Tile Roof or Concrete?
Fixed Solution:Hook,L foot,Clamp,Ballast or Tripod?
Purlin Span:______mm
