Solar Street Light LiFePO4 Battery 12V 80Ah with Solar Panel

-Easy to monitor system status,Remote monitoring

-Efficient MPPT algorithm, tracking efficiency 99.5%+.

-Prolonged life of LiFePO4 battery up to 6,000 times.

-With solar panels, LED lamps and high efficiency solar integrated controller



Product Name

Solar Street Light LiFePO4 Battery 12V 80Ah  with Solar Panel



Highlight

Easy to monitor system status

Efficient MPPT algorithm, tracking efficiency over 99.5%.

High definition LCD display

Remote monitoring

Prolonged cycle life of LiFePO4 battery up to 6,000 times.

With solar panels, LED lamps and high efficiency solar integrated controller

Made of lithium iron phosphate cells 80Ah


Technical Specification


MODEL

  OSN-SSL-1280L

PERFORMANCE

Rated Capacity

80 Ah

Nominal Voltage

12 V

Discharge Ending Voltage

10 V

Charging Limited Voltage

14.6V

Recommend Charging Current

16A

Max. Charging Current

80 A

Max. Continuous Discharging Current

80 A

Max. Discharging Current

160 A

Containing Cell

3.2V 80Ah

Cycle Life

1000 cycles @85% DOD (dependant on actual DOD, usage & temp.)

Discharge Rate

1C

Response Time

> 1ms

MECHANICAL SPECIFICATIONS

Dimensions (W*D*H)

260(L)*185(W)*95(H)


Weight

3.4 Kg

Enclosure

Plastic Case

OTHER

Operating Temperature

Charging: 0 to +45°C Discharging: -20 to +60°C

Storage Temperature

-20 to +60°C

Humidity

5% to 95% Relative Humidity (Non-condensing)

Warranty

3 years



Application







As the leading manufacturer of deep-cycle batteries, OSN POWER provides reliable Renewable Energy Batteries. With 10 years experience, we devote to manufacture the highest quality, deep-cycle batteries available in the industry with deep-cycle technology.

Any interests,please contact us at service@osnpower.com or tel +86-18575517952

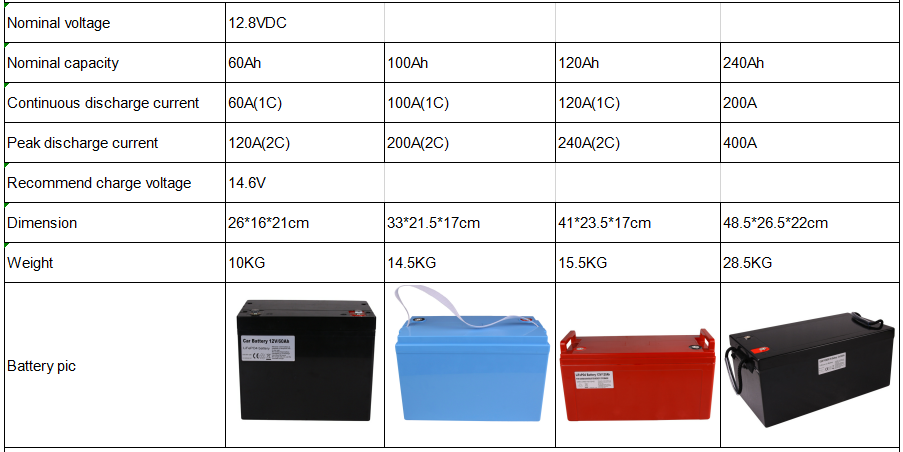

12V related LiFePO4 battery packs

12V 100Ah battery
