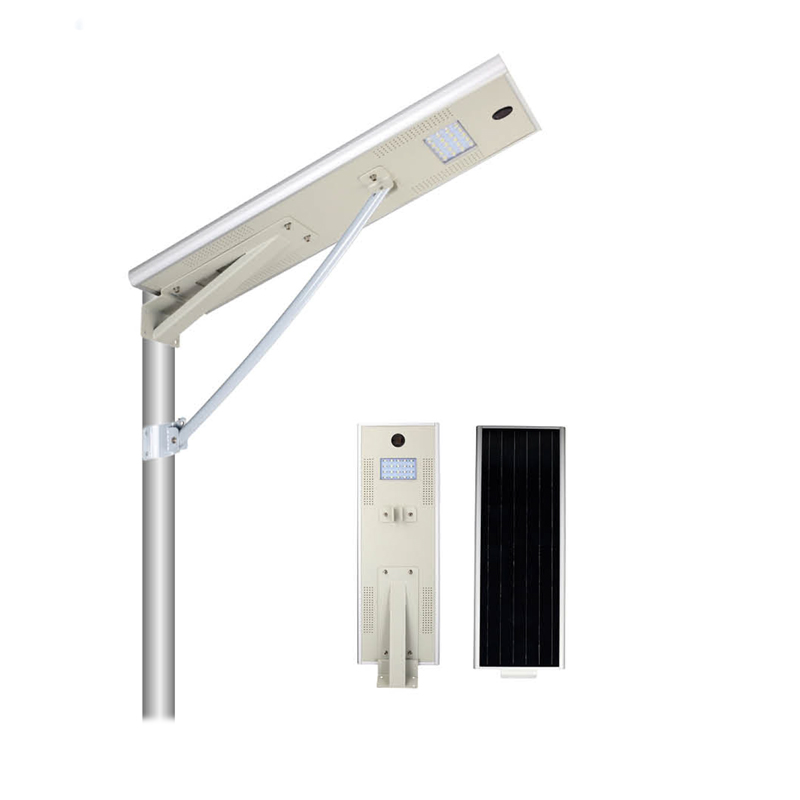

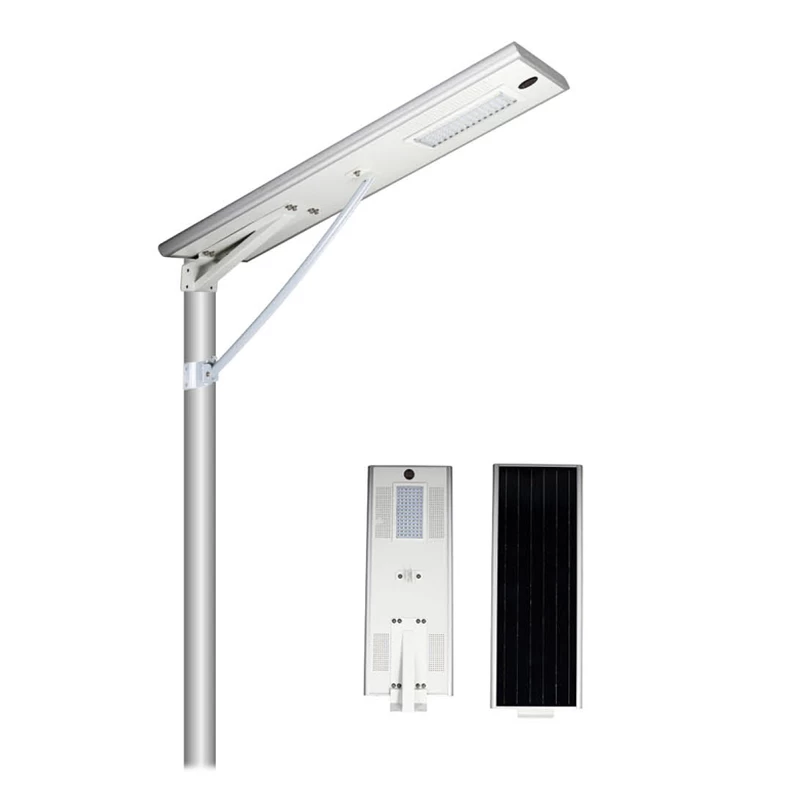

Solar System Led Street Light 30W
Remark:
-
Shipping date will be 1-4 weeks depends on quantity after confirmed the payment.
-
If any other special requirement,please inform us before you confirm the order.
-
ZH driver 3 years warranty, the others 5 years warranty, Photos only for reference.
-
Price in Grey color are optional but not standard.
-
Application:
-
Project lighting, outdoor use. IP65
-
Car Park, Garden, Park, Sport Yard, Plaza
-
Replacement for sodium lamp
-
Datasheet:
|
GD-BMSL-002-50W
|
50W
|
1、Solar panel：Monocrystalline Silicon-80W
2、Led chips：Bridgelux-45ML
3、Luminous flux ：5500~6000LM
4、Lithium battery：12V 33AH 422.4WH
5、Mounting Height ：6~7m
6、Designed Backup
Days：Around 3~4
overcast days
7、Working temperature：-30℃~60℃
8、Charge Time：7hours
9、Certification：CE,ROHS,IP65
10、Sensor：PIR, Light dimmer,Time dimmer
|
1.Product size:
1180X440X130mm
2..N.W/G.W:18.8kg /21.8kg 3.Packing measure:
1240X490X190mm
4.Qty/Ctn:1 set/ctn
5.Container Loading:
246sets/20', 600sets/40HQ
|
|
GD-BMSL-002-60W
|
60W
|
1、Solar panel：Monocrystalline Silicon-80W
2、Led chips：Bridgelux-45ML
3、Luminous flux ：6600~7200LM
4、Lithium battery：12V 36AH 460.8WH
5、Mounting Height ：6~7m
6、Designed Backup
Days：Around 3~4
overcast days
7、Working temperature：-30℃~60℃
8、Charge Time：7hours
9、Certification：CE,ROHS,IP65
10、Sensor：PIR, Light dimmer,Time dimmer
|
1.Product
size: 1180*440*130mm
2..N.W/G.W:18.8kg /21.8kg
3.Packing
measure:1240*490*190mm
4.Qty/Ctn:1 set/ctn
5.Container Loading: 246sets/20', 600sets/40HQ
|
|
GD-BMSL-002-80W
|
80W
|
1、Solar panel：Monocrystalline Silicon-110W
2、Led chips：Bridgelux-45ML
3、Luminous flux ：8800~9600LM
4、Lithium battery：12V 45AH 576WH
5、Mounting Height ：7~9m
6、Designed Backup
Days：Around 3~4
overcast days
7、Working temperature：-30℃~60℃
8、Charge Time：7hours
9、Certification：CE,ROHS,IP65
10、Sensor：PIR, Light dimmer,Time dimmer
|
1.Product
size: 1278X525X130mm
2..N.W/G.W:26.00kg /30.00kg
3.Packing measure:1340X575X190mm
4.Qty/Ctn:1 set/ctn
5.Container Loading: 186sets/20', 453sets/40HQ
|
|
GD-BMSL-002-100W
|
100W
|
1、Solar panel：Monocrystalline Silicon-130W
2、Led chips：Bridgelux-45ML
3、Luminous flux ：10000~11000LM
4、Lithium battery：12.8V/60AH， 768WH
5、Mounting Height ：8~10m
6、Designed Backup
Days：Around 3~4
overcast days
7、Working temperature：-30℃~60℃
8、Charge Time：6hours
9、Certification：CE,ROHS,IP65
10、Sensor：PIR, Light dimmer,Time dimmer
|
1.Product
size: 1436*525*130mm
2.N.W/G.W:29.00kg /30.00kg
3.Packing measure:1495*575*190mm
4.Qty/Ctn:1 set/ctn
5.Container Loading: 170sets/20', 410sets/40HQ
|
