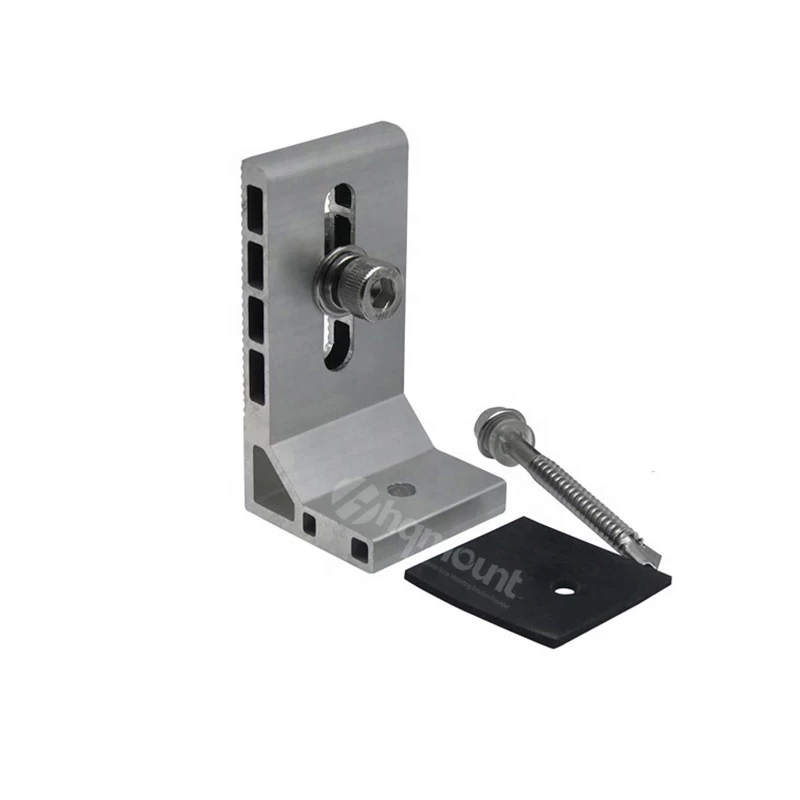

Solar Tin roof mounting structure L feet is designed for residential and commercial applications.We make sure enables surprisingly quick and easy installation for every roof.Outstanding quality of stainless steel and aluminum ensure the most durable component.
Features
• Quick installation
• Professional design
• Safety Guarantee
• Preservative Treatment
|

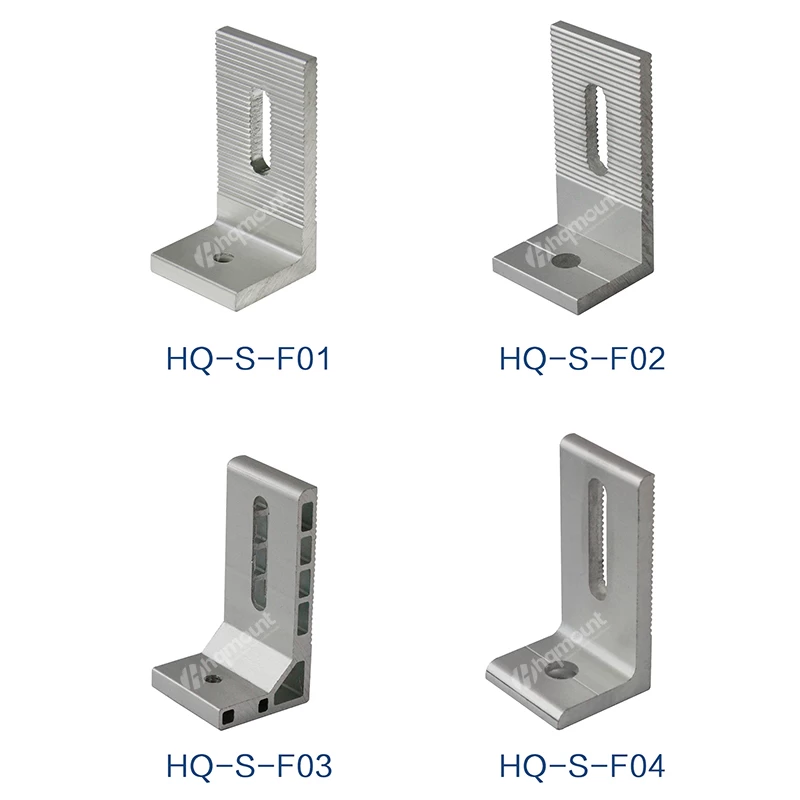

Product Name
|
Solar L feet.
|
|
Material
|
Aluminum 6005-T5.
|
|
Color
|
Sliver or black.
|
|
Specification
|
40mm,customized.
|
|
Wind speed
|
60m/s
|
|
Snow load
|
1.4KN/m2
|
|
Warranty
|
12 years warranty,25 years life time
|
|
Standard
|
JIS C8955:2011 and AS/NZS 1170
|
Installation of Solar L Feet Mounting Structure

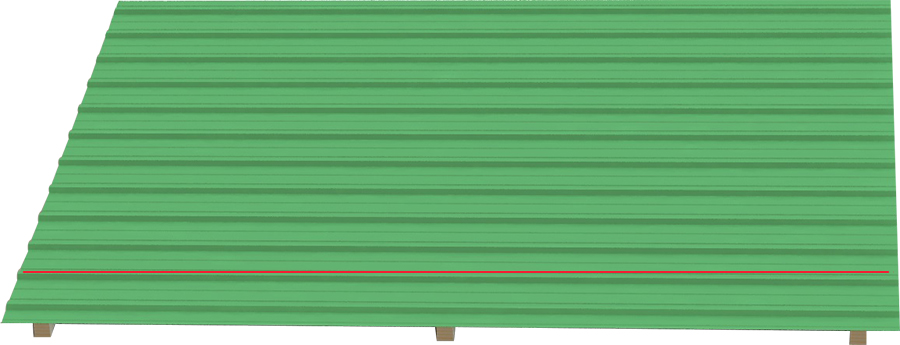

Step 1 It is recommended to mark a chalk line so
that L feet could fixed in line.

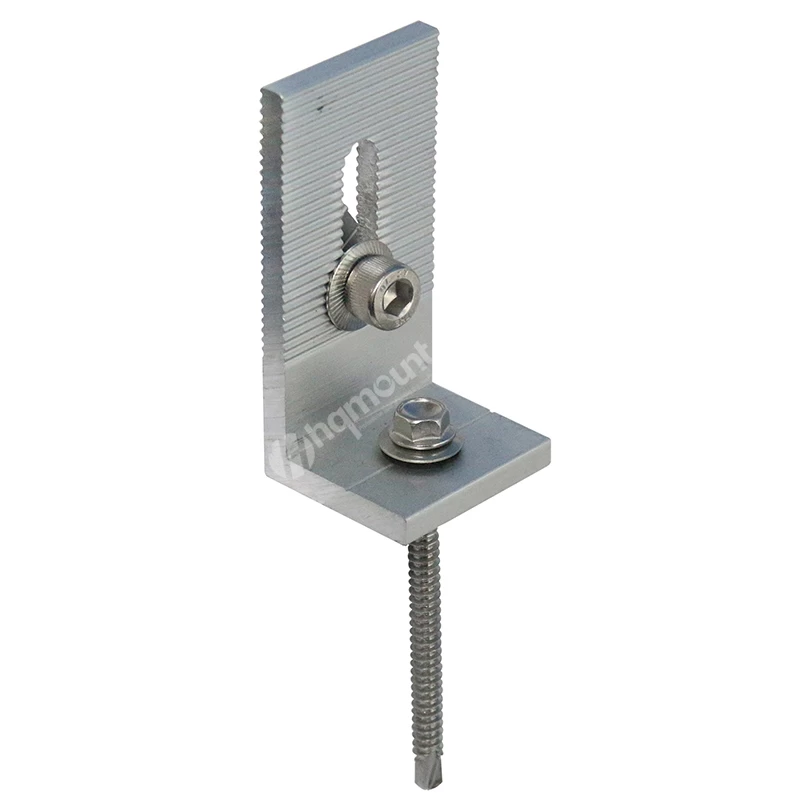

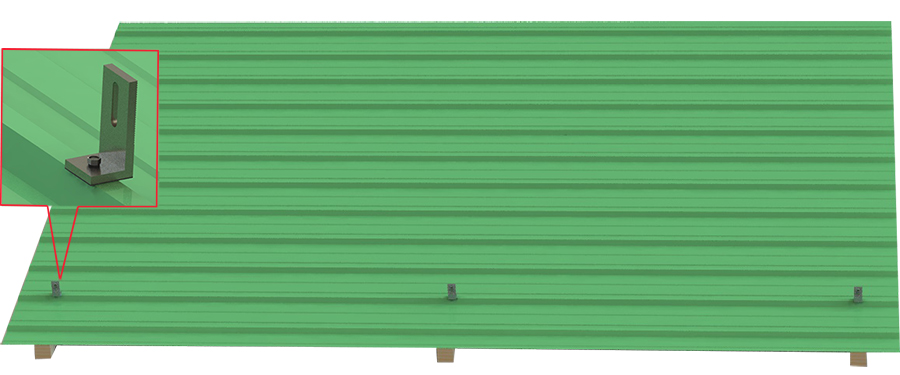

Step 2 Fasten the L feet onto the roof with
self-tapping screw, and align the L feetaccording to mark line.

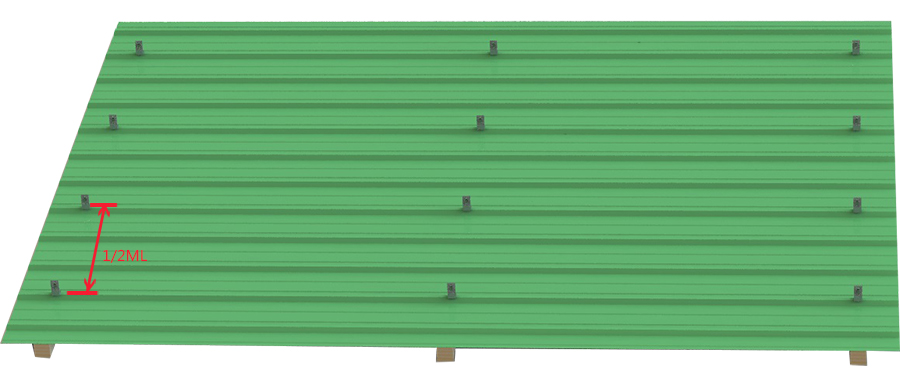

Step 3 Repeat step 1 and 2, fasten the
rest of L feet. Please be noted that the space between adjacent
rows should be half length of solar panel.

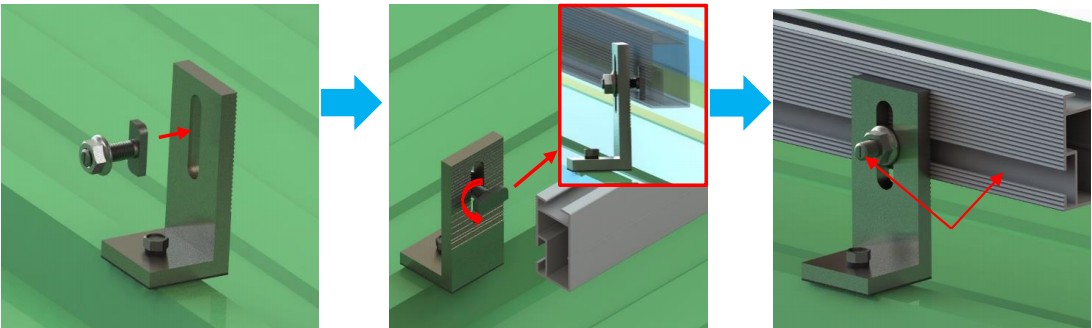

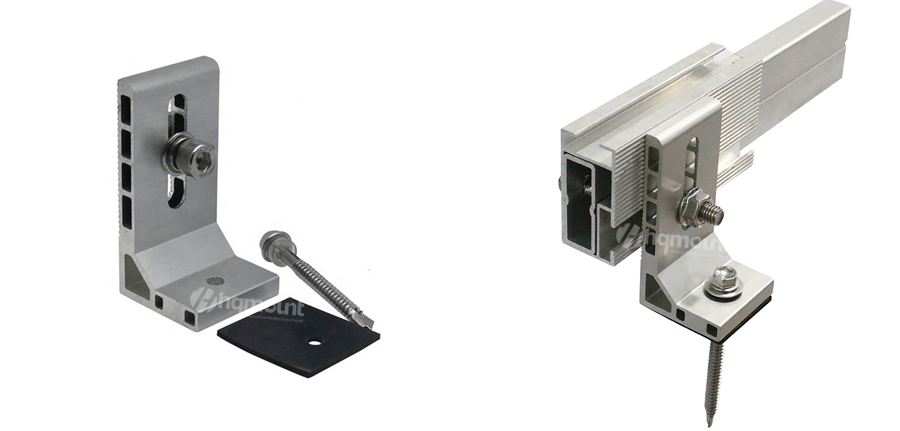

1)Plug the bolt through the groove of L feet.
2)Attach the bolt into the groove of rail, rotate
the bolt to engage the groove.
3)Fasten the bolt to fix the rail, make sure the mark at the bottom of the
bolt is vertical to the groove
Packing
Packing Details : Packing, Solar L feet,
84pcs/carton
Delivery Details
: 5-7 days for samples.others depends on the actual quantities
