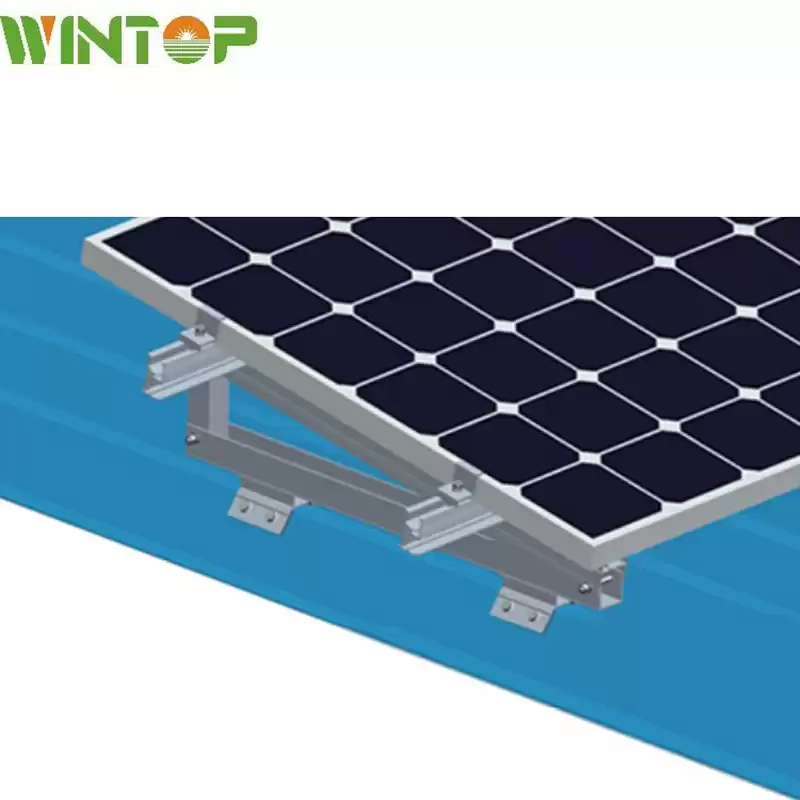

Solar Tripod Mounting System for Tin Roof

Solar tripod mounting system for tin roof is Suitable for the application of the type of iron roof.


  • Warranty10 years
  • Fastener MaterialStainless steel SUS304
  • Design standardAS/NZS1170,JIS C 8955-2017
  • Bracket materialAL6005-T5(Anodized Oxidation)
  • Applicable module typeMono-crystalline, Poly-crystalline, Double wave and Thin film
  • Module OrientationHorizontal, Vertical
  • Distance from module lowest point to the groundUp to request
  • Snow load1.4KN/m²
  • Wind load60m/s(216kmh/133mph)
  • Installation angle0°-60°
  • Installation foundationTin roof
  • Installation locationRoof
  • BrandWintop

Solar Tripod Mounting System for Tin Roof


Product Description

Tin roof tripod mounting system is designed for residential and commercial applications.We design fixtures according to roof shape and size to ensure amazingly fast and easy installation for each roof.The tripod has a professional structural design to ensure the strength of the bracket system.


Technical Parameters

Installation location Roof
Installation foundation Tin roof
Installation angle 0°-60°
Wind load 60m/s(216kmh/133mph)
Snow load 1.4KN/m²
Distance from module lowest point to the ground Roof height
Applicable module type Mono-crystalline, Poly-crystalline, Double wave and Thin film
Module Orientation Horizontal, Vertical
Design standard AS/NZS1170,JIS C 8955-2017
Bracket material AL6005-T5(Anodized Oxidation)
Fastener Material Stainless steel SUS304
Warranty&Duration 10 years&More than 20 years

Features & Benefits

  1. Professional structural design to ensure the strength of the bracket system;
  2. Lightweight stand, good flexibility and strength;
  3. Flexible and easy component installation, saving labor cost and installation time;
  4. Various installation methods, suitable for trapezoidal tin roof;
  5. For commercial or residential use.

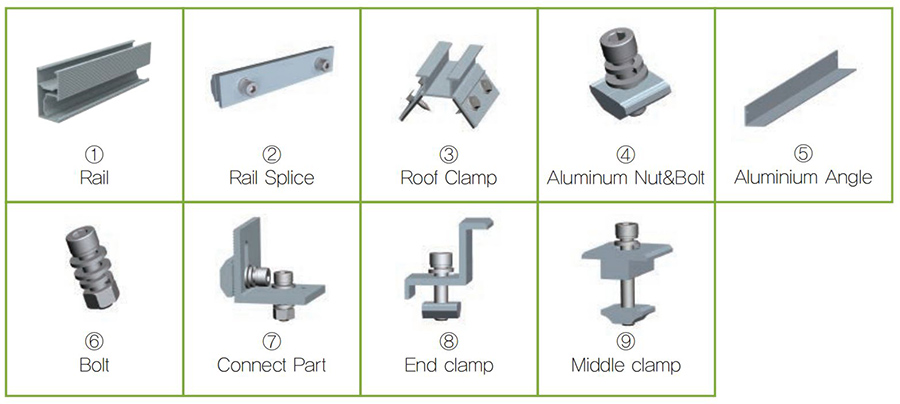

Components

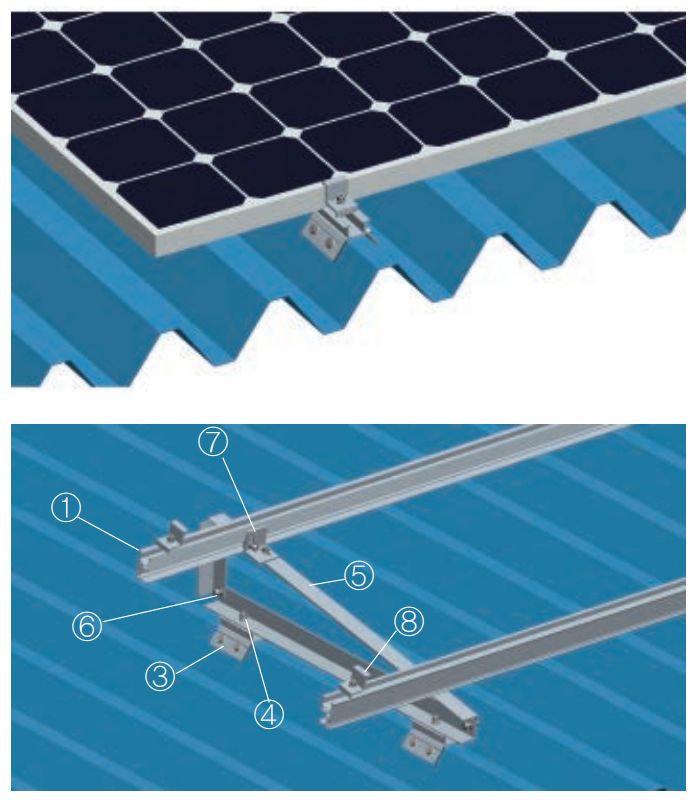

Tin roof mounting system

Tin roof mounting system part


Project

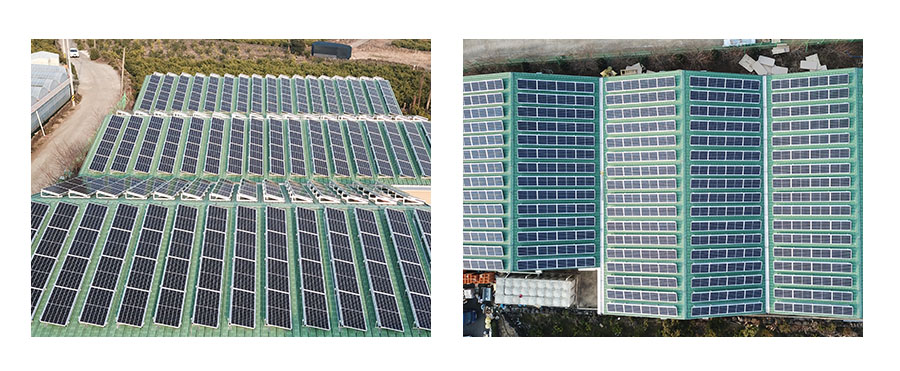

solar tin roof mounting case


Certificate







QC

WinTop Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.We have strictly quality control 6S for all our products.


FAQ


(1) Will the solar panels cause my roof to leak?

No, all of our mounting solutions are professionally engineered, guaranteed to ensure the integrity of your roof.To prevent water intrusion on shingled roofs, we use metal flashing kits that create a watertight seal every time.

(2) Where is your factory located?

Our factory address is : No.585, HongTang Road, TongAn District,Xiamen,City,Fujian,P.R.China.

(3) How can I get to your factory?

When you arrive in the Xiamen International Airport,then we can pick you up there,and next visit our head office and factory.

(4) If i will need to stay in your place for few days, is that possible to book the hotel for me?

It’s always my pleasure, hotel booking service is available.

(5) What is your minimum order quantity, can you send me samples?

Our minimum quantity is 1 set, and Yes it is acceptable to send you samples if you need,then you just need to pay the shipping fee of the samples.If you need,please feel free to send your inquiry to me.
