Solar Pumping System Series
Solar Pumping System Series are applied to daily use (ground water), agricultural irrigation, forestry irrigation, desert control, pasture animal husbandry, water supply for islands, wastewater treatment engineering, and so on.
Solar Pumping System is dispensed with energy storing devices, and stores water instead of electricity. It improves the reliability of the device, at the same time, it lowers the construction and maintenance costs of the system dramatically.In recent years, with the promotion of the utilization of new energy resources, Solar Pumping System is more and more used in municipal engineering, city centre squares, parks, tourist sites, resorts and hotels, the landscapes and fountain systems in the residential areas.
Product Parameters
|
Solar Pumping
System Model
|

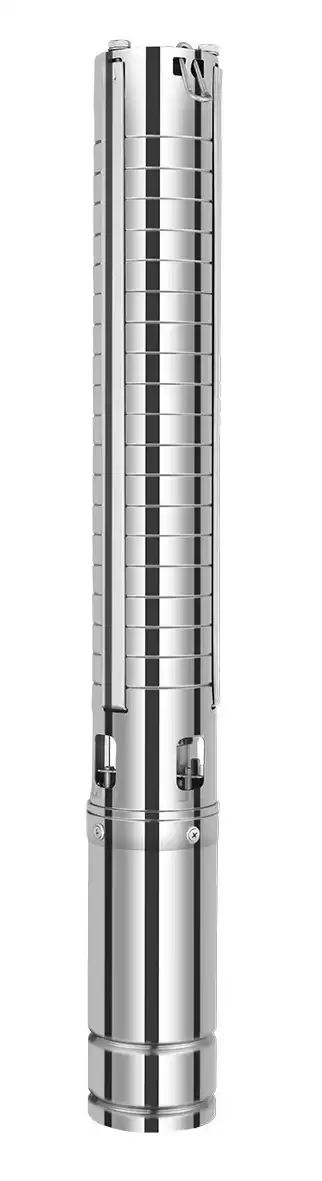

Pump Spec.
|
Max Water Head
|
Max-flow
(m3/h)
|
Inlet/Outlet
|
Impeller size(mm)
|
Max. DC
Input Voltage
|
Recommended
MPP Voltage
|
|
YP1.5-71
|
3PH 380V 50Hz
|
18m
|
14m³
|
1.5"x 1.5"
|
115/5.0
|
440VDC
|
150-400VDC
|
|
YP2-80
|
3PH 380V 50Hz
|
21 m
|
22 m³
|
2"x 2"
|
128/8.0
|
440VDC
|
150-400VDC
|
|
YP3-90
|
3PH 380V 50Hz
|
16 m
|
55 m³
|
3"x 3"
|
120/16.0
|
440VDC
|
150-400VDC
|
