Solar Waterproof Aluminum Carport Metal Sheet Waterproof Carport

Metal Sheet  Waterproof Carportm




Aluminum Carport for home or commercial use


Popular New Solar Carport Mounting System-Waterproof

EmperySolar Carport Mounting System is applicable to be the PV array system on the open field

It is made of 100% aluminum for mounting on concrete strip foundations or ground screw. It is light and strong, graceful and smart. In our Carport Mounting System, the Beam is pre-assembled, the size of the leg and the B-Rail is plan and machined on factory to eliminate the weld and cut on installation site to save your time and cost.
According to the practical requirement, The system could be planed and customized on the factory to eliminate the welding and cut onsite to save your time and money.


PRODUCTS DETAIL

Material:  AL 6005-T5

Surface:  Anodized
Anti-corrosive: Anodized
Warranty: 15 Years and up 20 years service life
Standard: AS/NZS1170
Color: Natural or Customized
Brand name: Emperysolar
Model number: EPR-CP
Spec: Customized
Install site: Open ground
Module orientation: Vertical or horizontal

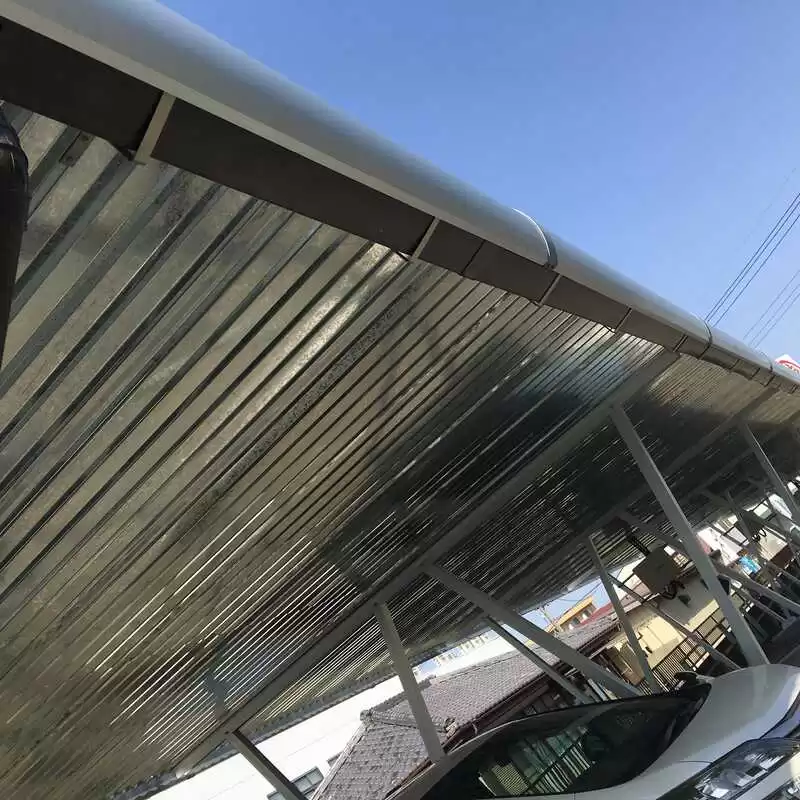

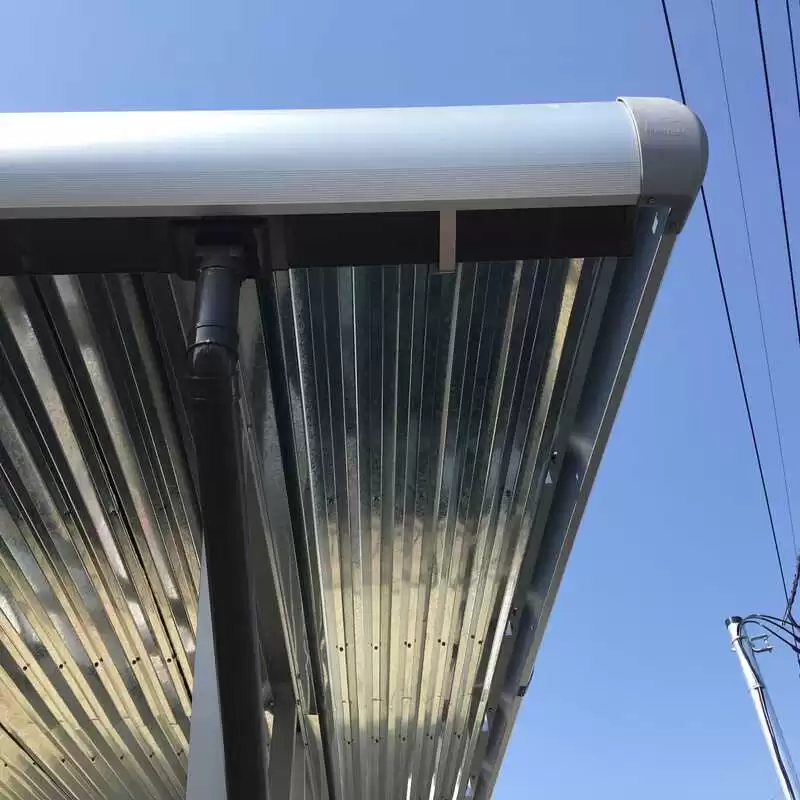

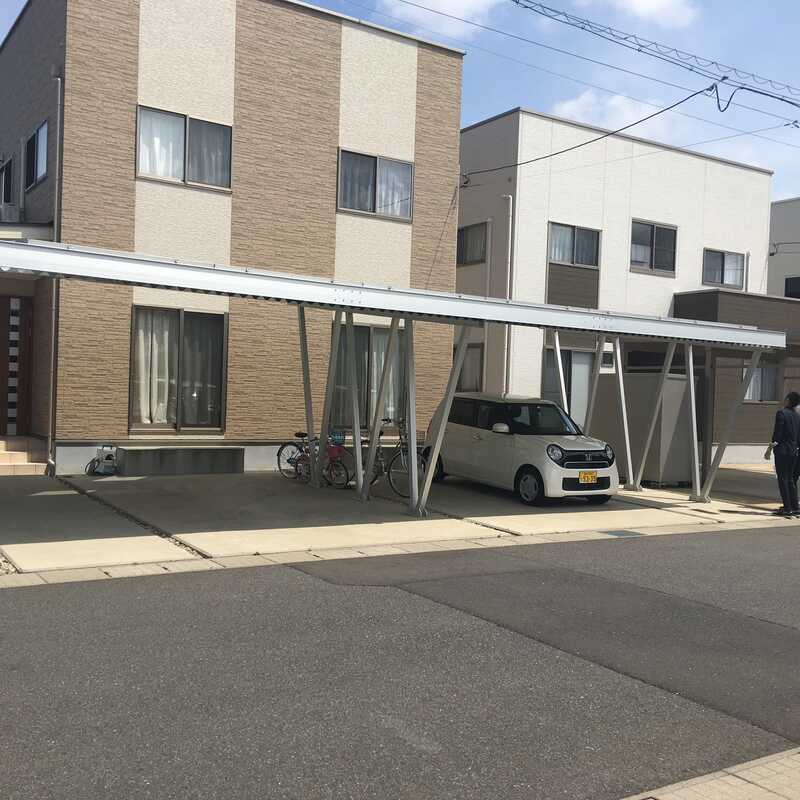

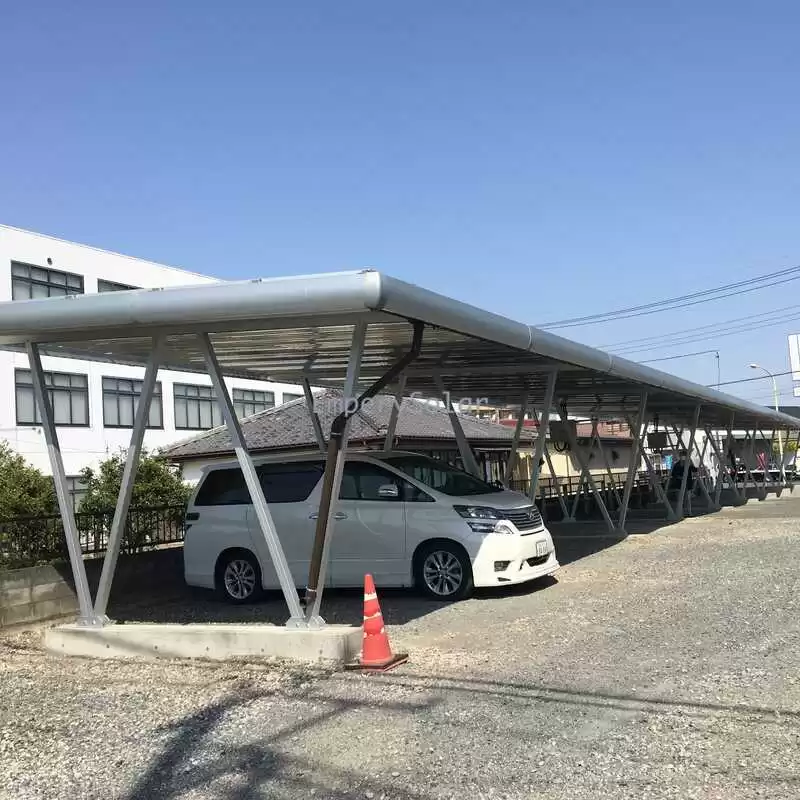

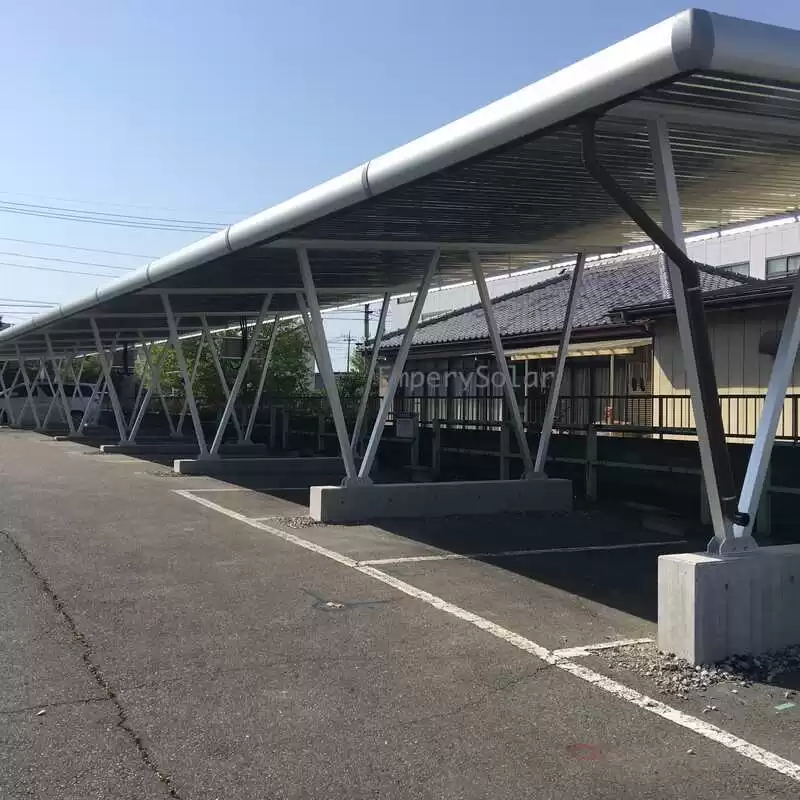

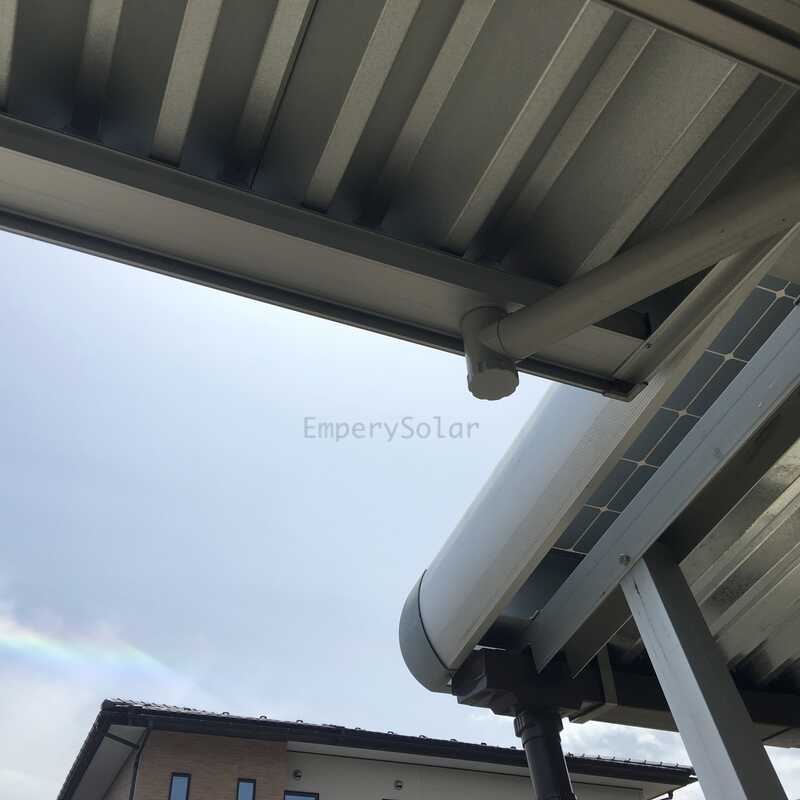

EmperySolar Carport Mounting System

EmperySolar Carport Mounting System


TECHNICAL INFORMATION

Install site:For carport or sight seeing vehicle

Tilt Angle:5~15deg
Max Wind Speed:<60m/s
Snow Load:<1.4KN/㎡
Standard:AS/NZS 1170
Material:Aluminum alloy Al6005-T5& Stainless steel 304
Anti-corrosive:Anodized
Color:Natural or Optional
Warranty:15 years warranty and up 20 years service life.


BENEFITS

Easy Installation
Parts have been high pre-assembly to save you much time and reduce installation cost.
Excellent Adaptability
Engineered To High Standard Empery Solar mounting system for farmland is made to the highest standard,safe and strong its designed to Comply with AS/NZS 1170.
Maximum Lifespan
All components are made of qualified aluminum and stainless steel.The high corrosion resistance guarantees the maximum possible lifespan and it is also completely recyclable.
15-Year Warranty
A 15-year warranty sets you free from worrying about maintenance for material and structure.


Packaging & Transportation

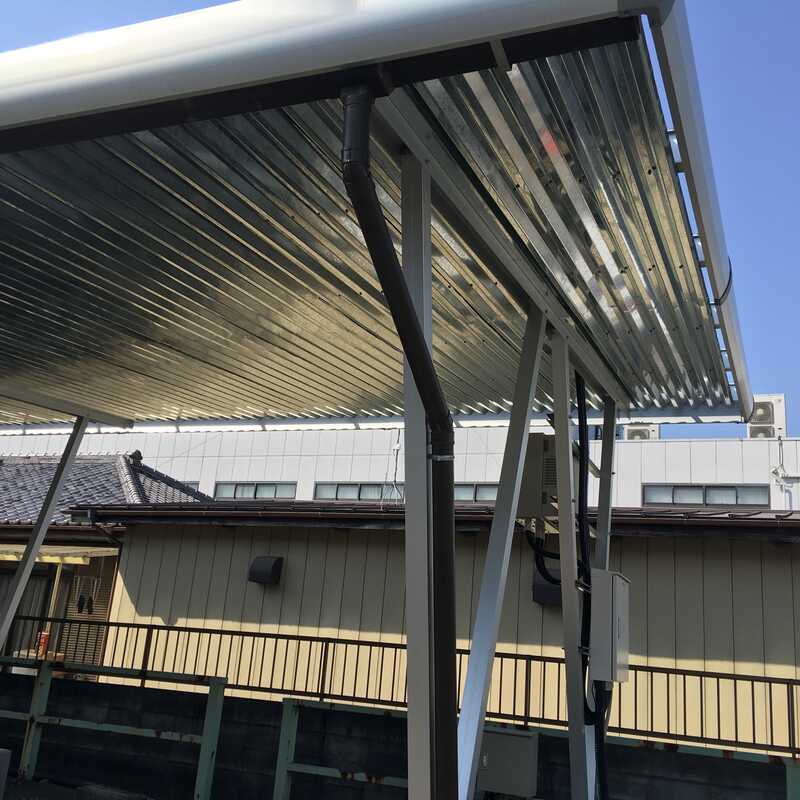

EmperySolar Carport Mounting System



Product Tags non waterproof carport          Complete waterproof solar carport          Aluminum Waterproof Solar Carport          Waterproof carport solar racking          Carport System Mounting          Simple waterproof carport
