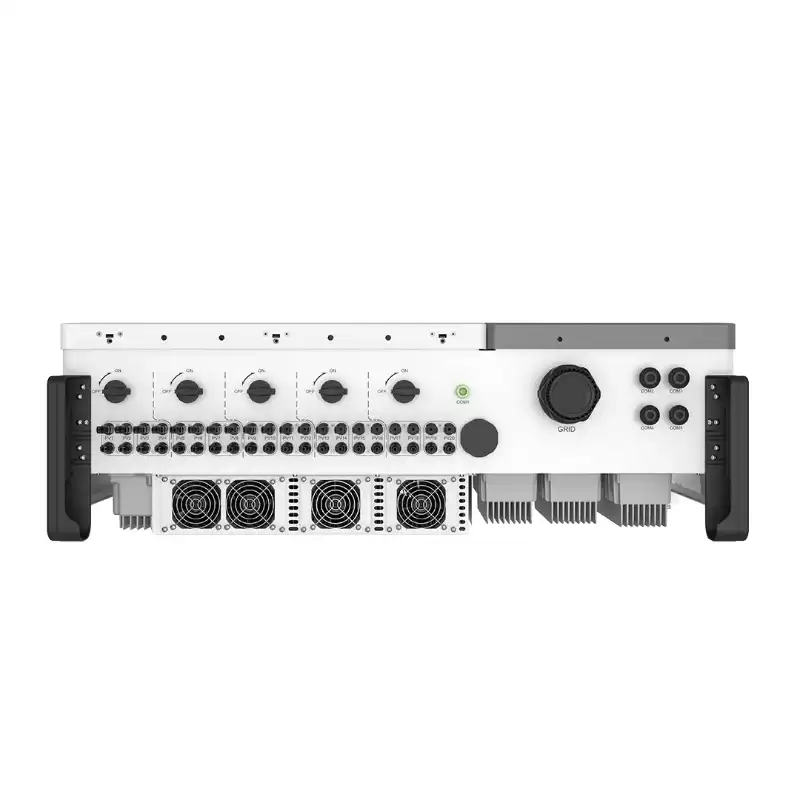

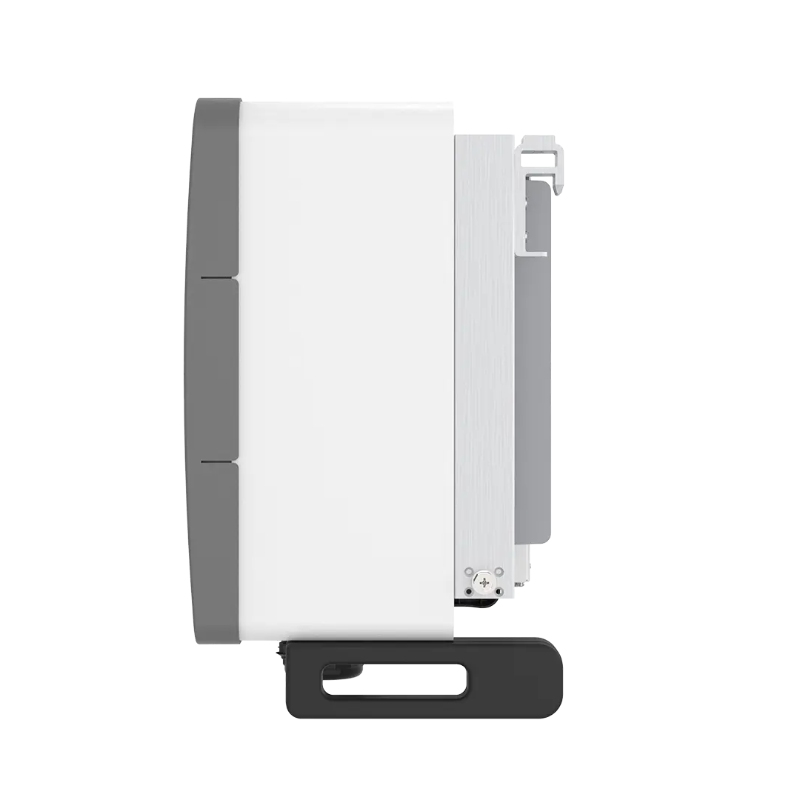

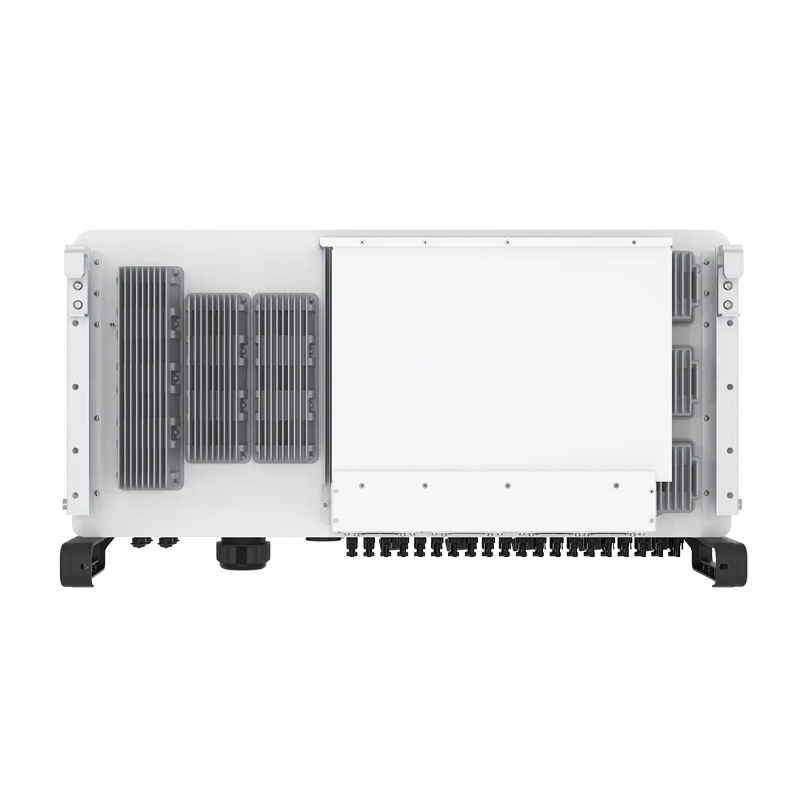

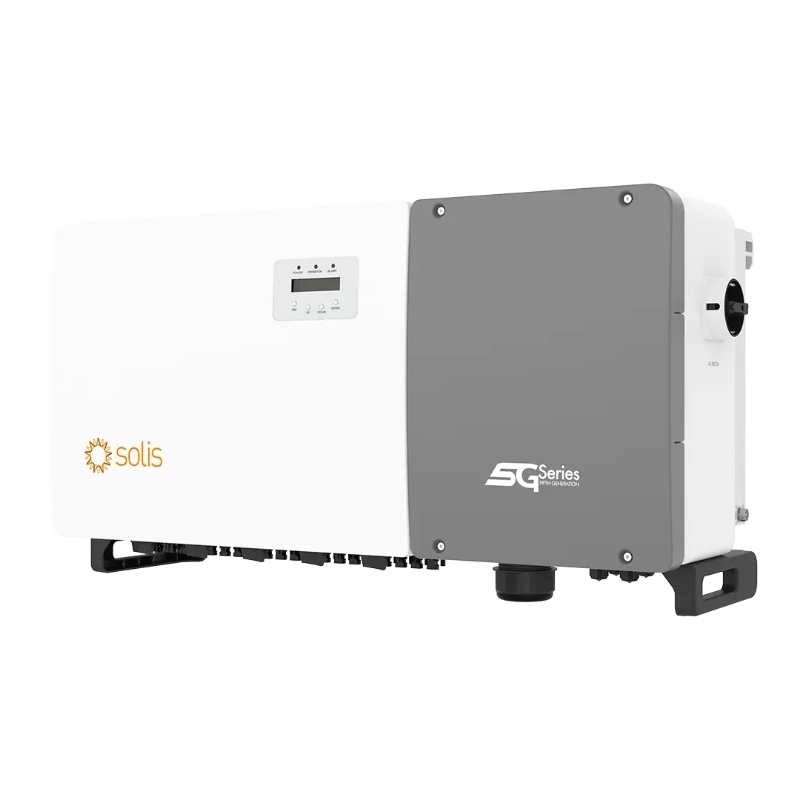

Solis 100kW / 110kW / 125kW On-Grid Solar Inverter

Reliable High-Power Inverter for Commercial & Industrial Solar Systems



Maximize your solar energy output with the Solis 100kW–125kW on-grid solar inverter, engineered for large-scale commercial and industrial PV installations.

This three-phase inverter delivers stable, high-efficiency performance, ensuring your solar project operates reliably under variable sunlight and grid conditions.



Three Phase Grid-Tied Inverter Leading Features

*10 MPPTs, max. efficiency 99.0%                                                                                                *IP66

*High power tracking density 100 MPPT/MW                                                                              *Nighttime PID recovery function (optional)

*Intelligent string monitoring, smart I-V curve scan                                                                      *AFCI protection, proactively reduces fire risk

*Remote firmware upgrade with simple operation                                                                        *DC side supports "Y" connector



Performance Parameter

  Models 100K     110K 125K-HV
  Input DC
  Max.input voltage     1100V
  Rated voltage 600V 720V
  Start-up voltage     195V
  MPPTvoltage range    180-1000V
  Max.input current    10×32A
  Max.short circuit current    10×40A
  MPPTnumber/Max.input strings number    10/20
  Output AC
  Rated output power 100 kW     110 kW 125kW
  Max.apparent output power 110 kVA     121kVA 137.5KVA
  Max.output power 110 KW     121kW 137.5kW
  Rated grid woltage 3/N/PE, 220 V / 380 V, 230 V / 400 V 3/PE, 480 V
  Rated grid frequency 50 Hz/60 Hz
  Rated grid output current 152.0A/144.3A 167.1A/158.8A 150.4A
  Maxoutput current 167.1A     183.8A 165.4A
  Power factor    >0.99 (0.8 leading-0.8 lagging)
  THDi <3%
  Efficiency
  Max.eficiency 98.7%    99.09%
  EU efficiency 98.3% 98.6%
  Protection
  DCreverse-polarity protection    Yes
  Short circuit protection    Yes
  Output over current protection    Yes
  Surge protection    DC Type II/AC Type II(AC Type loptional)
  GRId monitoring    Yes
  Anti-islanding protection Yes
  Temperature protection Yes
  Strings monitoring    Yes
  I/V Curve scanning    Yes
  Integrated AFCI 2.0    Optional
  Integrated PID recovery    Optional
  Integrated DC switch    Yes
  Integrated AC switch    Optional
General Data
  Dimensions(W×H×D)    1065×567×344.5mm
  Weight    91kg
  Topology    Transfomerless
  Self-consumption  (night)    <2W
  Operating ambient temperature range    -30~+60℃
  Relative humidity    0-100%
  Ingress protection    IP66
  Cooling concept    Intelligent fan-cooling
  Max.operation altitude 4000m
  Grid connection standard VDE-AR-N4105,VDE-AR-N4110,VDE V 0124,VDE V 0126-1-1,UTE C15-712-1,NRS097-1-2,G98,G99,
EN 50549-1/-2,RD1699,TOR,UNE 206006,UNE 206007-1,CEI 0-21,IEC61727,DEWA
  Safety/EMC standard IEC/EN 62109-1/-2,IEC/EN 61000-6-1/-2/-3/-4
  Features
  DC connection MC4 connector
  AC connection OT  terminal  (max.185mm²)
  Display    LCD
  Communication RS485, Optional: Wi-Fi, GPRS, PLC

Partner Brands

Sunrange Partner Brands

Why Choose the Solis 100kW–125kW On-Grid Inverter?

⚑ High Efficiency & Maximum Energy Harvesting

Advanced MPPT tracking maximizes energy production even in partial shading or fluctuating irradiance, helping businesses achieve higher ROI.



πŸ”§ Industrial-Grade Reliability

Premium components and robust thermal management ensure long-term, stable operation in harsh environments, reducing maintenance costs and downtime.



🌍 Globally Compliant & Grid Ready

Designed to meet international grid standards, this inverter guarantees smooth integration into local grids across Europe, Asia, Middle East, Africa, and Latin America.



πŸ“Š Smart Monitoring & Easy Maintenance

Built-in intelligent monitoring allows real-time system performance tracking, fault diagnostics, and remote management, making operations simple and efficient.



πŸ—οΈ Flexible for Large-Scale PV Projects

Wide input voltage and multiple MPPTs enable complex rooftop and large commercial PV system design, giving engineers and EPCs ultimate flexibility.

FAQ

1: What is an on-grid solar inverter?

An on-grid solar inverter converts DC power from solar panels into AC electricity for immediate use in commercial and industrial PV systems, ensuring efficient and reliable grid connection.



2: Is this inverter suitable for large-scale commercial solar projects?

Yes. The 100kW–125kW on-grid inverter is designed for large commercial rooftops, industrial facilities, and utility-scale PV projects requiring high power and stable output.



3: What efficiency and performance features does this inverter offer?

Equipped with advanced MPPT technology, this inverter maximizes energy harvest, maintains stable output, and reduces downtime, helping businesses achieve higher ROI.



4: Can this inverter operate under different grid standards?

Yes. The Solis on-grid solar inverter complies with multiple international grid codes, making it suitable for deployment in Europe, Asia, the Middle East, Africa, and Latin America.



5: Does Sunrange provide complete commercial solar solutions with this inverter?

Yes. As a professional Lithium Battery manufacturer and exporter, Sunrange supplies solar panels, mounting systems, lithium batteries, and turnkey PV solutions alongside the inverter.
