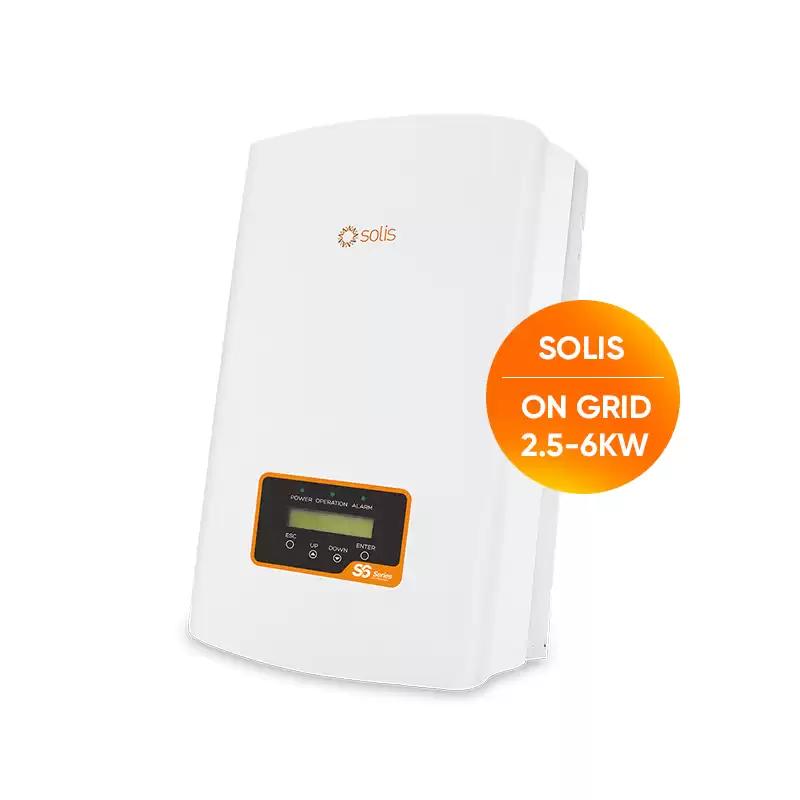

Compact and lightweight design, bring easy installation. The protection level is increased to IP66.

Integrated AFCI function can proactively reduce the risk of fire.

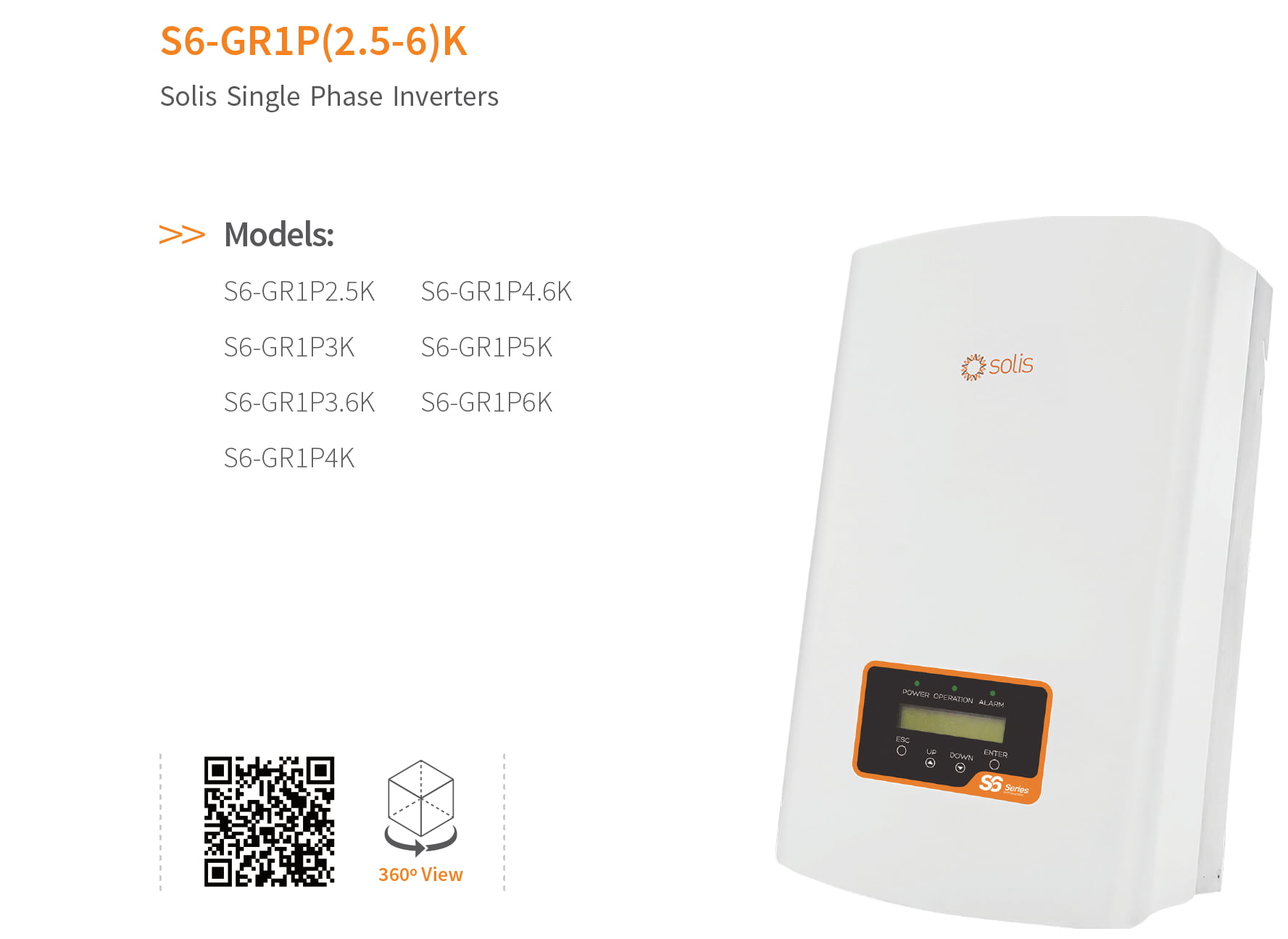

Availabe model power: 2.5K / 3K / 3.6K / 4K / 4.6K / 5K / 6K

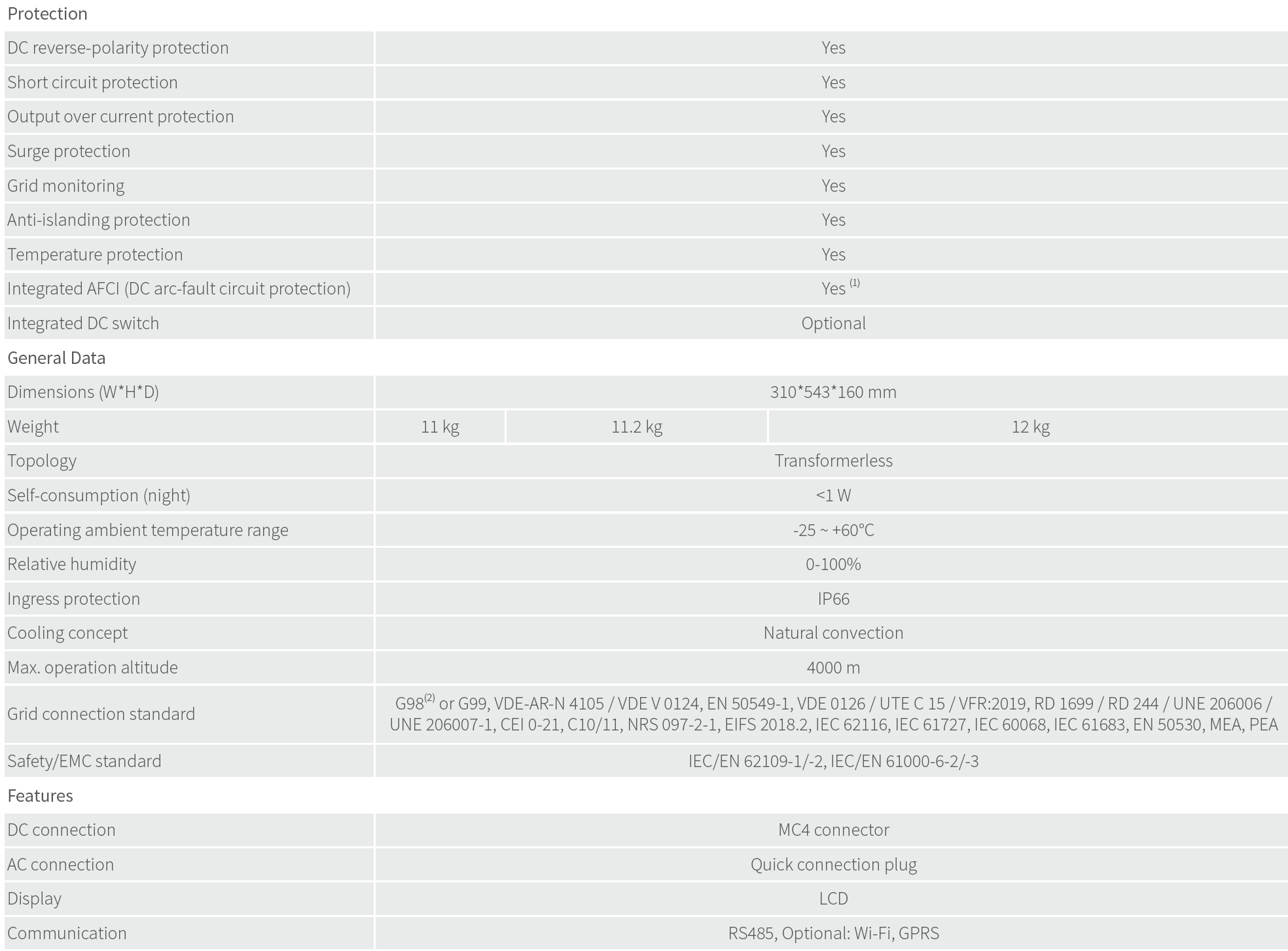

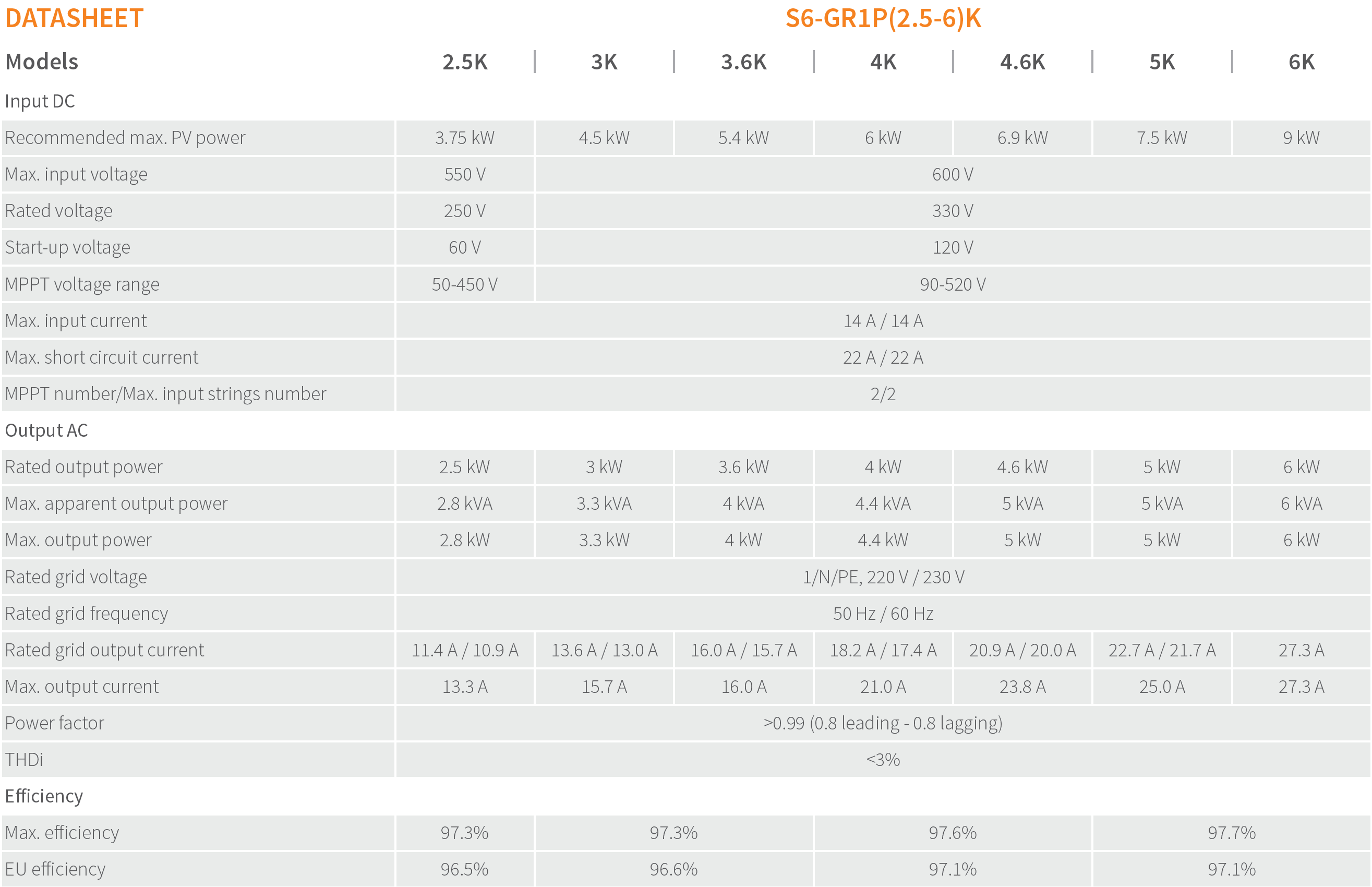

Technical Data:

Key Features / Advantages:

• Max. efficiency 97.7%

• String current up to 14A

• Super high frequency switching technology

• Wide voltage range and low startup voltage

• 2 MPPT design with precise MPPT algorithm

• Intergrated Export Power Manager (EPM)

• AFCI protection, proactively reduces fire risk

• Compact and lightweight

• Friendly and adaptable connection to the grid

Inverter Dimension:  310*543*160mm

Available Certificate:

Grid connection standard : G98(2) or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 /

UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA

Safety/EMC standard:  IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-3
