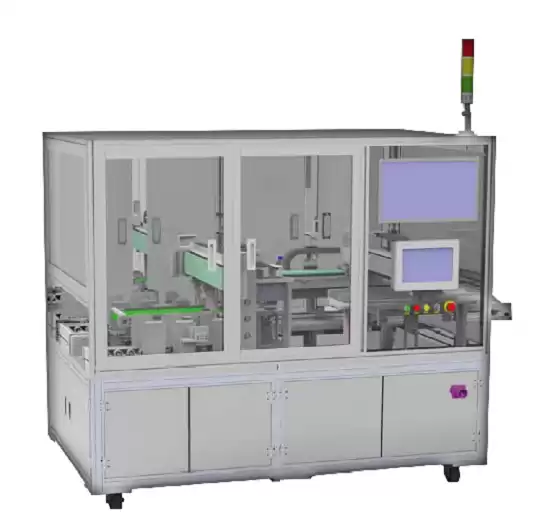

Sorting Equipment for Square Shell Battery
Products Description
The battery sorting equipment is used for OCV test and sorting of the square shell battery. The feeding mode of the battery is the feeding frame, the full feeding frame battery is fed through the feeding line, and the empty feeding frame is exported through the feeding line, it consists of battery reading device, battery shifting device, battery positioning device and battery OCV testing device. The battery is divided into 4 grades according to capacity. Can be customized according to the use of the design of the battery feeding mode, can be used as a stand-alone machine, can also be used with the automated production line.
Performance Characteristics
1. Battery material box incoming, feeding and unloading line, easy to connect with the production line;
2. High precision battery tster, high test precision;
3. The servo module moves the handle, and the sorting efficiency is high;
4. It can be divided into 4 grades according to the capacity battery.
Technical Parameter
|
Model Number
|
TMAX-BJXC-ST1001
|
Beat
|
10PPM
|
|
Voltage Source
|
220V 50HZ
|
Batteries
|
Square Shell Battery
|
|
Power
|
1.5KW
|
Pressure
|
0.5-0.7MPA
|
|
Testing
|
Open Circuit Voltage,
AC Internal Resistance
|
Precision
|
Internal Resistance:0.1MΩ
Voltage:0.001V
|
|
Grades
|
4
|
Dimensions
|
1950*1200*1700(mm)
|
