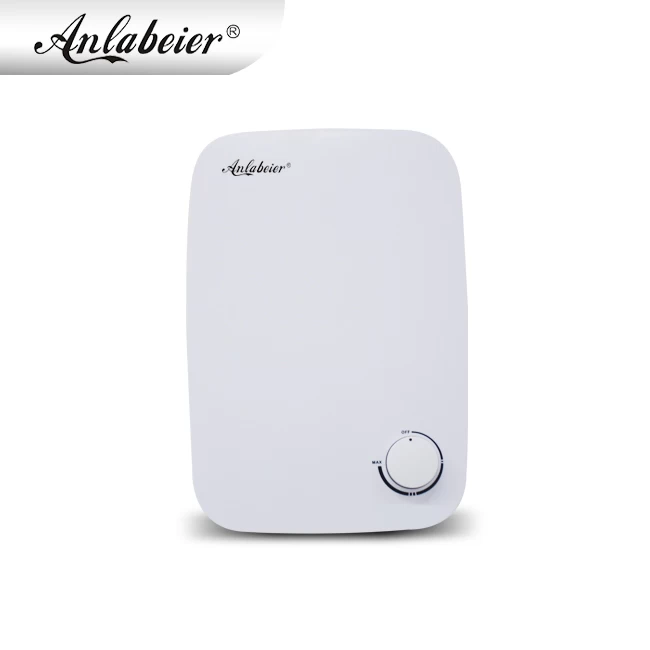

Southeast Asia 3.5kW-5.5kW simple design white plastic shell 3 phase instant electric water heater for shower

Easy To Control
Multi-function knob switch design, easy to control.
25-55 Celsius hot water temperature suitable different season to use.
Temperature showed by LED, it was red while heating, and would turn green after heating.
3 temperature settings
Available as a shower, a sink or a combination



Southeast Asia 3.5kW-5.5kW simple design white plastic shell 3 phase instant electric water heater for shower


Product detail:

Model

TPS-18

Power rating

1 to 5.5kW

Rated Current(for 220VAC)

5A to 25A

Power supply

220VAC to 240VAC

Rated pressure

0.2 to 6 bar/0.02 to 0.6 MPa

Element type

Red copper Tubular element

N.W

1.7kg

G.W

2.9kg

Dimensions HxWxD(mm)

325*220*90 mm

Box size(mm)

445*360*130 mm

Master carton size(mm)

550*395*345 mm

Master carton quantity

5

Water connections

1/2 BSP

Protection class

IPX4

Installation

Wall Mounted

Features:

Suitable for:
Commercial and Industrial applications or anywhere hot water is needed.
House, Apartments, Condominiums, Cottages
Beauty Salons, Hotel, Hospitals, Laboratories, Offices, Schools, Restaurants, Barber Shops, Warehouses
Boats, Campers

Safe & Secure
85°C dry heating protection; 55°C over temperature protection; when water flow rate is lower than the minimum operating volume, the water heater will stop heating to avoid dry burning and damage to the heater.
Grounding protection;

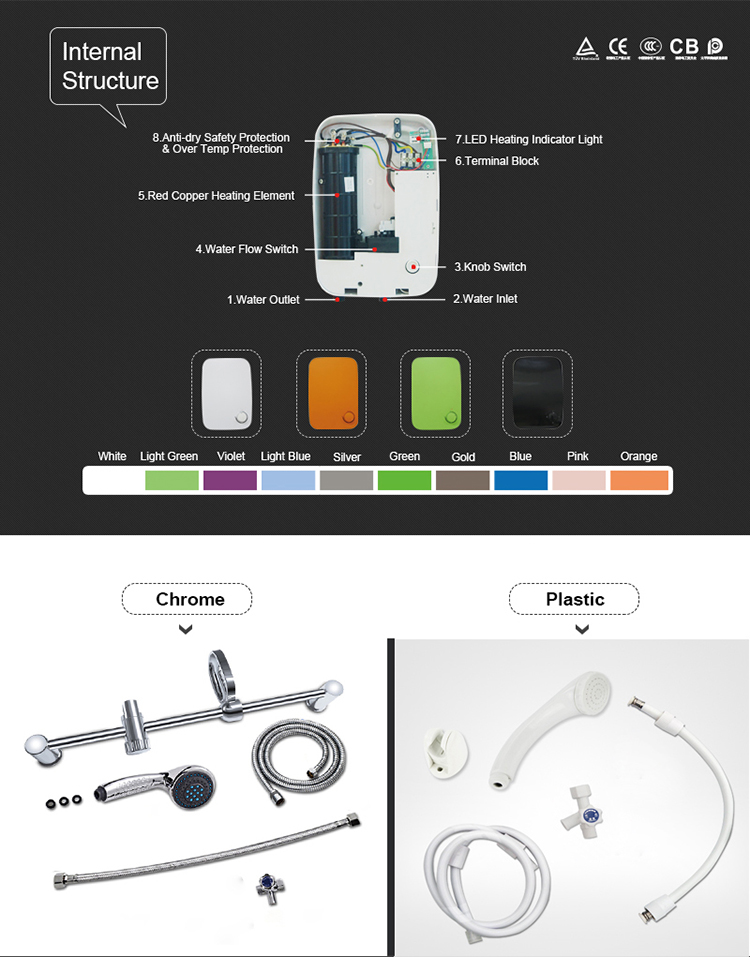

Red copper heating element system, Chip leakage protection; unique patented plate heater, with setup of the water and electricity isolation wall;
IPX4 waterproof degree;
Using ABS panel material is with the functions of insulation.
Water and electricity separation;
Mechanical manual reset two dry-heating protection

Easy To Control
Multi-function knob switch design, easy to control.
Temperature showed by LED
25-55 Celsius hot water temperature suitable different season to use.
Temperature showed by LED, it was red while heating, and would turn green after heating.
3 temperature settings
Available as a shower, a sink or a combination

Environmental
Getting hot water by using electricity not gas;
Highly efficient tubular heating element
Use of clean electrical energy, will not impact on human health

More for You
Best supplement for the solar energy water heater.
No preheating, waiting, save more time, allowing you enjoy the happy of “Bath”
Honeycomb-like straight flow heating system get the water heat in 2 seconds
OEM ODM accepted, the MOQ for OEM is 100 pcs
Trading Conditions:
1) Payment: T/T, L/C, Western Union Etc.
2) High efficient producing, production lead time: small order 15-30days, bulk order 30-45 days, according to your quantity.
3) Quickly delivery: Samples can be delivered within 3-5 days after receiving your payment.
4) MOQ: 100 Units
5) Discounts are offered based on the quantities.

24 hour online service, welcome to contact us for more information at anytime!

The reason for our selling tankless water heater
Endless hot water. If you have a huge family, or sometimes host lots of guests, you won't run out of hot water.
Space Savings.  Tankless heaters take up very little space. You can mount them right on the wall.  When we got rid of our old tank heater we were able to put a door on the back of the old water heater closet and make a shortcut through the garage from the rear bedroom to the kitchen.  We couldn't do that when the old tank heater was in the way. You can also install some models outside on an exterior wall to free up even more space.
No leaks. Leaks with tankless units are unlikely, while all standard tanks eventually leak.  The problem here is that the leak could cause damage to the home which could be expensive to fix.
