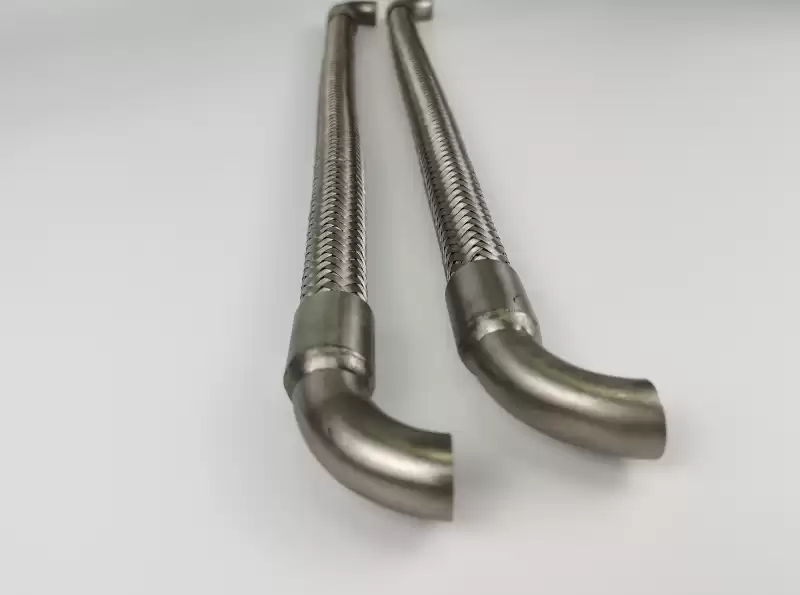

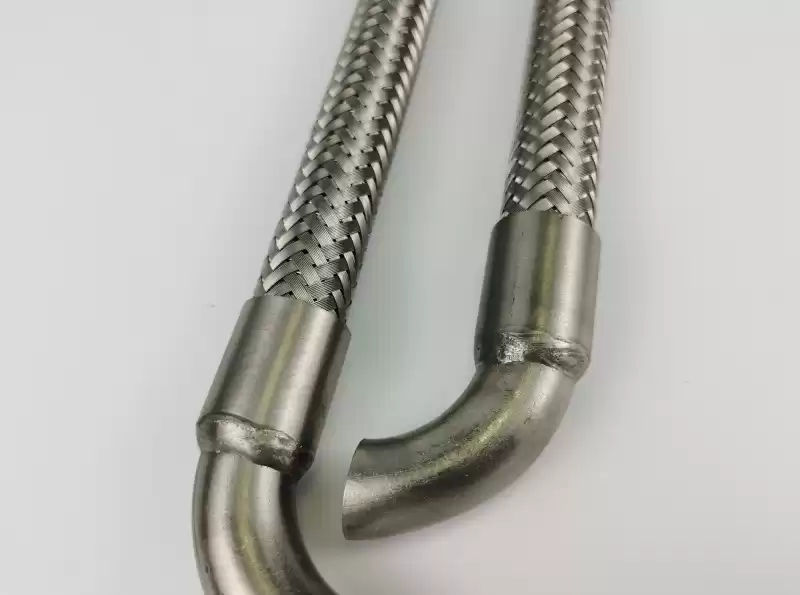

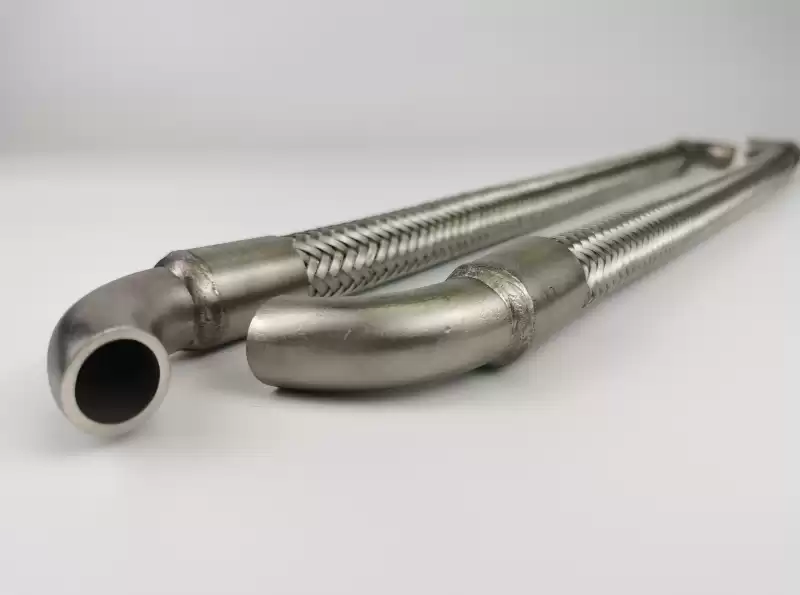

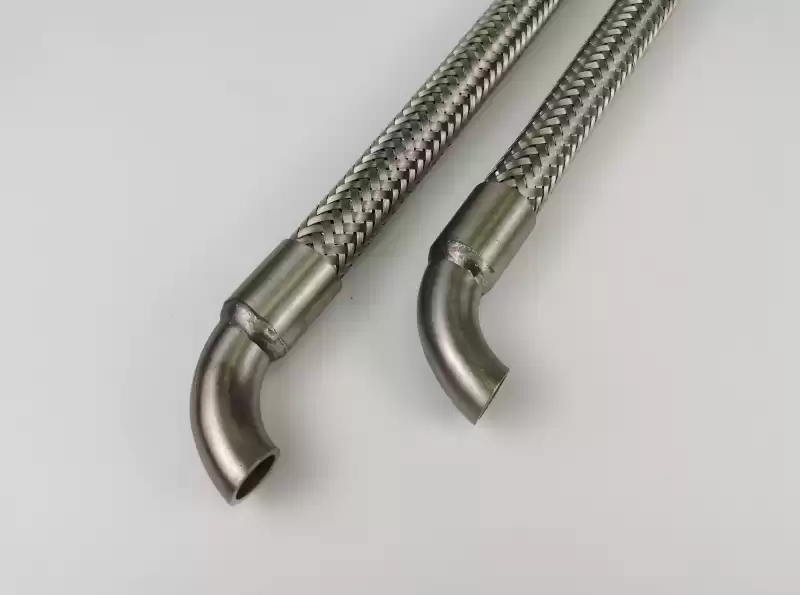

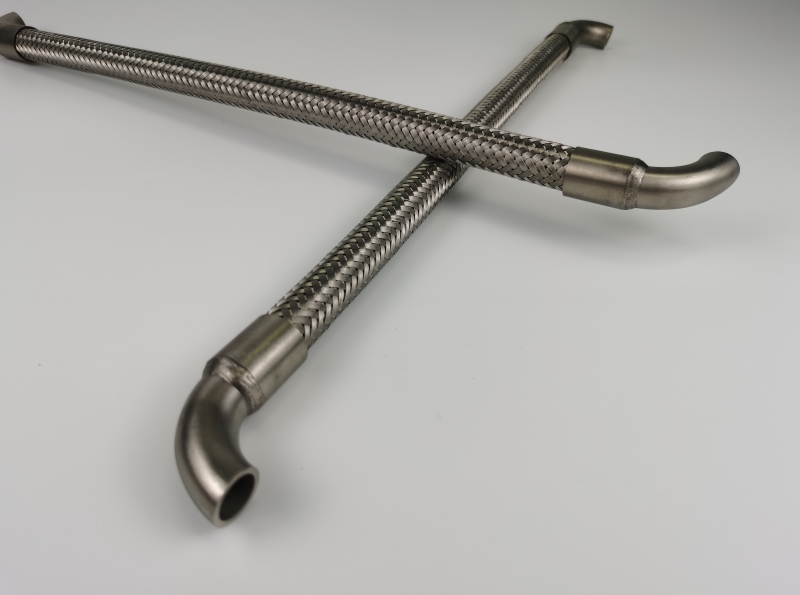

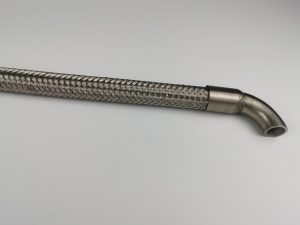

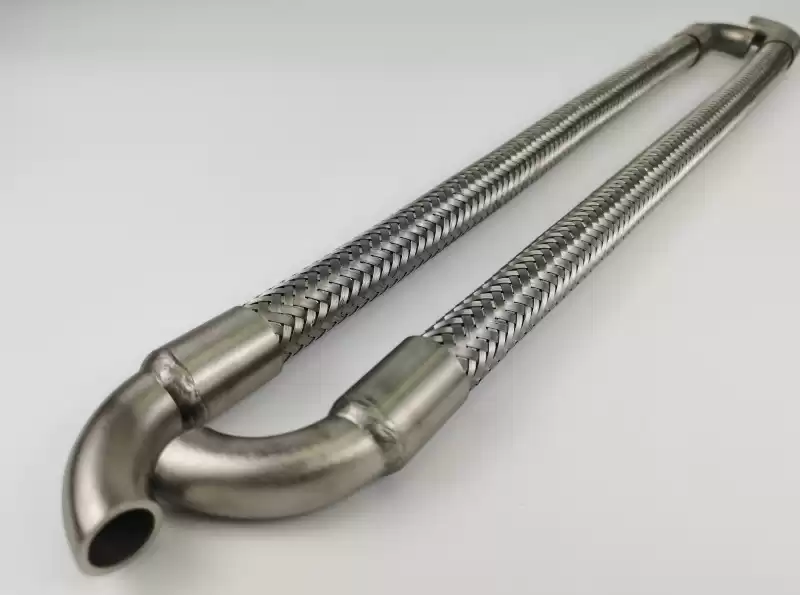

Special elbow joint for braided flexible metal hose

Braided Flexible Metal hose is an important connecting component in engineering technology. It is made up of corrugated flexible pipe, braided wires and joint. In all kinds of gas transmission, infusion pipeline system and length, temperature, position and Angle compensation system as a compensation element, sealing element, connecting element and damping element, used in aerospace, petrochemical, mining electronics, machinery shipbuilding, medical and health, textile electronics, energy building and other fields.

Construction of Flexible Metal Hose Assemblies:

Connector

• Special elbow joint may 90° elbow connection or bend Angle can be customized according to customer requirements

• Elbow joints can be threaded connector, welded connector, male thread connector or customized production

Inner Core: Corrugated Stainless Steel

• Flexible metal hose materials are available in 304, 321 and 316L stainless steel

• annular corrugated/ spiral corrugated option available upon requirement

• Stainless steel bellows formed into corrugations parallel to one another

Outer Core: Braided Stainless Steel Layers

• Braided Flexible Metal Hose with single or double braided layers

• The material of the layers are generally the same as that of the corrugated bellows, included 304, 321 and 316L stainless steel

• The braided layers plays the role of strengthening and shielding

Advantages:

1. Suitable for all kinds of complex, bad indoor and outdoor environment.

2. In contact with water, no oxidation stains are formed, which optically resemble corrosion.

3. Qualified superior sealability.

4. High pressure and high temperature, high temperature and low temperature resistant, corrosion resistant.

Feature's industrial flexible metal hose maintain the high quality of standard products, delivery on-time and non-standard custom long-term steady supply reliable qualified and stable supplier.

All proesses Certificated by ISO9001, all products 100% qualified before shipping.

Installation:

Flexible Metal Hose can be installed horizontally, vertically or diagonally, ideally vertically, and should be avoided near wheels, with a baffle if necessary.

Product Standards:

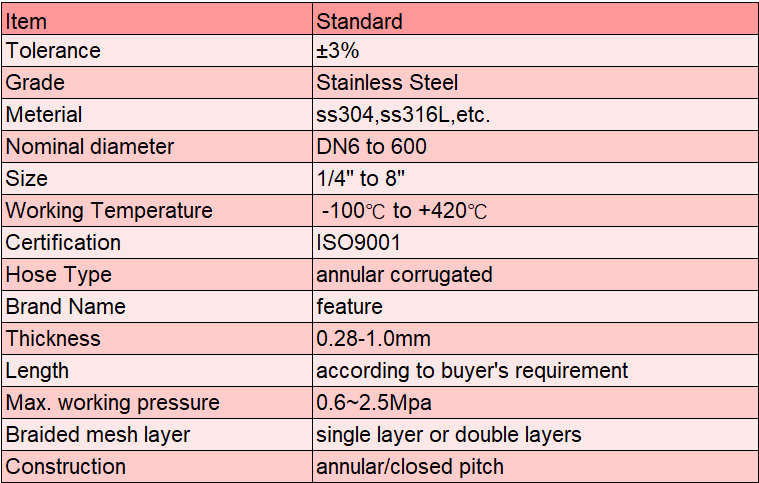

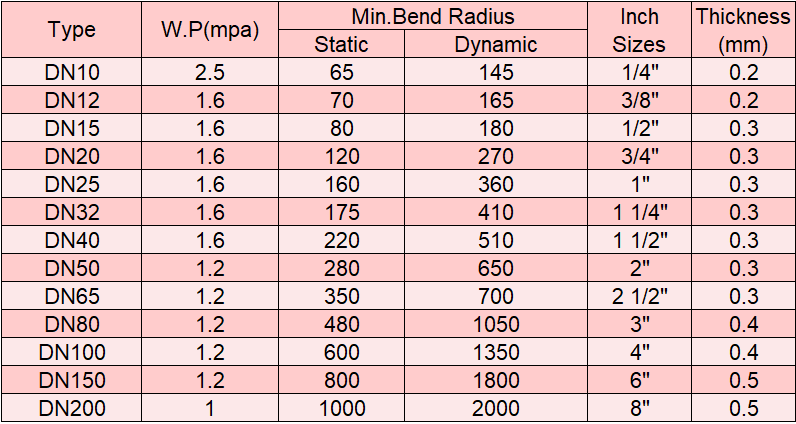

Flexible Metal Hose Performance Parameters As Below:

Custom Service

1.Costomized with specific design, such as I.D, O.D, Lenth, Connects, Material, Printed Tag, Package, etc.

2.OEM/ODM service can provide what you wanted and custom design printed to your specification.

3.Purchas a free sample order for test quality before place on full order.
