CPU
|
MTK6737T Quadcore 1.3 GHz
|
|
|
Operation System
|
Android 6.0
|
|
|
Memory
|
2GB RAM + 16GB ROM
|
|
|
Expansion Slot
|
Mini SD card (utmost support 32G), Micro SD slot
|
|
|
Display
|
5.0'' MIPI interface, HD_IPS (HD720 x 1280)
|
|
|
Touch Panel
|
Industrial touch screen (support glove touch)
|
|
|
Camera
|
13MP autofocus with LED fill light
|
|
|
Imager Window
|
Corning Gorilla
|
|
|
Keyboard
|
1 anti-wear button, 2 industrial touch buttons, side buttons 5
|
|
|
Battery
|
4.35V 5000 mAh Lithium polymer battery
|
|
|
Audio Frequency
|
Built-in microphone
|
|
|
Prompt
|
Vibration Tip/LED Tip/Audio Tip
|
|
|
Vibration Motor
|
Built-in programmable vibration motor
|
|
|
Size & Weight
|
152.5 mm x 76 mm x 17 mm 250g
|
|
|
Communication Transmission
|
|
WWAN
|
4G
|
|
|
Network Spectrum
|
欧洲频段：2G：900/1800/CDMA2000
3G：B1/B34/B39,EVDO
4G：B1/B3/B5/B7/B38/B39/B40/B41,BC0
美洲频段：2G：850/900/1900
3G：B2/B5/B8
4G：B2/B4/B38/B39/B40/B41
|
|
|
WLAN
|
Wi-Fi 802.11b/g/n
|
|
|
WPAN
|
Bluetooth 4.0
|
|
|

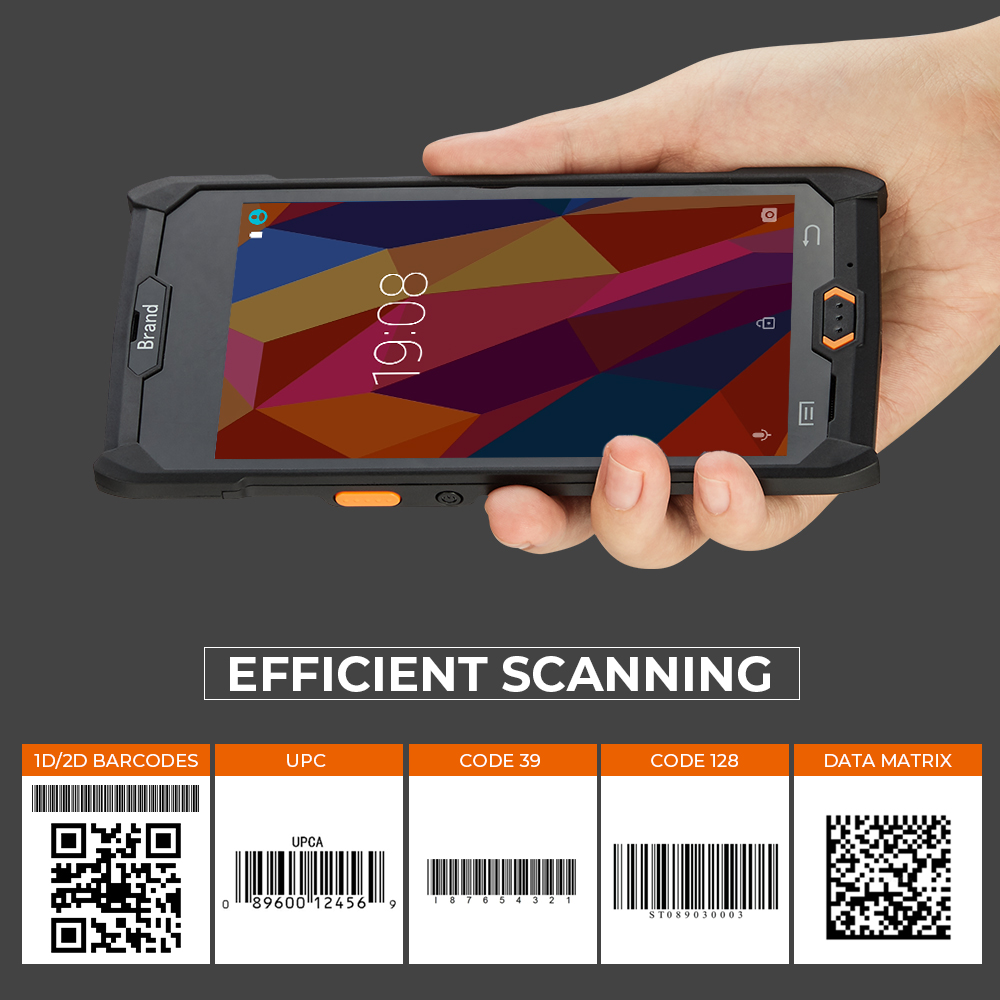

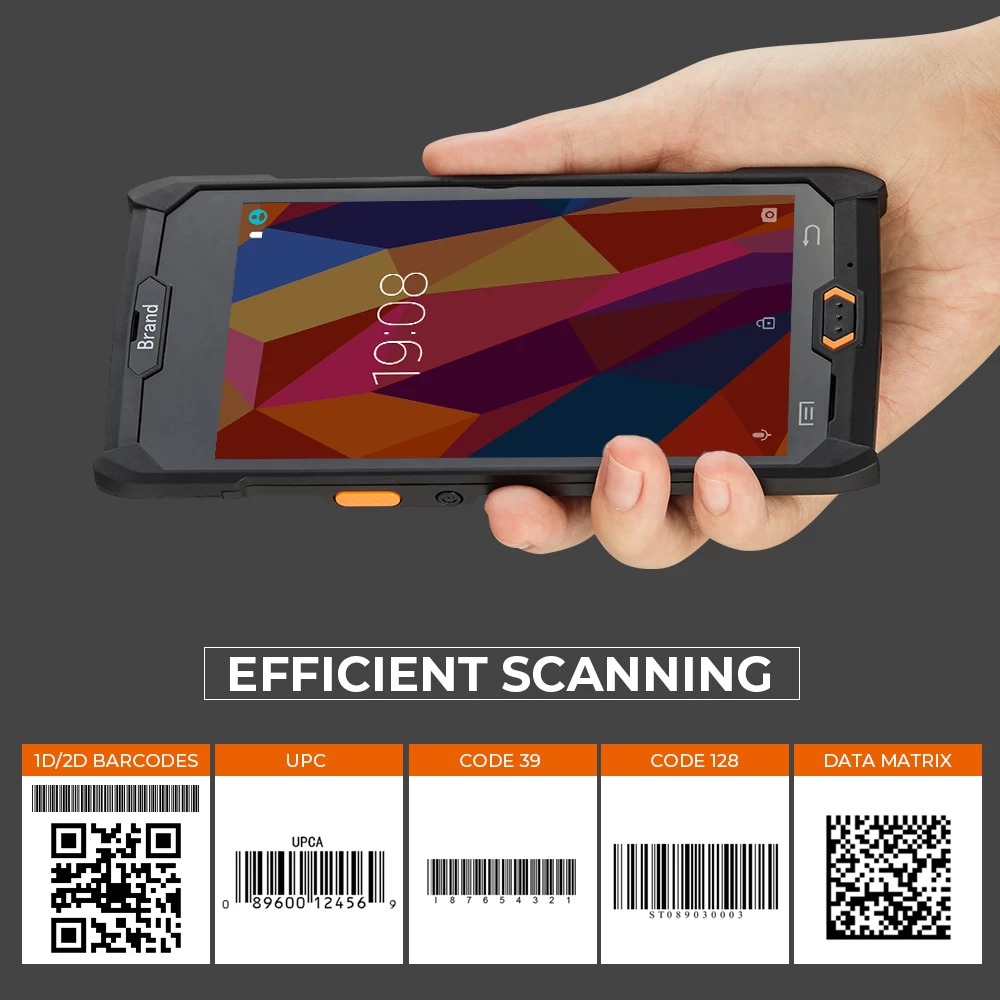

Data Collection
|
|
1D Scannning
|
UPC-A, UPC-E, EAN-13, EAN-8, 39 code, Cross 25 code, Matrix 25 code, codebar 128, UCC/EAN 128(GS1-128), ISBT 128, 93 code, China Post,China Finance, GS1 DataBar, GS1 DataBar Truncated 3, GS1 DataBar Limited, GS1 DataBar Expanded
|
Optional
|
|
2D Scannning
|
Codablock A, Codablock F, PDF417, MicroPDF417, QR Code, Data Matrix, Maxi Code, Chinese Sensible(Han Xin) code, Aztec Code, Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Plant Code, Postnet
|
Optional
|
|
RFID
|
13.56 MHz, ≤5cm, ISO14443A/14443B/15693, Support NFC near field communication
|
Optional
|
|
GPS
|
A-GPS
|
|
|
Infrared Meter Reading
|
Working frequency 37.9K
|
Optional
|
|
Peripheral Equipment & Accessories
|
|
USB Interface
|
Type-C interface
|
|
|
Standard
|

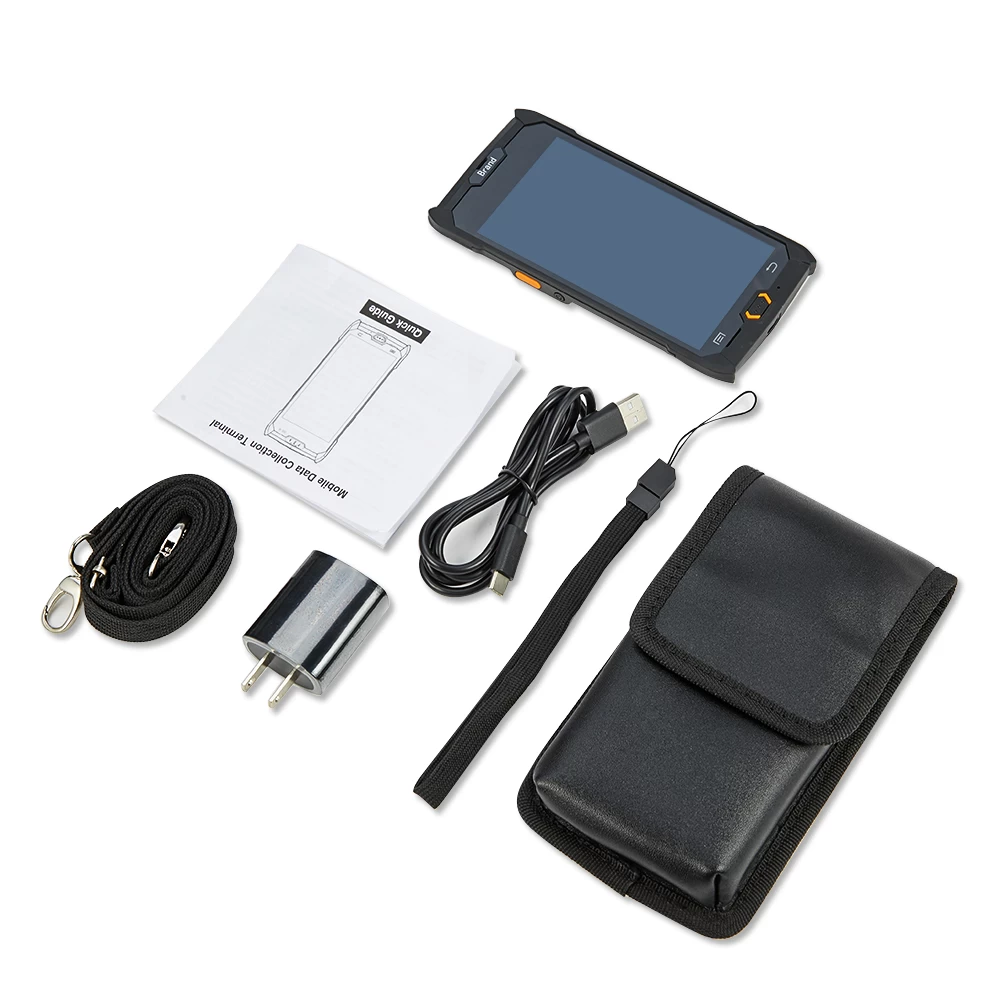

Battery, Adapter, USB cable for power and communication, Hand strap
|
|
|
Card Slot
|
2 SIM card slots, 1 TF card slot, 1 PSAM card slot
|
|
|
Use Environment
|
|
Development Tool
|
Andriod SDK +JDK +Eclipse
|
|
|
Programming Language
|
Java, C
|
|
|
Operating Temperature
|
-27℃ ~ 50℃
|
|
|
Storage Temperature
|
-27℃ ~ 60℃
|
|
|
Humidity
|
0 ~ 95%
|
|
|
Drop Specifications
|
Multiple 1.5m drop to tile over concrete
|
|
|
Tumble Specifications
|
Exceeds 500 (0.5m) tumbles
|
|
|

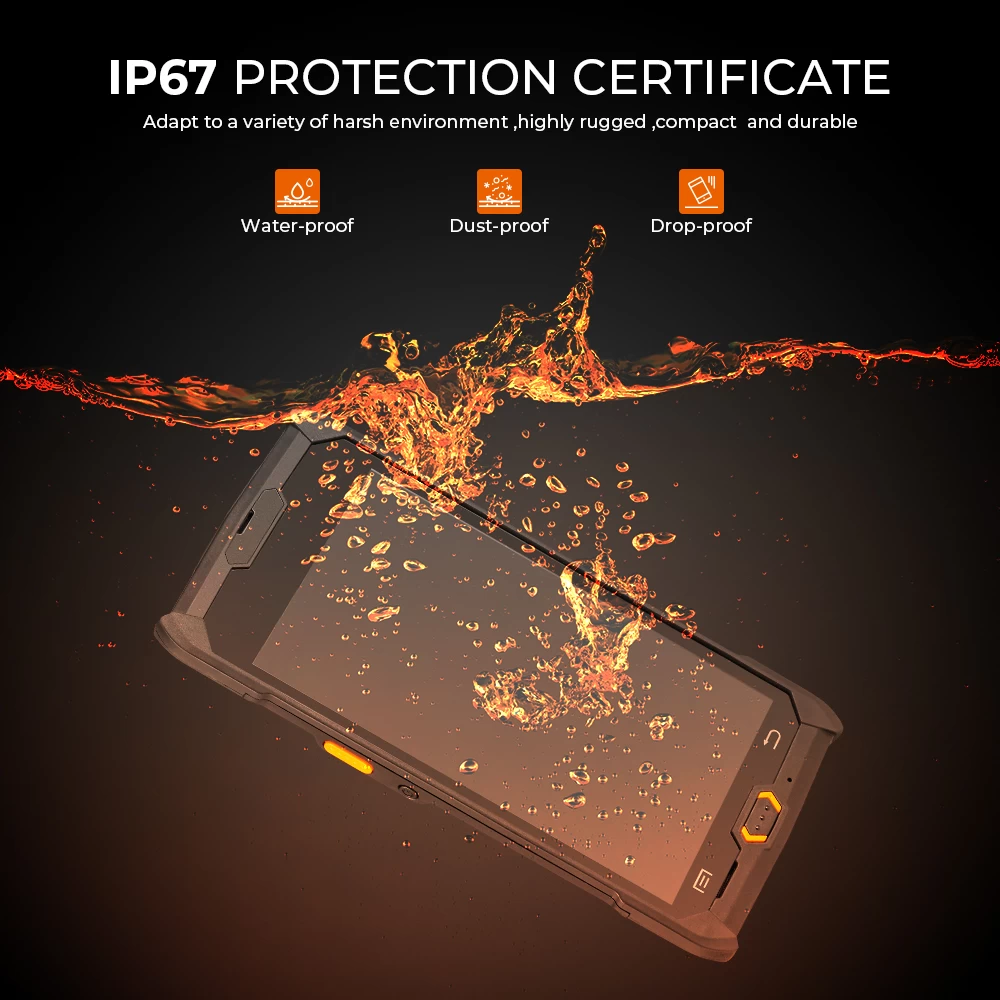

Sealing
|
IP67
|
|
|
ESD Protection
|
±12kV air, ±8kV contact
|
|
