Spherical Ball For Rod Ends & Plain Bearings CBL..DP


Material:AISI 52100 bearing steel,Ball surface polished.With or without hard chrome plating are optional.

Heat treatment: HRC 58-64

Stainless steel 440c are optional.

Can custom made per customer's request.




Stainless Steel Spherical Ball CBL12DP

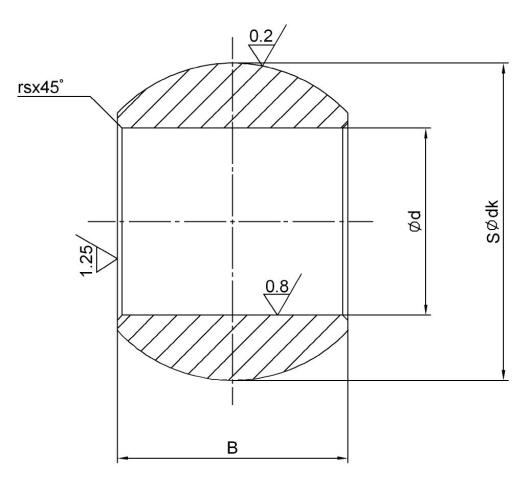

Item No d dk B rs
 +0.037 0 0
-0.013 -0.03 -0.012 min 
CBL3DP 4.826 11.11 7.92 0.4
CBL4DP 6.35 12.7 9.53 0.4
CBL5DP 7.938 15.875 11.1 0.4
CBL6DP 9.525 18.256 12.7 0.7
CBL7DP 11.11 20.625 14.27 0.7
CBL8DP 12.7 23.812 15.88 0.7
CBL10DP 15.875 28.575 19.05 0.8
CBL12DP 19.05 33.338 22.23 0.8
CBL16DP 25.4 47.625 25.4 0.8


All dimensions are in MM.
