Introduction

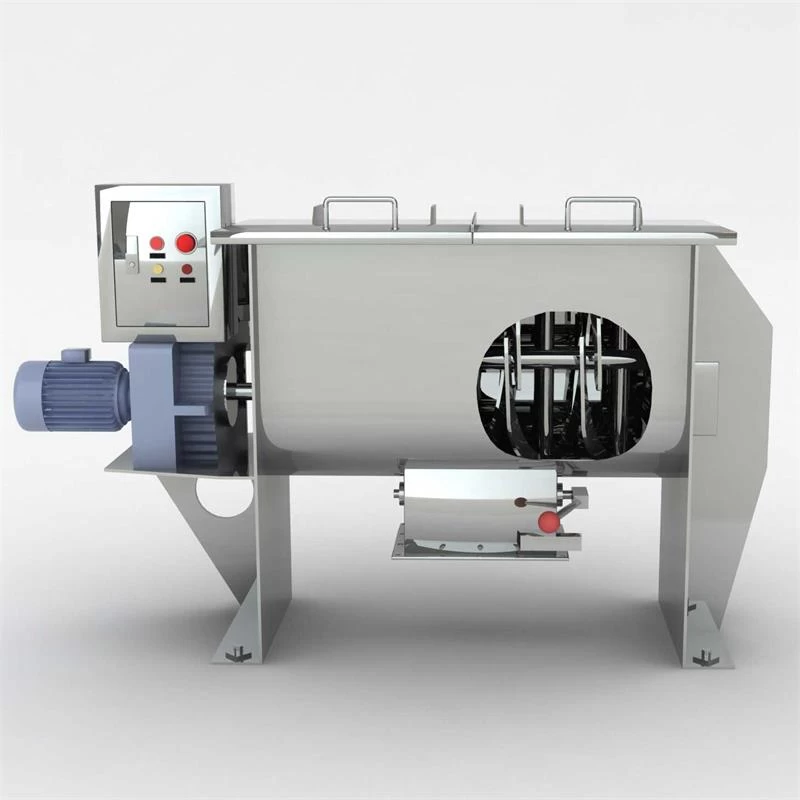

This is a horizontal Ribbon Blender ,designed to mix all kinds of dry powder .It consists of one U-shaped horizontal mixing tank and two groups of mixing ribbon: outer ribbon displace the poweder from the end to the center and inner ribbon move the powder from the center to the ends .This counter-current action results in homogeneous mixing.
Main Technical Data
|
Model
|
DH-JD-100
|
DH-JD-200
|
DH-JD-300
|
DH-JD-500
|
DH-JD-1000
|
DH-JD-1500
|
DH-JD-2000
|
|
Whole Volume
|
100L
|
200L
|
300L
|
500L
|
1000L
|
1500L
|
2000L
|
|
Turning Speed
|
35rpm
|
46rpm
|
46rpm
|
46rpm
|
46rpm
|
46rpm
|
46rpm
|
|
Total Power
|
2.2KW
|
4KW
|
5.5KW
|
7.5KW
|
11KW
|
15KW
|
22KW
|
|
Total Weight
|
180KGS
|
250KGS
|
350KGS
|
500KGS
|
700KGS
|
1000KGS
|
1300KGS
|
|
Overall Size
|
1230*642*1540
|
1370*834*1647
|
1550*970*1655
|
1773*1100*1855
|
2394*1930*2187
|
2715*1397*2313
|
3080*1625*2453
|
|
Air Consumption
|
4-6Bars
|
|
Power Supply
|
3P 208-415V 50/60HZ
|
|
Optional: Speed inverter , liquid sparyer etc
|
