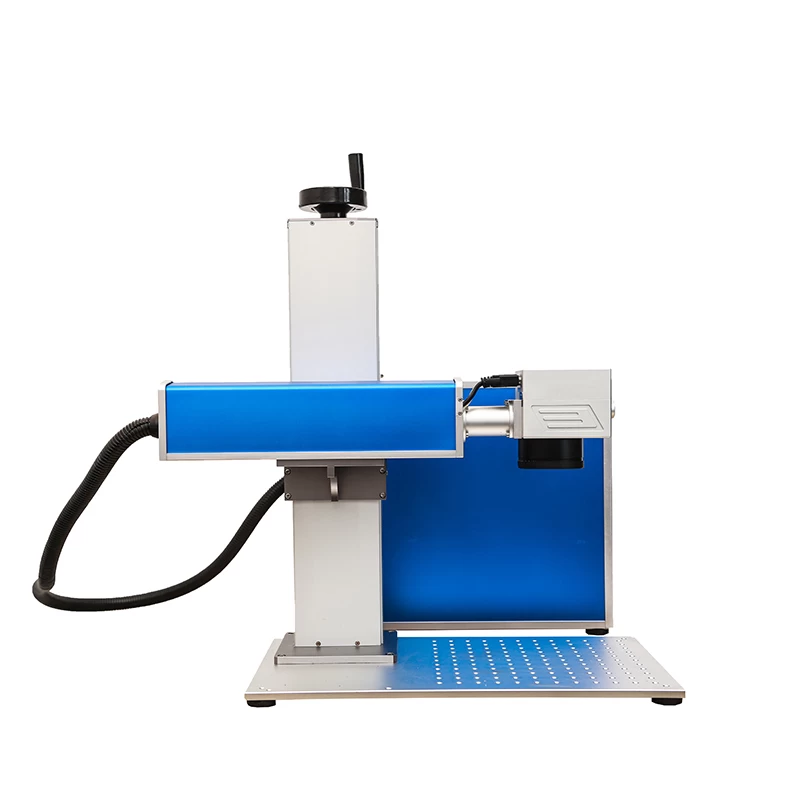

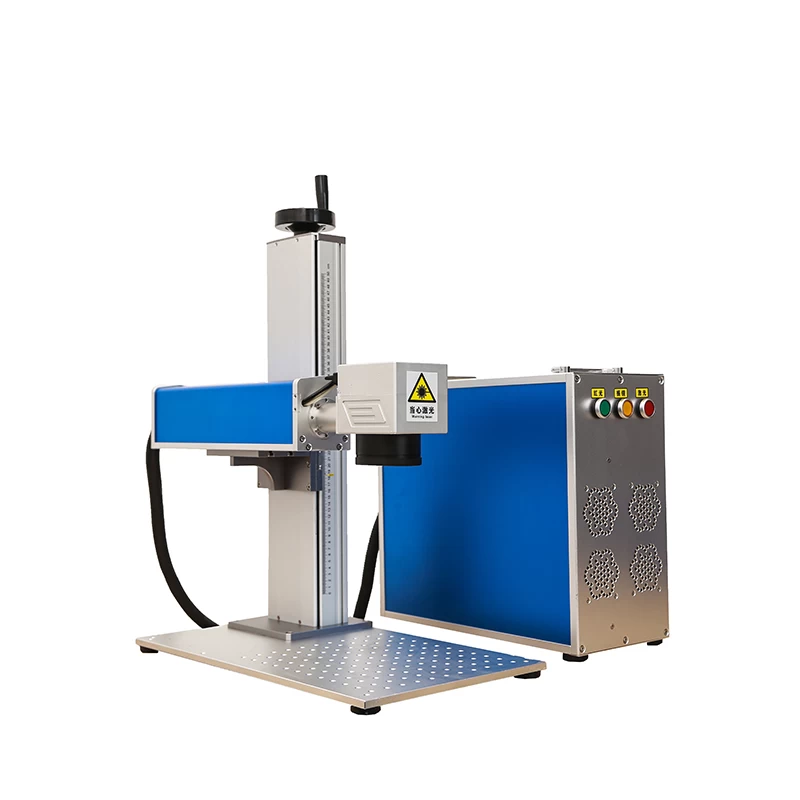

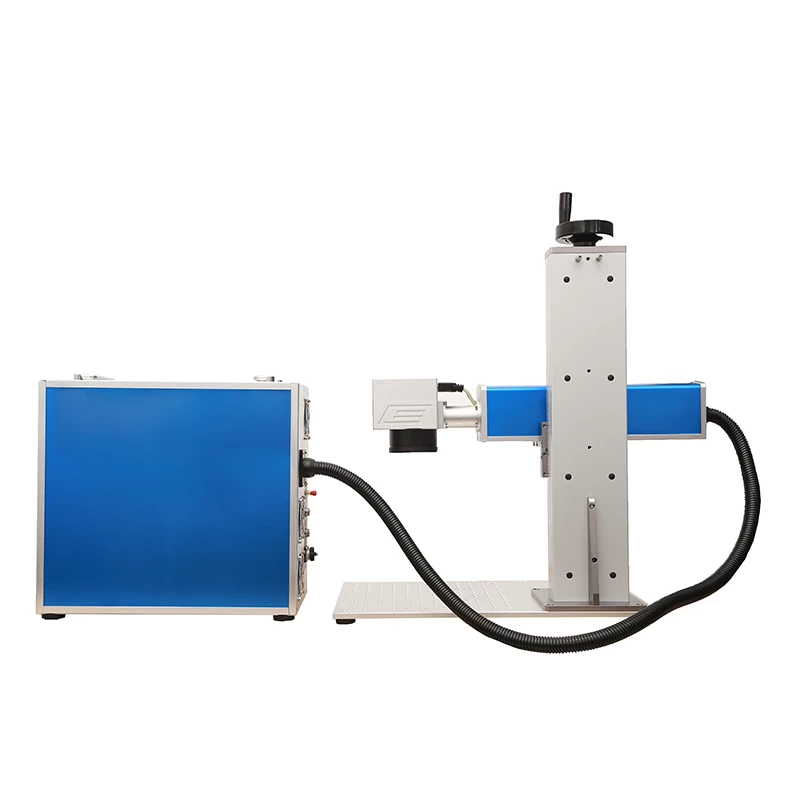

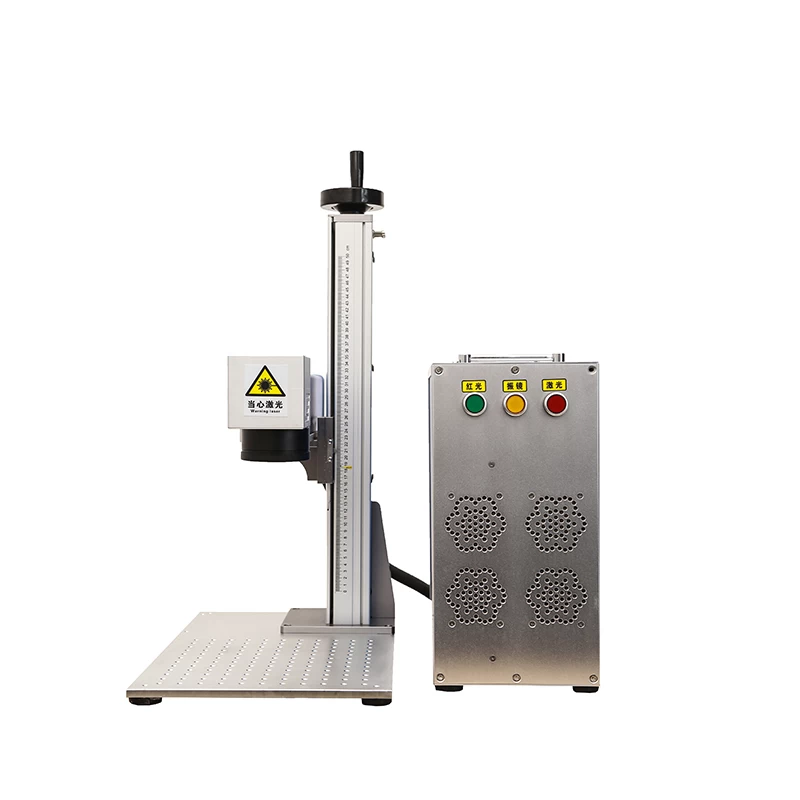

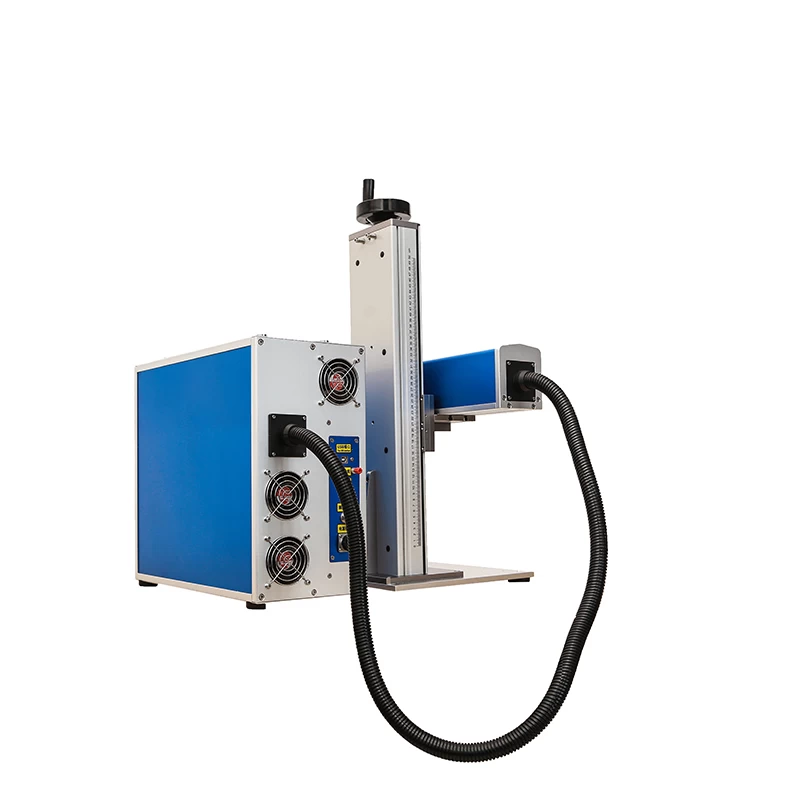

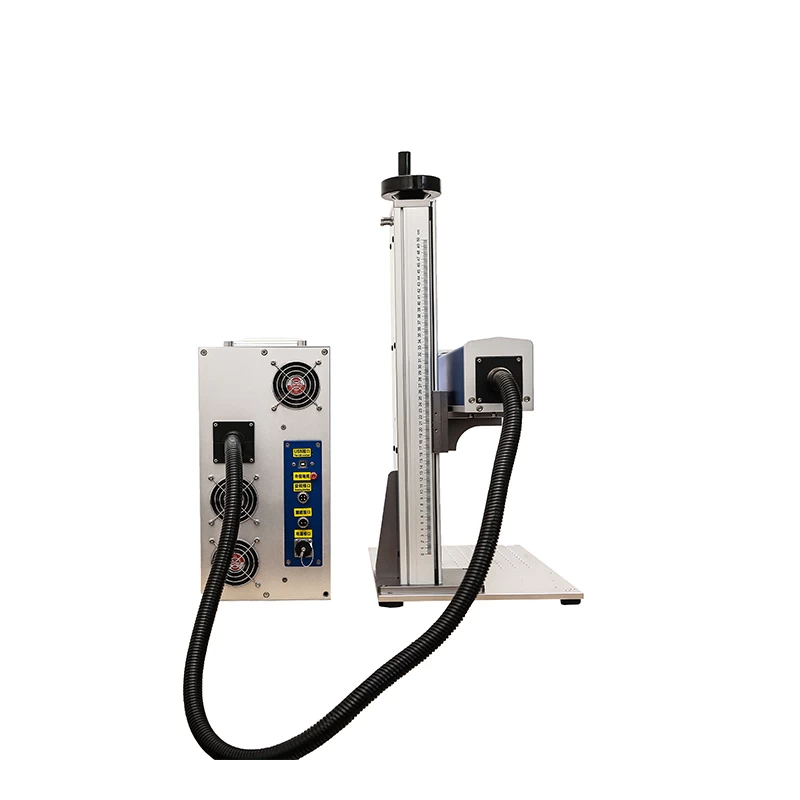

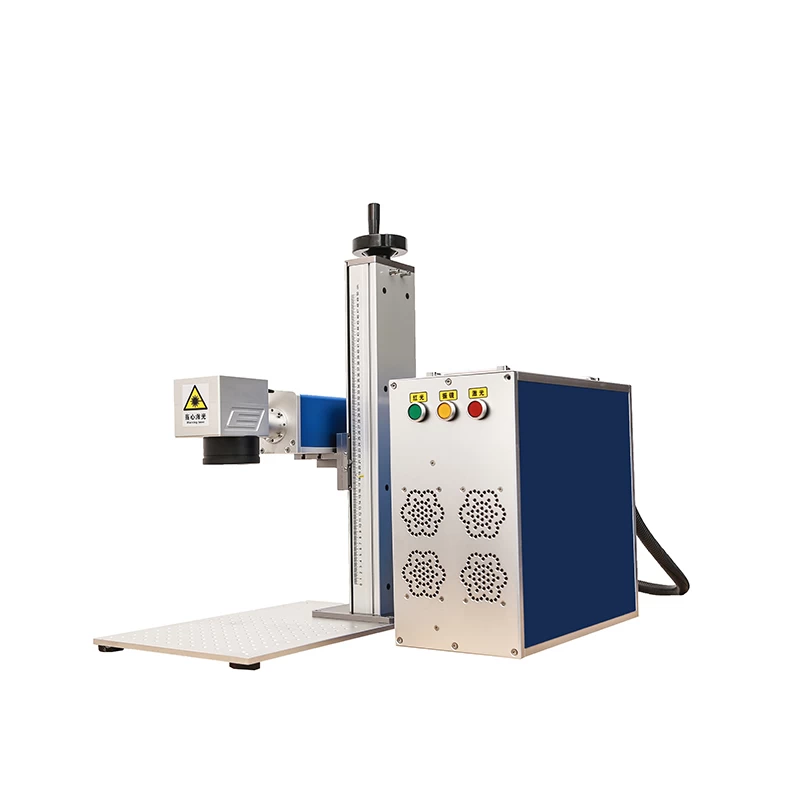

Split 20W 50W Fiber Jewellery Metal Marking Machine
PRODUCT PARAMETER
|
NO.
|
Model
|
Lz-F20W Split
|
|
1
|
Power
|
20W / 30W / 50W for option
|
|
2
|
Marking Range
|
110*110mm / 200*200mm / 300*300mm
|
|
3
|
Repetition Frequency
|
20-80KHZ
|
|
4
|
Laser Wavelength
|
1050-1070nm
|
|
5
|
Marking Depth
|
≤ 0.4mm
|
|
6
|
Marking Speed
|
≤10000mm/s
|
|
7
|
Minimum Linewidth
|
0.01mm
|
|
8
|
Minimum Character
|
0.15mm
|
|
9
|
Repeat Accuracy
|
±0.002
|
|
10
|
Power Consumption
|
500W
|
|
11
|
Dimension
|
760*210*570m
|
|
12
|
Total Weight
|
About 45KG
|
|
13
|
Laser Device
|
Raycus Fiber Laser Device
|
|
14
|
Cooling System
|
Air Cooling
|
|
15
|
Software
|
EZCAD
|
|
16
|
Voltage
|
AC220V,50HZ
|
|
17
|
Warranty
|
1 year
|
