Split Test Cell for Lithium ion Coin Cell Battery
Product Specification
Split Test Cell for Lithium Air Battery Research - EQ-STC-LI-AIR
The EQ-STC-LI-AIR is Split Test Cell for Lithium Air Battery Research. You can control air flow pressure and test various anode and cathode material at easy.
|

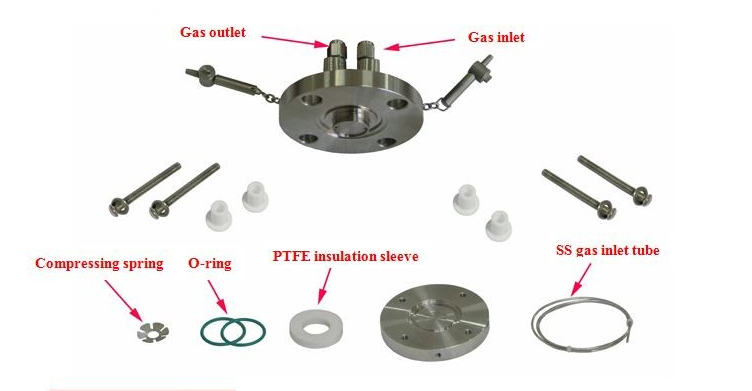

Structure
|
1Stainless Steel Structure with internal Silver-Clad surface treatment better electrical conductivity and good corrosion protection
2 Two electrodes design
3 Electrolyte corrosive-proof PTFE Guide Sleeve and Sealing O-rings
4 Compact design fits in any table top glove boxes
|
|
Cell Thickness
|
1~3mm (cathode +separator +anode)
|
|
Bottom Recess Area
|
16mm Dia.
(The recess area can acceptance electrodes with size up to 16mm dia.)
|
|
Max. Working Temperature
|
250℃
|
|
Valves & Fittings
|
Two Stainless Steel needle valves and 1/16" tube connector is installed on both gas inlet and outlet
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Dimensions
|
φ80*62mm
|

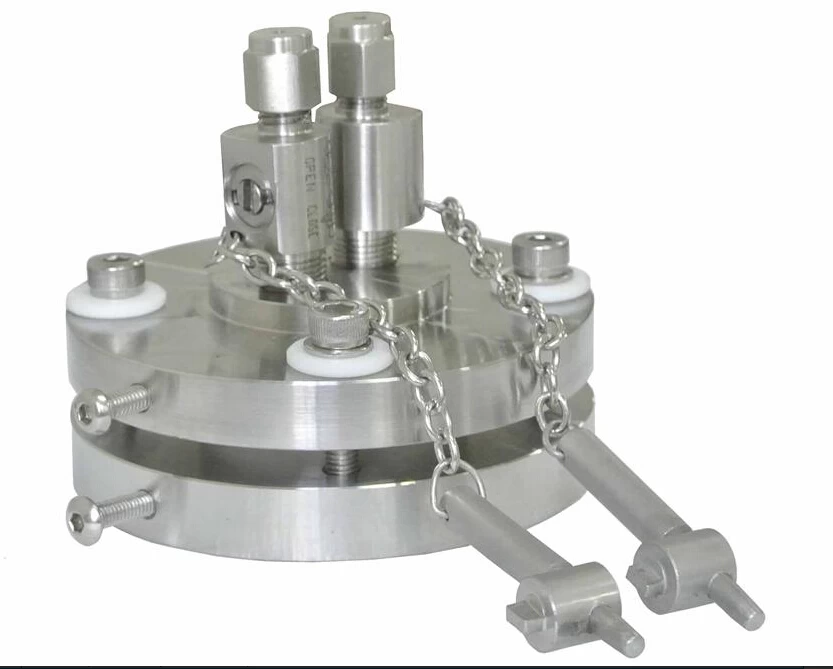

Product Image
