The KFL1000 is the mainstay lighting solution in our series, built for standard-sized competitive venues. Upgraded to 1000W of power, the KFL1000 delivers greater luminous flux and a wider, uniform light field, easily meeting the requirements for illuminance and uniformity demanded by national or regional competitions.
Its specially designed high-strength aluminum alloy casing and excellent thermal management ensure stable performance and minimal lumen depreciation during prolonged, high-intensity use.
The KFL1000's projection distance and coverage are optimally enhanced, making it highly suitable for standard soccer fields, athletic tracks, or large multi-purpose sports halls. It is an ideal and reliable choice for achieving professional-grade event lighting effects.
Specification
| Model |
KFL-1000 |
| Power |
1000 W |
| Total Luminous Flux |
170000 lm |
| Luminous Flux |
135000 lm |
| Voltage Range |
AC 200~480 V |
| Frequency |
50 / 60 Hz |
| Correlated Colour Temperature |
5000 k |
| Colour Render Index |
Ra80 |
| Protection |
IP69K / IK10 |
| Lens Type |
Asymmetric Flood / Medium / Narrow |
| Material |
Aluminum Alloy & PC |
| Working Temperature |
-40℃ ~ +50℃
|
| Luminaire Dimensions |
520×446×406 mm |
| Luminaire Weight |
20 kg |
| Remote Driver Box Dimensions |
480×152×80 mm |
| Remote Driver Box Weight |
5.02 kg |

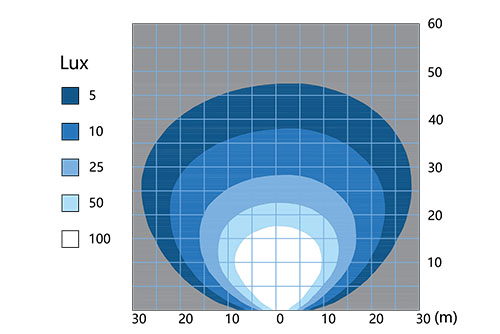

Brightness Distribution Diagram
Simulation Condition：
Floodlight：4pcs
Height：7M
Projecting Angle：70°
