Spring Balance Roller Shutter Motor

Spring balance rolling door motor, also called fast speed gate opener or australian style gate opener. It use DC motor with DC 24V power supplying. And with reserved power controller, alarm system and infrared sensor for different customer's requirements.

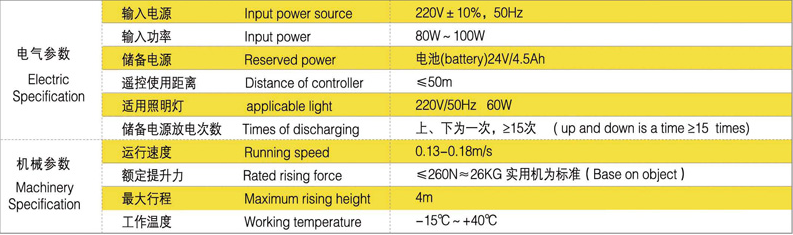

Spring Balance Roller Shutter Motor:


1.Input power: 80W~100W

2.Fast speed 0.18M/S, low noise and power

3.Rebound when blocked. Stop when blocked.

4.You could match with reseived power for controller.Then use it when blackout.

5.When the controller is broken, you can use the clutch lock box (with line) to open the door manually.



1.With high performance Ni-Cd cell available,supplying rekiable standby electric power to ensure the system continually working under power outage situation.
2.Using microcomputer to control the up and down moving,with the characteristic of correctly locationing and easy for adjusting.
3.Rebounding Functional when it is blocked:when the door was blocked beside is gate spacing during it's closing down,the door moving will stop automatically and turn to opening.And blocking force can be adjusted according.
4.Stopping functional when it is blocked:when the door was blocked beside its gate spacing during it's opening(rising up),the door moving will stop automatically.

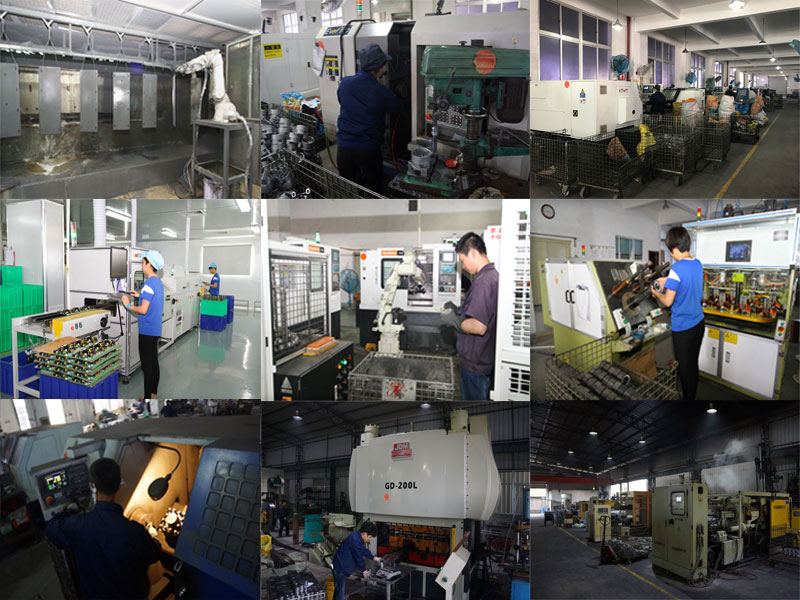

Rolling door motor, Australian style shutter motor, tubular motor are manufactured in our factory. Over 95% of whole door motor sets are maken by ourselves. We could supply good quality with low running voice door motors all the time. Using automations instead of many parts of handwork are our advantages. Certificates have been passed.
