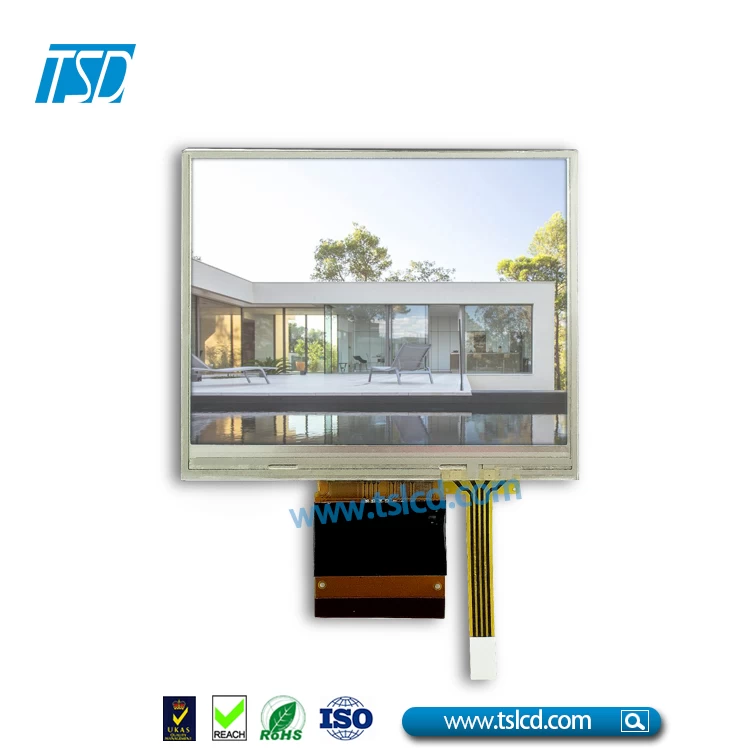

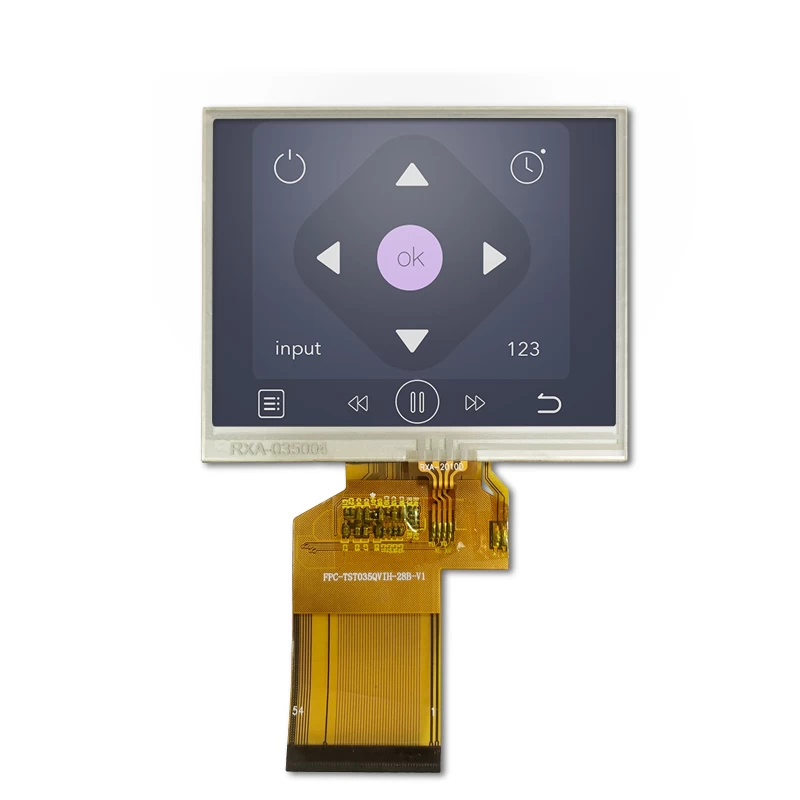

SSD2119 controller 3.5 inch 320X240 resolution lcd screen display with RTP

SSD2119 controller 3.5 inch 320X240 resolution lcd screen display with RTP



 SSD2119 controller 3.5 inch 320X240 resolution lcd screen display with RTP


Specification
LCD type TFT, Transmissive
Display type 3.5 inch TFT lcd hvga, 262k color, normal white
Driver element a-si TFT Active matrix
Outline Dimension(mm) 54.5x83.0x2.1
A.A.(mm) 48.96x73.44
Driver IC SSD2119
Item 3.5 inch tft lcd panel with zif fpc connector
Resolution(dots)_ 320*RGB*480
Viewing Direction 12H
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 240(H)x 3RGB x 320(V)
Dots Pitch 0.18x0.18
Operating Volatge 2.8v
Pixel arrangement RGB Stripe
Display mode Normally white
Surface treatment Antiglare, Hard-Coating(3H)
Weight(g) TBD
Backlight 6 LEDs, White
Touch screen
with RTP
Interface MCU 8/16 bits
Module lifetime(Hours) 50,000-100,000
