Introduction

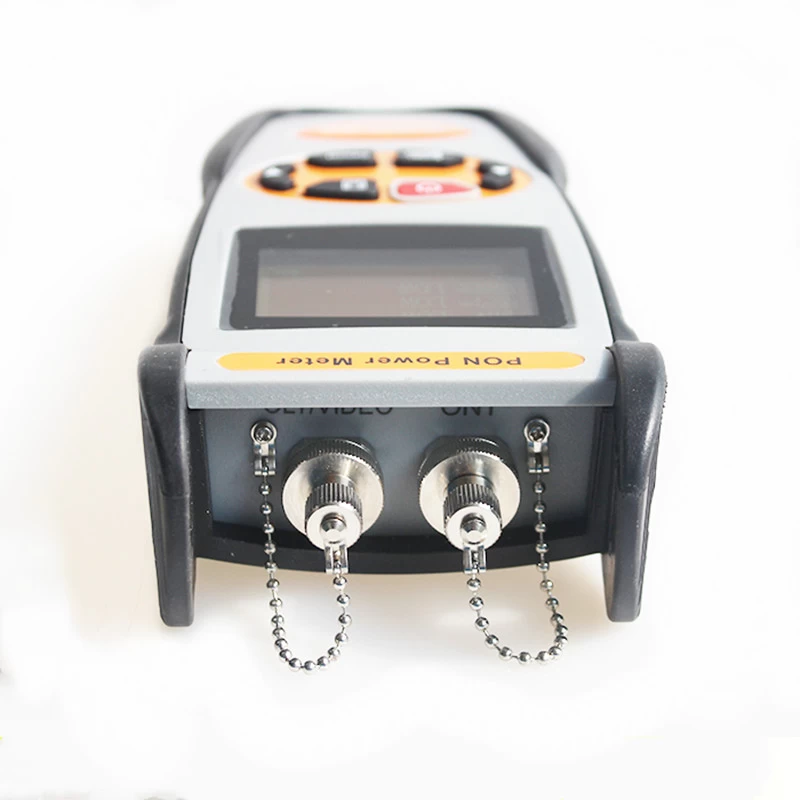

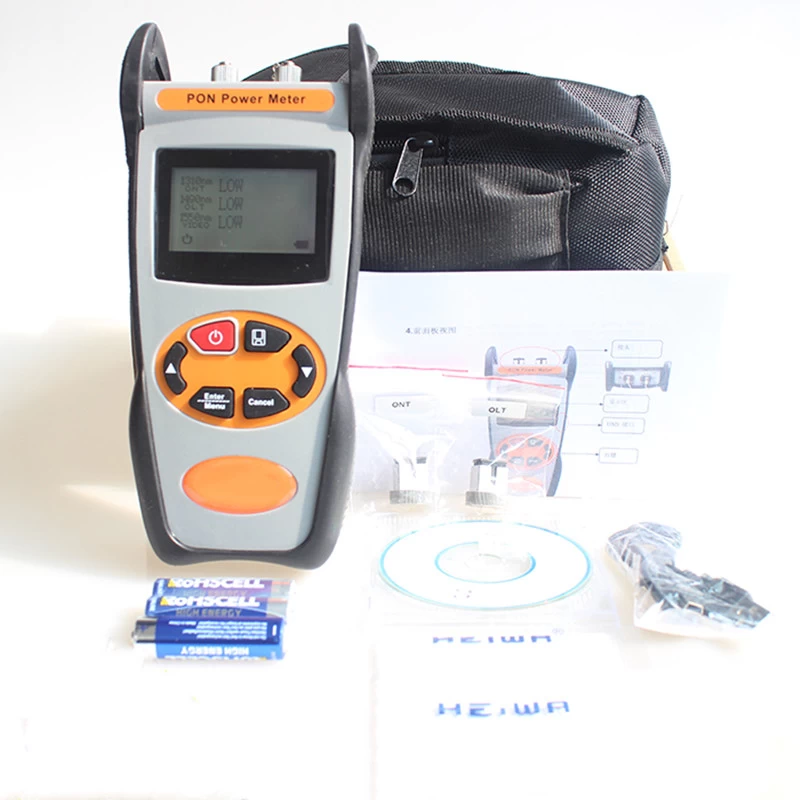

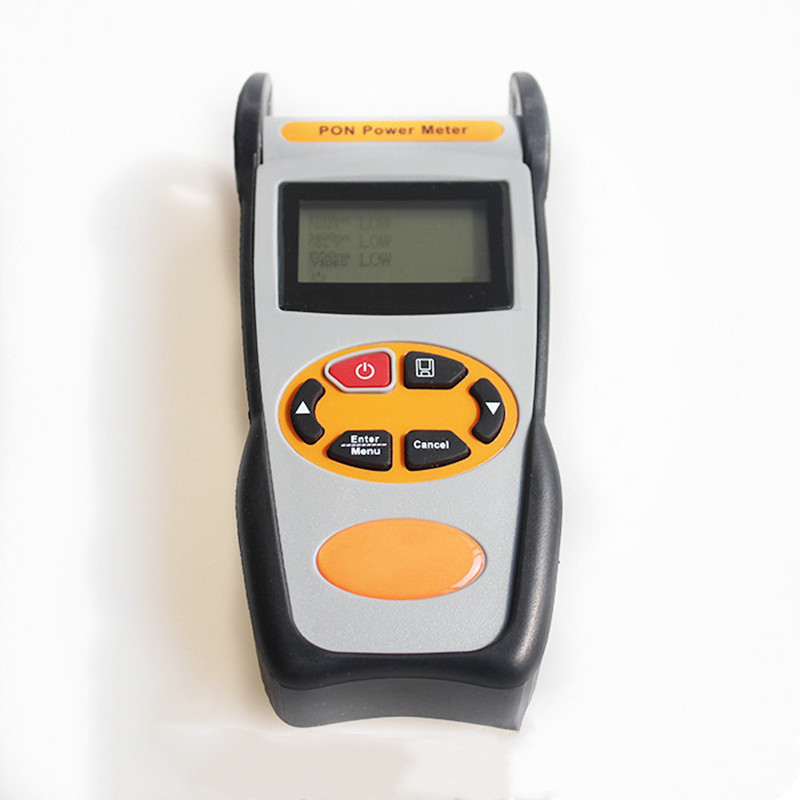

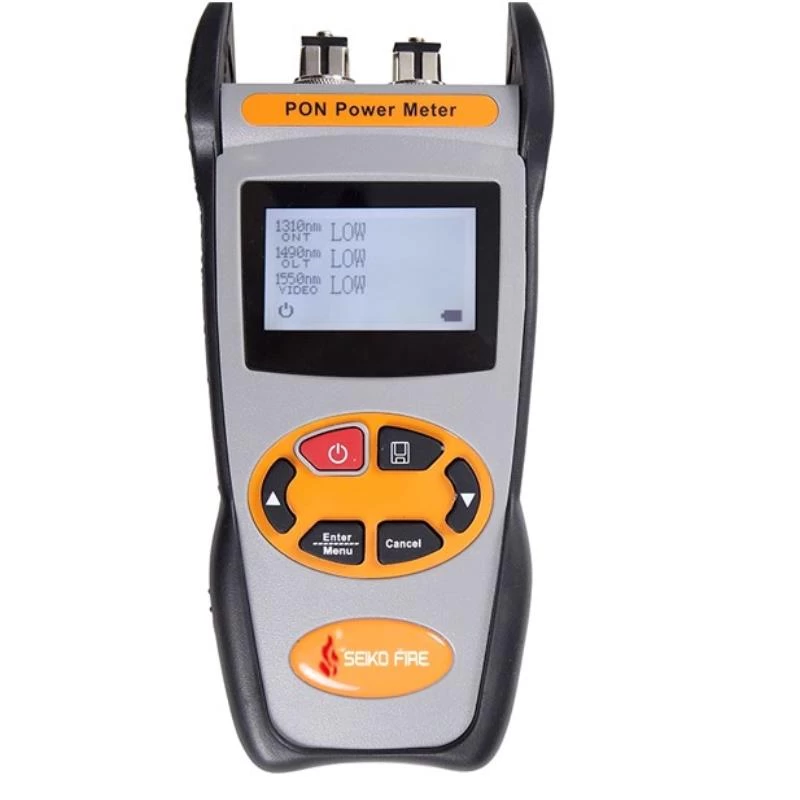

S316 targets at the FTTx application and maintenance. This PON power meter
is able to simultaneously test and estimate the signals of the voice, data and
video. It is an essential and ideal tool for the construction and maintenance
of the PON projects.
Features
-
Providing simultaneous measurement at EPON/GPON/GEPON for all three
wavelengths on the fiber (1490nm, 1550nm,1310nm )
-
Used in Burst mode measurement of 1310nm upstream
-
Convenience for threshold setting, which can set the threshold on the tester
-
USB communication port enables data transfer to a PC
-
Offers up to 10 different threshold sets in total
-
User self-calibration can be retrieved in computer through the software
-
10 minutes Auto-off function can be activated or deactivated with keypad
operation
Specifications
|
Model
|
S316
|
|
Wavelength
|
1310nm
|
1490nm
|
1550nm
|
|
Pass Zone(nm)
|
1260～1360
|
1470～1505
|
1535～1570
|
|
Isolation (dB)
|
>40@1490
|
>30@1310
|
>40@1310
|
|
Isolation(dB)
|
>40@1550
|
>40@1559
|
>40@1490
|
|
Measurement Range(dBm)
|
-40～+10
|
-40～+10
|
-40～+20
|
|
Measurement Accuracy
|
|
Connatural uncertainty(dB)
|
±0.5
|
|
Linearity(dB)
|
±0.1
|
|
Passing through insertion Loss(dB)
|
<1.5
|
|
General Information
|
|
Detector Type
|
InGaAs
|
|
Optical Connector
|
FC/SC Interchangeable
|
|
Fiber Type
|
9/125um
|
|
Display
|
LCD:128*64
|
|
Measurement Unit
|
dB/dBm/xW
|
|
Resolution (dB)
|
0.01
|
|
Power Supply
|
3 AA1.5V battery
|
|
Operation Temperature (℃)
|
-10～60
|
|
Storage temperature (℃)
|
-25～70
|
|
Dimension(mm)
|
200x90x50
|
|
Weight(g)
|
285
|
