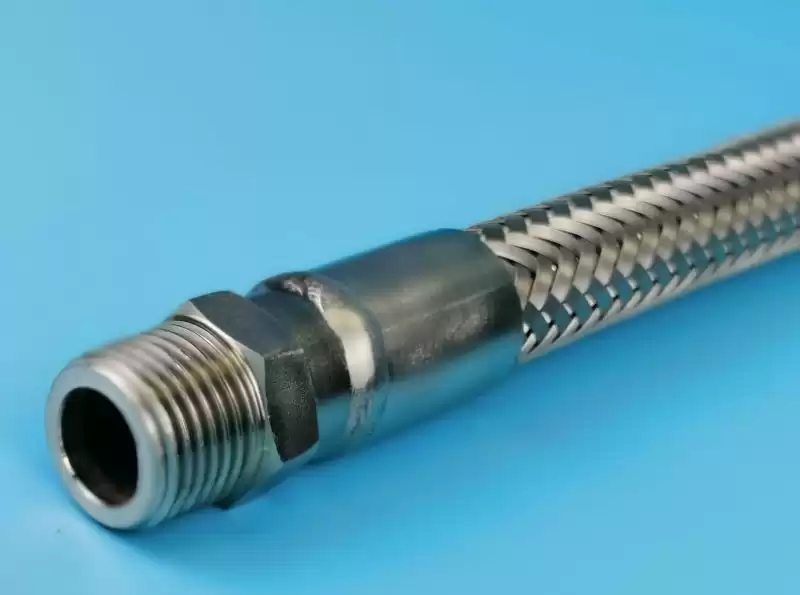

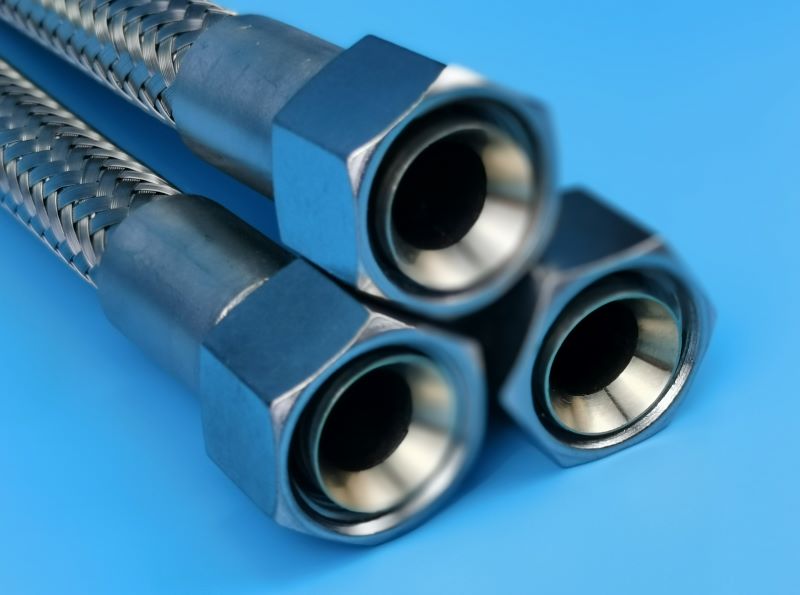

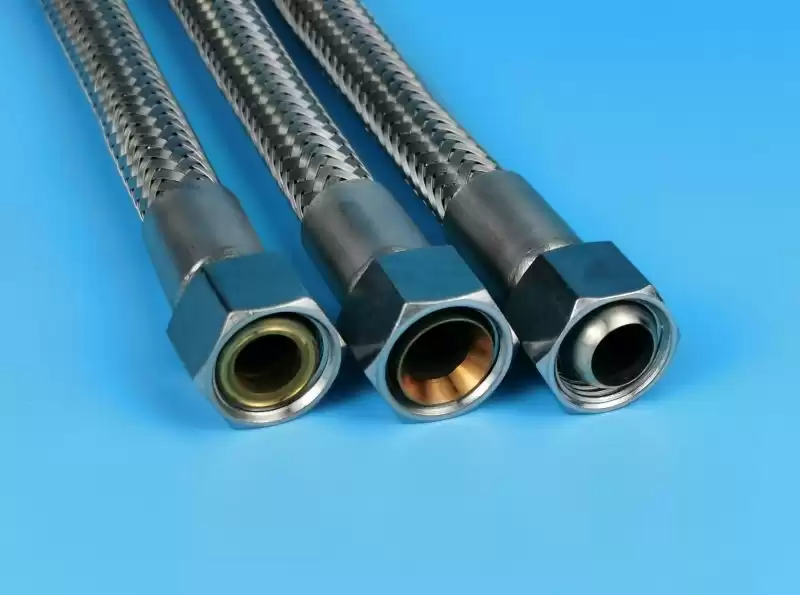

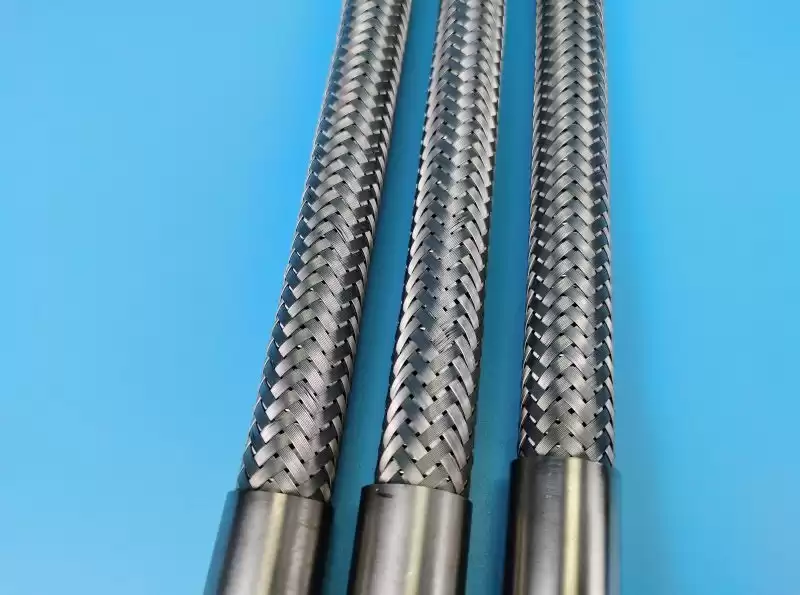

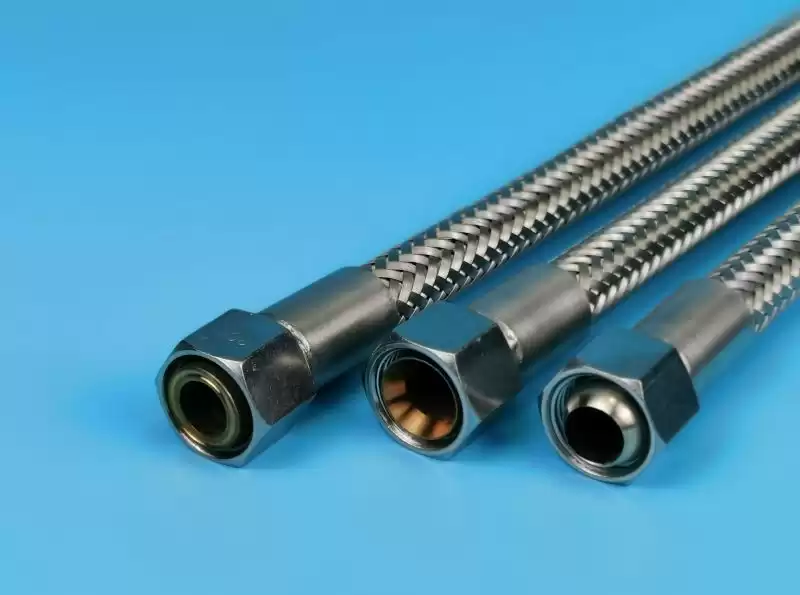

Stainess Steel Wire Braided Rubber Hose
Stainless Steel Wire Braided Rubber Hose is widely used in industrial connection. It can handle very wide range of Acids, Chemicals, Petroleum and Refined Oil Products, liquid cargo transfer from barge or ship.
Hose Construction
Composite hoses are constructed from polypropylene, polyamide or polyester films & fabrics.
Depending on the applications, outer cover could be of PVC coated polyester fabric, which is abrasive, weather & ozone resistant with galvanized steel, polypropylene coated steel & stainless steel 316 internal and galvanized steel, stainless steel external wire.
Temperature: (-40℃) to 200℃
Specification: EN 13765: 2010
Size: 1/4''~2''
End Connection: All types of connections duly crimped as per customer requirement.
Product Specification
| I.D. | Hose I.D.(Min) | Hose O.D.(Max) | Operating Pressure | Minimum Buret Pressure |
| inches | mm | mm | (PSI) | (MPa) | PSI | (MPa) |
| 1/4'' | 5.18 | 11.73 | 1500 | 10.3 | 6000 | 41.4 |
| 3/8'' | 8.36 | 14.50 | 1500 | 10.3 | 6000 | 41.4 |
| 1/2'' | 10.54 | 17.09 | 1250 | 8.6 | 5000 | 34.5 |
| 5/8'' | 13.69 | 20.83 | 1250 | 8.6 | 5000 | 34.5 |
| 3/4'' | 16.89 | 24.41 | 1250 | 8.6 | 4000 | 27.6 |
| 1'' | 21.44 | 30.15 | 1000 | 6.9 | 3000 | 20.7 |
| 1 1/4'' | 27.79 | 37.29 | 800 | 5.5 | 2000 | 13.8 |
| 1 1/2'' | 34.14 | 44.04 | 400 | 2.8 | 2000 | 13.8 |
| 2'' | 44.45 | 54.36 | 350 | 2.4 | 1200 | 8.3 |
Custom Service
1.OEM/ODM service can provide what you wanted and custom design printed to your specification.
2.100% products are qualified before shipping.
