Application:

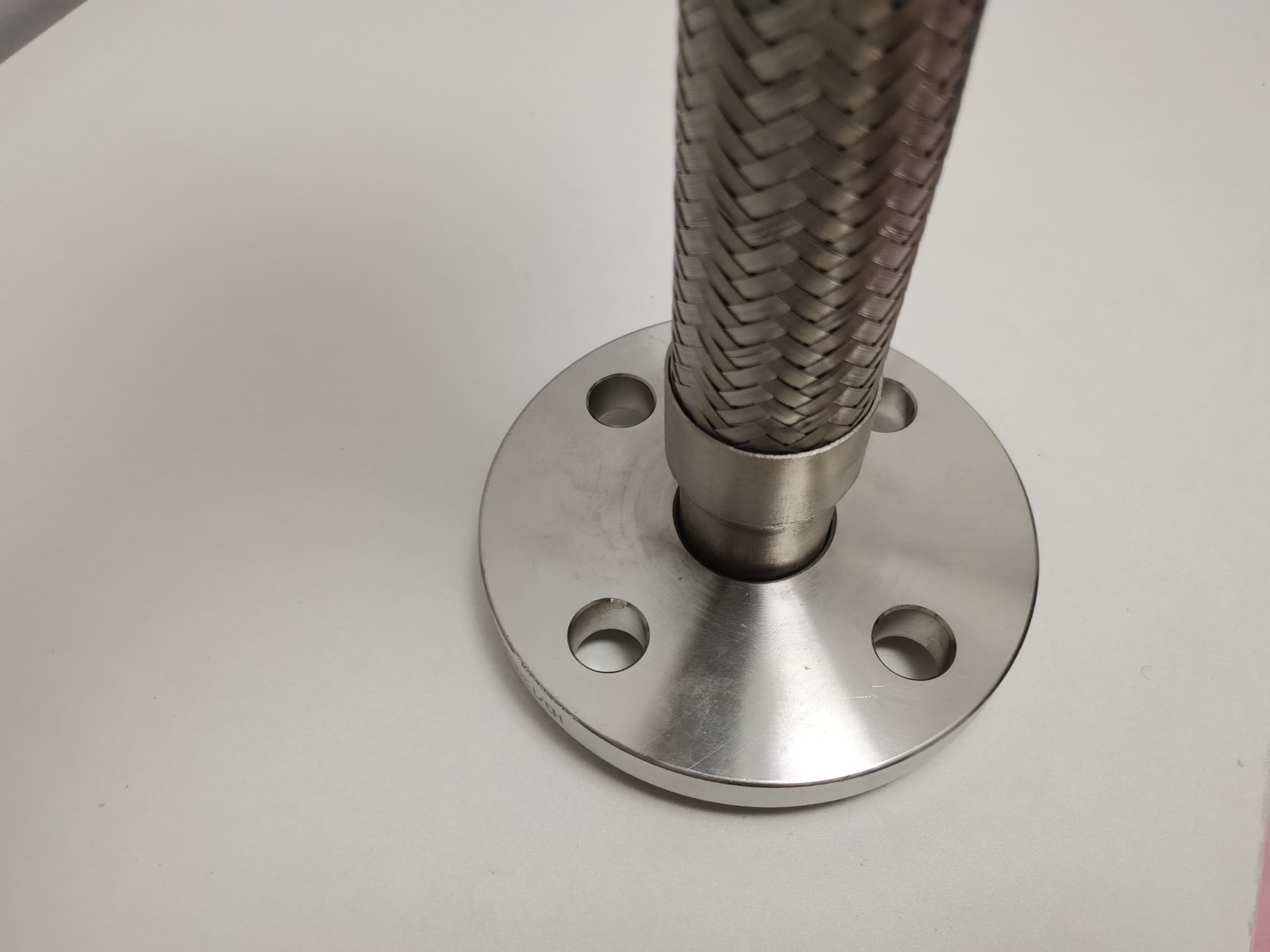

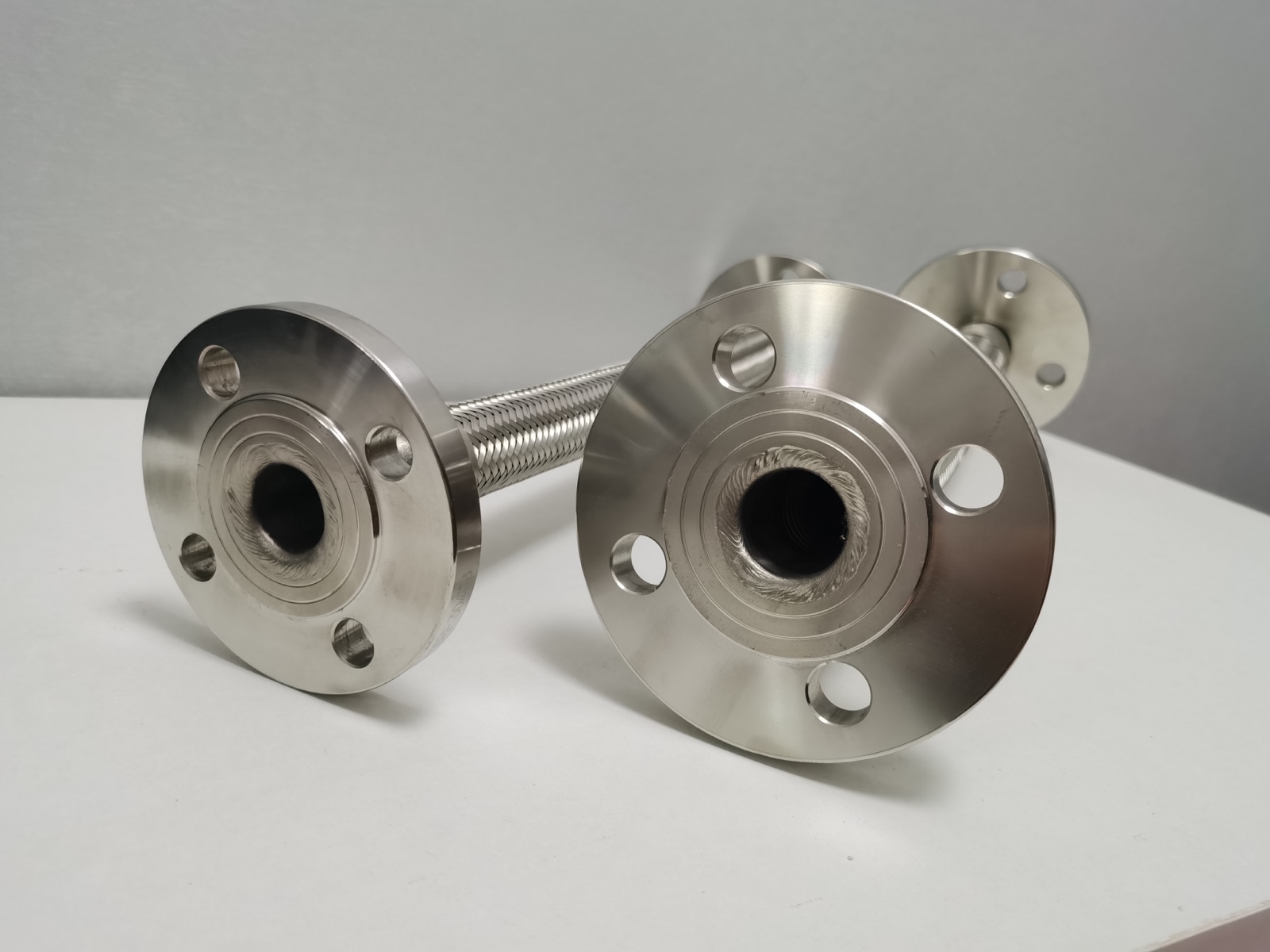

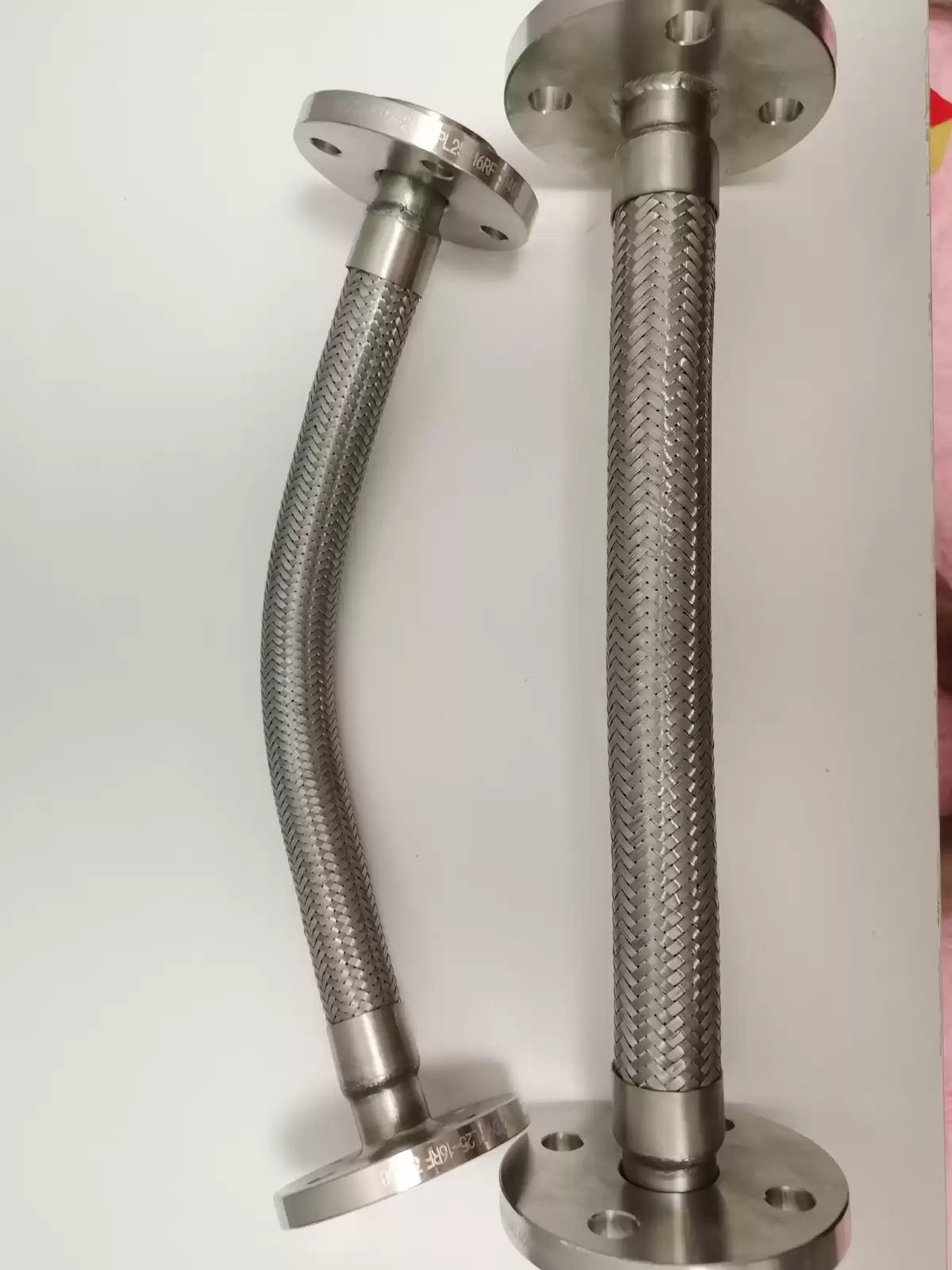

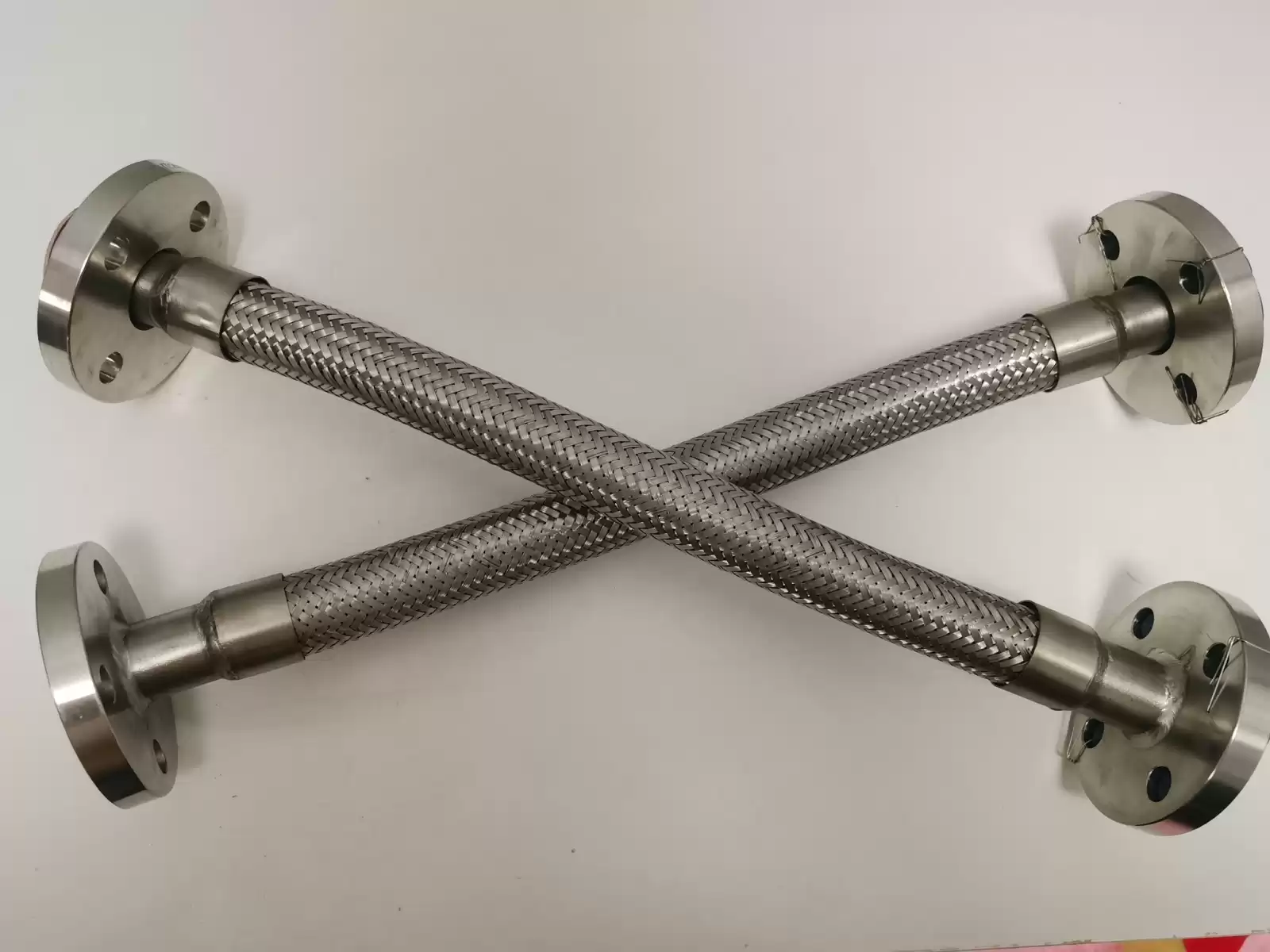

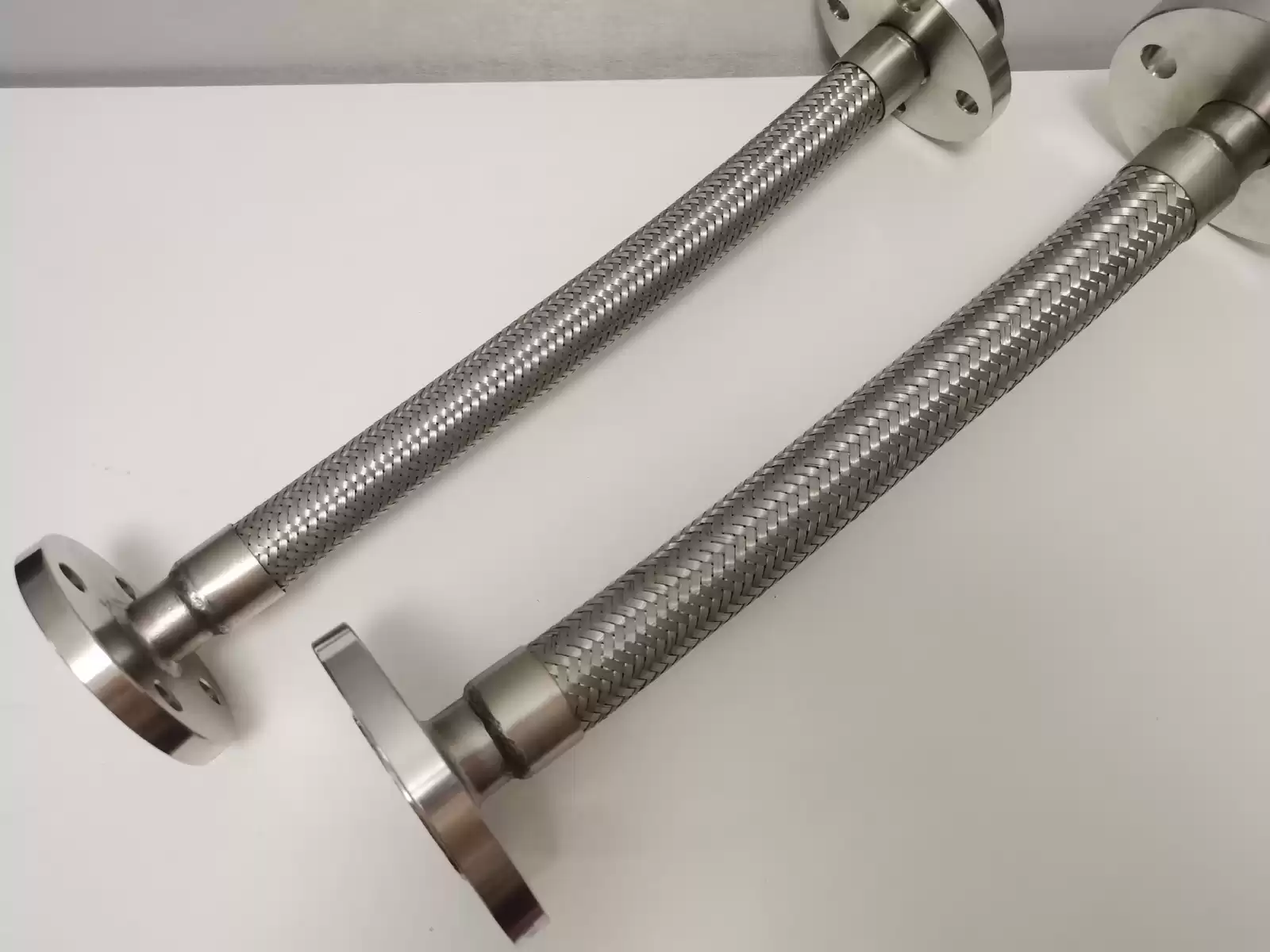

The stainless steel braided flexible hose with flanges serves as a crucial connection component in industrial pipelines. It effectively addresses challenges such as vibration, displacement, feeding, and thermal expansion and contraction. Unlike rigid pipes, our stainless steel corrugated hose can bend and withstand various corrosive substances, including acids, alkalis, and salts. With an operating temperature range of -100℃ to +420℃, it provides reliable performance across a wide range of conditions.
Construction and Material:
Our Metal Corrugated Hose is constructed using high-quality stainless steel, specifically 304, 316, or 316L, ensuring excellent pressure resistance, temperature resistance, corrosion resistance, and fatigue resistance. The inner core consists of a PTFE corrugated tube, providing exceptional chemical compatibility. The outer core is composed of braided layers of stainless steel, either single or double, which serve to enhance strength and shielding.

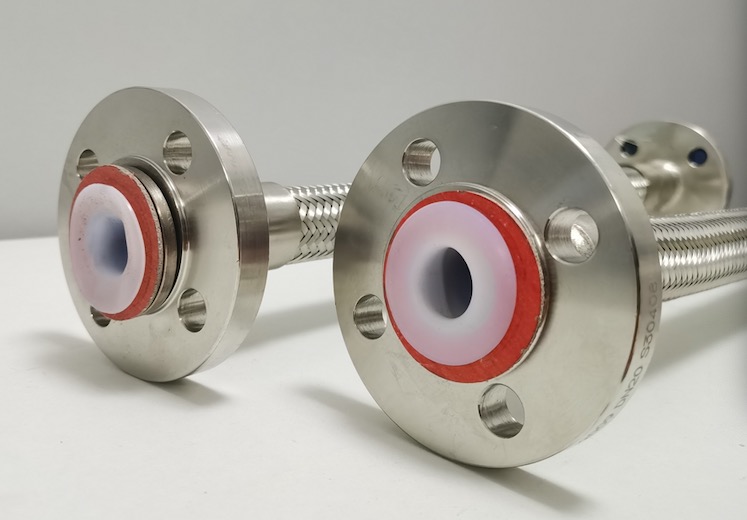

PTFE Lining Features:
Corrosion resistance: Withstanding strong acids, strong oxidants, reductants, and various organic solvents (excluding molten alkali metals, fluorinated media, and NaOH above 300℃).
Insulation: Unaffected by the environment and frequency, with a volume resistance of up to 1018Ω/㎝, low medium loss, and high voltage resistance.
Temperature resistance: Minimal impact across a wide temperature range, from -190℃ to +260℃.
Product Features:
Thin-walled stainless steel pipe body: Provides hydraulic flexibility, scalability, bending ability, and reinforced protection through a woven net sleeve, ensuring a high bearing capacity.
Suitable for diverse indoor and outdoor environments, including complex and challenging conditions.
Ideal for rotary joint support and widely used in conveying various fluid media through flexible connections.
Quality Assurance and Customization:
At Feature, we prioritize maintaining the high quality of our industrial flexible metal hose products. Our reliable and stable supply ensures on-time delivery, and our ISO9001-certified processes guarantee product excellence. We offer non-standard customization options, allowing you to tailor the hose according to your specific needs, including design specifications such as inner diameter, outer diameter, length, connectors, materials, printed tags, and packaging. We also provide OEM/ODM services for custom designs that match your exact requirements. To ensure customer satisfaction, we offer free sample orders for quality testing before placing full orders.

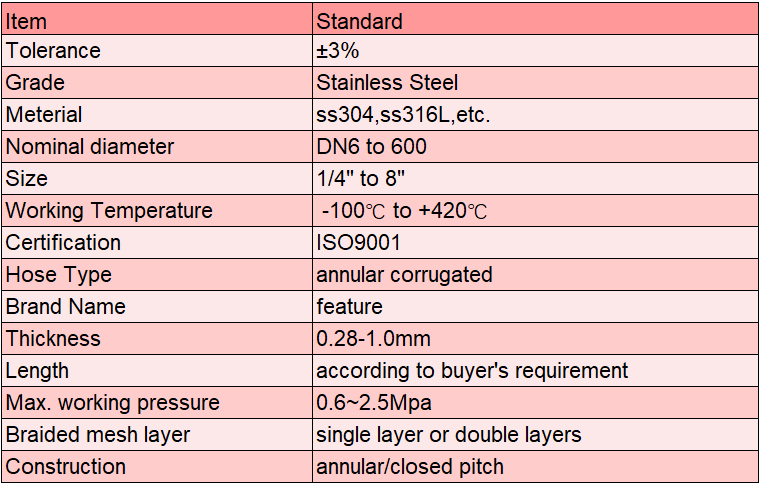

Product Standards:

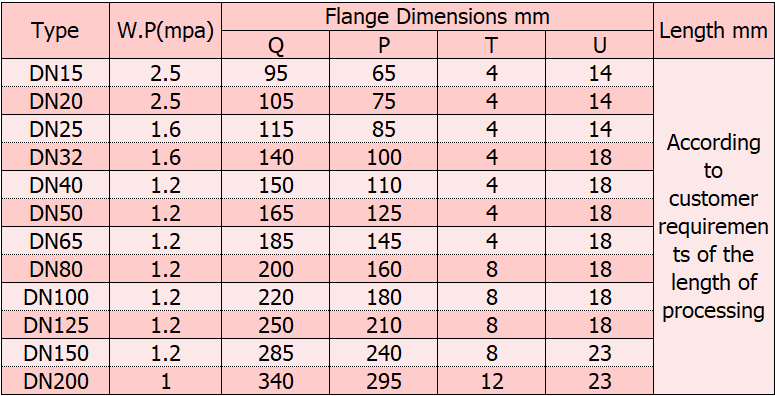

Flange Flexible Metal Hose Performance Parameters As Below:
Installation:
Flexible Metal Hose can be installed horizontally, vertically, or diagonally, although vertical installation is optimal. It should be positioned away from moving wheels and, if necessary, equipped with a baffle to prevent potential damage.
Experience exceptional quality, reliability, and performance with our Stainless Steel Braided Flexible Metal Flange Hose with Inner PTFE Lining. Contact us today to discuss your specific project needs and benefit from our extensive customization options and industry-leading expertise.
