Specification: 2450 * 1500 * 2300MM
Material: 304 stainless steel / plastic
Channel width: less than 600MM
Reading and writing: IC card /ID card / card / bar code etc.
A, technical parameters
1), working voltage: AC220 ± 10%V, 50HZ
2), the working environment temperature: -15 ℃ - 75 ℃
3), relative humidity: relative humidity below 90%, no condensation
4), the input interface: 12V level signal or pulse width > 100ms 12V > 10mA pulse signal, the driving current
5), the communication interface: RS485 appliance standards,
Full high rotating gate can be customized according to customer requirements: ID card full height turnstiles, rotating gate IC card, bar code card turnstiles, fingerprint machine brake, face recognition to multiple recognition gate.
Two, the function and characteristics:
1) with fault detection and alarm function, convenient maintenance and use of the user;
2) can be connected with the switch or remote control, realize the one-way or two-way control traffic;
3) with automatic reset function, when the brake lever to unlock, rotating 120 degrees /90 degrees, is automatically reset (lock). Or did not pass within the prescribed time, the system will automatically cancel the user's access privileges and automatically close (lock), 2S, 5S, 10S delay, 60S adjustable.

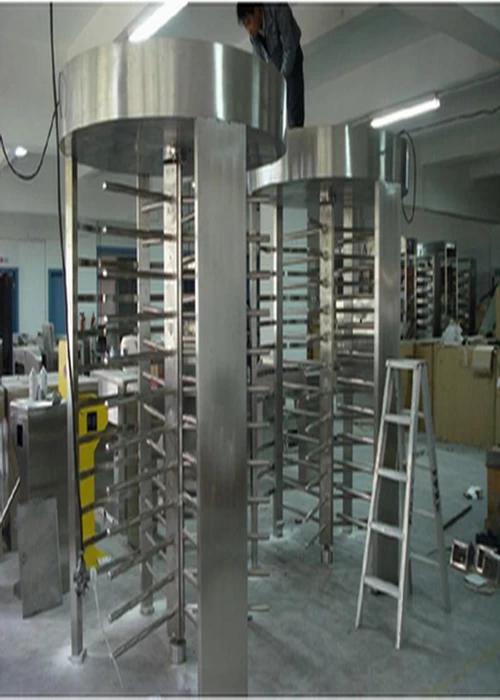

Stainless steel double the high rotating gate type F
