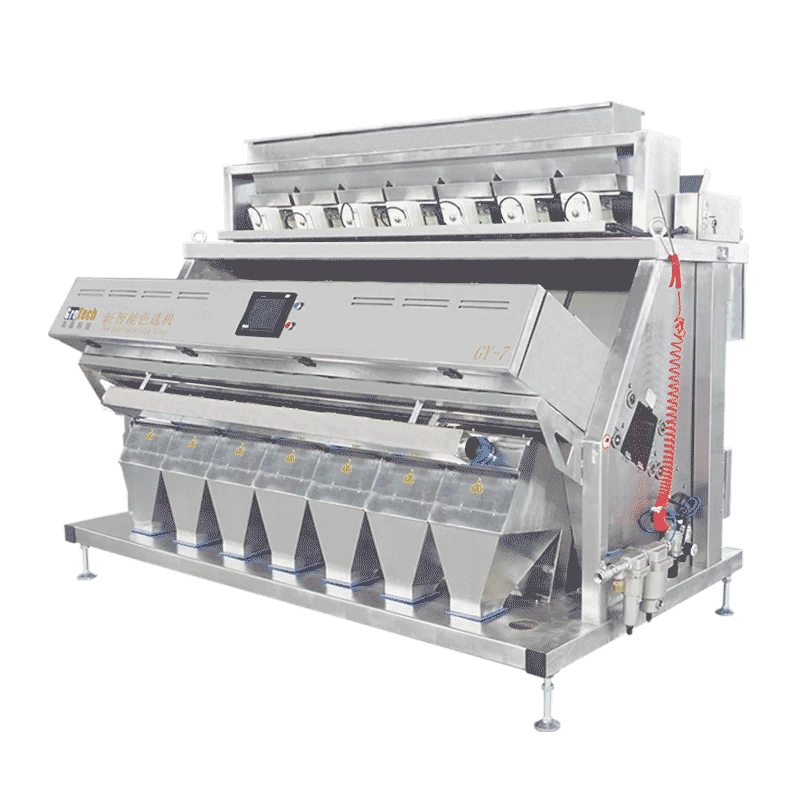

Stainless Steel Framework Salt Color Sorting Machine

GROTECH color sorter machine, Sorting Solution for Plastic Recycling and Salt Industries, RGB CCD Optical Sorting Machine for plastic, Salt, Quartz etc. applications


  • Trichromatic RGB CCD5400elements×3 Lines

           /Salt Color Sorting Machine Products Features/

Stainless Steel Framework Salt Color Sorting Machine
*Optical Sorting With Professional Industrial Wide View Camera Lens,Top Chromatic CCD Sensor,High Reliability And Long Life Source ,American Super Speed FPGA Processor;
*Color Sorting,Shape Sorting And Material Sorting Functions Combined;
*With High Frequency And Big Capacity Ejectors Suitable For Wide Range Of Materials,Higher Efficiency;
*Intelligent System, Self-Learning Function,Easy Operation;
*RGB Camera Identification, Higher Accuracy,New SteadyTemperature Light Source
*Unique Bionic Technology Camera,Cloud Computing ,Massive Data Analysis

           /Salt Color Sorting Machine Parameter Table/

Model

GY1

GY2

GY3

GY4

GY5

GY6

GY7

GY8

GY10

GY12

Executing Unit

64

128

192

256

320

384

448

512

640

768

Throughput(T/H)

0.5-1.4

0.5-2.5

1.0-3.0

1.5-5.0

2.0-6.0

2.5-7.0

3.0-8.0

3.5-9.0

4.0-12.0

5.0-14.0

Voltage(V)

110-250V50-60HZ

Power(KW)

1

1.4

1.8

2.2

2.6

3

5

6

7

8

Weight(KG)

210

350

600

750

880

1050

1150

1250

1400

1650

Dimension(L*W*H/mm)

960*1630*2050

1340*1630*2050

1610*1630*2050

1965*1630*2050

2225*1630*2050

2595*1630*2050

2980*2116*1990

3068*1630*2050

2980*2116*1990

2980*2430*1990

Sorting accuracy(%)

≥99.99

Rejection rate(%)

≥8:1

Air consumptionL/min)

400-800

600-1000

800-1600

1000-1800

1300-2200

1500-3000

1800-3600

2200-4000

2400-4500

2700-5000

Notes

Subject to different impurities of raw materials,parameters listed in above table will charge to some extent
