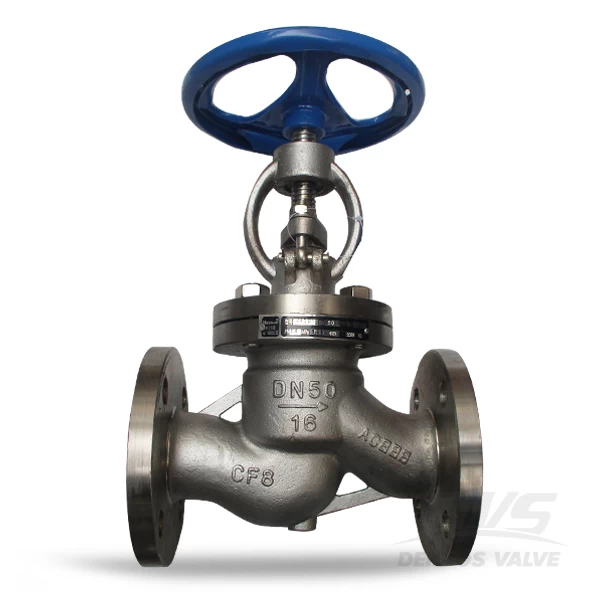

The PN16 DN50 stainless steel flanged globe valve has straight pattern structure, bolted bonnet and handwheel operation. The OS&Y globe valve is designed as per DIN 3356.
Quick Detail
|
Type
|
Globe
Valve
|
|
Norminal Size
|
DN50
|
|
NorminalPressure
|
PN16
|
|
Construction
|
BB,
Rising Stem, Plug Disc, Integral Seat
|
|
ConnectionType
|
Flange
|
|
OperationType
|
Gearbox
|
|
Design Code
|
DIN
3356
|
|
Face to Face
|
DIN 3202
|
|
Flange End
|
DIN
2543
|
|
Test &
Inspection
|
DIN
3230
|
|
Body Material
|
Stainless
Steel
|
|
TrimMaterial
|
Stainless
Steel
|
|
Temperature Range
|
-196℃~+800℃
|
|
Medium
|
Water, Oil and Gas
|
|
Origin
|
China
|
Design Feature
1.Straight pattern body structure
2.OS&Y, Rising Stem
3.Bolted Bonnet
4.Available with bevel gear operation
5.Plug type disc
6.Little abrasion on sealing face during valve operation
7.Smaller installation space required
Dervos Main Product Range
With a complete product range, Dervos product lists cover gate, globe, check, ball, butterfly, check, plug valve and strainers. We can also provide marine valve, pressure reducing valve, control globe valve, wellhead valve and so on
