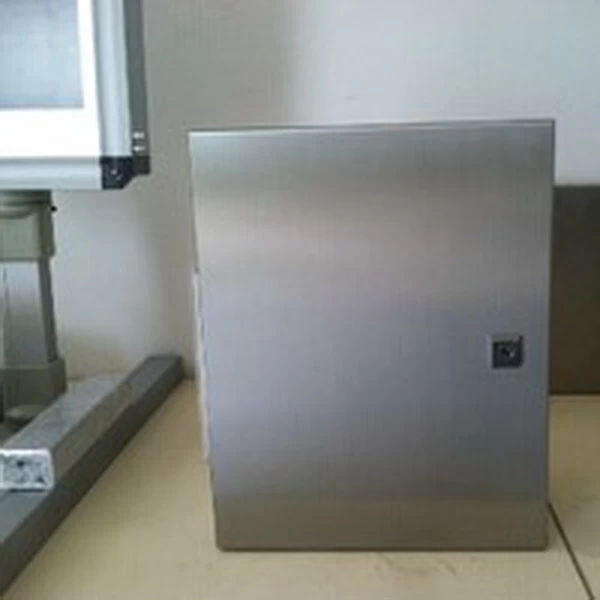

Stainless Steel IP65 Wall Mounting Electrical Panel Boxes

Double layers doors stainless steel electrical panel boxes

IP65 wall mounting

PU Foam sealing on door



 Stainless Steel  IP65 Wall Mounting Electrical Panel Boxes


      Protection Level: IP55

      Type: Control Box

      External Size: 200mm*200mm*100mm

      Color: Silver

      OEM Ability: Provide OEM

      Certificates: CE CCC



outdoor stainless steel wall mounted box

1. Material:  SUS304(Other material can be optional)

2. Surface Treatment:  Wire Drawing,Mounting Plate is Galvanized

3. Class of Protection: IP56(According to GB4205-1993)   PU Foaming Sealing



Item Name:

outdoor stainless steel wall mounted box

Material:

SUS304(Other material can be optional)

Thickness:

Box Body:1.5mm(2.0mm optional) Door Plate:2.0mm                                         Mounting Plate:2.5(3.0mm optional)

Standard Configuration:

Box Body, Door Plate, Sealing Strip, Grounding Sets, Mounting Plate, Door Lock

Surface Treatment:

Wire Drawing, Mounting Plate is Galvanized

Class of Protection:

IP56(According to GB4205-1993)                                                   PU Foaming Sealing

MOQ:

100 PCS

Supply Ability:

10000 PCS/Month

Delivery Time:

10-15 days

Remark:

Special Demands Can Be Customized



Main advantage of   outdoor stainless steel wall mounted box

PU foaming sealing strip ensures a protection class of IP56 to box body.

Widened box frame, bearing hinge and door plate square tube stiffener ensures high strength of the box body.

Optional 3.0mm galvanized mounting plate and high-strength mounting rack ensures the reliability of the mounting parts (can be used for wiring outside the box).

Bottom inlet/outlet line device ensures easy installation of inlet/outlet lines.

Optional lifting ring system ensures easy transporting.

Surface wire drawing treatment (sand blasting is available in high-class box).
