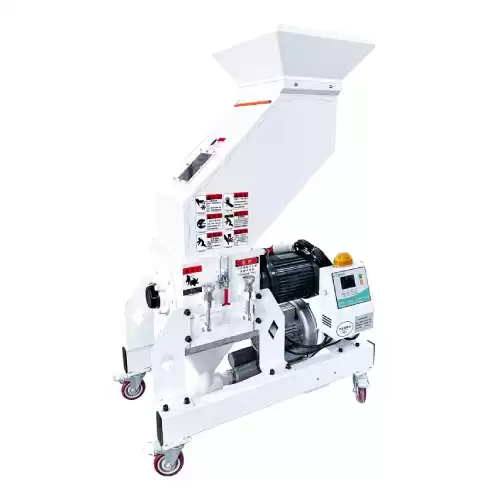

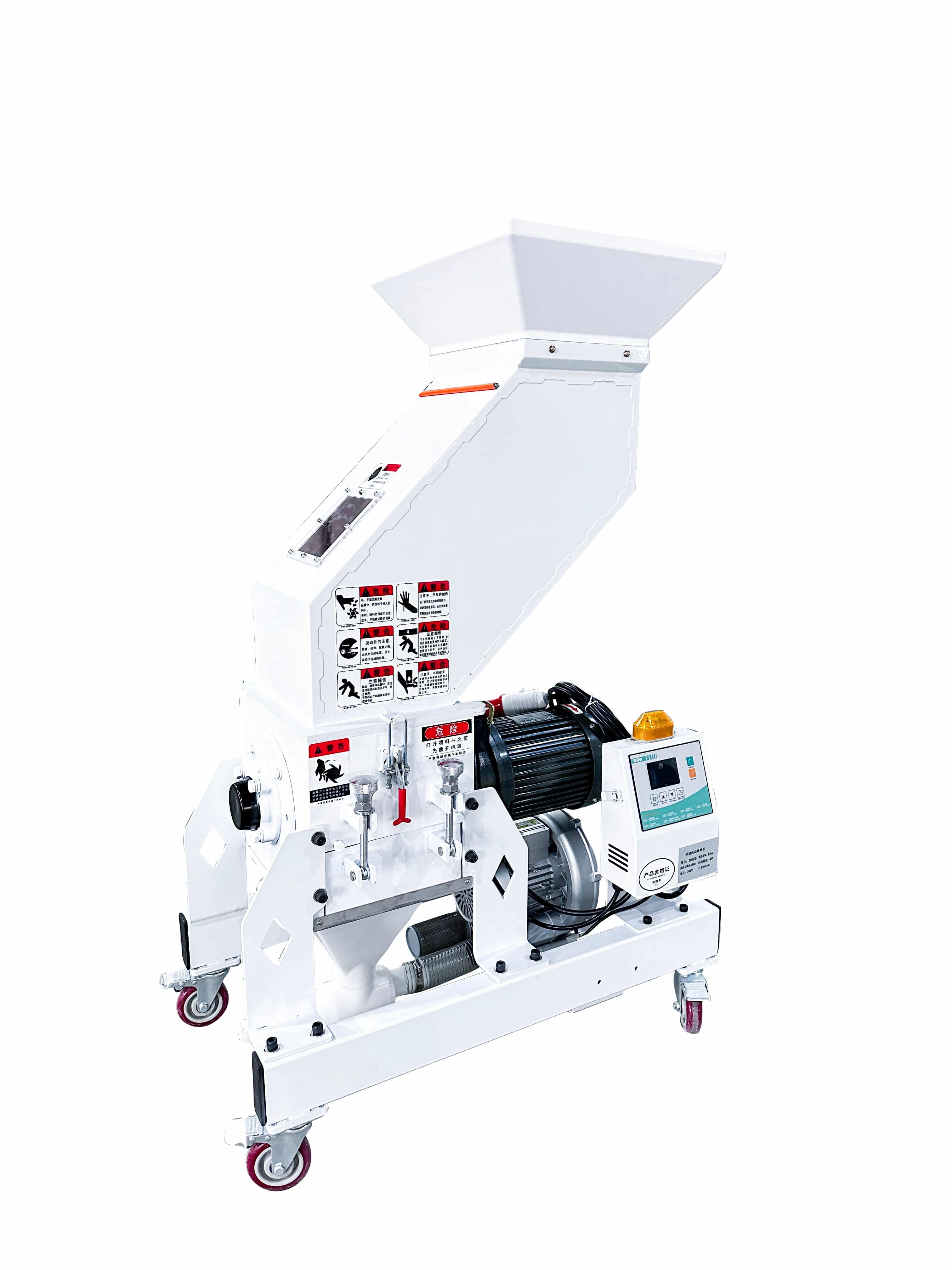

Product Description
The PQ low-speed pulverizer adopts a heavy-duty fine steel frame and a pure copper core motor, which is sturdy and durable. The built-in automatic recovery fan collects the crushed particles in real time and can be directly transported to the supporting storage system, realizing seamless material processing and reducing manual intervention. The double-layer soundproof cabinet and the sealed crushing chamber effectively isolate noise and dust, meeting the strict environmental safety standards of clean workshops. The humanized control panel integrates a time relay to support customized crushing cycles. Whether it is food additive processing or plastic waste recycling, this machine can provide a reliable and efficient crushing solution.
Product Parameters
| Model |
YS-LS-2000 |
YS-LS-3000 |
YS-LS-5000 |

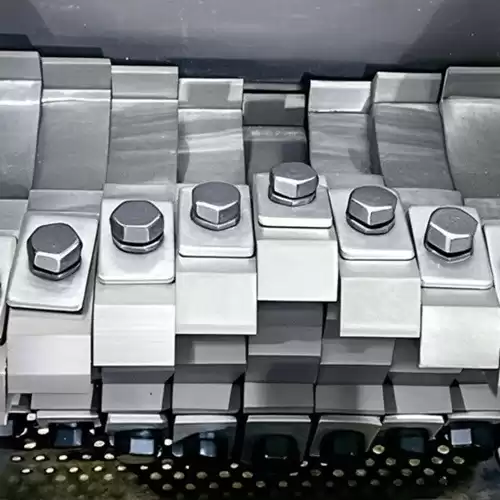

| Number of Blades |
8 knives (8*3)
24 pieces |
10 knives (10*3)
30 pieces |
14 knives (14*3)
42 pieces |
| Motor Power |
2.2kW |
2.2kW |
3.7kW |
Spindle Speed
(r/min) |
140 |
140 |
140 |
| Blade Material |
SKD-11 |
SKD-11 |
SKD-11 |
Feeding Port Size
(mm) |
320*255 |
320*255 |
320*430 |
| Grinding Amount |
50-100kg/h |
75-150kg/h |
100-200kg/h |

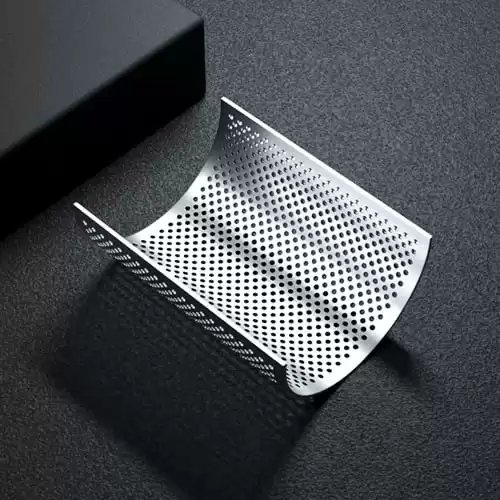

Screen Hole Diameter
(mm) |
6 |
6 |
6 |
Operating Volume
(dB) |
65 |
65 |
65 |
Weight
(Excluding Fan) |
170kg |
184kg |
229kg |
Machine Size
(cm) |
90*60*141 |
90*60*145.5 |
120*60*151.5 |
Machine Size Excluding
Bell Mouth (cm) |
90*60*127.5 |
90*60*132 |
120*60*138 |
Grinding Chamber
Outside Bell Mouth |
485*420 |
485*420 |
480*600 |
| 280*250 |
280*305 |
280*425 |
Key Features
✅ Stainless Steel Construction for Durability: Built with high-strength stainless steel, the crusher resists wear and impact, ensuring long-term reliability even under frequent heavy-duty operations—ideal for processing fibrous or tough materials.
✅ Automatic Recycling Fan for Efficiency: Integrated fan system collects crushed materials in real time and transports them to designated containers, eliminating manual cleanup and reducing dust for seamless integration with automated production lines.
✅ Double-Layer Soundproof Enclosure: The sealed, sound-insulated housing minimizes operational noise, creating a quiet workspace that meets strict noise standards in pharmaceutical, food, and other sensitive industries.

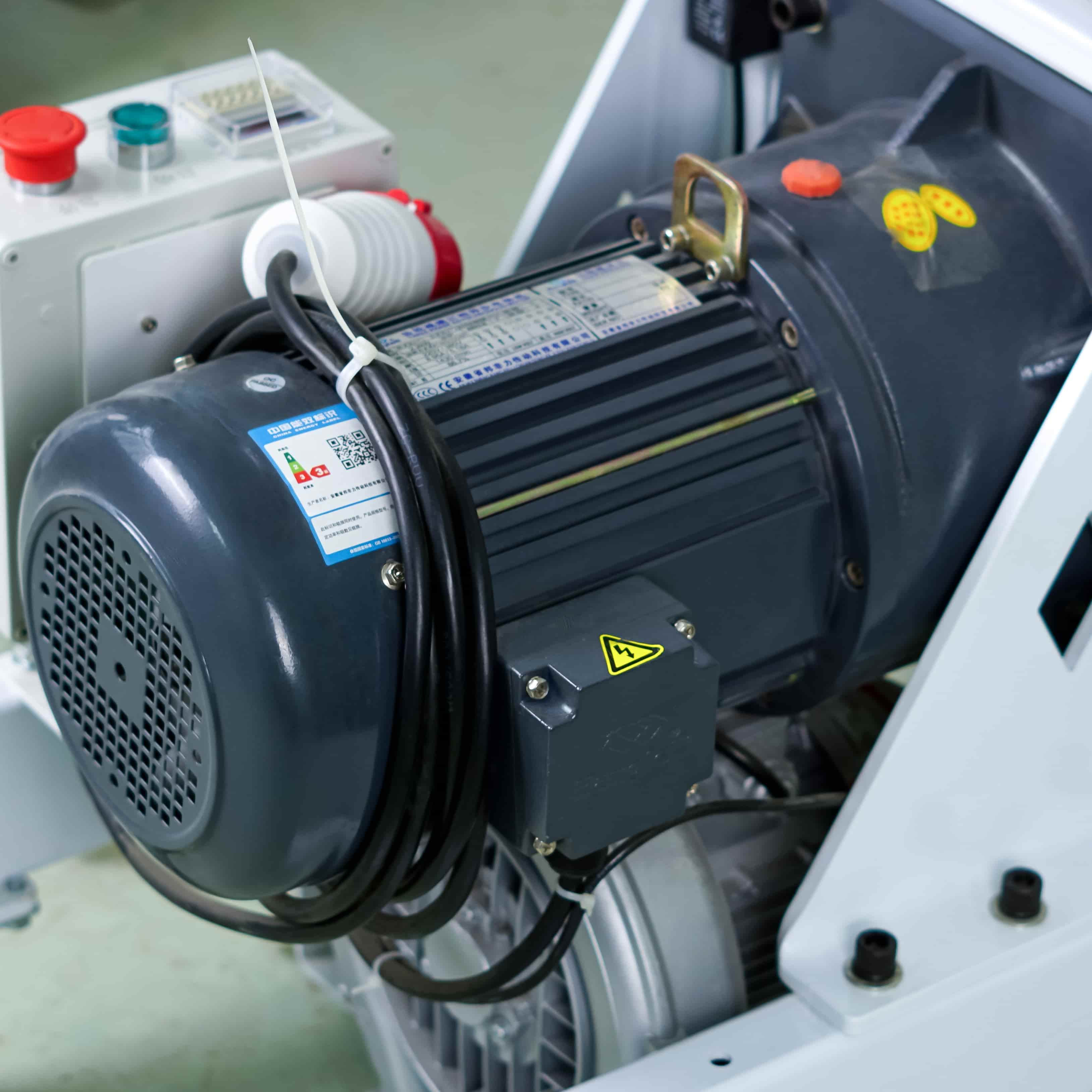

✅Pure Copper Motor for Stable Performance: The pure copper motor offers excellent conductivity and heat dissipation, delivering consistent high torque for efficient crushing of soft plastics, fibers, and more, reducing motor overheating risks.
✅Time Relay for Customizable Operation: Equipped with a time relay device, it supports customizing the crushing time and interval to avoid over-crushing or insufficient efficiency.
✅Visual window: The machine body is equipped with an explosion-proof visual window to observe the material status and particle size in the crushing chamber in real time.
✅Flexible adaptation of the recycling system: It supports seamless connection with the external recycling system, and can customize the crushing and recycling plan to meet the needs of different working conditions.
Product Detail Display
-
-

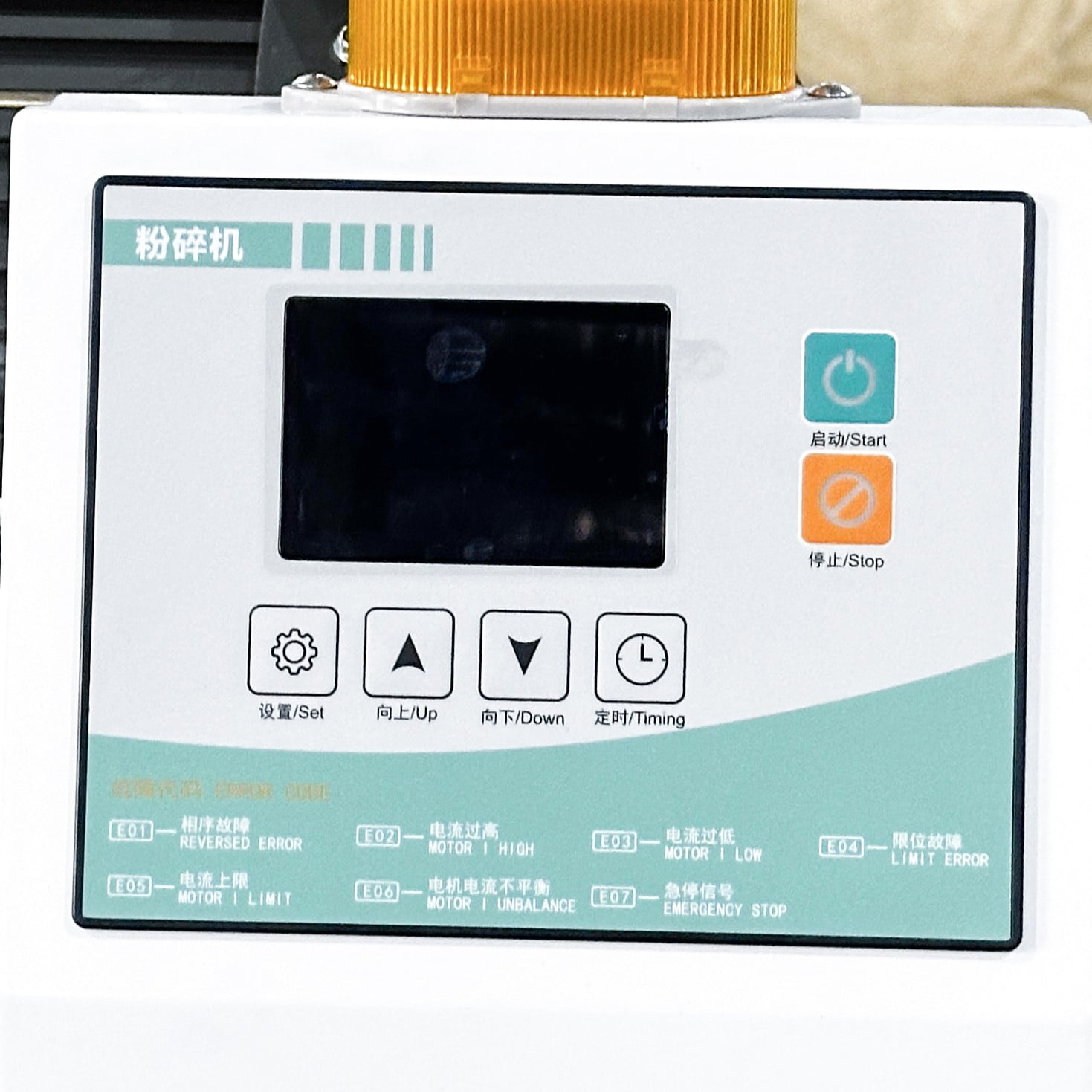

Time Relay
Can set the crusher running and stopping time.
-

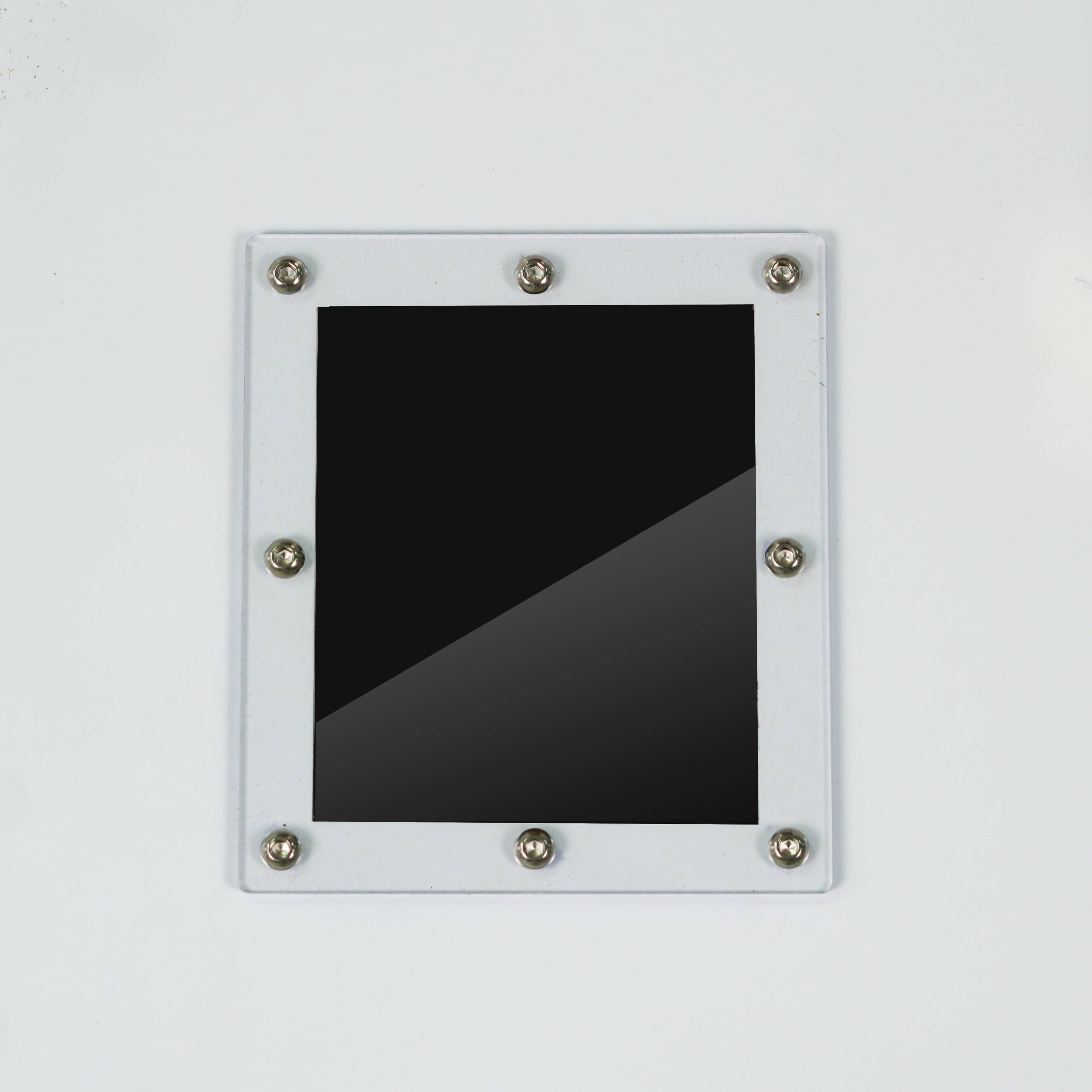

Visual Window
See through the glass window, the visible crushing effect.
-

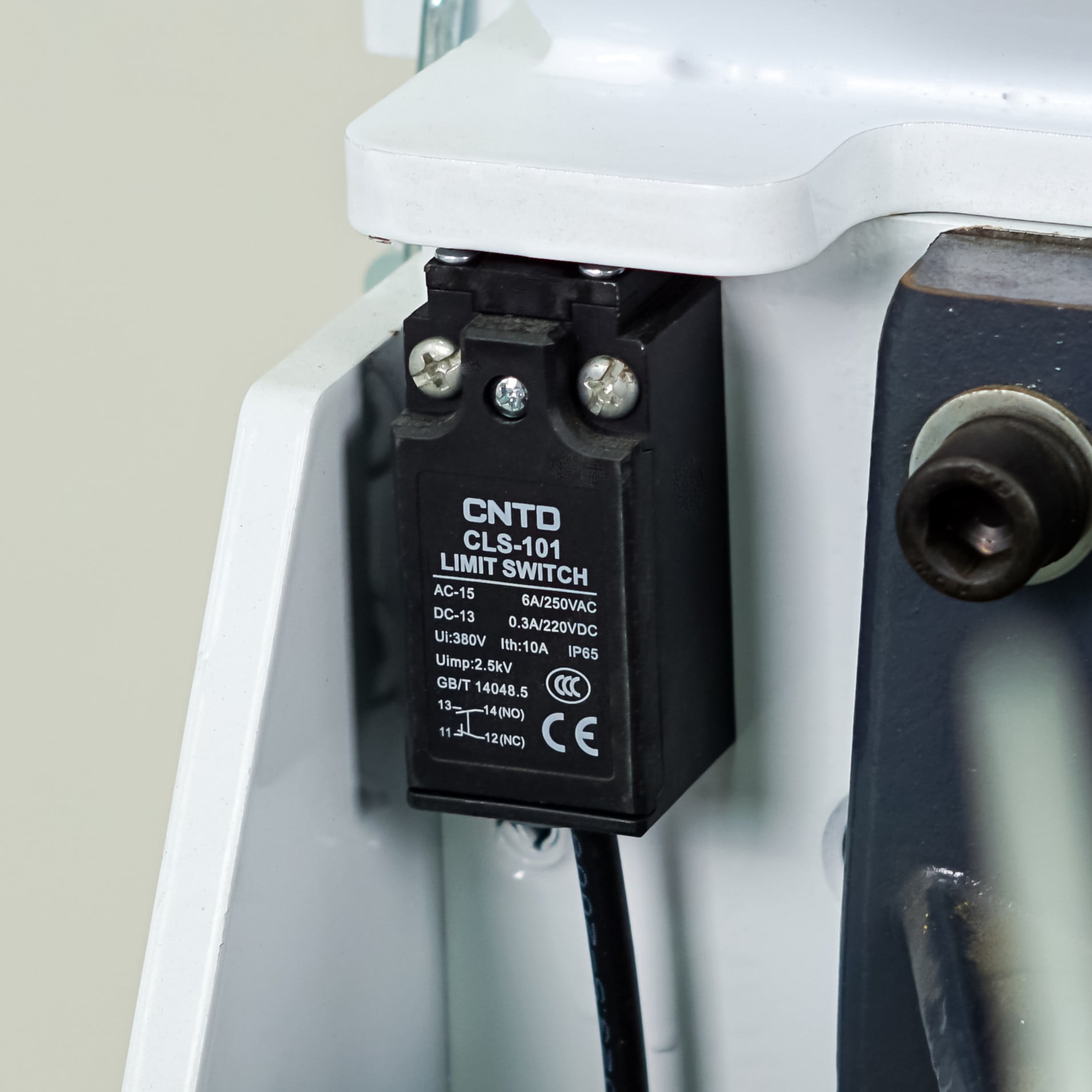

Travel Switch
Open the box, and it automatically stops crushing, making it safer to use.
-
CAN BE PAIRED WITH A RECYCLING SYSTEM
Hard and soft materials can be crushed into powder with low noise.
Strong crushing ability, safe and stable operation.

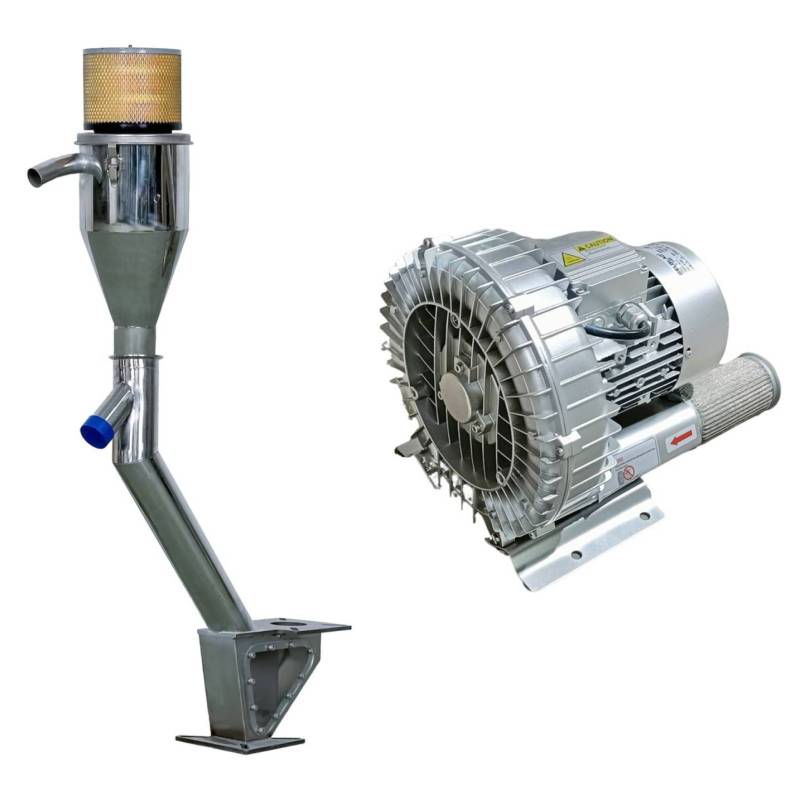

Matching Scheme ①

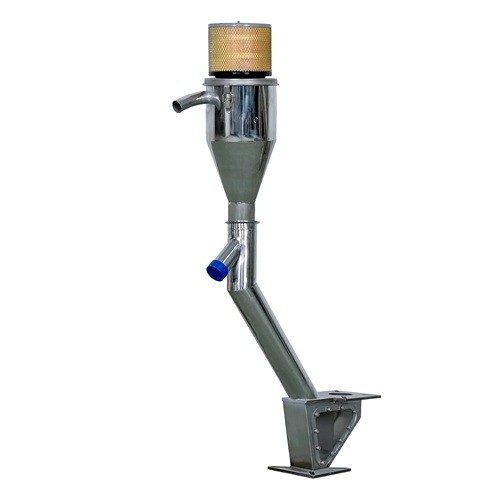

Cyclone Recovery System
+
High-Pressure Blower
Matching Scheme ②

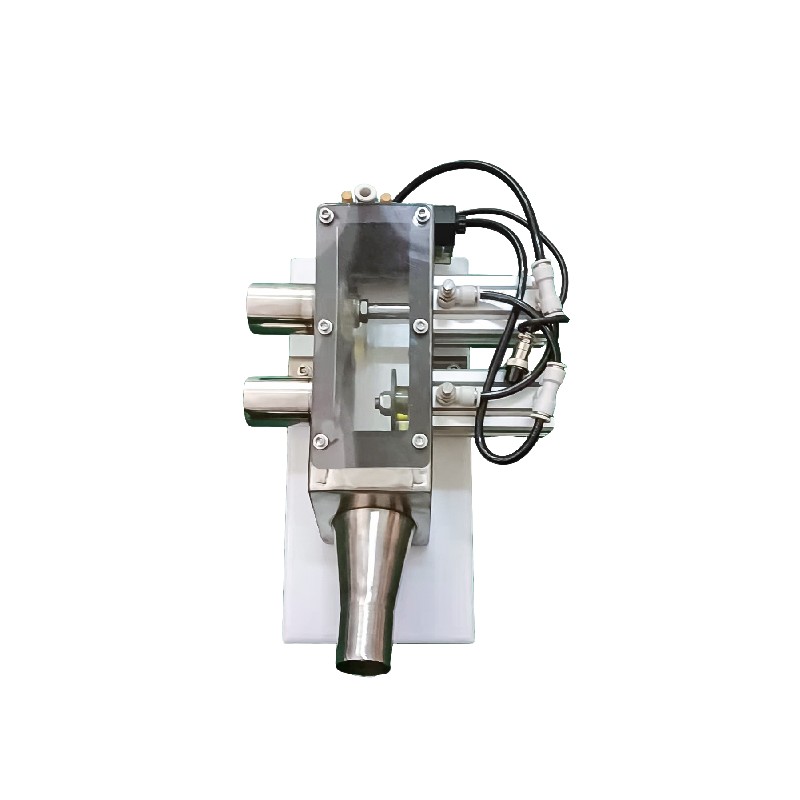

Two-Material Proportional Valve

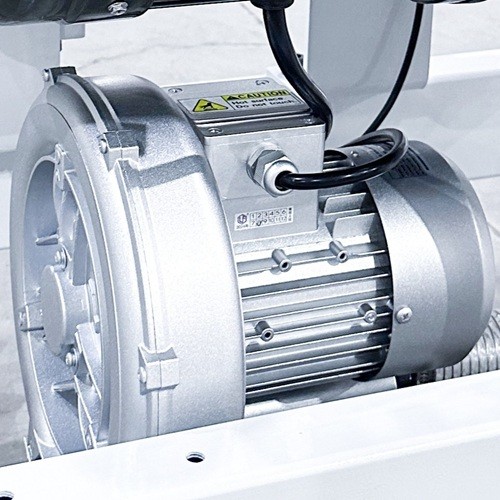

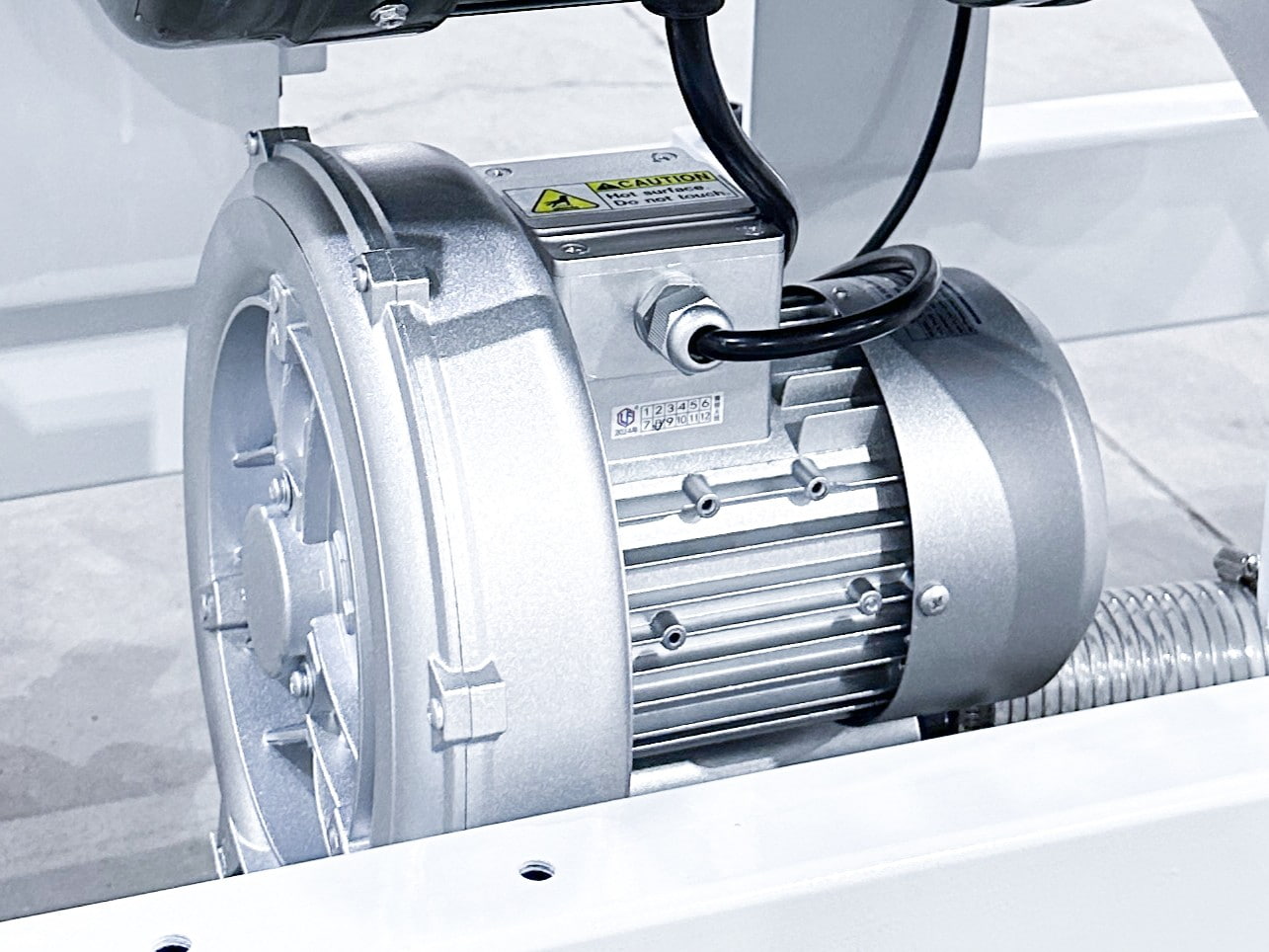

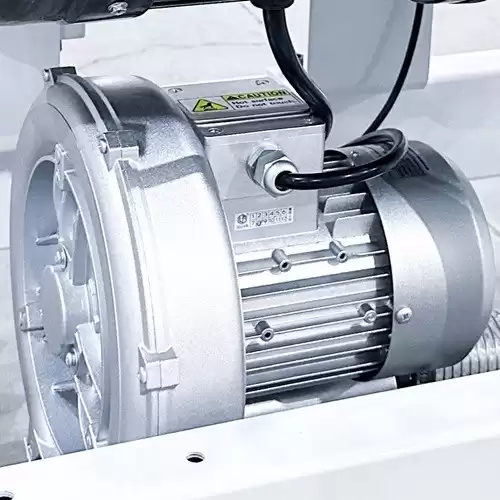

AUTOMATIC RECOVERY FAN
The optional recovery fan can automatically transport the crushed materials
to the production equipment to reduce labor costs.

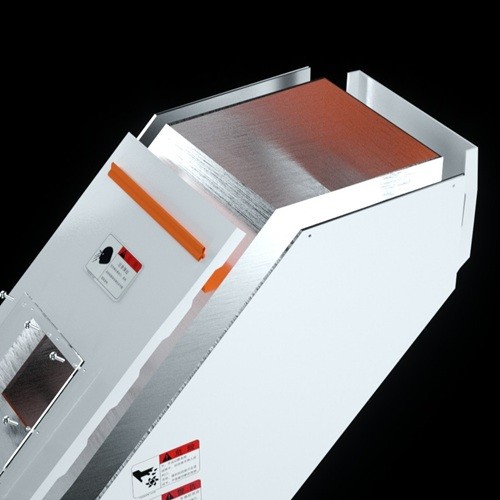

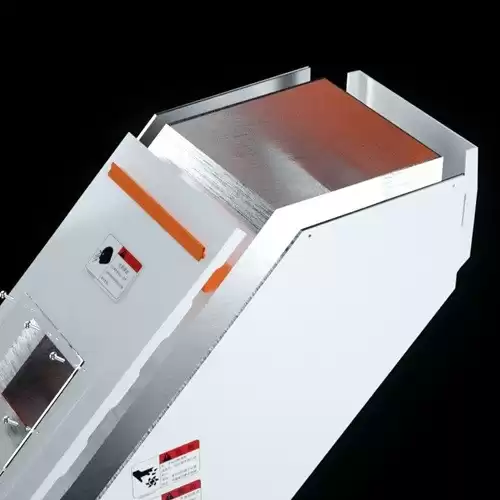

DOUBLE-LAYER SOUNDPROOF BOX
The crushing box is made of thickened stainless steel
to greatly reduce the crushing noise.
