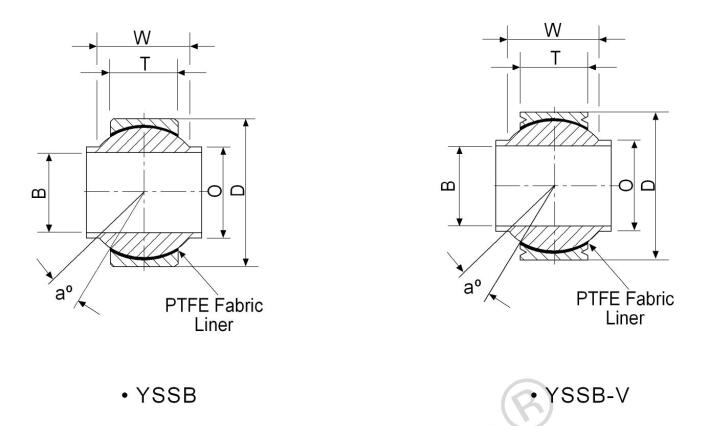

Stainless Steel Plain Bearings YSSB YSSB-V


Ball: 440c Stainless Steel;Rc 56 Min.

Race: 17-4,Stainless Steel,Heat Treated

Liner: PTFE Fabric,Permanently Bonded to Race I.D.




YSSB12V Stainless Steel Plain Bearings

Bearing No.
+.0000
-.0005
+.0000
-.0005
+.000
-.002
±.005
+.000
-.010
Ball
Diameter
REF
a
Misalign Angle
Static
Radial
Limit Load
(Pounda)
Static
Axial
Limit Load
(Pounds)
Dynamic
Oscillating
Radial
Load
(Pounds)
Approx.
Weight
(Pounds)
Ball Bore Outside Diameter Ball Width Race Width Shoulder Diameter
YSSB4 .2500 .7400 .593 .255 .390 .593 24 7,100 450 3,800 .036
YSSB5 .3125 .6875 .625 .255 .418 .593 20 9,000 450 3,800 .025
YSSB6 .3750 .9060 .813 .345 .512 .781 23 16,000 2.000 7,200 .068
YSSB7 .4375 1.0000 .875 .345 .618 .875 22 19,300 2,000 8,100 .095
YSSB8 .5000 1.1250 .937 .401 .730 1.000 20 26,100 3,200 10,900 .159
YSSB10 .6250 1.3750 1.200 .567 .856 1.250 20 44,500 7,000 20,000 .245
YSSB12 .7500 1.5625 1.280 .620 .970 1.375 18 54.800 8,700 24,200 .315

Bearing No.
+.0000
-.0005
+.0000
-.0005
+.000
-.002
±.005
+.000
-.010
Ball
Diameter
REF
a
Misalign Angle
Static
Radial
Limit Load
(Pounda)
Static
Axial
Limit Load
(Pounds)
Dynamic
Oscillating
Radial
Load
(Pounds)
Approx.
Weight
(Pounds)
Ball Bore Outside Diameter Ball Width Race Width Shoulder Diameter
YSSB4V .2500 .7400 .593 .255 .390 .593 24 7,100 450 3,800 .036
YSSB5V .3125 .6875 .625 .255 .418 .593 20 9,000 450 3,800 .025
YSSB6V .3750 .9060 .813 .345 .512 .781 23 16,000 2.000 7,200 .068
YSSB7V .4375 1.0000 .875 .345 .618 .875 22 19,300 2,000 8,100 .095
YSSB8V .5000 1.1250 .937 .401 .730 1.000 20 26,100 3,200 10,900 .159
YSSB10V .6250 1.3750 1.200 .567 .856 1.250 20 44,500 7,000 20,000 .245
YSSB12V .7500 1.5625 1.280 .620 .970 1.375 18 54.800 8,700 24,200 .315


This series is also available with an optionl 52100 heat treated and hard chrome plated ball. To specify this configuration use p/n YSBT(4-12)OR YSBT(4-12)v in place of part numbers in table.
