Stainless Steel Purification System Laboratory Vacuum Glove Box
Product Specification
In the process of scientific experiments, some substances in the air easily oxidation and deliquescence, which makes the test substance reaction and sample pre treatment very difficult, influence the test process and test results. Vacuum glove box (also known as vacuum inert gas operation box) effectively solves the easy oxidation and deliquescence of these problems, the device can be so that the test sample to the safety of putting in and taking out, and in anhydrous and anaerobic conditions ease of operation, reaction and testing, ensure that the normal scientific experiments
|
Model
|
TOB-VGB-1
|
|
Long (operating room)
|
600mm
|
|
Bottom width (maximum width of operating room)
|
450mm
|
|
Roof width (upper part of the operating room)
|
350mm
|
|
High (operating room up)
|
420mm
|
|
Front and lower (positive observation window glass) high
|
190mm
|
|

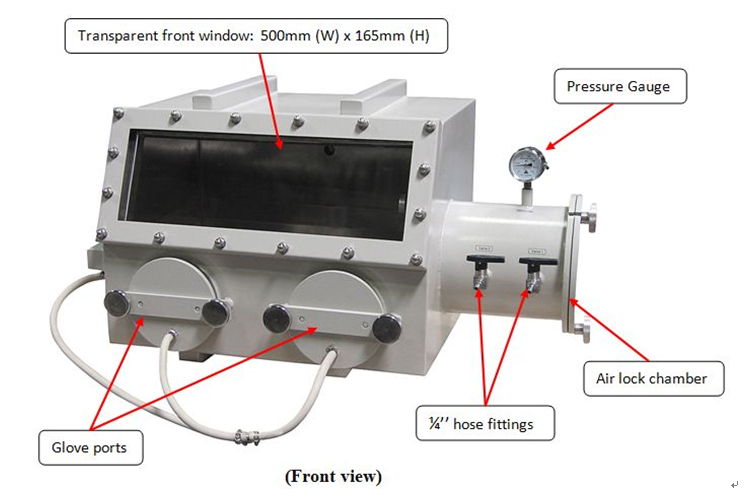

Glass opening
|
510*160
|
|
Anterior chamber diameter
|
200mm
|
|
Anterior chamber length
|
400mm
|
|
Glove hole diameter
|
139 mm(two)
|

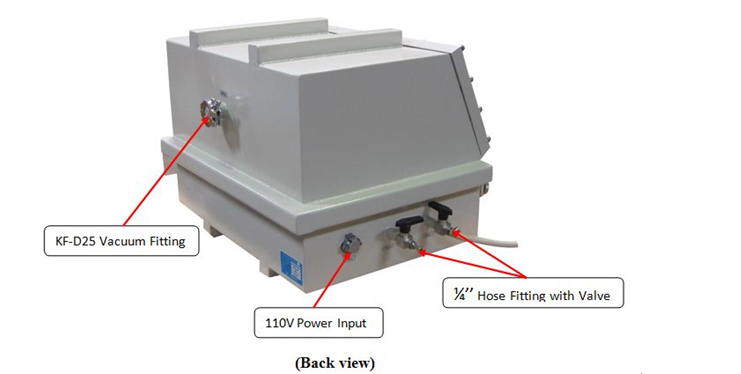

The operating room is equipped with: two stainless steel vacuum ball valve, air plug one (the left side, the box is equipped with a multi-function socket), KF-25 with a blind plate interface (in the middle)
Before the class room is equipped with: stainless steel vacuum ball valve , KF-25 with blind plate interface a (positive) and. O 60/-0.10~0.15Mpa vacuum pressure table a (top center)

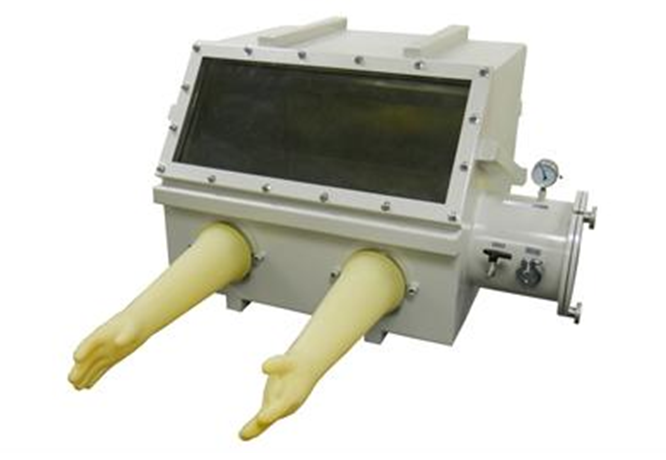

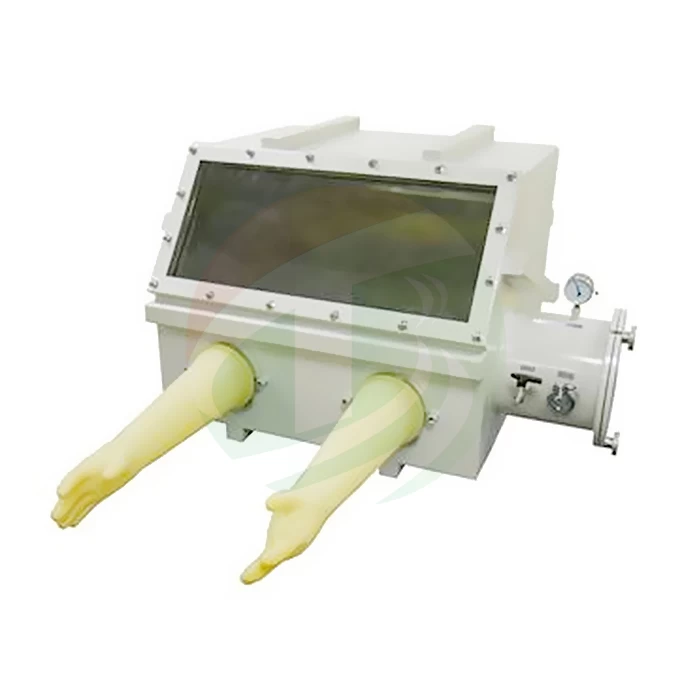

Product Image
Product Packing
