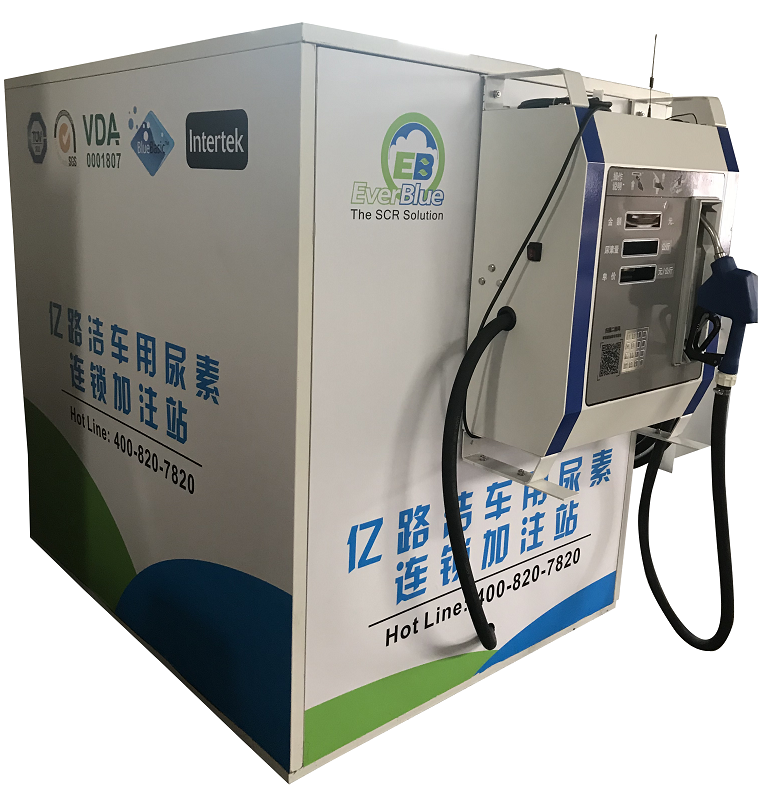

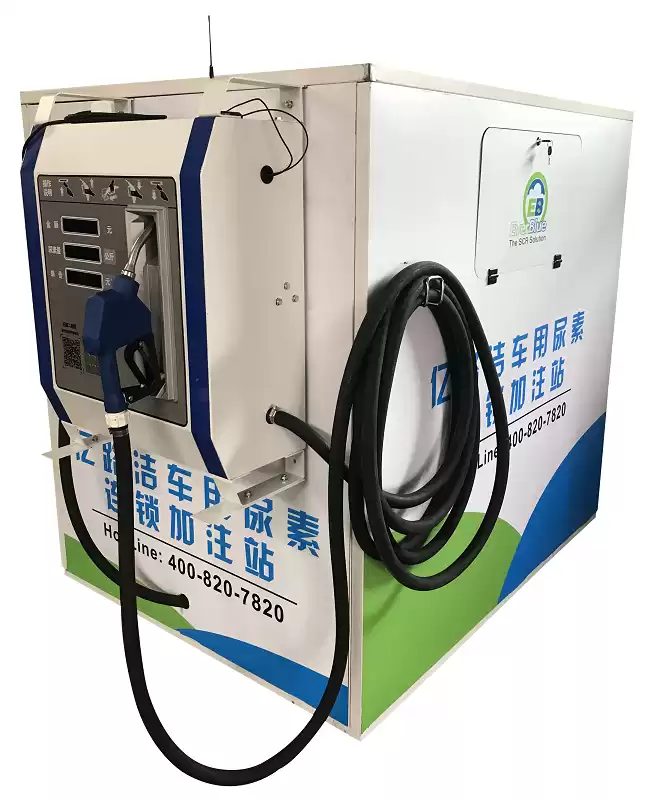

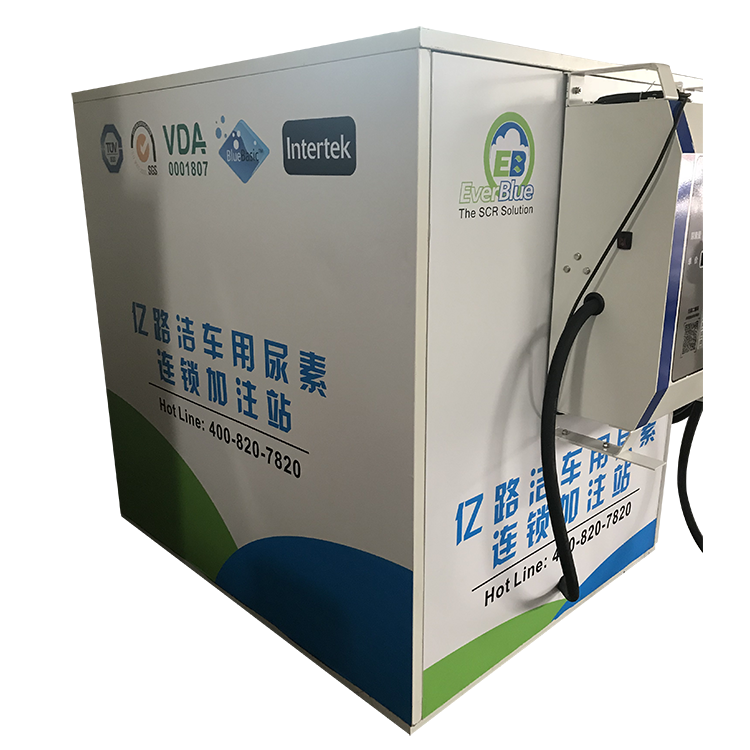

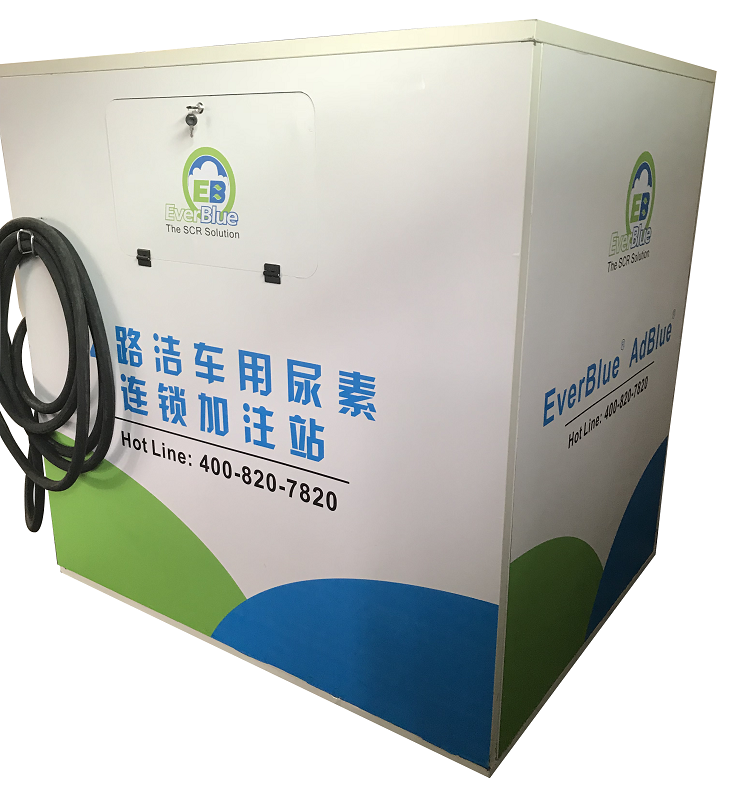

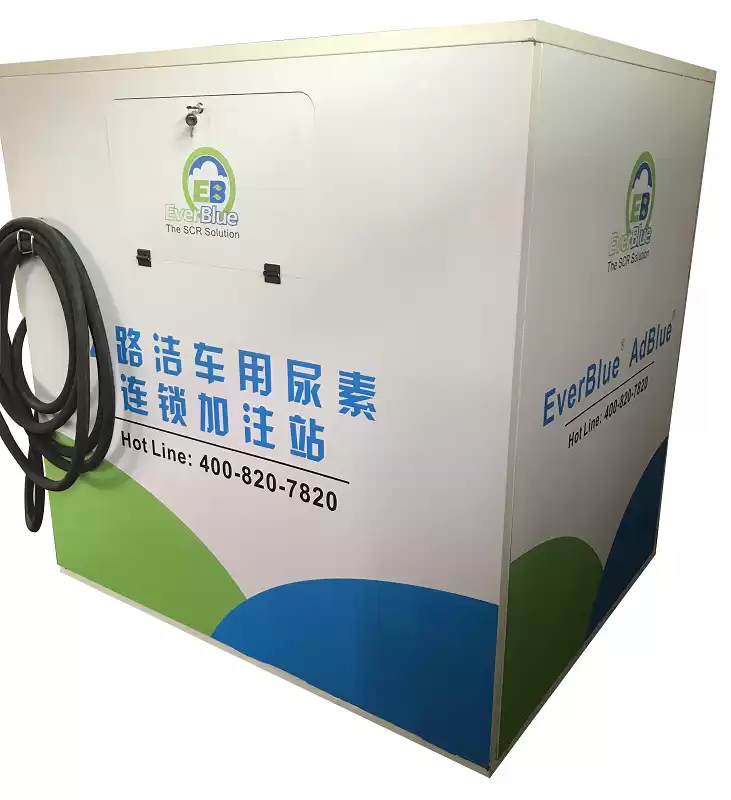

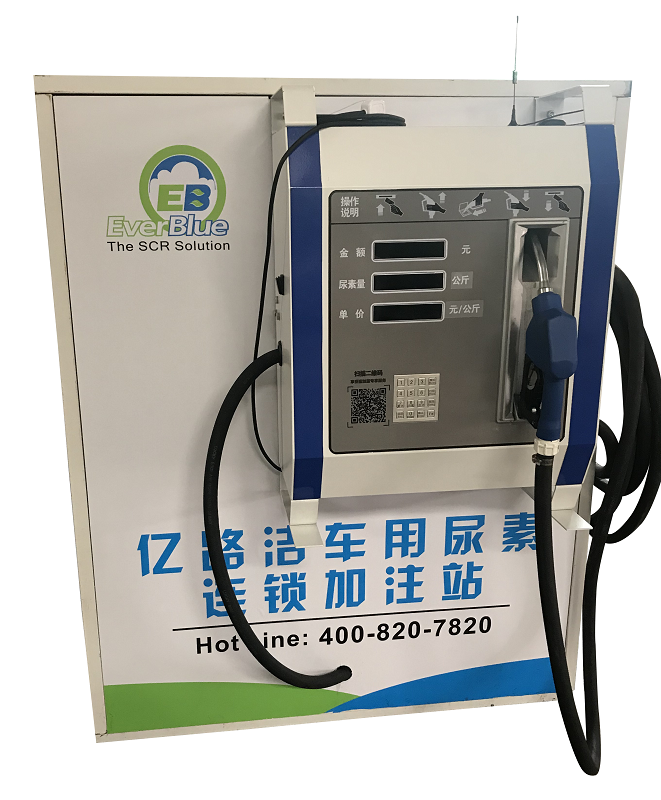

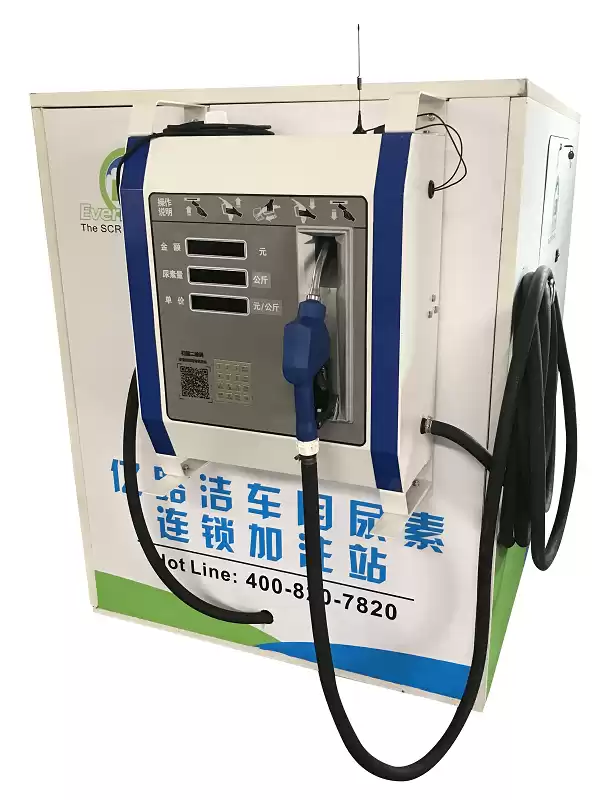

Stainless Steel Skid Mount AdBlue® Filling Machine Urea Dispenser
Dimension
|
1200(L)x1500(W)x1500(H) mm
600(L)×380(W)×850(H) mm
|
Gross weight
|
160KG
|
Power
|
330W
|
Voltage
|
220V 50HZ
|
Certification
|
ISO9001-2015
|
Configuration
|
Transmission hose, special electric urea pump for export, special flowmeter for stainless steel urea, plastic solenoid valve, stainless steel self sealing filling gun, computer control module, keyboard and display screen.
|
Function
|
1.Quantitative (litre) injection, fixed amount added injection and non quantitative annotation;
2.record the number of single refueling and the accumulative quantity;
3.Fill up to stop, prevent overflow;
4.Remote monitoring (device location, filling time, number of refills, reload amount, back-end export excel list for data analysis, remote lock)
|
Filling accuracy
|
±1%
|
Flow range
|
5-40L/Min
|
Fixed refueling station
|
bus company, transportation company, logistics park etc
|
Appearance text patterns can be customized according to customer needs!
