Stand Seam Tin Roof Mounting System

Standing Seam Roof System is engineered for the maximum flexibility possible in designing and planning for the commercial and residential roof solar system. It is applicable to install the usual framed module, The special extruded aluminum rail, special module, clamp kit and the seam metal roof hooks can be high pre-assembly and make the installation easy and quick to save your labor cost and time. The customized length can eliminate the weld and cut onsite to keep the high anticorrosive performance, the structure strength and the appearance.

Technical Parameters :

Installation Site:                    Tin Roof(Klip Lok 700)

Installation Angle:                 Parallel the roof

Building Height:                    Upto 20m

Wind Load:                            Upto 60m/s

Snow Load:                           Upto 1.5KN/m²

Applicable Module:               Framed or Frameless

Module Orientation:              Landscape and Portrait

Module Dimension:               Applicable to any dimension

Standard Compliance:          AS/NZS1170.2 ; SGS and other international standards

Material:                                 Aluminum Alloy 6005-T5, Stainless Steel 304

Color:                                     Natural or customized.

Warranty:                              12 years of quality warranty and 20 years service life

Installation Guide :

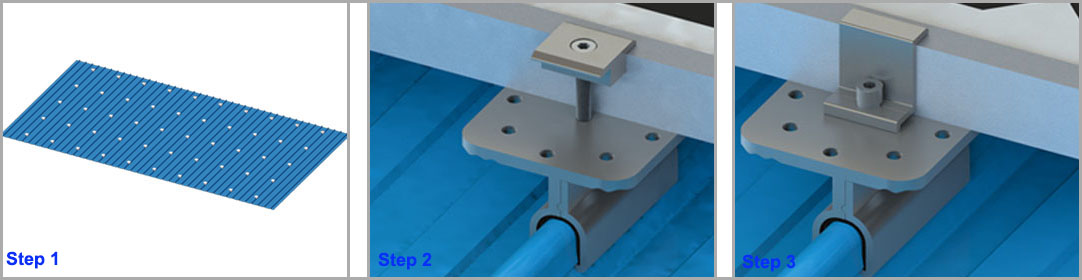

Step 1:  As per the installation layout to fix the seam tin roof hook on the roof with M8*10mm screws

Step 2:  Put the solar panels on the seam tin roof hooks ,and fix the panel with Mid clamps and D module nut.

Step 3:  Put the solar panels on the seam tin roof hooks ,and fix the panel with End clamps and D module nut.

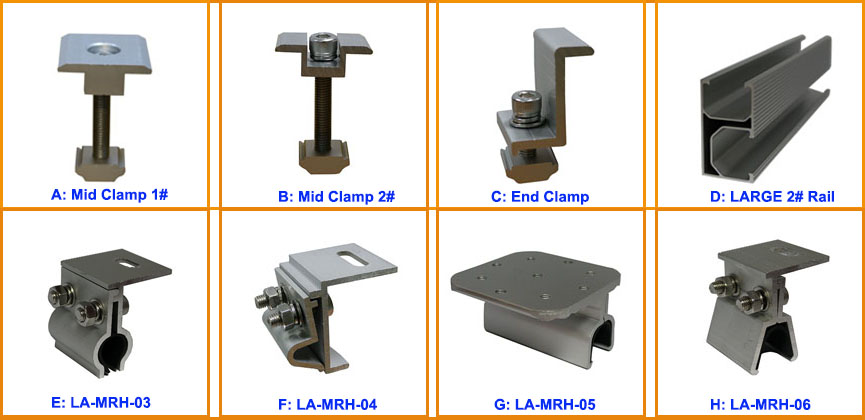

Components List :
