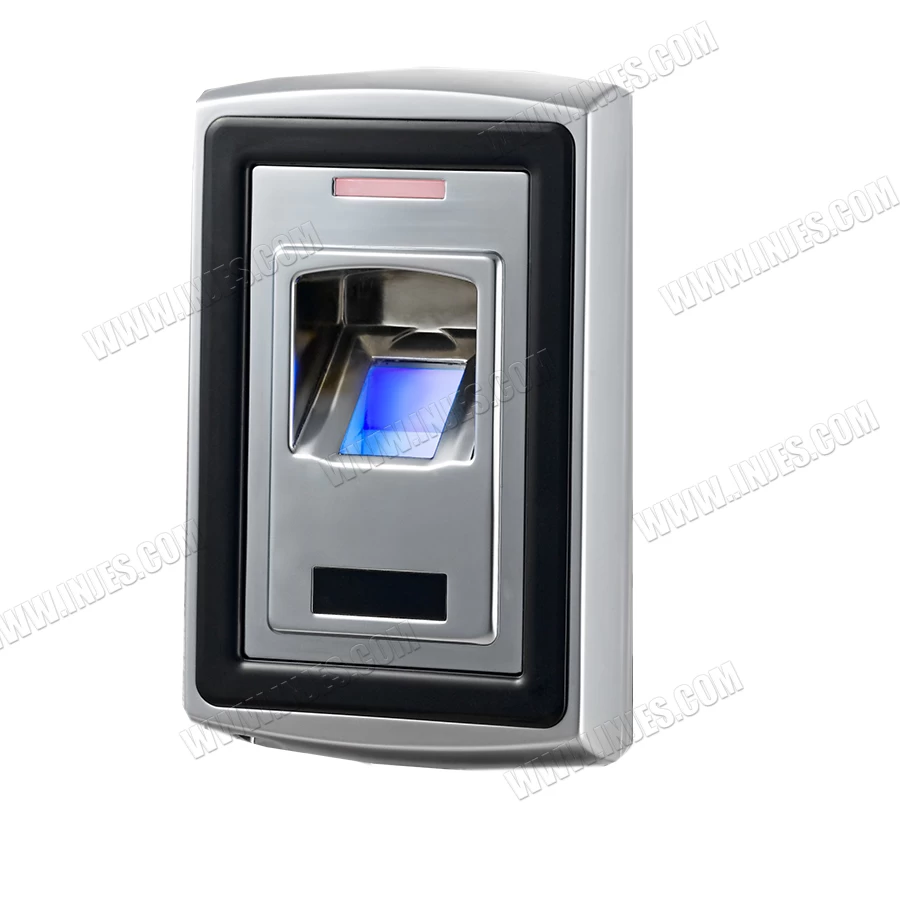

Standalone Fingerprint Access Control Device with Remote Control

UTC1



Product Name: Standalone Fingerprint Access Control Device with Remote Control


Description:

Reliable, durable and highly accurate fingerprint sensor with precise algorithm provides less than 1 second recognition. UTC1 can work standalone without computer. Inputs for door status sensor and exit switch. Audio-Visual Indication for rejection and acceptance of invalid/valid fingerprints. Relay Outputs for electric lock and alarm.  permitting used for outdoor applications with IP65 rated waterproof housing. Optional Internal RFID Proximity Card reader allows fingerprints, proximity card authentication for access control.

Features:

.Robust structure for outdoor installation and extra durability

One of the world's smallest metal fingerprint access control

.IP65 Rate Metal Outdoor standard
.Functions keys combination for user management
.slim and metal design for narrow spaces
.USB, RS485 communication port
.Can work as a reader with control board
.Backup remote controller for number inputing

Specifications:

Fingerprint Capacity

500

Card Capacity

500

Indicator

LED Red/Blue

Sensor

Optical Sensor

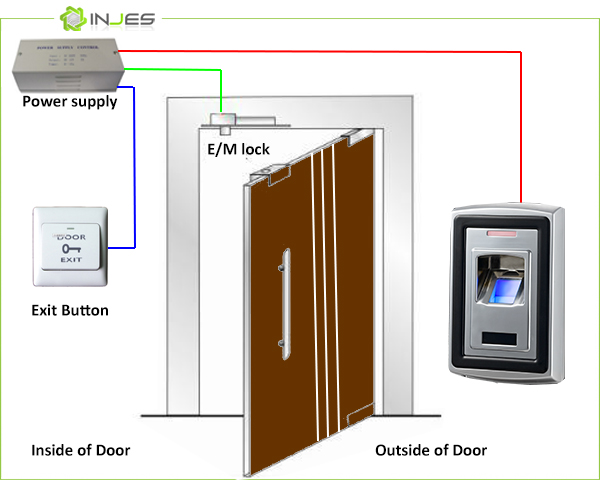

Access Control Interface

3rd party electric lock, door sensor, exit button

Communication

RS485,USB port

Offline working

No Software, No need computer

Optional Functions

RFID or MF card

Standard  Functions

Wiegand 26/34 Output

Power Supply

12V

Operating Temperature

-25°C-50°C

Operating Humidity

20%-80%

Dimension

123*78*26.5 mm

Casing Design

Metallic Vandaproof and Waterproof Casing

Configuration:
Access Control Equipment
