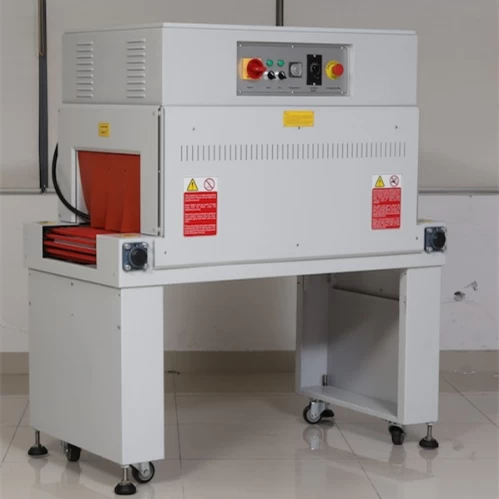

Standard constant heat temperature Shrink Tunnel

Heat shrink tunnel temperature is adopting advanced international technology is an economic Shrink wrap machine with constant temperature, high efficiency, easy to operate, high-performance cost ratio. This Shrink wrapper machine is suitable for products grouped and packed together as well as the pallet products. It‘s wildly used in toys, bottles, boxs,foods, towels, electric wire,tissue processing ect.



Standard constant heat temperature Shrink Tunnel

Customized And OEM Service Available

shrink sleeve temperature

Description:

The China manufacturer shrink wrap tunnel temperature, shrink wrap oven, shrink oven for carton boxcomes with touchpad control panel with digital read-out makes it easy to set up the perfect shrink chamber temperature, adjustable conveyor speed, automatic tunnel turn-off system,constant heat temperature Shrink Tunnel is  individually replaceable silicone coated rollers andbottom fan with adjustable air flow, circulate air more evenly around larger packages; and can be paired with a variety of L-Bar Sealers and Side Sealers. Use with PE, PVC and Polyolefin (POF) shrink films.

Features:

  • Especially For Thin and Small Items Up to Speed 40packs/min
  • Stainless Steel Heating Tube
  • 12 Months Warranty
  • Overseas After-sales Service Available
  • high temperature-resistance conveyor rollers


I. MZH-4525 Technology Parameters

Mechanical Dimensions (mm): L1300*W700*H1465

Power Supply and Power: 3PH 380V 50HZ 9KW

Conveying speed: 0-15 (m/min)

Horizontal Height of Conveyor Line: 800+50mm


II. MZH-4525 Constant temperature Shrink Tunnel


Items

Details







Heating system

Heat source

Stainless steel heating pipe

Insulation layer

Made of high temperature resistant rock wool

temperature control

AUTONICS Brand Temperature Controller and Import Thermal Sensitive Response



Conveying system

motor

ZD motor

governor

ZD Brand to Ensure Smooth Transportation



Air distribution system

It's using hot air circulation technology, the high-power air motor cooperates with the preset air passage to produce uniform hot air circulation in the furnace. The shrinkage effect is ideal and the loss of heat energy is reduced.





Control system

Power

“CHNT”

Contac

“CHNT”

Emerge

“CHNT”





Organism



Outer

Using ordinary carbon steel sheet after bending, surface spraying treatment

Inner

Hydraulic Production of Galvanized Sheet Metal
