Color: Customized
Insulation: HD-PE
Sample: Free
Application: Networking
Jacket: LSZH PVC PE
Conductor: Bare Copper

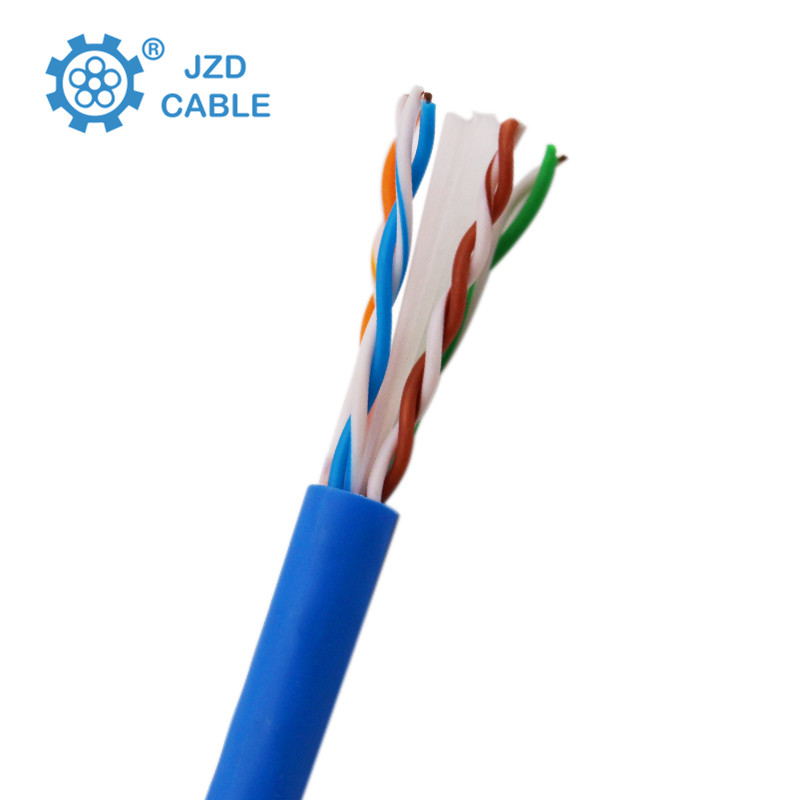

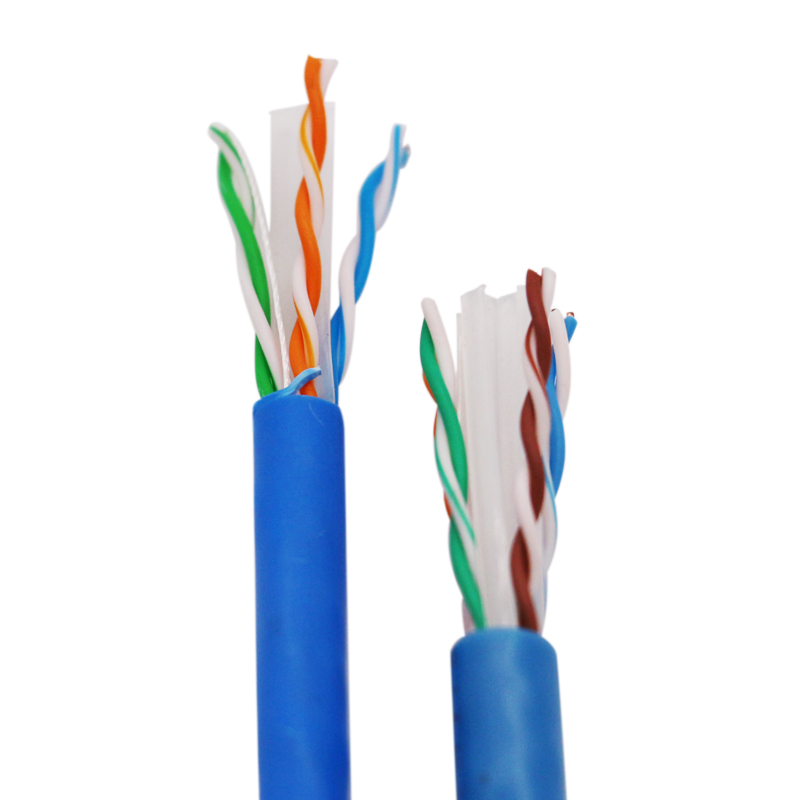

U/UTP Cat 6(lndoor)
|
Anti-Crosstalk Divider
|
LDPE:4.5*0.3
|
|
Cable Shield(Aluminum Foil)
|
Tick:0.060mm,Extent:25mm
|
|
ESD Drain Wire
|
O.5TC
|
|
Nilon Rip cord
|
150D
|
|
Max.capacitance unbalance(pF/100m)
|
≤330pF /100M(Per TIA/EIA-5688.2)
|
|
≤60pF/100(Per IEC 61156)
|
|
Nominal Velocity of Propagation
|
72%
|
|
Max.Delay Skew(ns/100m)
|
≤45ns/100m
|
|
Max.Conductor DC Resistance 20Deg.C
|
9.38Ω/100M (24AWG)
|
|
Max.DC Resistance unbalance 20 Deg.C
|
≤5% (per TIA/EIA-5688.2)
|
|
≤2% (per IEC 61156)
|
|
Characteristic lmpedance(O) 4~100MHz
|
100±15
|
|
Operating Temp.Range
|
-20~70 ℃
|
|
Max.Recommended Pulling Tension
|
110N
|
|
Min.Bend Radius(lnstall)
|
8XO.D.
|
|
Flame Test
|
CM
|

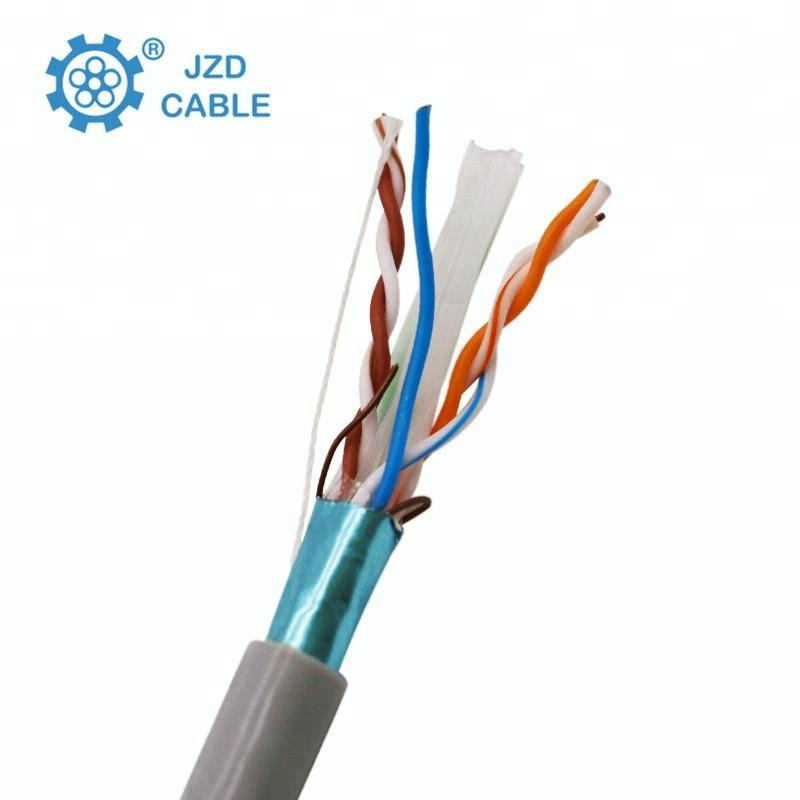

F/UTP Cat 6e(lndoor)
|
Anti-Crosstalk Divider
|
LDPE:4.5*0.3
|
|
cable Shield(Aluminum Foil)
|
Tick:0.060mm,Extent:25mm
|
|
ESD Drain Wire
|
0.5TC
|
|
Ni Ion Rip cord
|
150D
|
|
Max.capacitance unbalance(pF/100m)
|
≤330pF/100M(Per TIA/EIA-568B.2)
|
|
≤60pF/100{Per IEC 61156}
|
|
Nominal Velocity of Propagation
|
69%
|
|
Max.Delay Skew(ns/100m}
|
≤45ns/100m
|
|
Max.Conductor DC Resistance20Deg.c
|
9.38Ω/100M (24AWG)
|
|
Max.DC Resistance unbalance 20 Deg.C
|
≤5% (perTIA/EIA-568B.2)
|
|
≤2% (per IEC 61156)
|
|
Characteristic lmpedance(O) 4"1.00MHz
|
100±15
|
|
Operating Temp.Range
|
-20~70℃
|
|
Max.Recommended Pulling Tension
|
110N
|
|
Min.Bend Radius(lnstall)
|
8xO.D.
|
|
Flame Test
|
CM
|

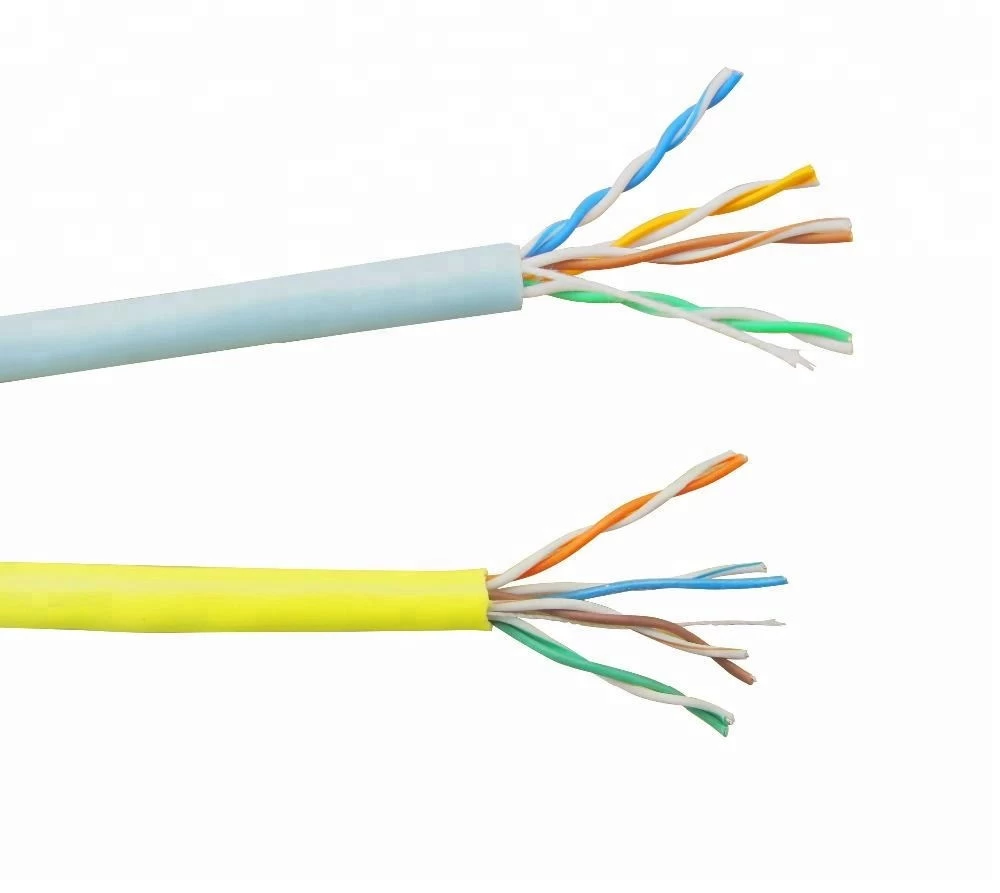

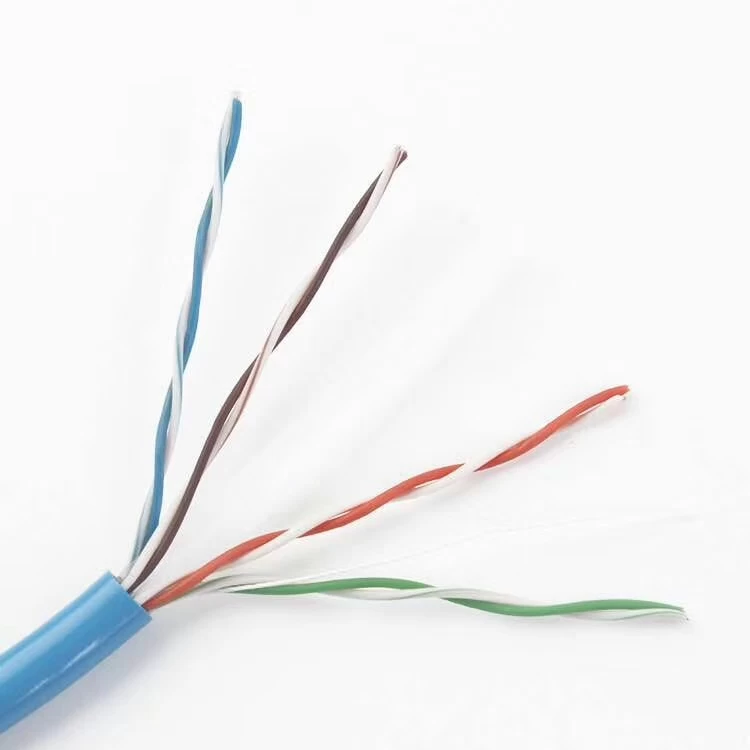

U/UTP Cat 5(lndoor)
|
Ni Ion Rip cord
|
150D
|
|
Max.capacitance unbalance(pF/100m)
|
≤S330pF/100M(Per TIA/EIA-568B.2)
|
|
≤60pF/100(Per IEC 61156)
|
|
Nominal Velocity of Propagation
|
69%
|
|
Max.Delay Skew(ns/100m)
|
≤45ms/100m
|
|
Max.Conductor DC Resistance20Deg.c
|
9.50Ω/100M (24AWG)
|
|
Max.DC Resistance unbalance 20 Deg.C
|
≤5% (per TIA/EIA-568B.2)
|
|
≤2% (per IEC 61156)
|
|
Characteristic lmpedance(O) 4"1.00MHz
|
100±5
|
|
Operating Temp.Range
|
-20~70℃
|
|
Max.Recommended Pulling Tension
|
110N
|
|
Min.Bend Radius(lnstall)
|
8xO.D.
|
|
Flame Test
|
CM
|

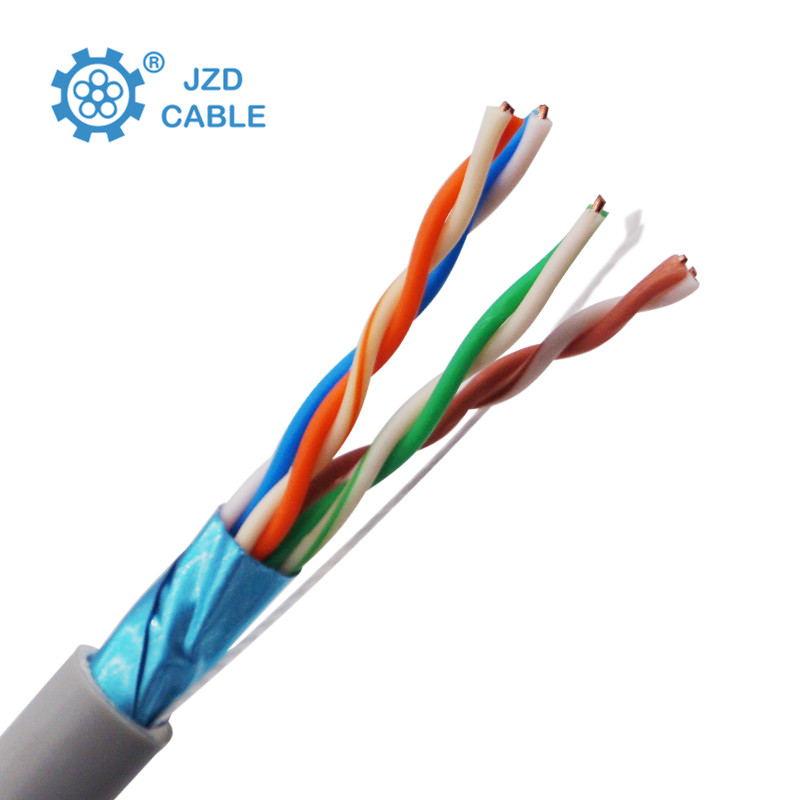

F/UTP Cat 5e(lndoor)
|
Separation(Polyester Wrapping)
|
Tick:0.025mm,Extent:20mm
|
|
cable Shield(Aluminum Foil)
|
Tick:0.060mm,Extent:20mm
|
|
ESD Drain Wire
|
0.4TC
|
|
Ni Ion Rip cord
|
150D
|
|
Max.capacitance unbalance(pF/100m)
|
≤330pF/100M(Per TIA/EIA-568B.2)
|
|
≤60pF/100{Per IEC 61156}
|
|
Nominal Velocity of Propagation
|
69%
|
|
Max.Delay Skew(ns/100m}
|
≤45ns/100m
|
|
Max.Conductor DC Resistance20Deg.c
|
9.5Ω/100M (24AWG)
|
|
Max.DC Resistance unbalance 20 Deg.C
|
≤5% (perTIA/EIA-568B.2)
|
|
≤2% (per IEC 61156)
|
|
Characteristic lmpedance(O) 4"1.00MHz
|
100±15
|
|
Operating Temp.Range
|
-20~70℃
|
|
Max.Recommended Pulling Tension
|
110N
|
|
Min.Bend Radius(lnstall)
|
8xO.D.
|
|
Flame Test
|
CM
|
