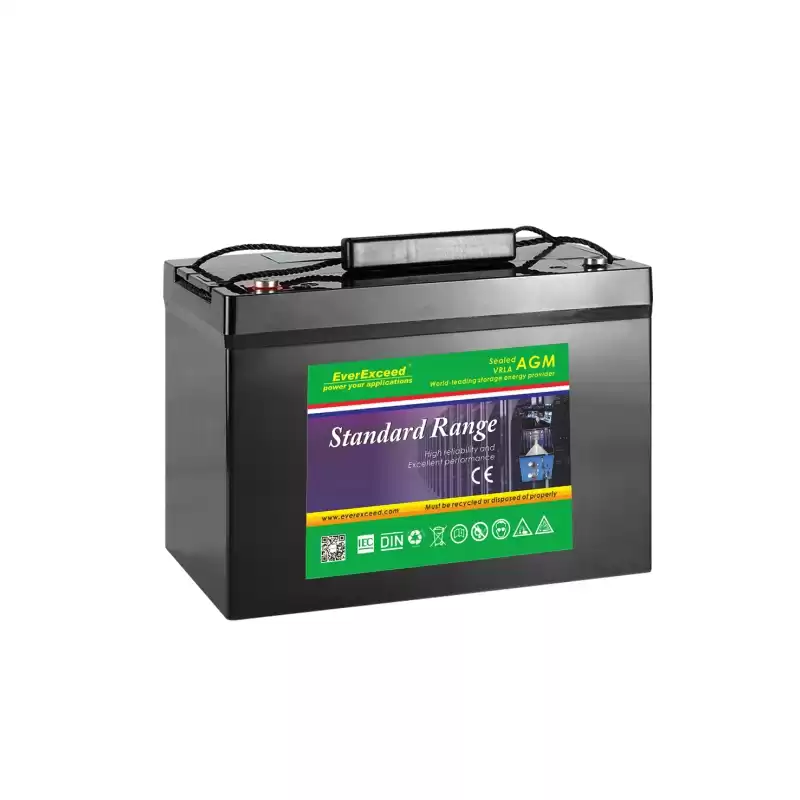

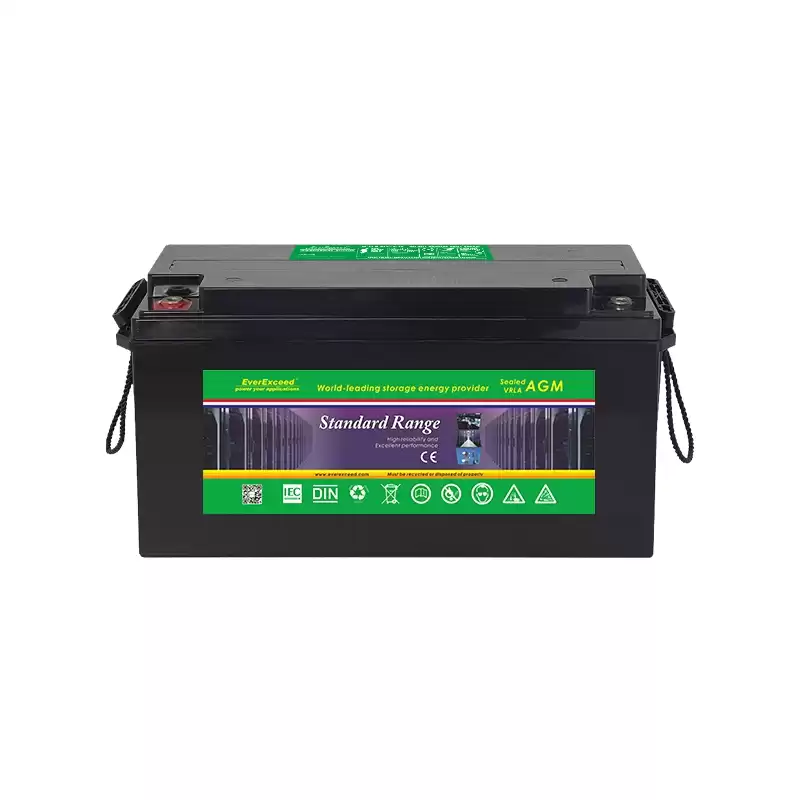

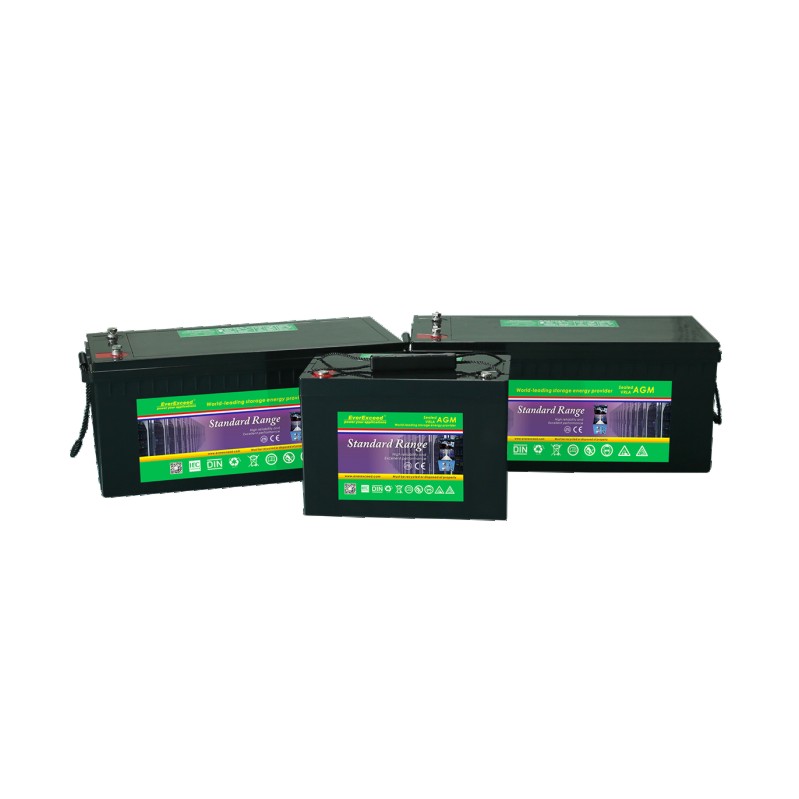

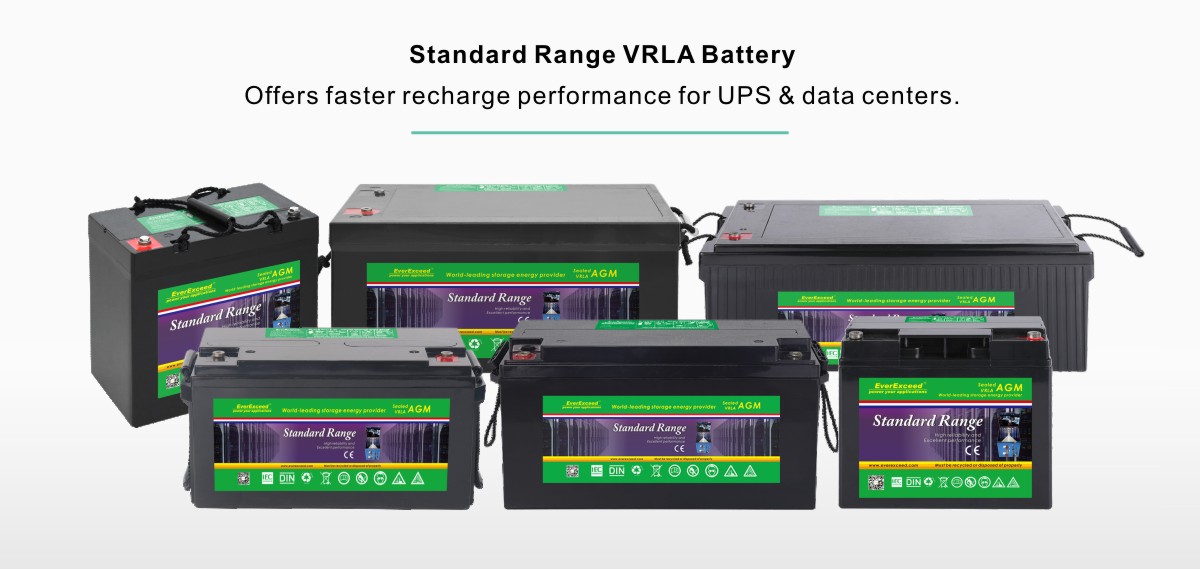

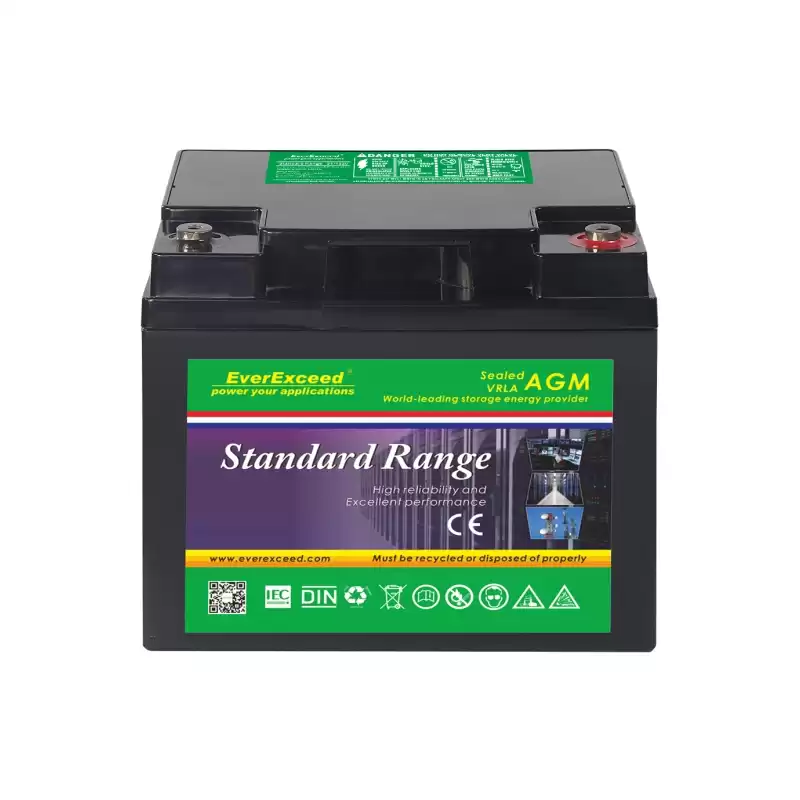

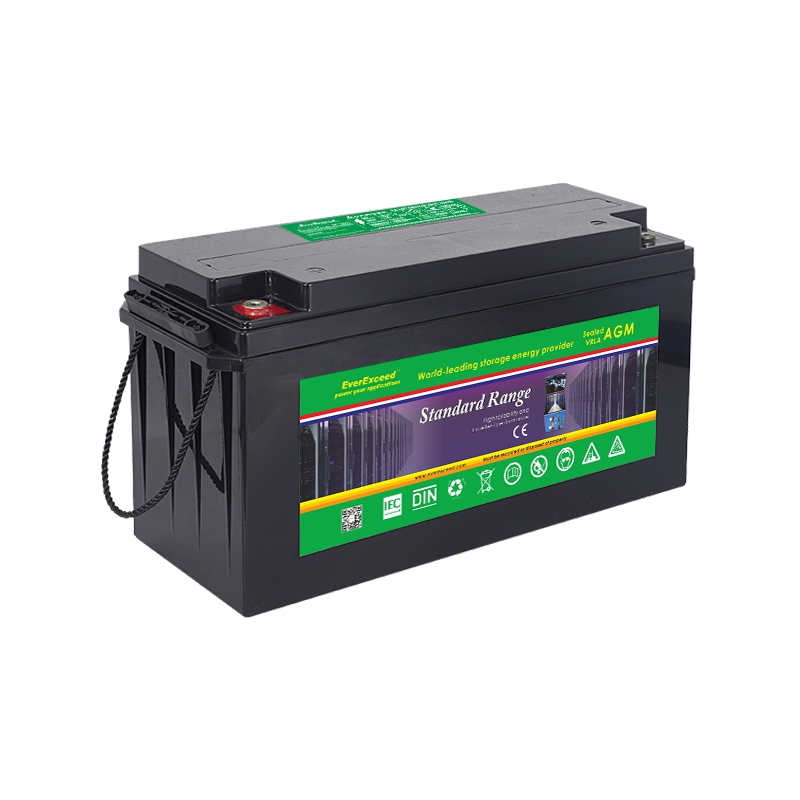

Standard Range VRLA Battery

EverExceed top terminal Standard Range provides high performance and reliability in long duration discharge applications. Our development team combines the market's demand with design optimization, precision component selection and state-of-the-art manufacturing process to produce the most cost effective battery solution for today's applications.

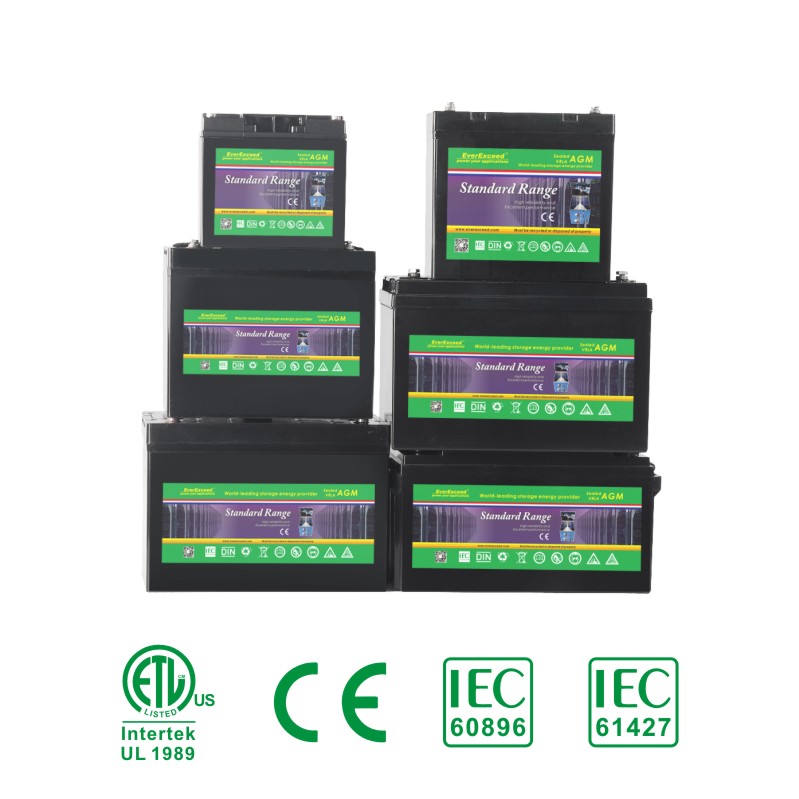

  • CertificatesUL1989; IEC61427;IEC60896; CE
  • UsageElectric Utility; Switchgear Control Power; Power Plant; Railroad ; Substation；Telecommunications; Distributed Power; UPS; Data Center; Microwave; Broadband
  • OEM/ODM ServiceYes, customized
  • Rated capacity(Ah)18Ah-250Ah
  • Rated voltage(V)6V/12V
  • ModelST Series
Facebook Twitter Pinterest LinkedIn 分享



Technical features:











Superior cycle performance
Unique performance
Low self-discharge rate
Nano-Carbon enhanced active material to maximize cycle performance and PSoC operation
Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell-to-cell performance, higher capacity and uniform grid protection.
Less than  3% per month










Wide operating temperature range
High safety
Long service life
-40°C to +70°C
More than 250 quality control checks. Reinforcing fiberglass mat & critical pressure control valve
Thick positive plate design for maximum service float life- 12 years design life @ 20°C(68°F).










Assured quality
Maintenance-free service life
VRLA recombinant technology
These industry leading rechargeable batteries are approved with UL1989, CE, IEC60896, IEC61427
High Tin grid alloy reduces gassing and retards corrosion for maintenance free and longer battery life
High-Compression Absorbed Glass Mat technology (AGM) for greater than 99% recombination efficienc

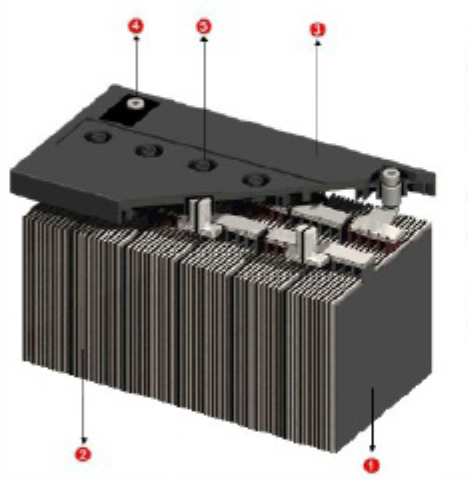

Construction:





① Plates: Calcium / tin lead alloy, optimized for high corrosion resistance.


② Separator:Highly porous glass micro-fibre separator, optimized for low internal resistance;


③ Standard housing: reinforced ABS(UL94HB) container and cover;

     Optional housing: flame-retardant reinforced ABS container and cover compliant with U.L.94 V-0 with an Oxygen limiting Index of greater than 20%;


④ Terminals:Silver plated copper female insert for easy and safe assembly & maintenance free connection with excellent conductivity;


⑤ Valve:Release gas in case of excess pressure & protects the cell against atmosphere.





Applications

•  Electric Utility;  •  Switchgear Control Power;  •  Power Plant;  •  Railroad ;  •  Substation

•  Telecommunications;  •  Distributed Power;  •  UPS;  •  Data Center;  •  Microwave;  •  Broadband

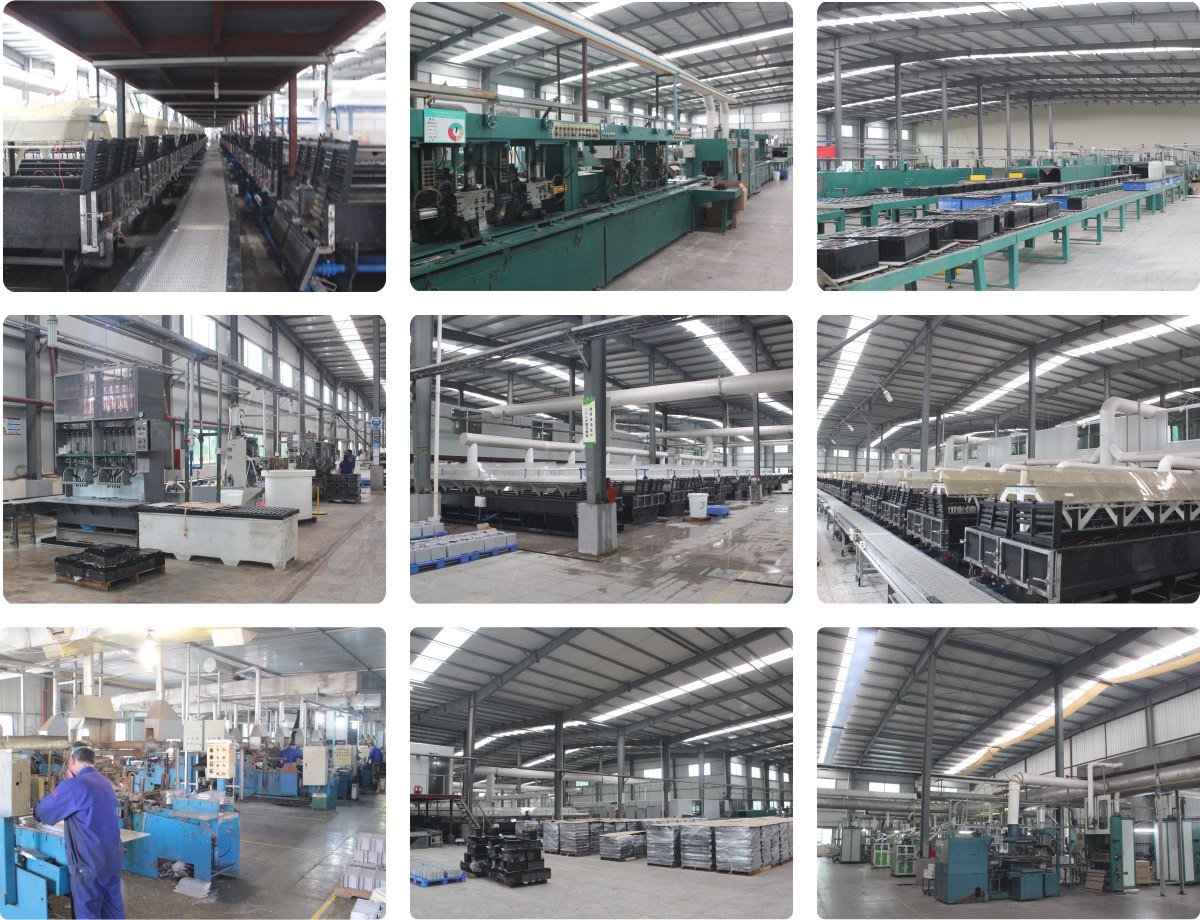

Factory
