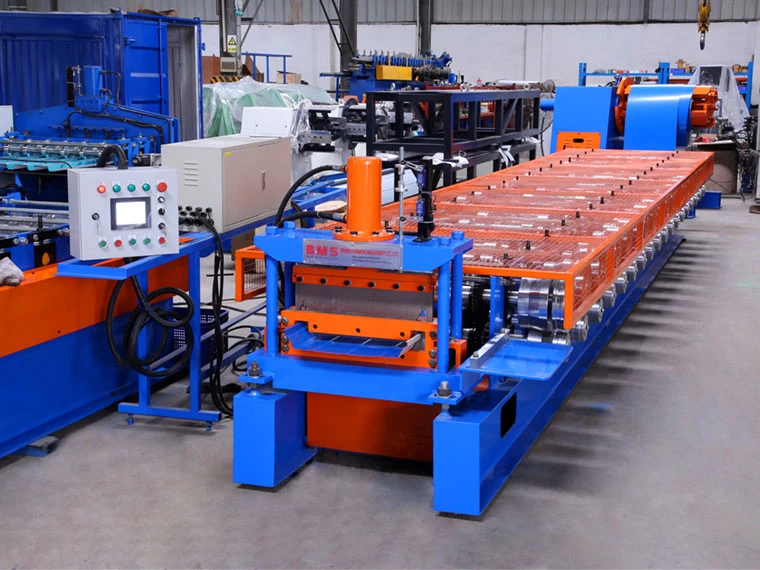

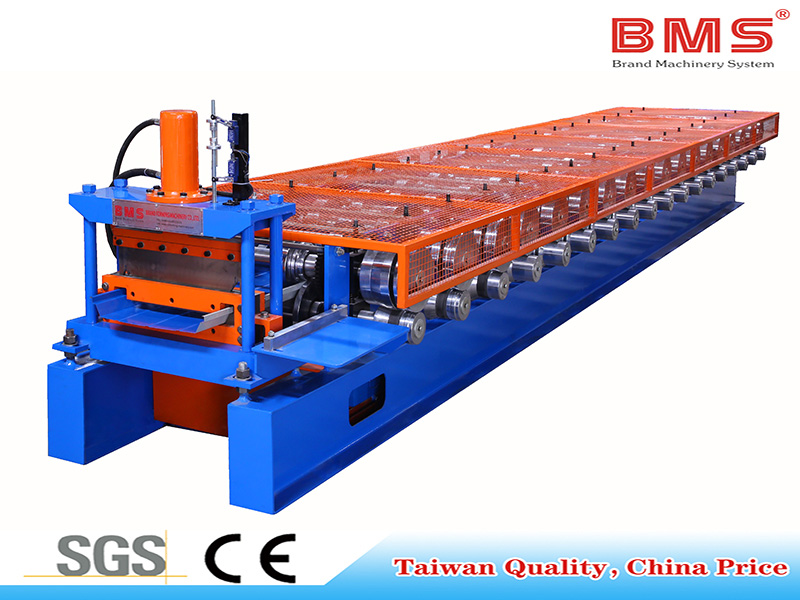

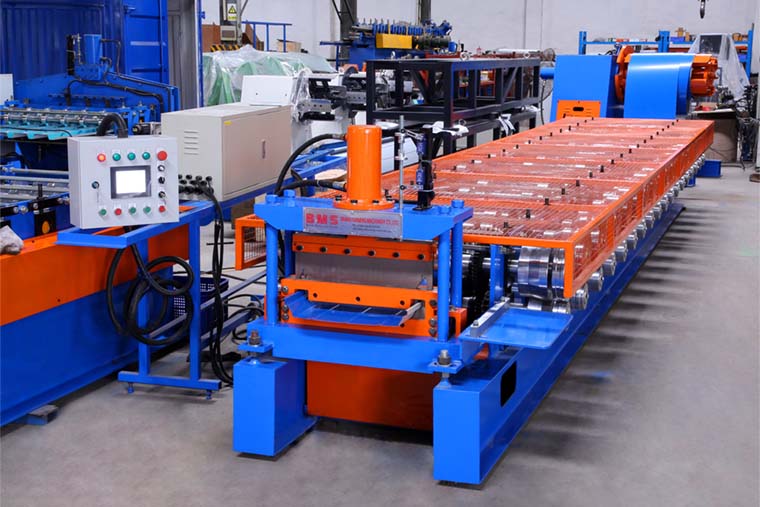

Standing Seaming Roof Panel Roll Forming Machine

similar as KALZIP/LYSAGHT/BEMO/KINGSPAN style Standing Seaming Roof Panel Roll Forming Machine




         Standing Seam Roofing Panel Roll Forming Machine



 Click here to check the video

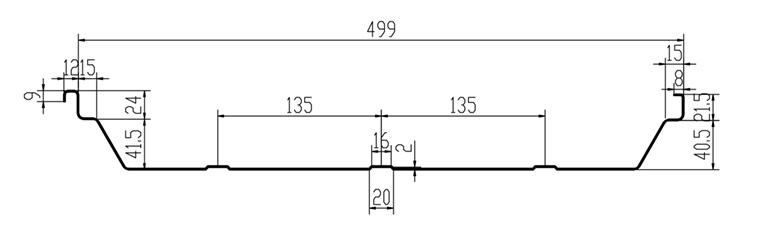

Profile Drawing

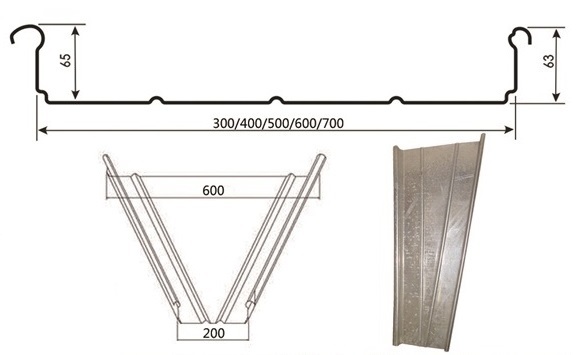

Optional profile drawing with taper:



1.Main features of YX65-499 standing seam roof panel roll forming machine


    The advantages of standing seam roof panel roll forming machine are as follows:

    1.Low cost, light weight but high strength, short building period, and re-cycle use

    2.Similar as KALZIP/LYSAGHT/BEMO/KINGSPAN style Standing Seaming Roof Panel Machine available

    3.Easy operation, low maintenance cost



2.Detailed Images of standing seam roof panel roll forming machine


        Machine Parts

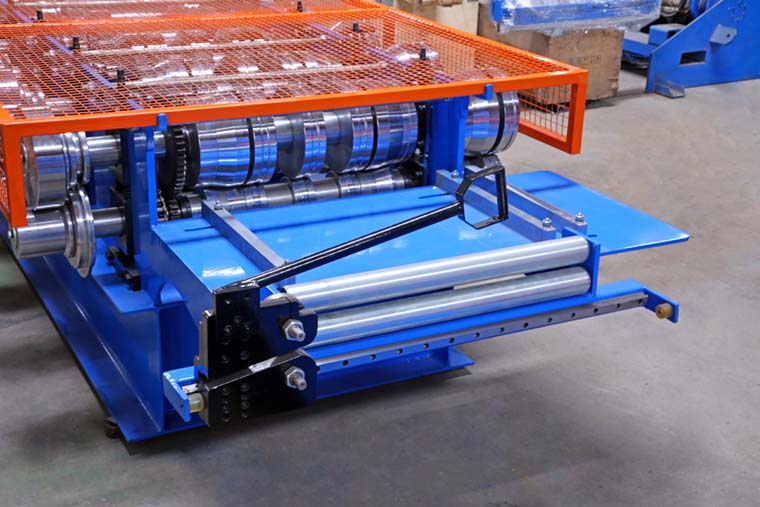

             1) Standing seam roof panel roll forming machine pre-cutter

        Brand: BMS    Original: China

        With feeding material guide,avoid wasting material

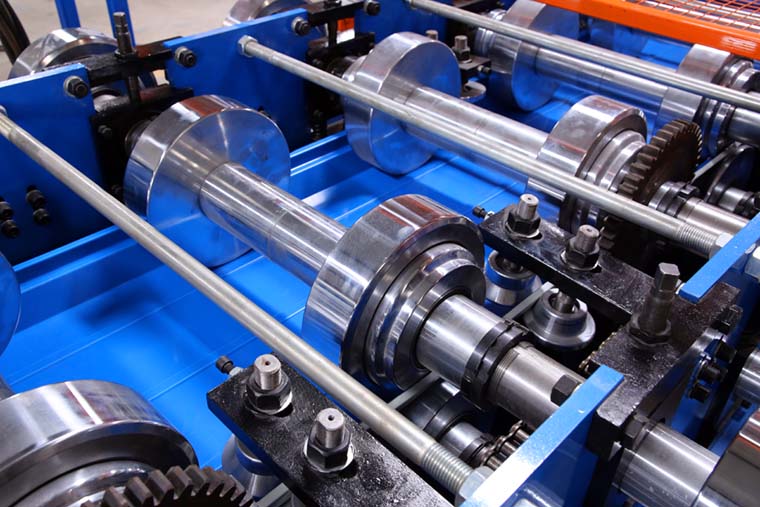

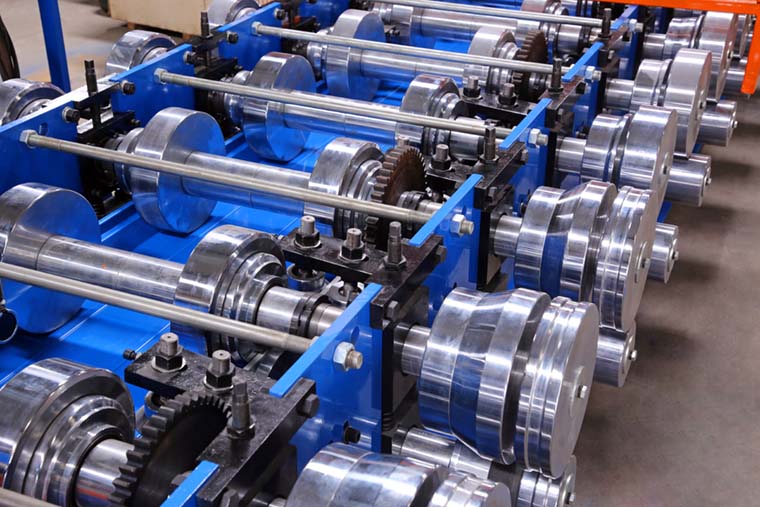

                 2) Standing seam roof panel machine rollers

         Brand: BMS    Original: China

        Rollers manufactured from high quality 40Cr steel, CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        Body frame made from 350# H type steel by welding

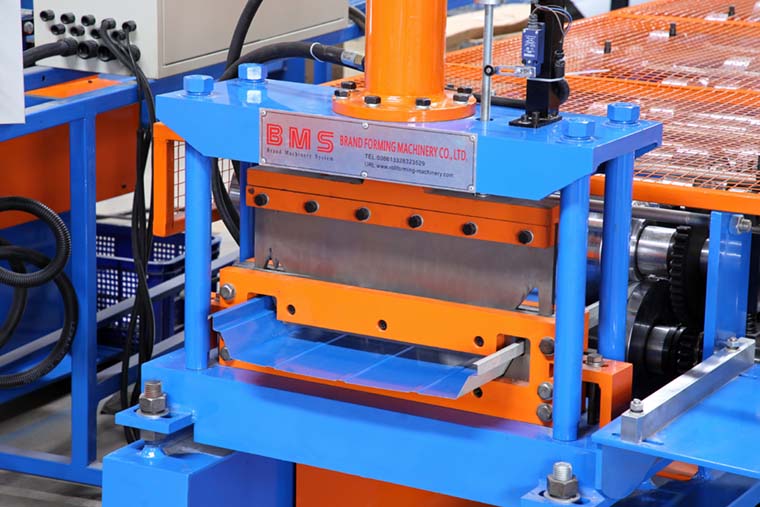

                 3) Standing seam roof panel machine post cutter

        Made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 20mm steel plate by welding

        hydraulic motor: 4KW, Hydraulic pressure range: 0-16Mpa

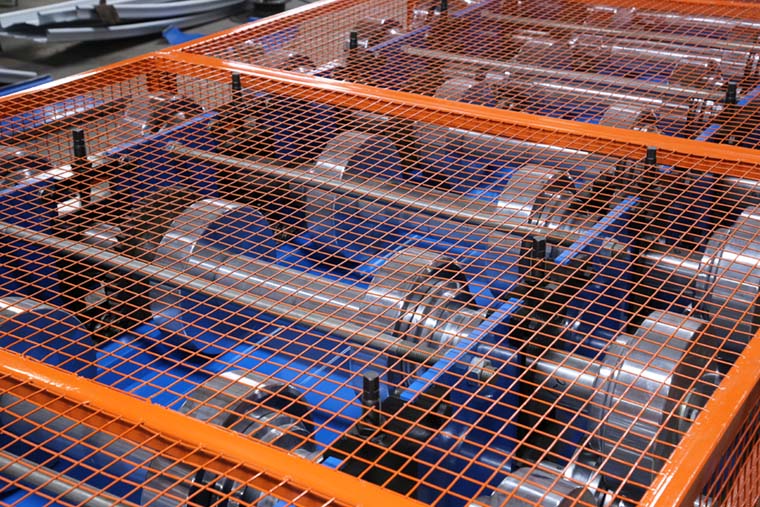

              4) YX35-1000 roof panel machine protection cover

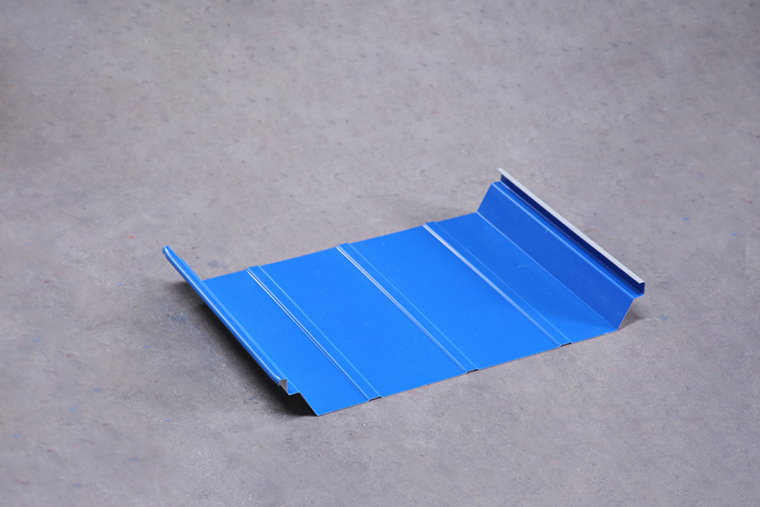

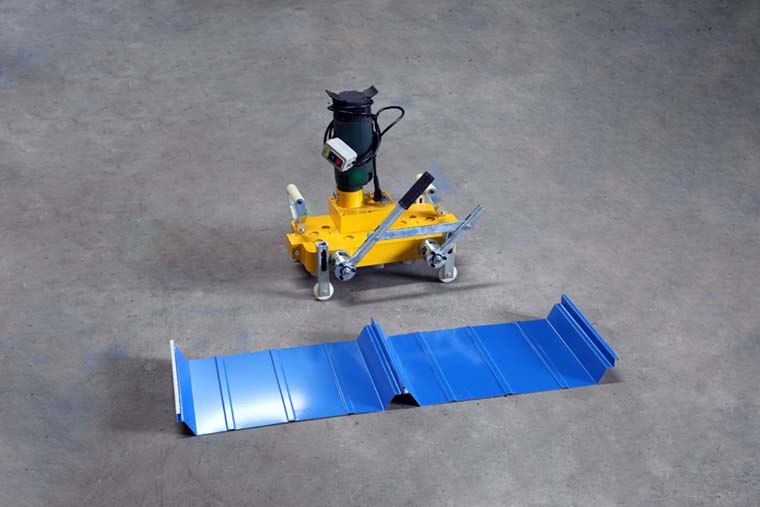

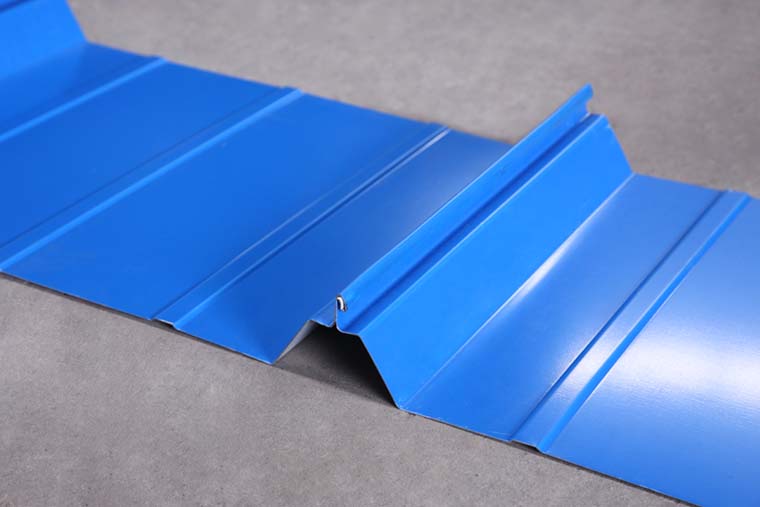

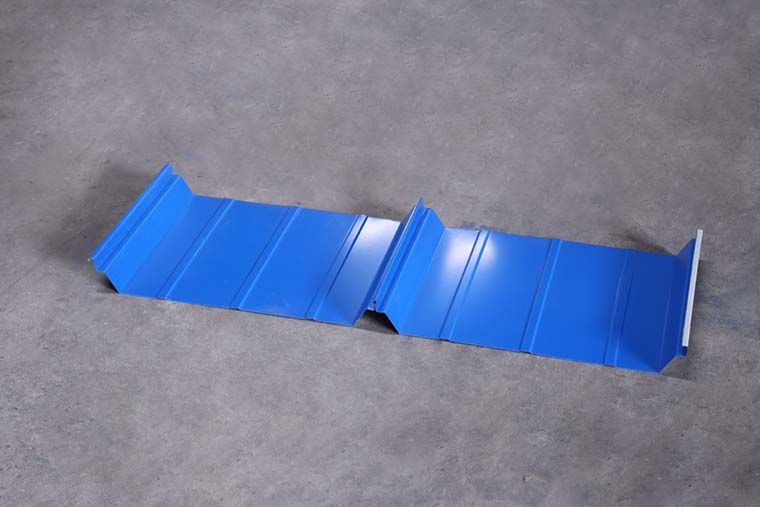

     5)Standing seam roof panel roll forming machine product show







             6) Standing seam roof panel roll forming machine decoiler

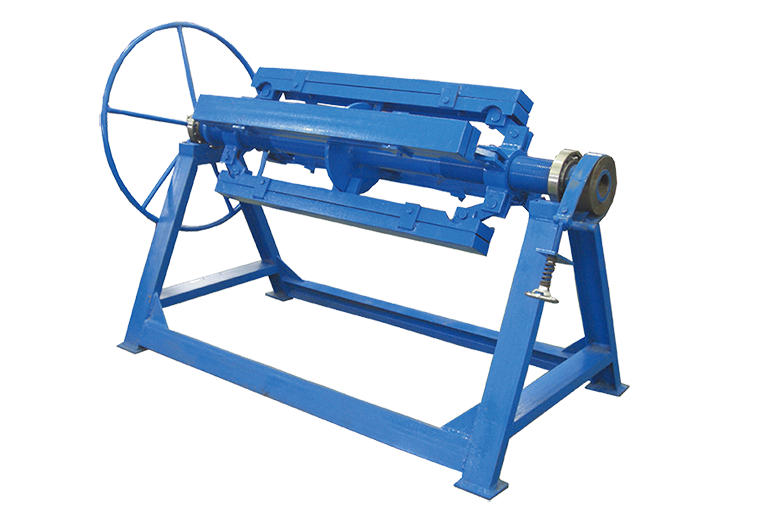

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 1200mm, coil ID range 508mm±30mm

        Capacity: 3-5Ton

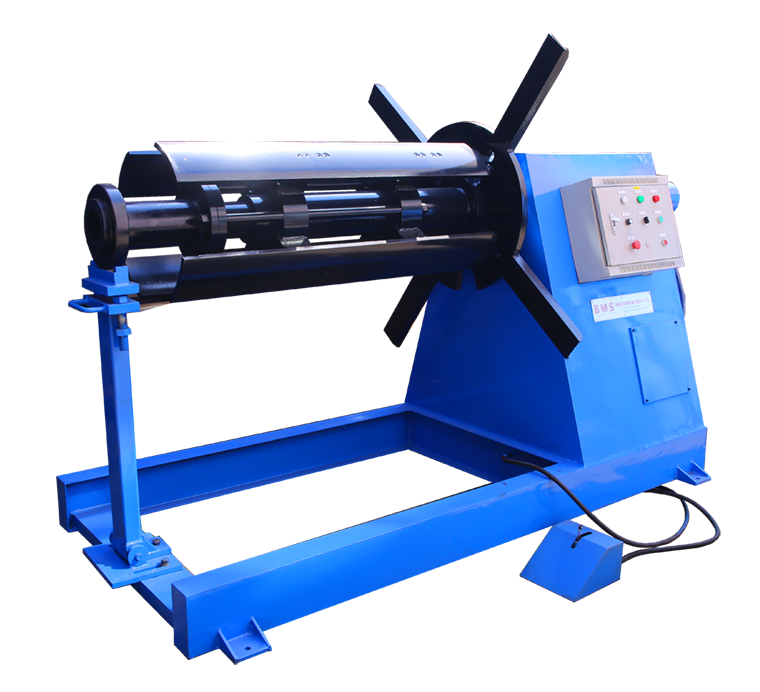

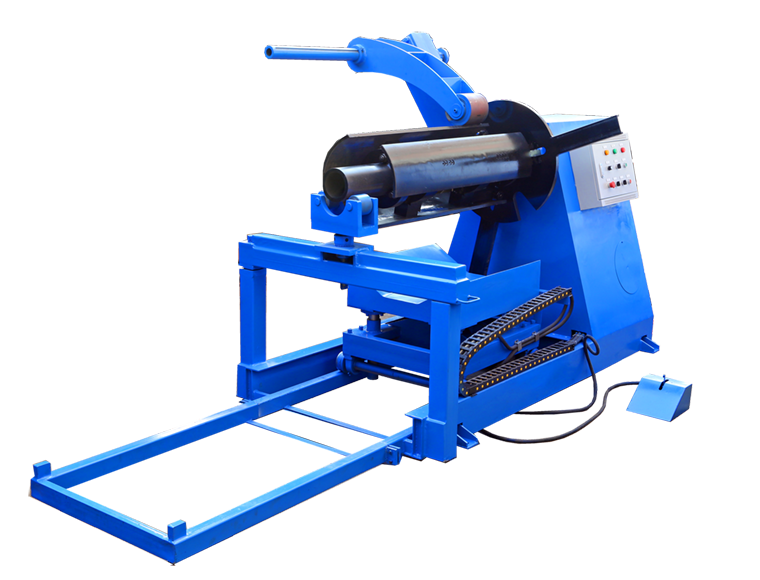

        With 5tons hydraulic decoiler for option

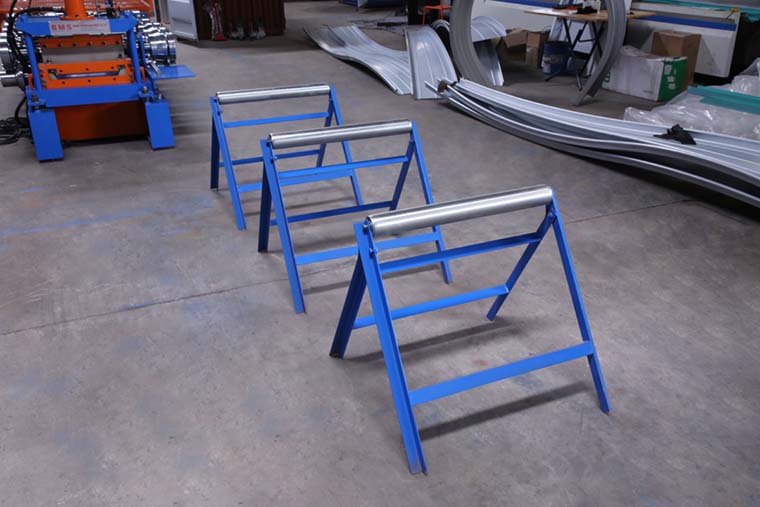

          7) Standing seam roof panel roll forming machine exit rack

        Un-powered,three units





Other details of standing seam roof panel roll forming machine



Suitable for material with thickness 0.4-0.8mm

Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined

Motor driving,Gear chain transmission, 18 steps to form.

Main motor=5.5KW*2 , Frequency speed control. Forming speed approx.15-18m/min

PLC Control System

Combined with: PLC, Inverter, TouchScreen, Encoder, etc


(Touch screen and PLC brand:German Schneider Electric/Japan PANASONIC,

Inverter brand:German Schneider Electric,Encoder brand:Japan Koyo/OMRON)


Cut-to-length tolerance≤±2 mm

Control Voltage 24V

User's manual in English



After-sale service of standing seam roof panel roll forming machine



1. The warranty of standing seam roof panel roll forming machine

    is one year after the client receives the machine.

    Within one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 50 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India,

South Korea,Taiwan, Singapore,

Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

 Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
