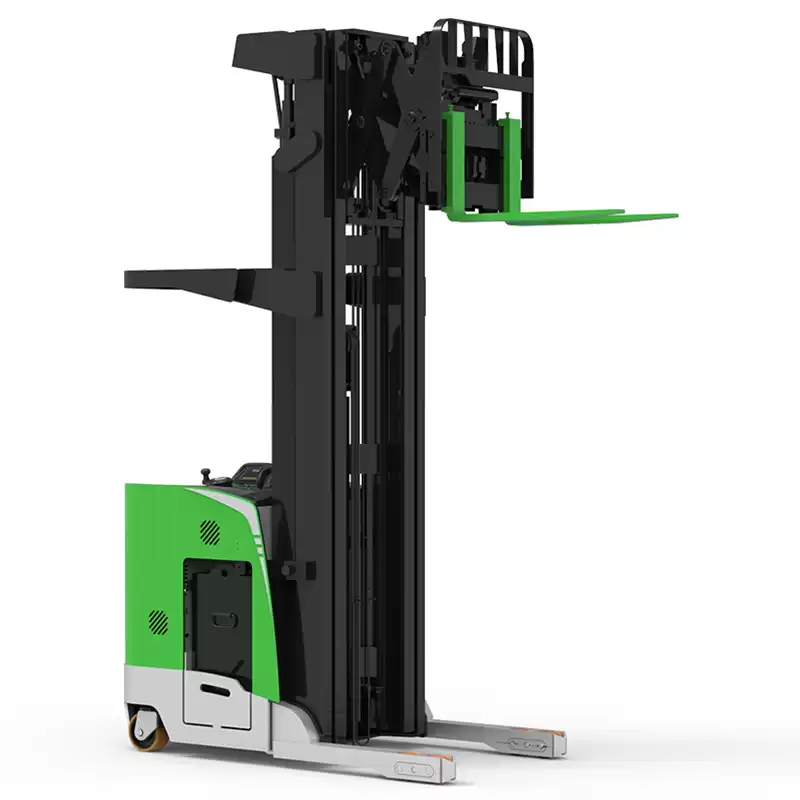

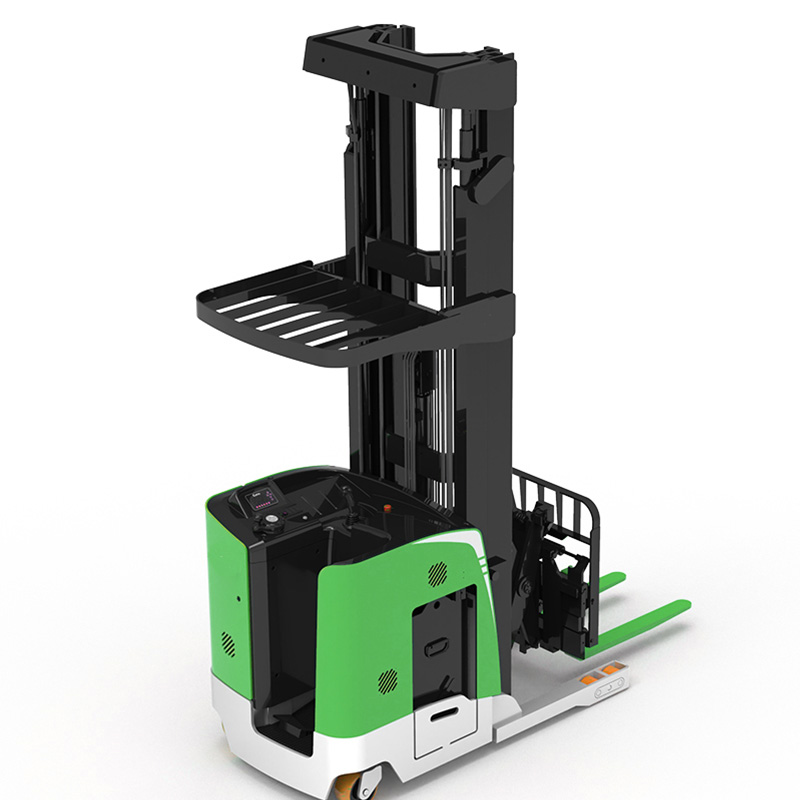

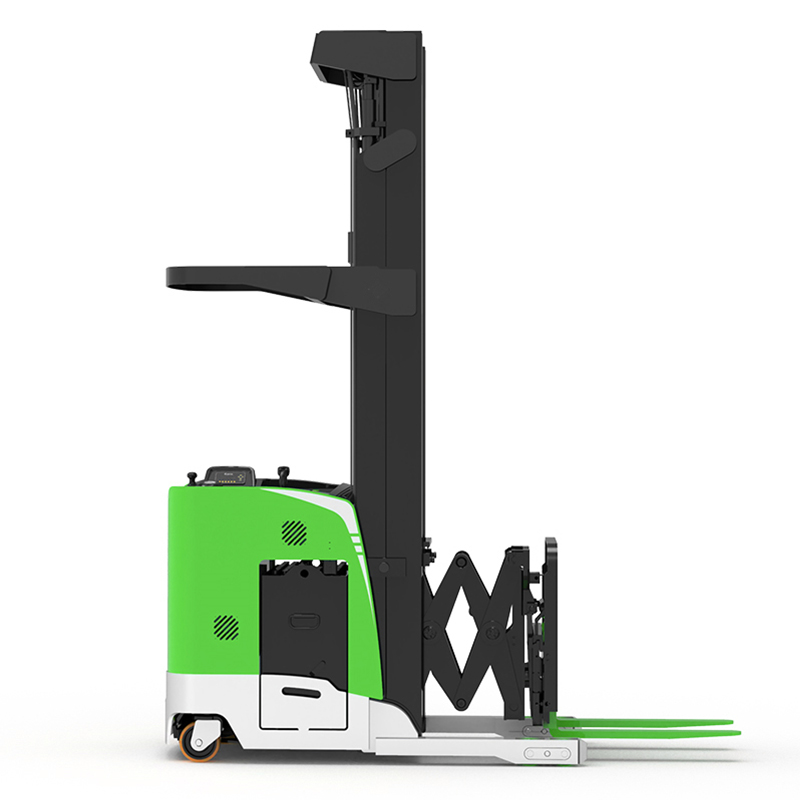

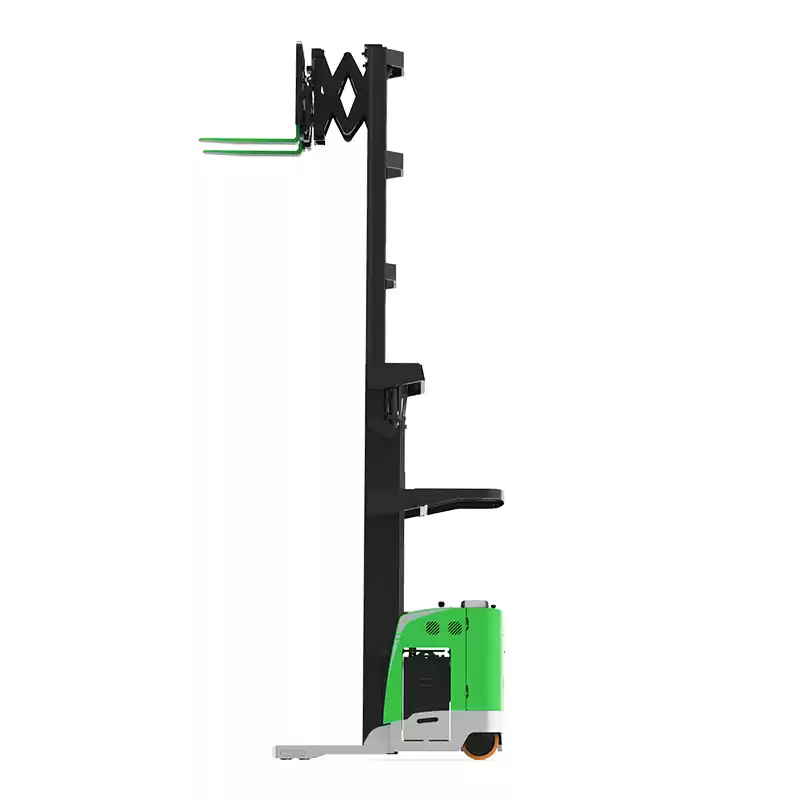

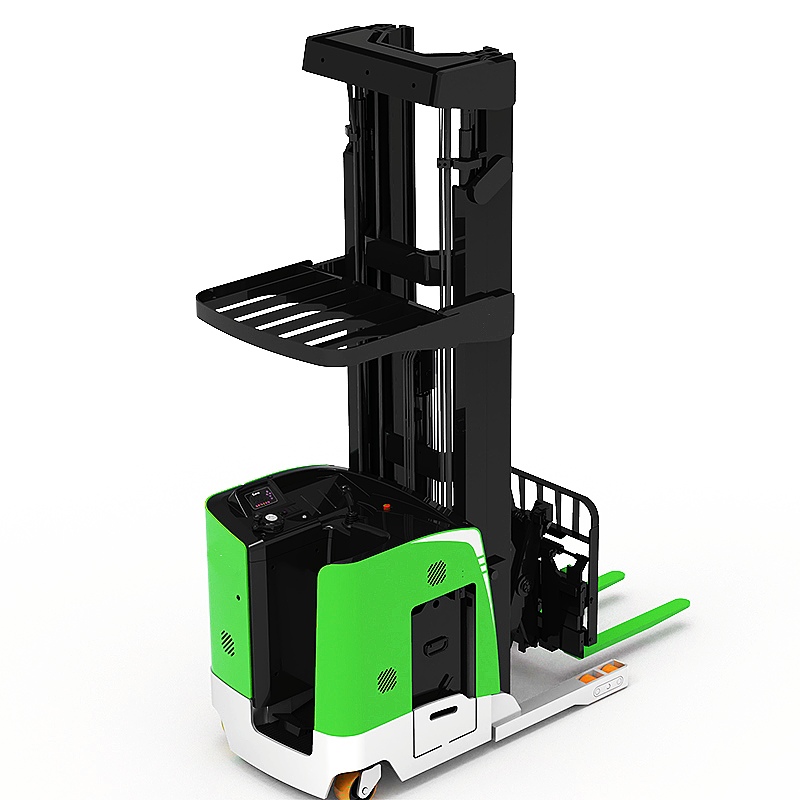

Standing Type Double Deep Reach Truck Scissors Forklift
Standing type double deep reach truck is also called scissor forklift with rated capacity 1.6T with lifting height 3-10m. The forks can be moved forward or retracted as like scissors , with a small body and turning radius and higher efficiency.It is widely used in food, medical, chemical, textile, electronics and other industries.
Features:
1.Wide-angle view high-strength shock-absorbing mast
2.CURTIS control system
3.Zhongnan Transmission
4.Electronic steering, lightweight, quiet
5.Shimadzu brand low noise hydraulic pump and valve
6.Drive speed compensation Short circuit, open circuit protection
7.AC drive, brushless, motor maintenance-free
8.High and low voltage limits
9.Electrical thermal protection
10.Line fault detection
11.Error code diagnosis
12.Electromagnetic, regenerative braking system
13.Body damping system
14.Back-up buzzer
15.Turn signal lights,Working lights,Warnnig lights
16.Side shift
17.Camera with LCD display
Specification:
| |
| |
Manufacturer |
NEOlift |
|
| Model |
|
NRJ16 |
| Power |
|
Electric |
| Load Capacity |
kg |
1600kg |
| Truck Weight(including battery) |
kg |
3600 |
| Lift Height |
mm |
5000 |
| Overall Length |
mm |
2050/2805 |
| Overall Width |
mm |
1520 |
| Fork Dimension |
mm |
1070/120/40 |
| Reach distance |
mm |
1000 |
| Brake |
|
Electromagnetic |
| Drive Motor |
kw |
4.5kw |
| Lift Motor |
kw |
6.3kw |
| Battery Voltage |
V/Ah |
48V/400Ah |
| Steering system |
|
Electric |
| Type of Controller(traction/lift/steering) |
|
AC |
| |
Application:
1.Food
2.Medical
3.Electronics
4.Hardware
5.Chemical
6.Logistics
Certificate:
Why choose NEOlift?
1.NEOlift has 20+ years experience in the field of electric material handling equipment! We can provide our customers with full range warehouse equipment based on various requirement.
2.The product range is comprehensive, the quality is safe and reliable.We have strict quality management system. We can provide customers with non-standard customized solutions according to their needs.
3.Professional and strong technical research and development team and timely and effective after-sales service.Shanghai Zon-Cho Huge Science And Technology Co., Ltd. has more than 60 professional technical R&D personnel, and each model has a professional R&D personnel responsible for it. Among them, more than 30% of the R&D personnel have a master's degree, 5 have a doctorate degree, and more than 60% of the R&D personnel have been engaged in the industry for more than 5 years.
