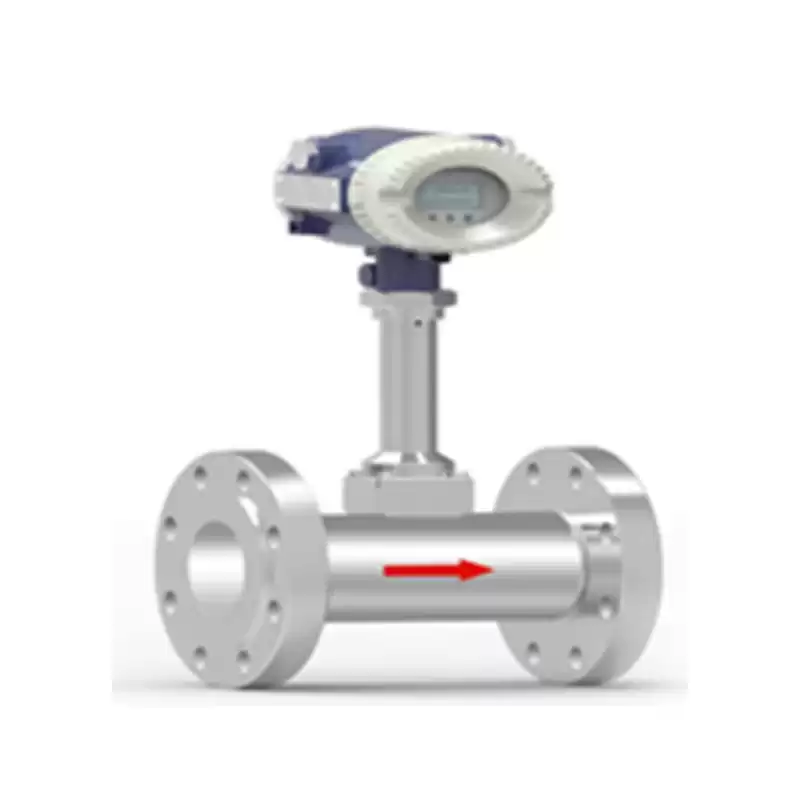

Steam Vortex Flowmeter：
Vortex flowmeter is a kind of velocity flow meter with wide use. It is suitable for liquid, steam and most of the gas flow measurement, measurement and control.
Features：
1.Small pressure loss;
2.Large measuring range,high precision,when the volume flow rate is measured, it is hardly affected by the parameters such as fluid density, pressure, temperature and viscosity;
3.No movable mechanical parts, so high reliability, small maintenance;
4.The output of the sensor is pulse frequency, and its frequency is linear with the actual flow of the fluid being measured. The zero point has no drift;
5.The non-linearity of Instrument Coefficient is corrected by software to improve the measurement accuracy.
Technical Parameters：
|
NO.
|
PROUCT NAME
|
PRODUCT NUMBER
|
PRODUCT TYPE
|
Measuring
medium
|
Product caliber
|
Nominal
pressure
|
Medium
temperature
|
Material Quality
|
UNIT
|
OTHERS
|
|
6
|
Vortex flowmeter
|
ES06020040001
|
Instrument
class
|
Steam,
gas, liquid (water, oil)
|
DN15～DN300(Ducted type)
DN250～DN1500(Insert type)
|
1.6MPa、2.5MPa、4.0MPaOr
custom-made
|
-40℃～250℃
|
304/316L
|
Set
|
|

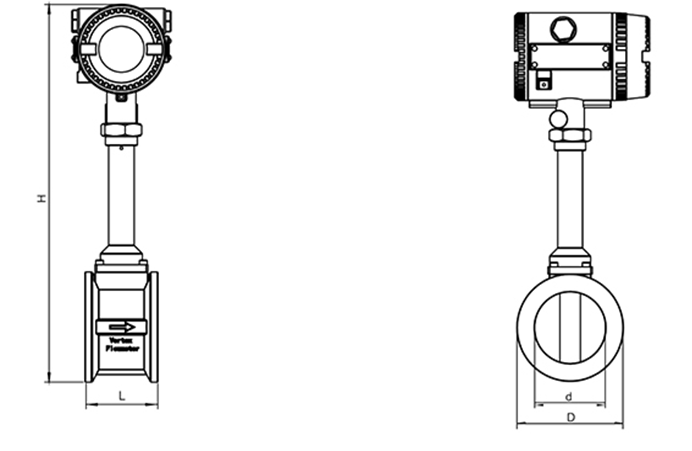

Process flow：
Applications：
Vortex flowmeter is mainly used to measure the flow of some media, such as gas, liquid, steam and other media.
