Steel ground solar panel mounting systems

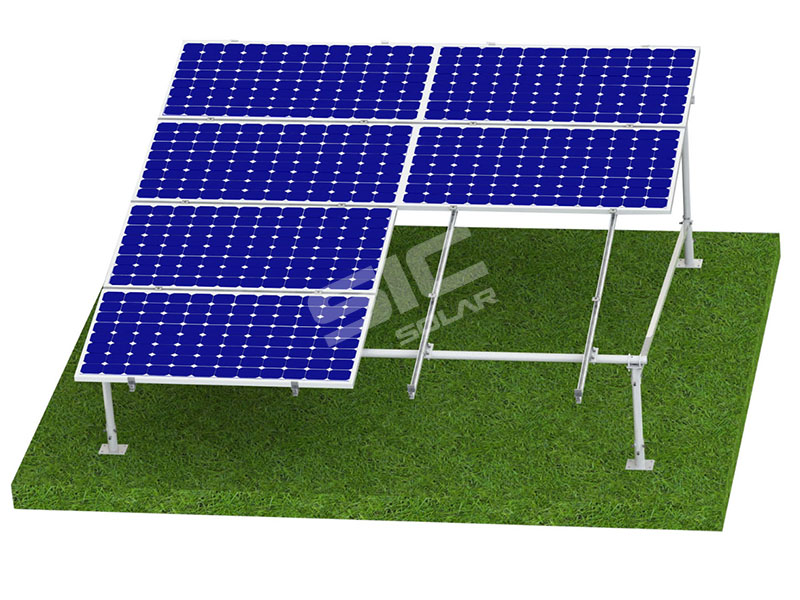

Steel solar ground mounting structure is developedfor the large ground commercial solar system. It could be used together with ground screw or concrete base. Its main material is hot dipped galvanized steel, which is anticorrosive for outdoor use. The whole structure is extremely anti-corrosion during its entire life span.
Category: Ground mounting system
|
Installation Site
|
Roof or Ground
|
Foundation
|
Concrete or Ground Screw Foundation
|
Material
|
Hot dipped galvanized steel Q235B & Stainless Steel 304
|
Color
|
Natural or Customized
|
Anticorrosive
|
Hot dipped galvanized steel& stainless steel
|
Tilt Angle
|
0°~60°
|
|
Wind Load
|
<60M/S
|
|
Snow Load
|
<1.4KN/M2
|
|
Standards
|
AS/NZS 1170.2, JIS C 8955:2011
|
|
Warranty
|
10 years warranty and 25 years service time
|
Advantages as follow:
☆ Ground mounting array could be customized according to your ground size.
☆ High Durability – Best steel Ensure 10 years warranty and 25 years service time.
☆ Hot dipped galvanized Steel Q235B could meet high strength request, which is also anti-corrosion.
☆ Pre-assembled main frame – highly save the labor cost at your installation site.
Related certificate
Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.

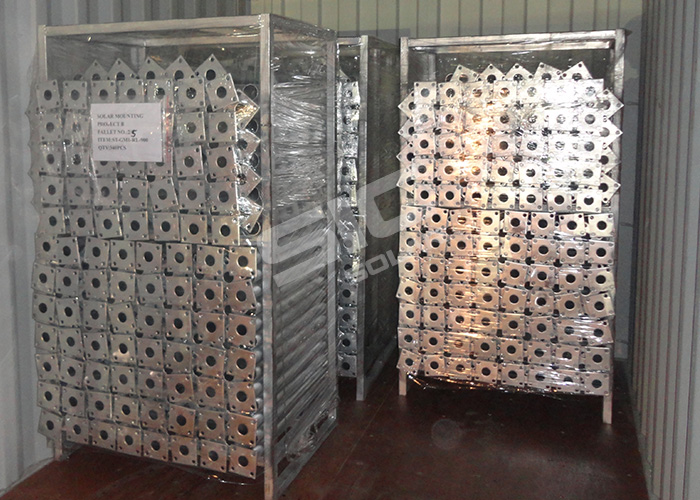

Our standard package is steel pallet for long steel part, while small alu components will be packed into cartons with plywood pallet.
