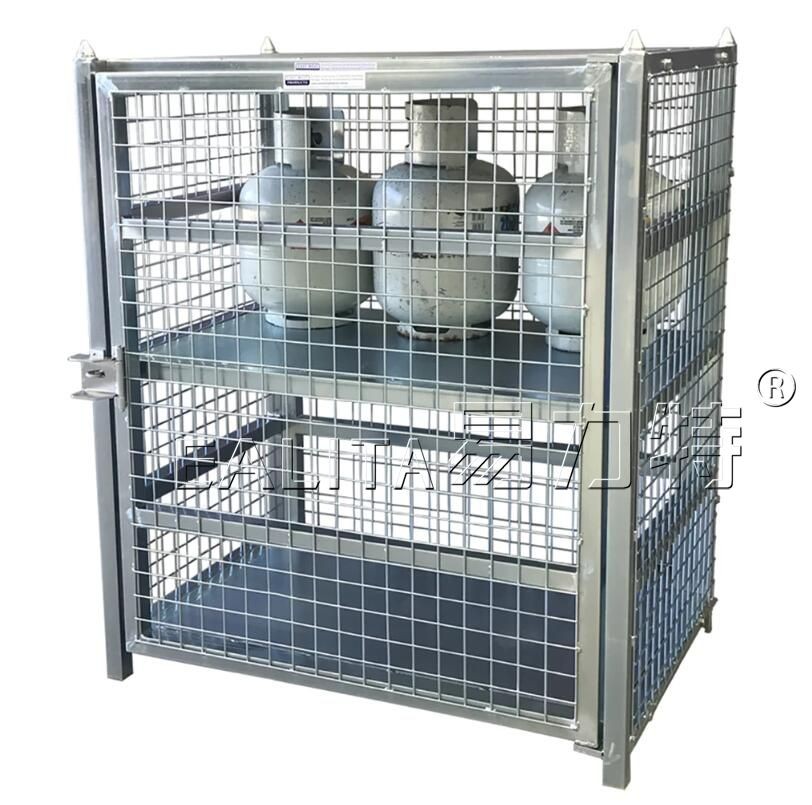

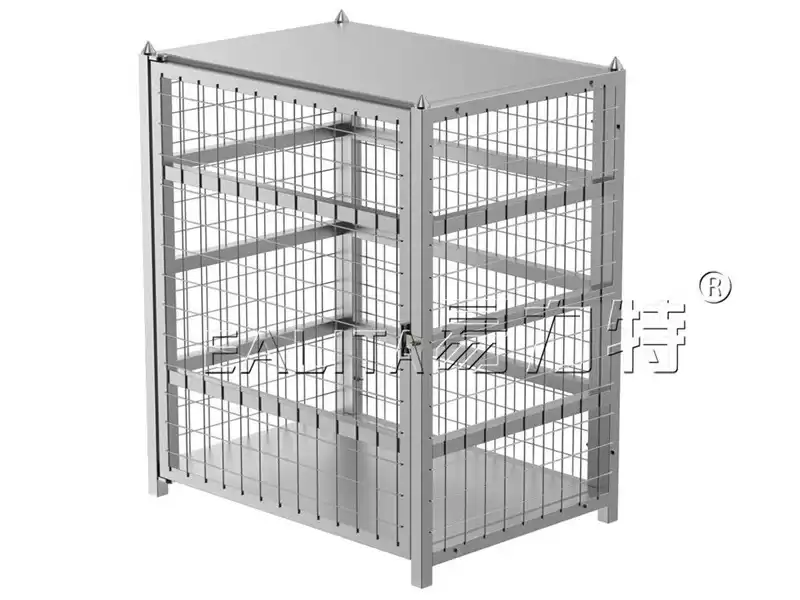

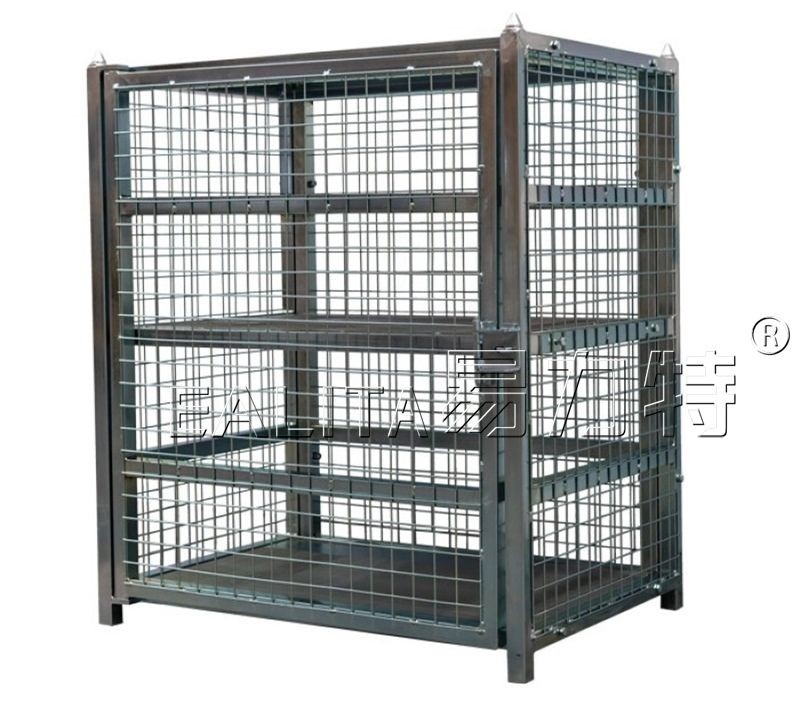

The M-SGB129 Gas Cylinder Storage Cage is a heavy duty lockable cage ideally suited for storage of up to 12 x 9kg BBQ gas bottles.
- The bolted centre shelf and vertical supports can be excluded during construction for storage of up to 6 x forklift gas cylinders.
- This stoage cage is also suitable for other uses like firewood storage in service stations where easy access and excellent security is a requirment.
FEATURES:
• Code: 03.07.01.0007
• Stores up to 12 x 9kg BBQ gas bottles

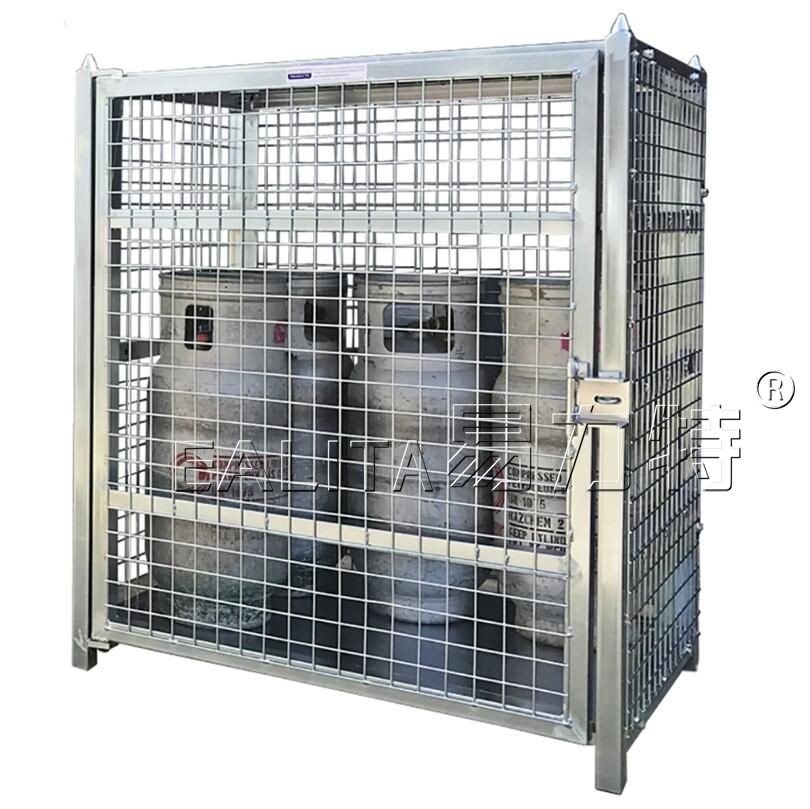

• Stores up to 6 x 18kg forklift gas bottles when mid shelf is excluded
• Tamper-proof lock guard prevents cutting of the padlock by bolt cutters, along with anti-tamper gate hinges
• Sturdy construction with bump rails to protect the high visibility mesh sides
• Stack 3 high when empty and 2 high when fully loaded
• Sheet metal shelves allow easy sliding of cylinders to the back of the cage
• Sheet metal roof provides weather protection
• Forklift provision is provided under the cage for transport around the worksite
• Optional wheel kit available on request
• Zinc finish for long life corrosion protection
|
No. of Bottles(withmid shelf)
|
12x9kg
|
|
No.ofBottles(mid shelf excluded)
|
6 x 18kg
|
|
Working Load Limit (WLL)
|
250kg
|
|
Overall Dimension
|
1080x760x1285mm
|
|
Unit Weight
|
106kg
|
