Steel Sheet Ceiling Panel Roll Forming Machine

Ceiling panel also can be called decoration panel plate, ceiling panel roll forming machine is one brand of steel sheet roll forming machines, customized design and manufacture are available.


  • Shaft Diameter75mm
  • Driving Motor5.5KW
  • Forming Station20 steps
  • Material Thickness0.3-0.6mm

Accept all custom roll forming machines for ceilings, doors, roofs, purlins and green house used metal materials, etc.


Product Name: Steel Sheet Ceiling Panel Roll Forming Machine

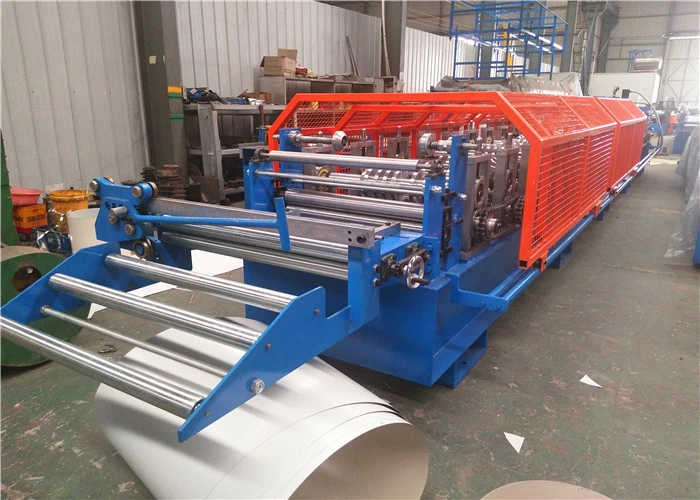

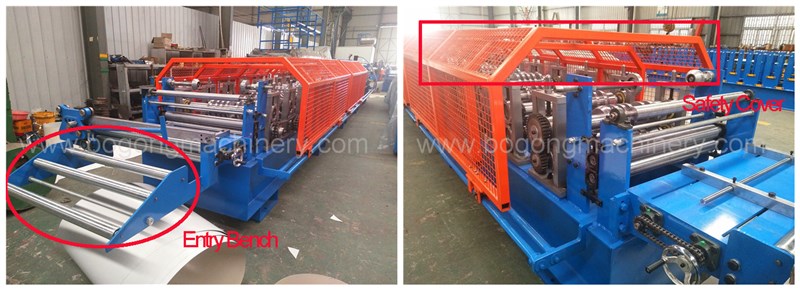

1. Before feeding table, there is entry bench and pre-sheer at steel sheet ceiling panel roll forming machine's beginning end, see below pictures, the feeding guider on feeding table is adjustable, hand wheel adjusting.

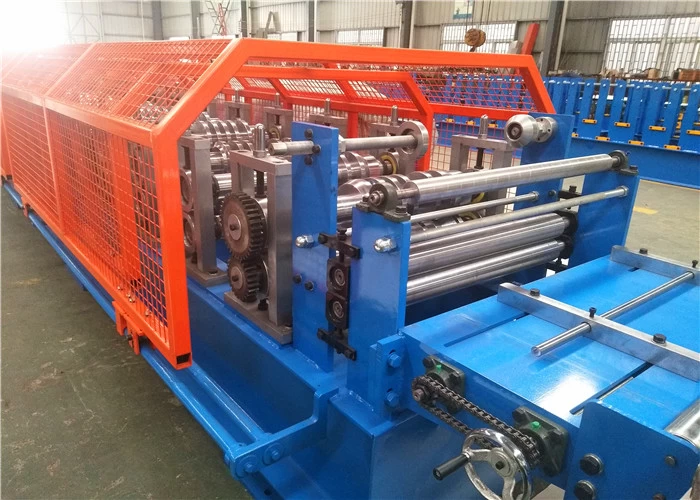

In roll forming sections, we have made push-pull safety mesh cover on this steel sheet ceiling panel roll forming machine, it is for keep workers safe and won't push their hands inside when the machine is running.

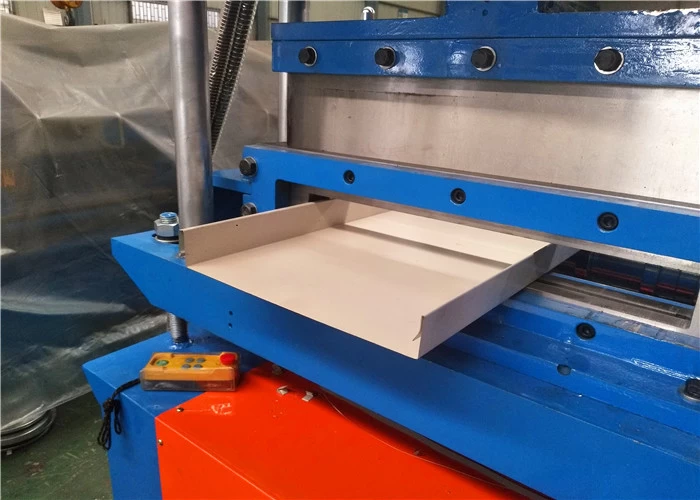

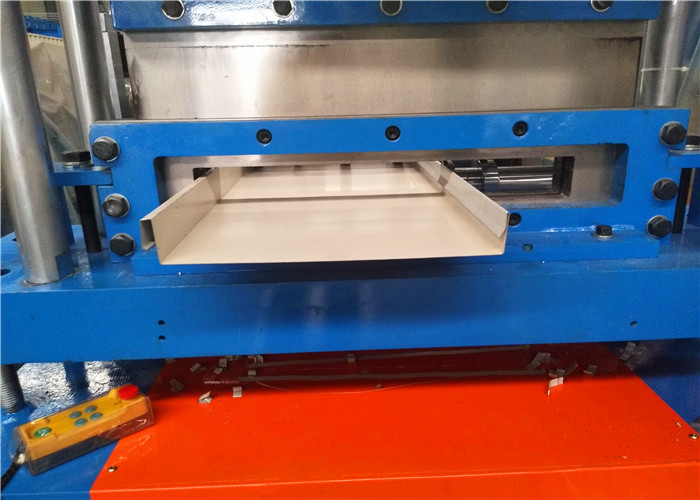

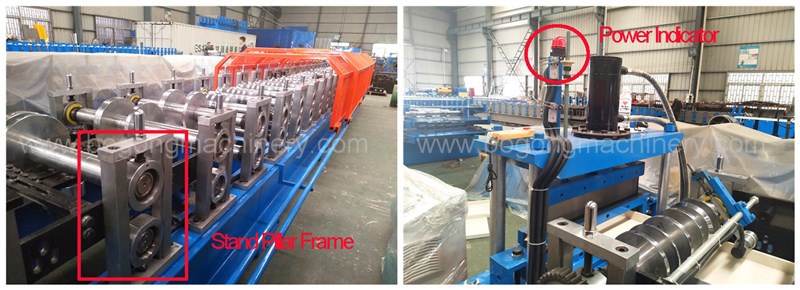

2. At the cutting off end of steel sheet Ceiling Panel Roll Forming Machine, we install power indicator, when the steel ceiling roll forming machine is working, the indicator will be light, it is more safe for operator and can remind worker to switch off the power supply after be off duty.

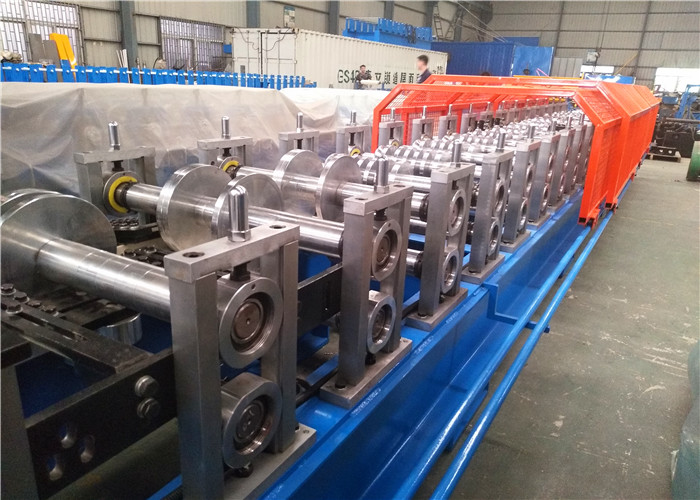

The final user required us to make the whole roll forming machine frame as stand pillar type, this is high quality type design and new popular style in the market, more beautiful appearance, another good choice for our quality customers.

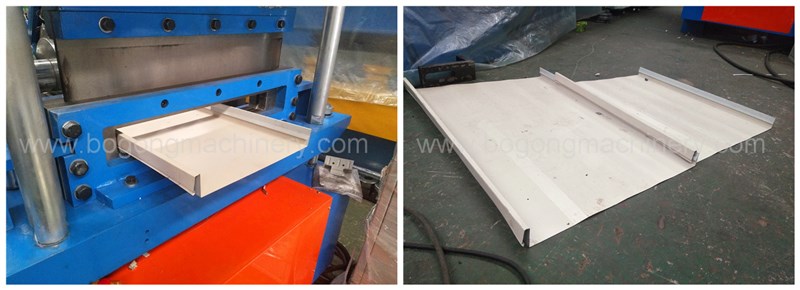

3. This is the type changeable steel sheet ceiling panel roll forming machine, can produce three sizes of ceiling panels, D-spacer change the types, but the cutting blades should be changed after exchanging anther width. One alone station for roll forming strength ribs, user can choose roll forming ribs or not.


Technical Parameters


Parameters

Specification

Voltage

380V/50HZ/3PH/or customized

Driving Motor

5.5KW

Forming Steps

 20 steps

Working Speed

15-20m/min

Thickness for Steel

0.3-0.6mm (Material:PPGI,GI Steel G550)

Shaft Diameter

75mm

Shaft Material

High grade 45# forged steel

Roller Material

G45# steel, CNC lathe,polished and chrome plated

PLC Cabinet

Schneider, Delta

Encoder

Omron

Sprocket Wheel

45 steel high-frequencies quench

Cut-off System

Post cutting, no waste cutting

Cutting Blade Material

Cr12 steel

Machine Frame Material

Fine welded structural steel;

Roofing Material

PPGI, GI steel G330-550

Painted Color

Blue+Orange Or Customization

Overall Size

10000*1050*1350mm

Weight

6500KGS

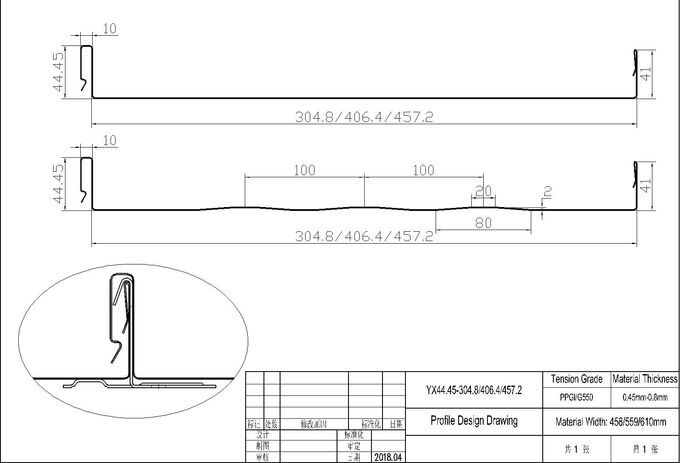

Profile Drawing Drawing



Three feeding width three effective width, changeable design for steel decoration sheet roll forming machine profile design, any need, feel free to contact us, we can customize design or OEM for users.
