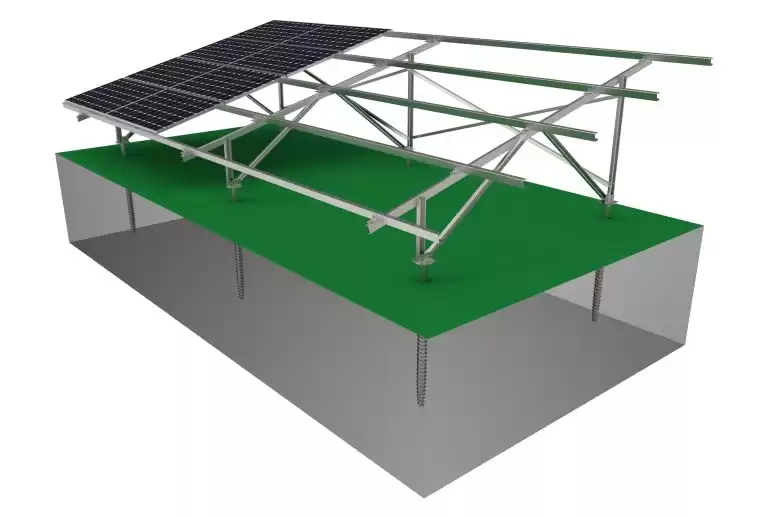

Galvanized C Steel Panel Mounting System for solar ground mounting bracket is designed using galvanized steel,thanks to the 80 um hot-dip galvanized proce5s,it has excellent anti-corrosive properties, suitable for medium to large scale project installation, the folding pre-installed design guarantees efficiency for onsite installation.while the multiple column design improves system stability.
Technical Information
|
Installation Site:
|
Open large ground station
|
|
System type:
|
Ground Solar Mounting Systen
|
|
Material:
|
Hot-dip galvanized steel
|
|
PV Modules:
|
Framed, Frameless
|
|
Module Orientation:
|
Portrait and Landscape
|
|
Module Layout:
|
As Designed
|
|
Angel:
|
Fixed,can be customized designed
|
|
Wind load:
|
60m/s
|
|
Snow load:
|
1.4KN/m2
|
|
Anodized Thickness:
|
15um or customized
|
|
Galvanized Thickness: 80um or customized
|
|
10 years Warranty
|
Advantages
☆Easy Installation
Preassembled and planning before delivery in the factory saving on site installation time.
☆ Quick Assembly
Convenient installation,short construction period, parts have been high pre-assembly on factory to save instation time and cost
☆ Safety and Reliability
suitable for wind,snow area,the spiral pile bracket to ensure strong.stable system,suitable for different geological conditions, especlally in rock,sold, gravel,gobi , desert, dry and hard soil.
