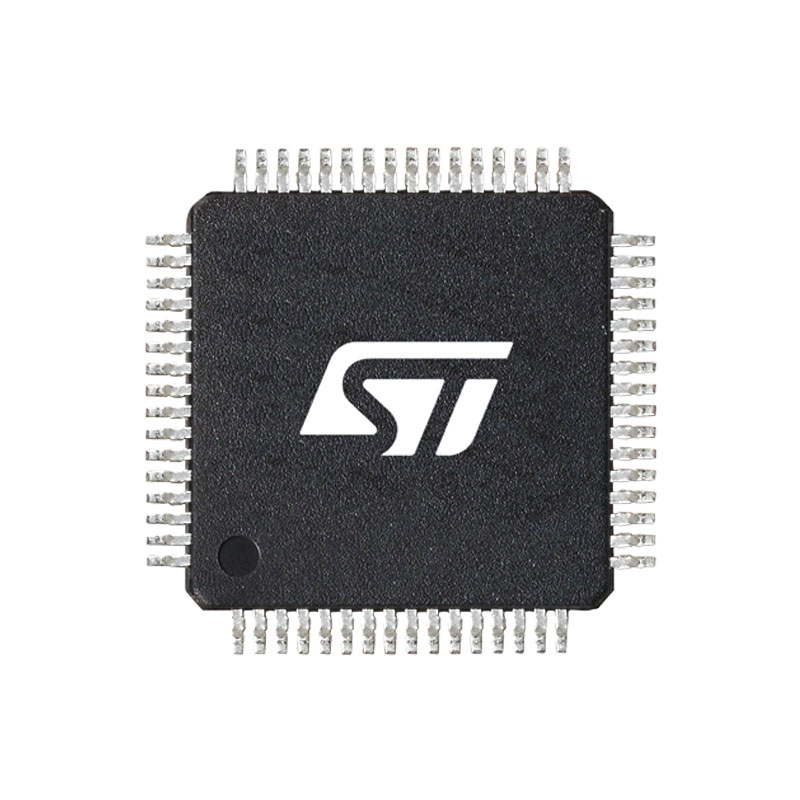

STM32F105RBT6 STMicroelectronics Microcontrollers
Parameter
| Manufacturer |
STMicroelectronics |
| Product Category |
ARM Microcontrollers - MCU |
| Series |
STM32F105RB |
| Mounting Style |
SMD/SMT |
| Package / Case |
LQFP-64 |
| Core |
ARM Cortex M3 |
| Program Memory Size |
128 kB |
Data Bus Width
|
32 bit
|
ADC Resolution
|
12 bit
|
Maximum Clock Frequency
|
72 MHz
|
Number of I/Os
|
51 I/O
|
Date Ram Size
|
64 kB
|
Supply Voltage - Min
|
2 V
|
Supply Voltage - Max
|
3.6 V
|
Minimum Operating Temperature
|
- 40 C
|
Maximum Operating Temperature
|
+ 85 C
|
Packaging
|
Tray
|
Data RAM Type
|
SRAM
|
Height
|
1.4 mm
|
Interface Type
|
CAN, I2C, SPI, USART, USB
|
Length
|
10 mm
|
Moisture Sensitive
|
Yes
|
Number of ADC Channels
|
16 Channel
|
Number of Timers/Counters
|
10 Timer
|
Processor Series
|
ARM Cortex M
|
Product Type
|
ARM Microcontrollers - MCU
|
Program Memory Type
|
Flash
|
Package Quantity (Bag/Roll/Tray/Tube)
|
960 pcs
|
Subcategory
|
Microcontrollers - MCU
|
Tradename
|
STM32
|
Width
|
10 mm
|
Unit Weight
|
0.029277 oz
|
Introduction
The STM32F105RBT6 is a microcontroller unit (MCU) from the STM32F1 series, which is manufactured by STMicroelectronics.
This MCU is based on the ARM Cortex-M3 processor core and has a clock speed of up to 72 MHz. It has 128 KB of flash memory for storing program code and 64 KB of SRAM for data storage. It also has a wide range of peripherals, including USB, CAN, SPI, I2C, ADC, and DAC interfaces, as well as timers, interrupts, and GPIOs.
The "R" in the part number indicates that the device is in a LQFP64 package, while the "B" indicates that it has 64 pins. The "T" indicates that it operates over a temperature range of -40°C to +85°C. The "6" at the end of the part number indicates the package type, which is a tray.
Overall, the STM32F105RBT6 is a versatile MCU that can be used in a wide range of applications, including industrial automation, consumer electronics, and automotive systems.
Application
STM32F105RBT6 is a powerful microcontroller that can be used in a variety of industry applications. Here are some common use cases:
1.Industrial Automation: can be used to control robots, PLCs, industrial controllers, factory automation, and process control systems.
2.Consumer Electronics: can be used to control smart home devices, smartphones, tablets, game consoles, audio/video equipment, TV set-top boxes, digital cameras, etc.
3.Automotive Electronics: can be used in automotive electronic control units (ECUs), in-vehicle entertainment systems, body control systems, in-vehicle navigation systems, in-vehicle communication systems, etc.
4.Medical Devices: can be used in medical devices such as electrocardiographs, glucometers, medical image processing, control and monitoring, etc.
5.Security Systems: can be used in security systems such as access control, surveillance cameras, security alarm systems, etc.
6.Energy Management: Can be used in energy management systems such as smart meters, solar controllers, wind controllers, etc.
7.Other Fields: Can be used in other fields, such as aerospace, military, IoT, intelligent transportation, etc.
In summary, STM32F105RBT6 isa powerful and versatile microcontroller that can be used in a wide range of industry applications.
