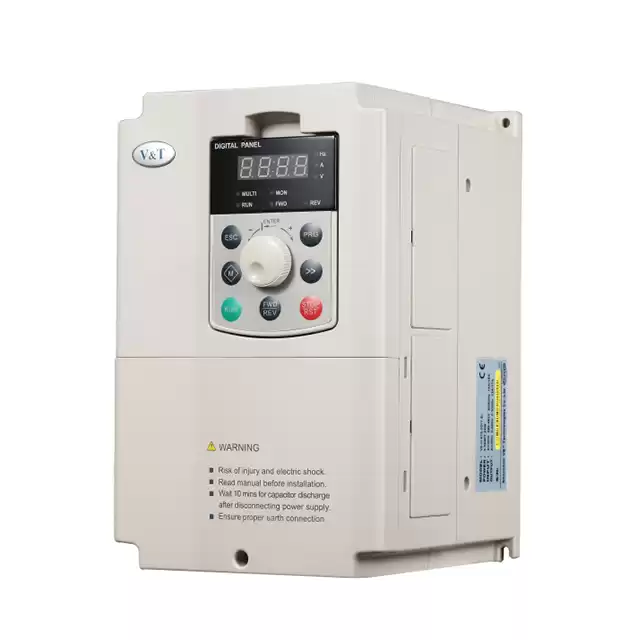

Product Overview
|
Item
|
Description
|
|
Product Name
|
Frequency Inverter/ AC Drive
|
|
Model Number
|
V5-H-4TxxG-C8
|
|
Power Range
|
0.75kW-75kW
|
|
Rated Input Voltage
|
3 phase 380V/480V
|
|
Rated Output Voltage
|
3 phase 0 to rated input voltage
|
|
Input Frequency
|
50Hz/60Hz
|
|
Control Mode
|
V/F Control, Vector Control, Sensorless Vector Control, Vector Torque Control
|
|
IP Class
|
Standard IP20
|
|
Overload Capacity
|
150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature)
|
Feature
■ Wide input voltage range
When the inverter is fully loaded, the input voltage range is 320 ~ 480V.
■ Strong anti-interference capability
Multiple inverter are installed in the same electric control cabinet with non-interference at strictly international EMC standard design.
■ Strong environment adaptiveness
The environment of stone processing is very bad with two much dust on site ,and it is easy to be not good heat dissipation or fan blocked.
■ Excellent vector control
Strong torque under low frequency, high stability and precision, greatly meet the needs of the stone industry.

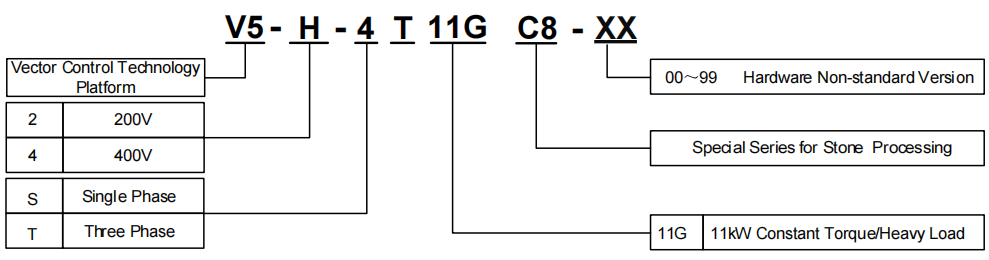

Model Explanation
Product Catalogue
V5−H−4T□□□G−C8 ; 3 Phase 400V Constant Torque/Heavy-duty Applications
|
Power（kW）
|
0.75
|
1.5
|
2.2
|
3.7
|
5.5
|
7.5
|
11
|
15
|
18.5
|
22
|
30
|
37
|
45
|
55
|
75
|
|
Motor（kW）
|
0.75
|
1.5
|
2.2
|
3.7
|
5.5
|
7.5
|
11
|
15
|
18.5
|
22
|
30
|
37
|
45
|
55
|
75
|
|
Output
|
Voltage（V）
|
3 phase 0～Rated Voltage
|
|
Rated Current（A）
|
2.5
|
3.8
|
5.5
|
9
|
13
|
17
|
24
|
30
|
39
|
45
|
60
|
75
|
91
|
112
|
150
|
|
Overload capacity
|
150% ;1min，180% ;10 second， 200% ;0.5 second，interval: 10 minutes (inverse time lag ;feature)
|
|
Input
|
Voltage/ frequency
|
3 phase 380V～480V；50Hz/60Hz
|
|
Allowable voltage range
|
323V～528V；Voltage imbalance：≤3% ；allowable frequency fluctuation：±5%
|
|
Rated Current（A)
|
3.5
|
6.2
|
9.2
|
14.9
|
21.5
|
27.9
|
39
|
50.3
|
60
|
69.3
|
86
|
104
|
124
|
150
|
201
|
|
Braking unit
|
Built-in as standard
|
Built-in as optional
|
|
IP
|
IP20
|
|
Cooling mode
|
Natural air cooling
|
Forced air cooling
|
Installation Dimension
V5−H−4T7.5G−C8 and below power class
V5-H-4T11G−C8 ;and above ;power class
|
Voltage
|
Model
|
Appearance, Installation Dimensions（mm）
|
Weight
（kg）
|
|
W
|
H
|
D
|
W1
|
H1
|
D1
|
T1
|
Hole d
|
|
400V
|
V5−H−4T0.75G−C8
|
118
|
190
|
155
|
105
|
173
|
40.8
|
3
|
5.5
|
1.5
|
|
V5−H−4T1.5G−C8
|
118
|
190
|
175
|
105
|
173
|
60.5
|
4
|
5.5
|
2.6
|
|
V5−H−4T2.2G−C8
|
|
V5−H−4T3.7G−C8
|
|
V5−H−4T5.5G−C8
|
155
|
249
|
185
|
136
|
232
|
69
|
8
|
5.5
|
4.5
|
|
V5−H−4T7.5G−C8
|
|
V5−H−4T11G−C8
|
210
|
337
|
200
|
150
|
324
|
88
|
2
|
7
|
8.5
|
|
V5−H−4T15G−C8
|
|
V5−H−4T18.5G−C8
|
289
|
440
|
215
|
200
|
425
|
88
|
2.5
|
7
|
17
|
|
V5−H−4T22G−C8
|
|
V5−H−4T30G−C8
|
|
V5−H−4T37G−C8
|
319
|
575
|
212
|
220
|
553
|
90.5
|
2.5
|
10
|
25
|
|
V5−H−4T45G−C8
|
|
V5−H−4T55G−C8
|
404
|
615
|
250
|
270
|
590
|
86.5
|
3.0
|
10
|
35
|
|
V5−H−4T75G−C8
|
Applications
Representative Industry
The Stone Processing Inverter of Shenzhen V&T Technologies Co.,Ltd. are widely used in Gantry Stone Saw, Rope Saw, Stone Processing, Fan, Conveyor, universal fields etc.
