Stormwater Collection Tank Module


Leiyuan offers packaged solutions directly to green build developers, builders and homeowners. We also provide commercial grade rainwater harvesting components to builders & owners of commercial properties.


  • SizeL680*W450*H410mm
  • Total Volume0.125CBM/module
  • Press Strength25tons/sqm
  • ColorBlack
  • MaterialPP

Let Every Drop of Rainwater Full Play Its Value

Stormwater Collection Tank Module Specification:

 Product Name Stormwater Collection Module
 Material PP
 Place of Origin Fujian, China
 Color Black
 Dimension     L680*W450*H410mm
 Total Volume     0.125 CBM/module
 Weight         8kg/module
 Working Temperature From -30℃ to +120℃
 Pressure Strength     25tons/sqm
 HS Code  3925900
 Feature

Interconnecting Units

Light weight and high strength

Cost effective and eco-friendly

Resistant to acid and alkali

High capacity and high stability

95% void ratio

Space saving

Strong structural design

Straightforward installation

High working efficiency

25 tons/sqm of pressure capability

More than 50 years working life

 Application

Roof Garden

Road Drainage

Water Filtration System

Car Parking Lot

Residential Area

Parkland

Sports Field System

Golf Course

 Certificate     ISO9001:2008

Greengrassgrid

Benefits:

1. Harvest rainwater

2. Reduce polluted storm water runoff

3. Protect natural bush lands and creeks

4. Provide and ecologically sustainable storm water system

5. Quick Installation – Reduce site access delays

6. Lightweight – No cranes or lifting equipment required

7. Strong structural design – Designed for car loading

8. Modular – Easily create any shape and size to suite site requirements

9. Maintenance Free Tank – All debris and sediment is removed by pr-filtration

10. Determinate Volume- 95% internal void area

11. Cost Effective – Reduces excavation and disposal by two thirds compared with conventional soak wells.

12. High Infiltration – 90% void surface area

13. Easily Transportable

Greengrassgrid

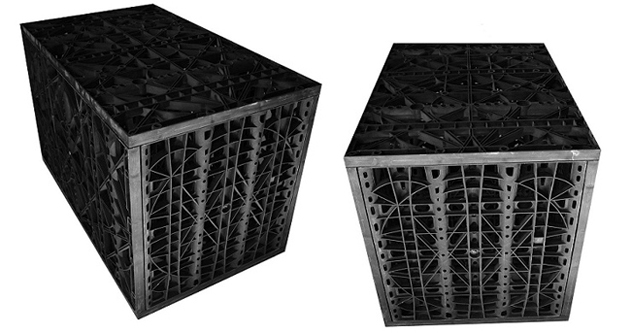

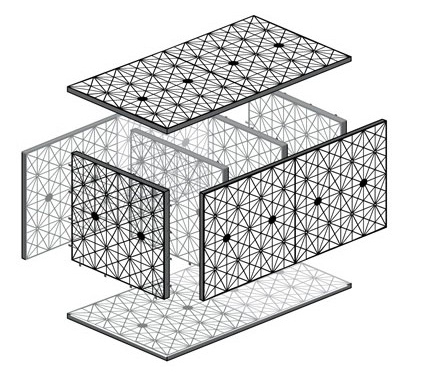

Stormwater Collection Tank Module Detail Pictures:

                      drainage cell tank module

Greengrassgrid

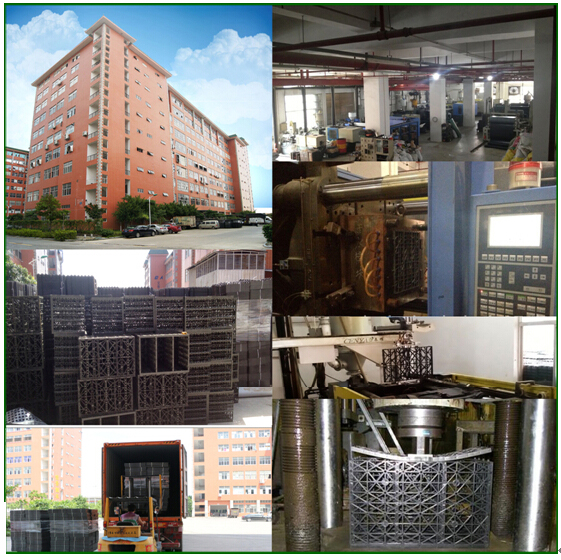

Company Introduction:

From 2008, Quanzhou Mingjing Plastic Products Co., Ltd. cooperative invested by Quanzhou Leiyuan Industrial Co., Ltd. is mainly engaged in the research and production of plastic gardening materials. Now the company covers a factory area of more than eight thousand square meters. Leiyuan provide high quality and environmentally friendly Drainage Tank Module with a high void ratio and are ideal for creating underground storage tanks.

The products we dealing with: drainage cell, grass grid, drain cover, vertical greening container, roof greening plant container, root barrier, Waterproof material etc.

drainage cell tank module

Greengrassgrid

Brief Introduction about Stormwater Collection Module:

Water Tank Module means the entire process of rainwater collecting. It is becoming increasingly obvious to most governments around the world that the cost of providing a usable water supply is increasing rapidly. Decaying infrastructure and storm water system pollution is not only contaminating ecosystems but this valuable source of water is literally going down the drain. A solution for this problem is Rainwater harvesting, it is the process of collecting, storing, and distributing rainwater from the roof for use in and around the home or office.


Leiyuan Stormwater Collection Module designed with scientific structure and manufactured using recycled material. It is a lightweight structural component developed through years of research & development. Pressure strength per square meter is 25tons. Plastic modular is ideal for the construction infiltration tanks, re-use tanks, sub surface channels and lightweight void spaces for rooftop gardens, parkland, parking lot, road etc. We are able to produce higher pressure strength products according to customers’ specification.

Stormwater Collection Module

Greengrassgrid

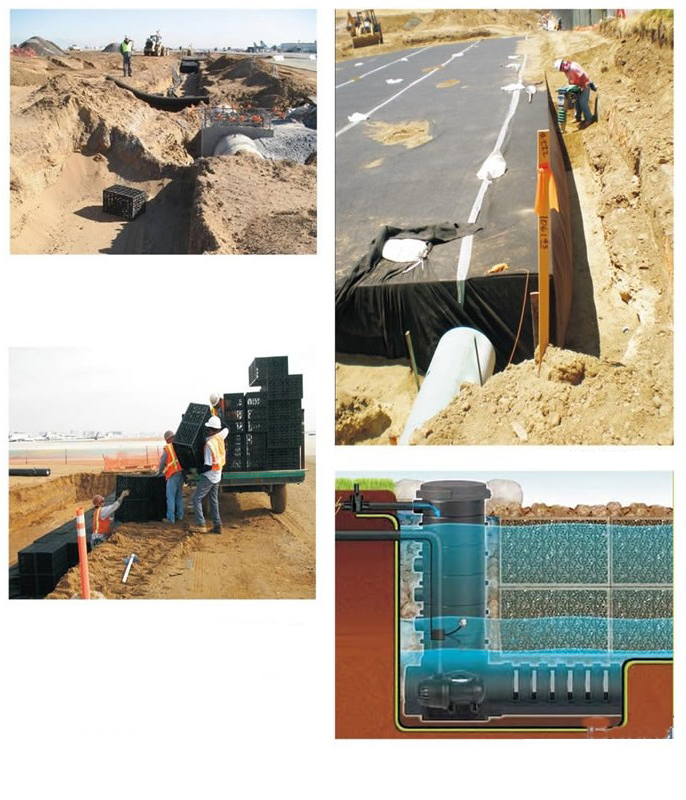

Project of Stormwater Collection Tank Module:

Stormwater Collection Tank Module
