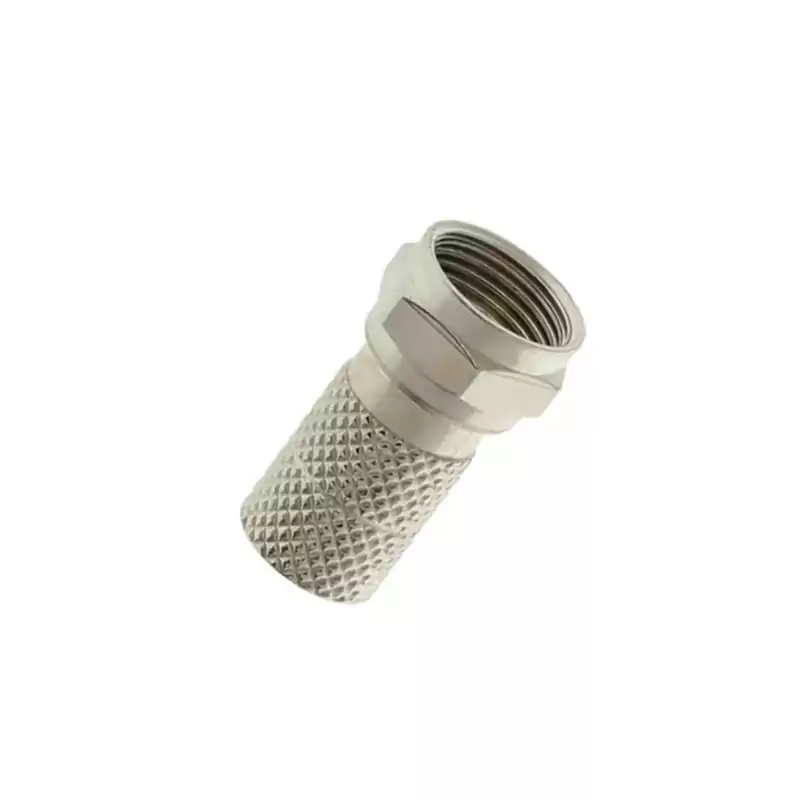

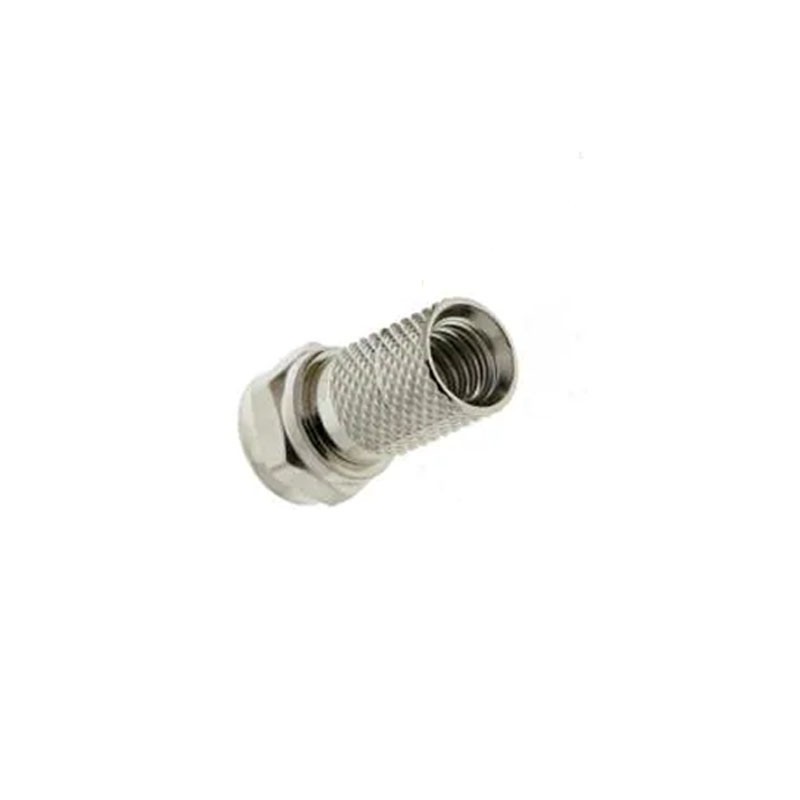

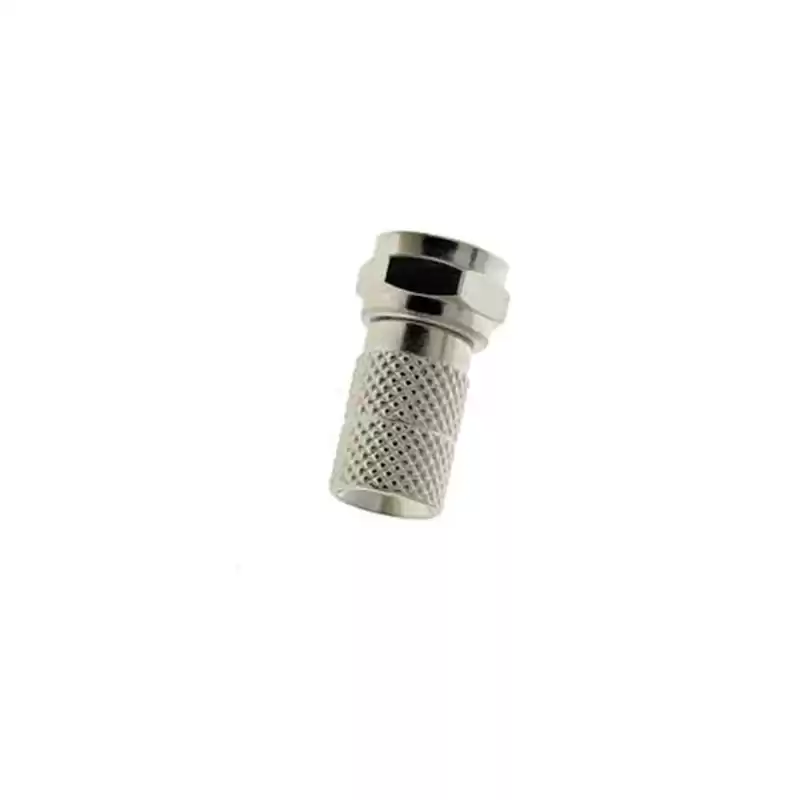

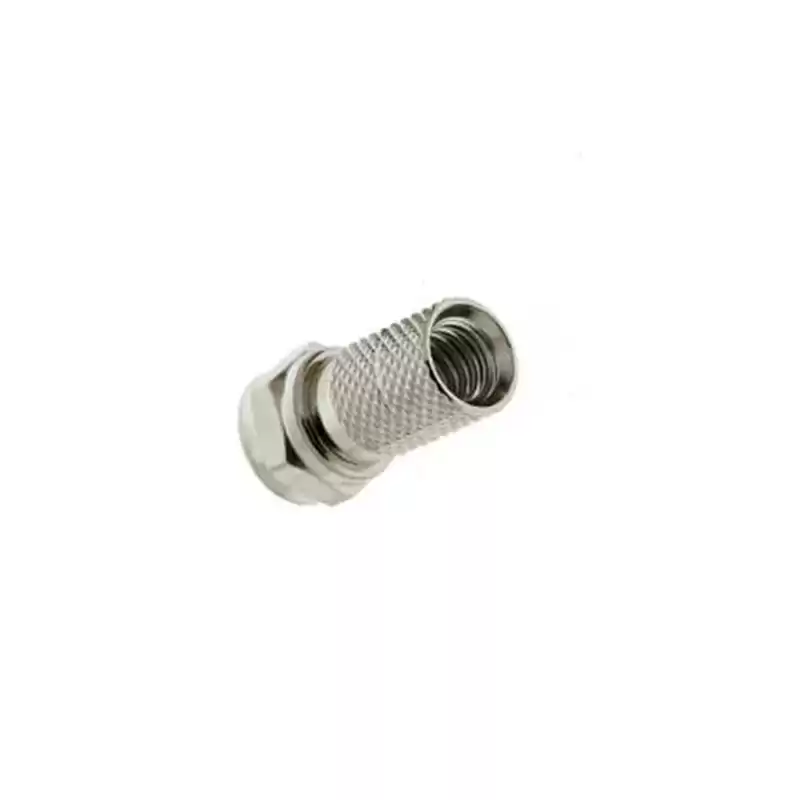

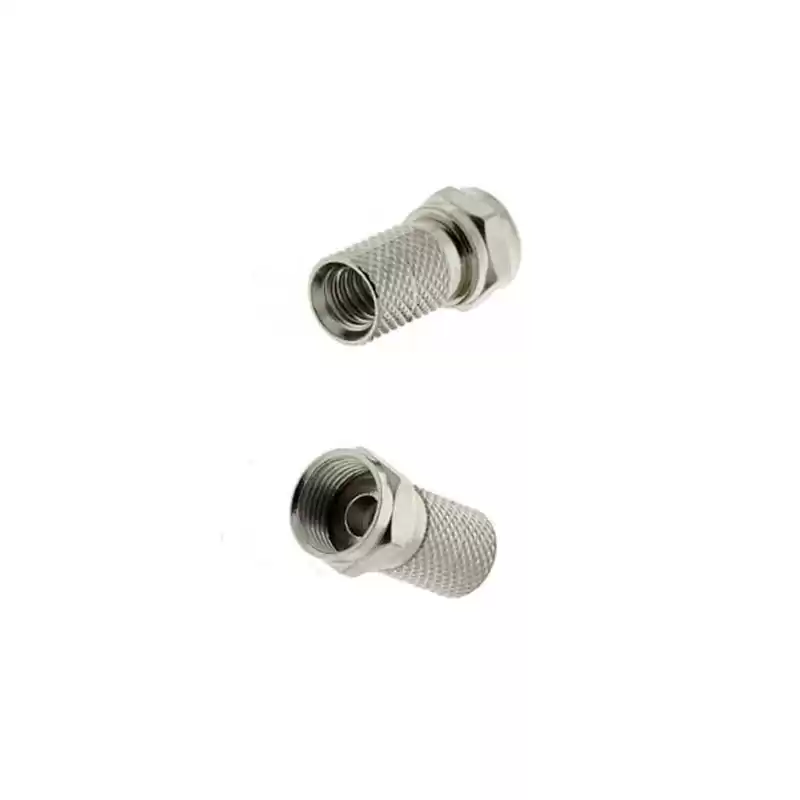

Straight RF Coaxial Plug Male F Connector for RG58/179 Cable
The F Type connector is 50 ohm- 75 ohm product designed for a wide range of coaxial cable. F-Type connector is a threaded alternative to the slide-on G-Type connector;The F Type connector series is a durable, high performance threaded interface. Primary applications of the F-Type connectors are for cable television (CATV), set top boxes and cable modems.
Specifications
| Mechanical Characteristics |
|
| Temperature Range |
-40°C to +60°C |
| Vibration |
100m/s2(10-500Hz) |
| Impedance |
75Ω |
| Frequency Range |
DC - 1 GHz (DC - 3 GHz on Extended Range Designs) |
| Working Voltage |
170V max |
| Withstand Voltage |
500V rms |
| Contact Resistance |
Inner conductor: ≤10mΩ |
| Outer conductor: ≤5mΩ |
| Insulation Resistance |
≥1000mΩ |
| VSWR |
straight ≤1.2 |
| right angle ≤1.3 |
| Durability |
≥500 cycles |
| Material |
|
| Shell |
Brass--Ni plated |
| Pin contactor |
Brass--Au / Ag plated |
| Elastic contact |
Beryllium / Tin brass--Au / Ag plated |
| Crimping suite |
Copper alloy--Ni / Au plated |
| O-ring sealing |
Silastic |
| Insulator |
PTFE |
Applications
- Set Top Boxes
- Head End Equipment
- CATV
- High Speed Cable Modems
- Hybrid Fiber Coax Networks
- CIMs
