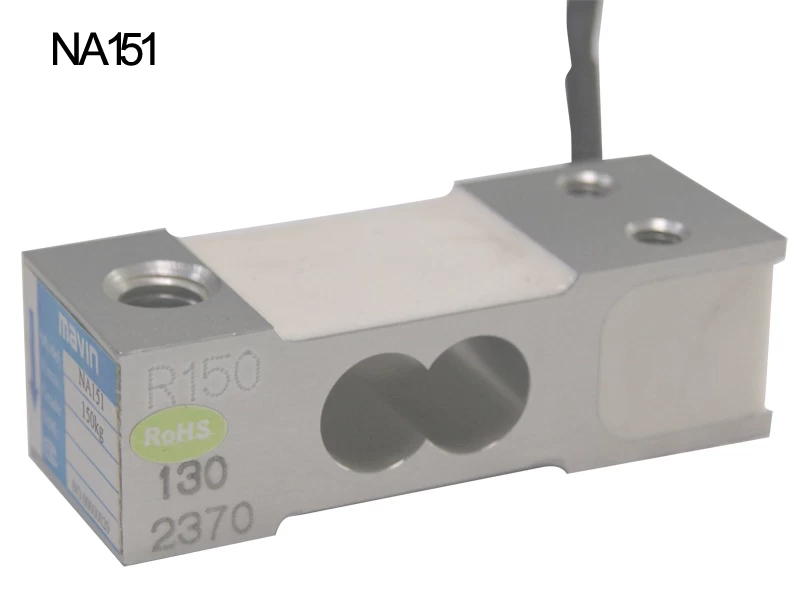

Mavin NA151 Single Point Load Cell low capacity 10-200kg
The NA151 is a industrial single point load cell made from aluminum. The low capacity weight sensor is suitable for the instrument to switch from mechanic to electronic.
Key Features：
Aluminum
construction with surface anodized
Capacity: 10-200kg
Accuracy:0.02%R.O.
Usage & Applications：
The instrument to switch from mechanic to electronic.

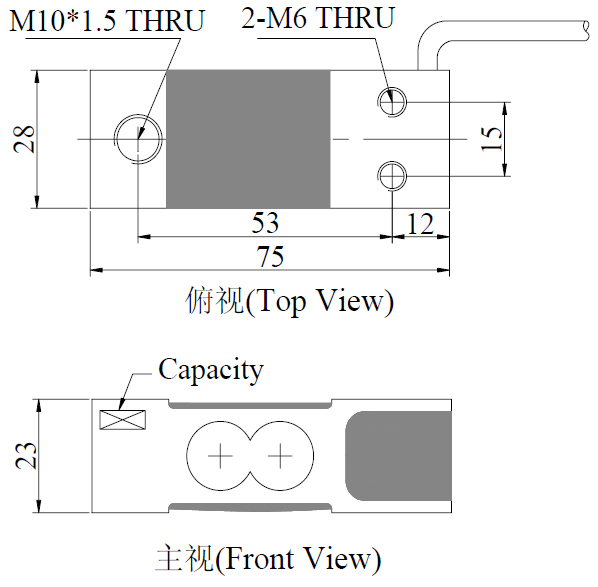

Dimension：
NA151 Specification：
|
Rated Capacities
|
10, 20 ,40 , 60 , 120 , 150, 200 (kg)
|
|
Rated Output
|
2.0 mV/V±10%
|
|
Zero Balance
|
±0.0200 mV/V
|
|
Non-linearity
|
0.02 %R.O.
|
|
Hysteresis
|
0.02 %R.O.
|
|
Repeatability
|
0.02 %R.O.
|
|
30mins Creep
|
0.02 %R.O.
|
|
30mins Return
|
0.02 %R.O.
|
|
Safe Overload
|
150 %R.O.
|
|
Ultimate Overload
|
200 %R.O.
|
|
Temperature Effect On Output
|
0.002 %R.O./℃
|
|
Temperature Effect On Zero
|
0.003 %R.O./℃
|
|
Input Impedance
|
410±15 Ω
|
|
Output Impedance
|
350±5 Ω
|
|
Insulation Impedance
|
≥5000 MΩ/(50VDC)
|
|
Recommended Excitation
|
5~12 VDC
|
|
Maximum Excitation
|
15 VDC
|
|
OperatingTemperatureRange
|
-20~60 ℃
|
|
Construction
|
Aluminum Alloy
|
|
Protection Class
|
IP66 / IP67
|
|
Cable
|
φ4×0.5m
|
|
Recommended Platform Size
|
300×300 mm
|
|
Mode of Connection
|
Red（EXC+）,Black（EXC-）,
Green（SIG+）,White（SIG-）
|
