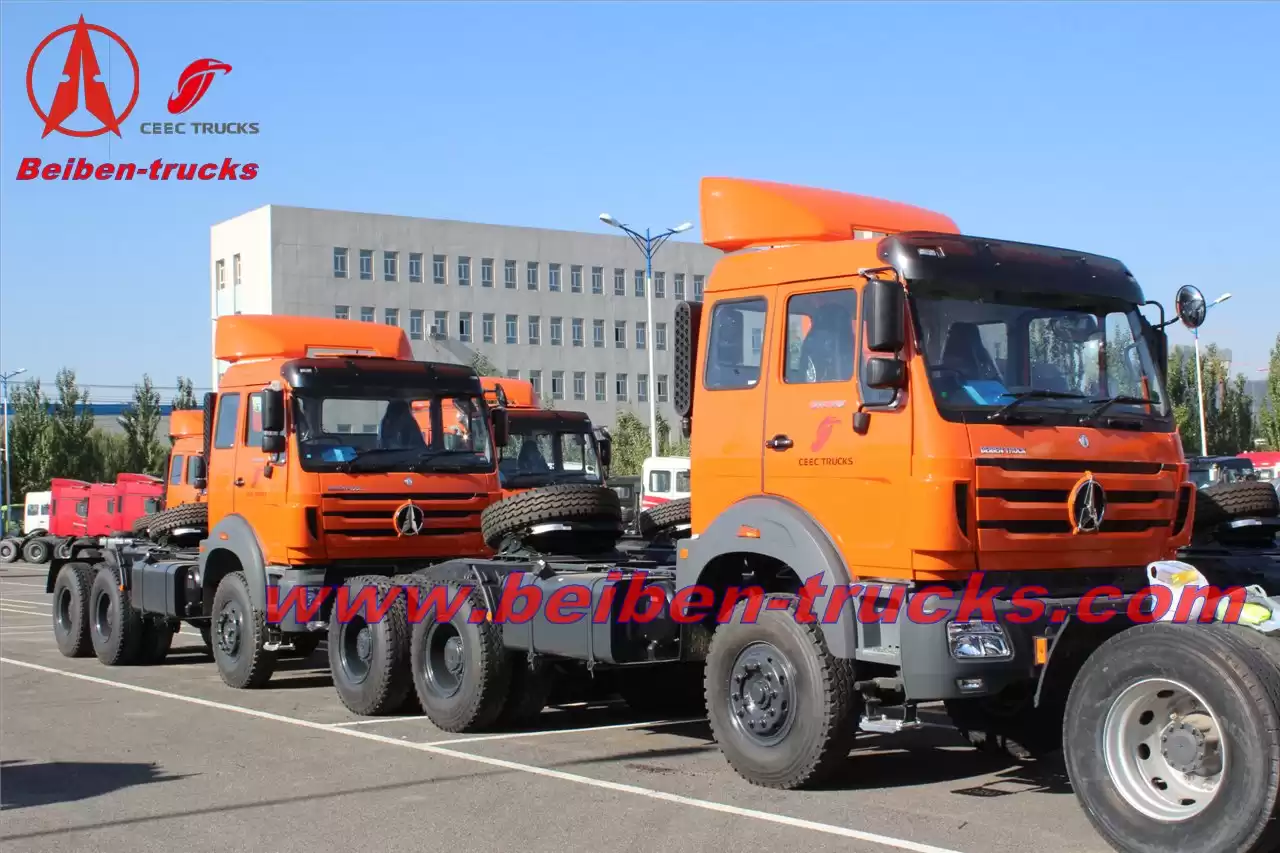

Strong Horsepower Beiben NG80 Series 4X2tractor truck supplier
| Cab |
long cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure. Inner A/C |
| Kerb weight |
7020kg |
| Gross towing trailer weight |
34850kg |
| Wheelbase(mm) |
3500 |
| Engine |
Brand:WEICHAI Model:WP10.340E32 Emission Standard:EURO3 |
| Power (kw/hp):199/270 Max torque:1270N·m/1200—1500rpm |
| Type:Diesel Displacement (L):9.726 |
| Transmission |
Brand:FAST GEAR Model:9JS150 |
| Clutch |
Single dry frictional disc,Hydraulic boosting |
| Steering |
Model:TAS85 |
| Brake |
Service brake:Brake gap can be adjusted automatically, double circulation air brake system Assistant brake:Engine exhaust brake Park brake:Potential springs pressing on middle and rear wheels |
|
|
| Frame |
Fish belly shape,variable width, variable section side beam structure |
| Front axle (Mercedes Benz Technology) |
7.5 ton |
| Middle and Rear axle (Mercedes Benz Technology) |
Sigle reduction driving axle |
| Speed Ratio |
5.921 |
| Leaf spring quantity |
9/9+6 |
| Tyre |
315/80R22.5 |
| Fuel tanker capacity L |
400 |
